Lilliput 663/O/P2 User manual

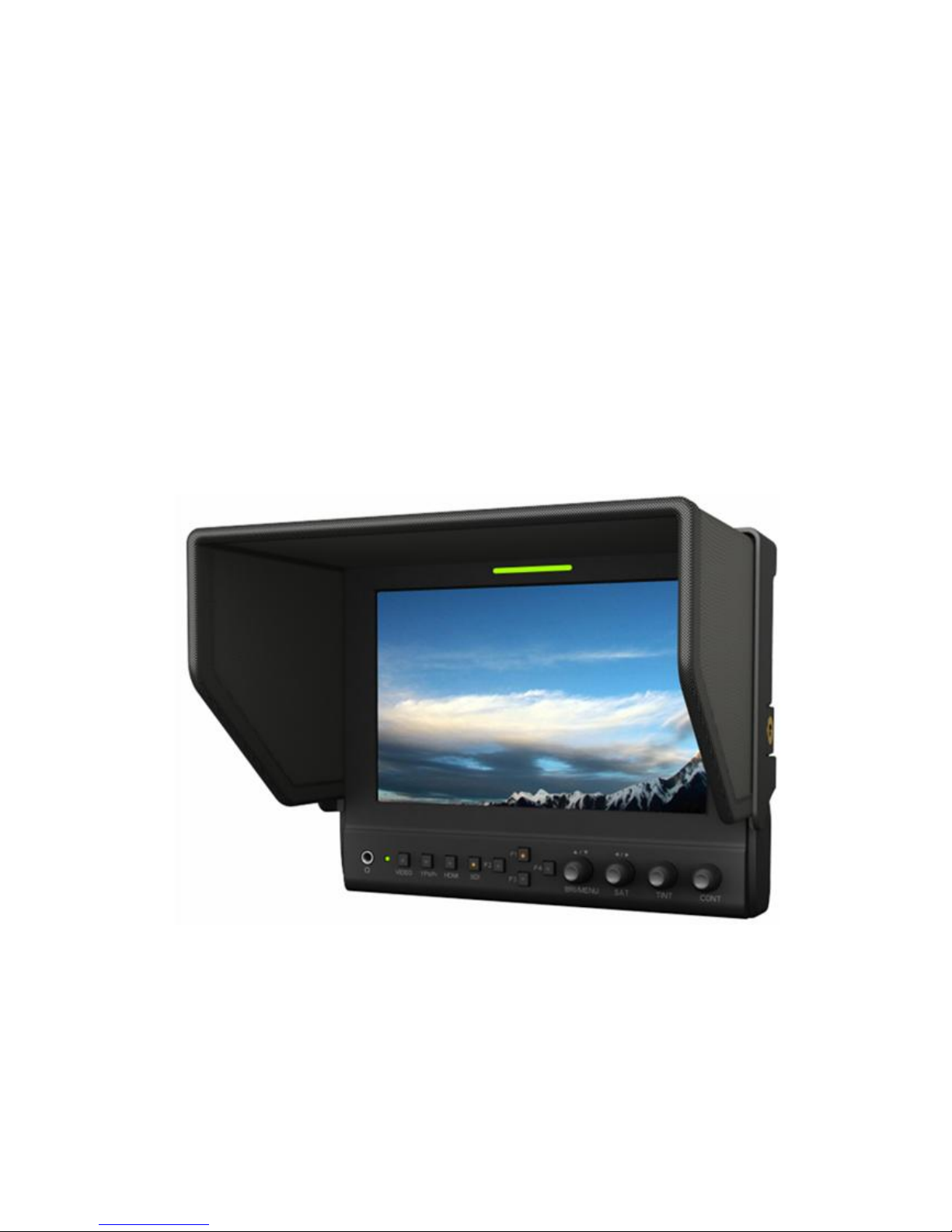

LCD Field Monitor

User Manual

* Advanced functions are only available for product model with"/P2"&"/S2"..

IMPORTANT SAFETY INSTRUCTIONS:

Please read manual before using this product.

Please keep manual for future reference.

Please read the cautions to prevent possible danger and loss of property.

Please enjoy the benefits of convenience, safety, and space-saving from this

TFT LCD monitor in different ways.

FEATURES:

Metal housing;

Wide viewing angles;

Wide voltage: DC 7-24V;

High brightness: 400cd/㎡;

High contrast: 800:1;

TALLY interface with indicating light;

Faster response time;

Firm & portable design;

Long F1~F4 keep press to POP-UP shortcut menu.

CAUTIONS:

1. Please do not place the display screen towards the ground.

2. Please avoid heavy impact or drop onto the ground.

3. Please do NOT use chemical solutions to clean this product. Please wipe with

a clean soft cloth to maintain the brightness of the surface.

4. Please do not block any vent hole.

5. Please follow the instructions and trouble-shootings to adjust the product.

Other improper adjustment may result in damage. Any further adjustment

must be performed or conducted by a qualified technician.

6. Please unplug the power and remove the battery if long-term no-use, or

thunder weather.

YP-01140217

* Advanced functions are only available for product model with"/P2"&"/S2"..

Contents

PRODUCT DESCRIPTION ----------------------

INSTALLATION OF SUNSHADE COVER

AND BATTERY PLATE---------------------------

DV BATTERY MOUNT PLATE-----------------

WIRING INSTRUCTIONS-----------------------

SETTING MENU ----------------------------------

ACCESSORIES ------------------------------------

PARAMETER --------------------------------------

TROUBLESHOOTING --------------------------

* Advanced functions are only available for product model with"/P2"&"/S2"..

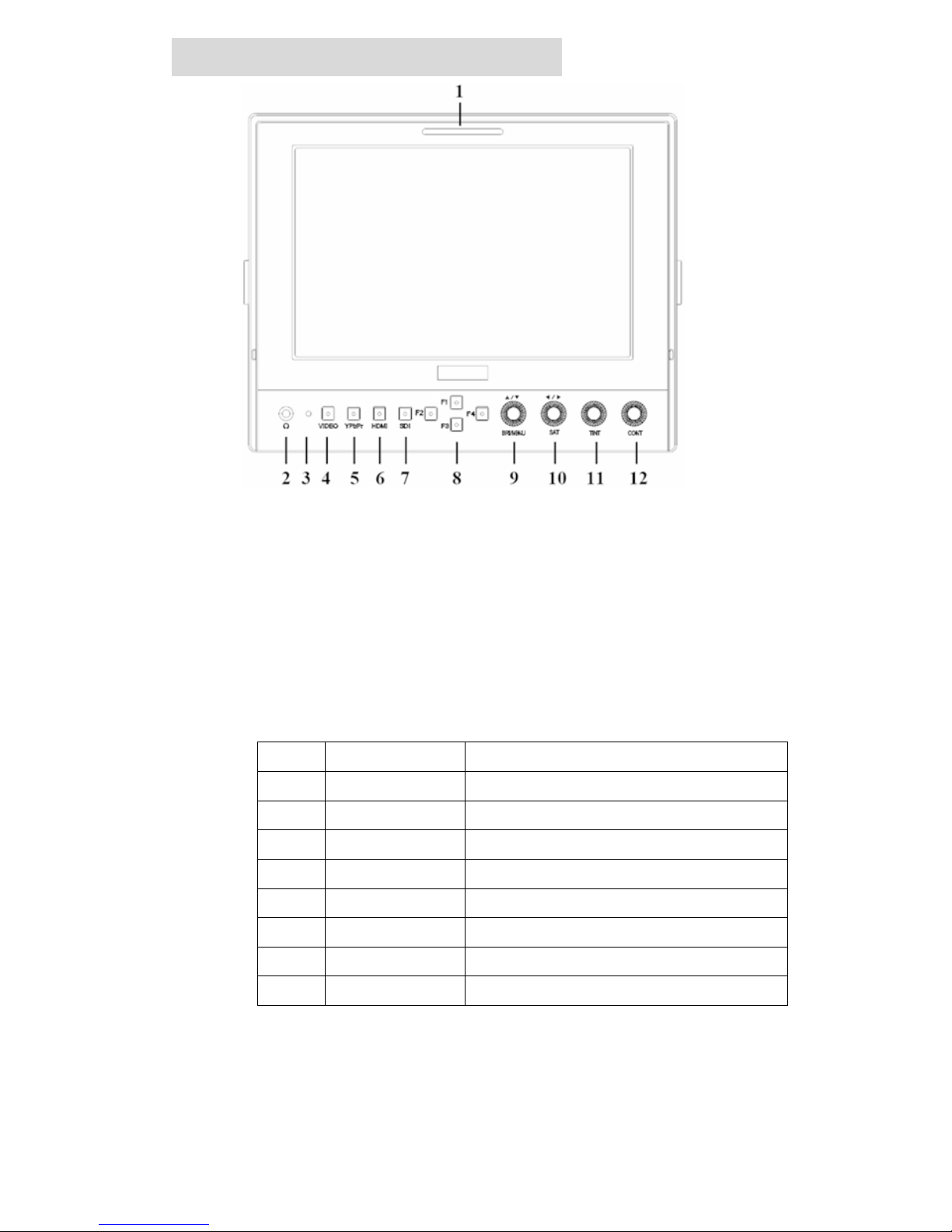

PRODUCT DESCRIPTION

1．TALLY (indicator light).

2．Earphone jack.

3．Power indicator light: ON/OFF (Light turns to red when power on).

4．VIDEO: Indicator lights up when signal switch to video state.

5．YPbPr: Indicator lights up when signal switch to YPbPr state.

6．HDMI: Indicator lights up when signal switch to HDMI state.

7．SDI: Indicator lights up when signal switch to SDI state (optional).

8．F1、F2、F3、F4:User-definable buttons.

Default functions: （function customized to meet your needs）

9．Knob BRI/MENU: Press the knob to access the menu function, pressing

the knob in the menu to return to the previous page or exit the menu.

Rotate knob to select an option.

Default as Brightness function.

Button

Items

Options(Loop switch)

Camera

OFF, ON

H / V Delay

OFF, ON

Check Field

OFF, ON

Screen Marker

OFF, ON

*F1

Peaking

OFF, Color, Mono

*F2

Waveform/Vector

Y, Vector, R, G, B, Cb, Cr, OFF

*F3

Level Meter

OFF, ON

*F4

Histogram

Y, Color, RGB, OFF

* Advanced functions are only available for product model with"/P2"&"/S2"..

10．Knob SAT: Press the knob to select main MENU options; rotate knob to

confirm the selection and adjust parameter values.

Default as Saturation function.

11．Knob TINT: Default as Tint function.

12．Knob CONT: Default as Contrast function.

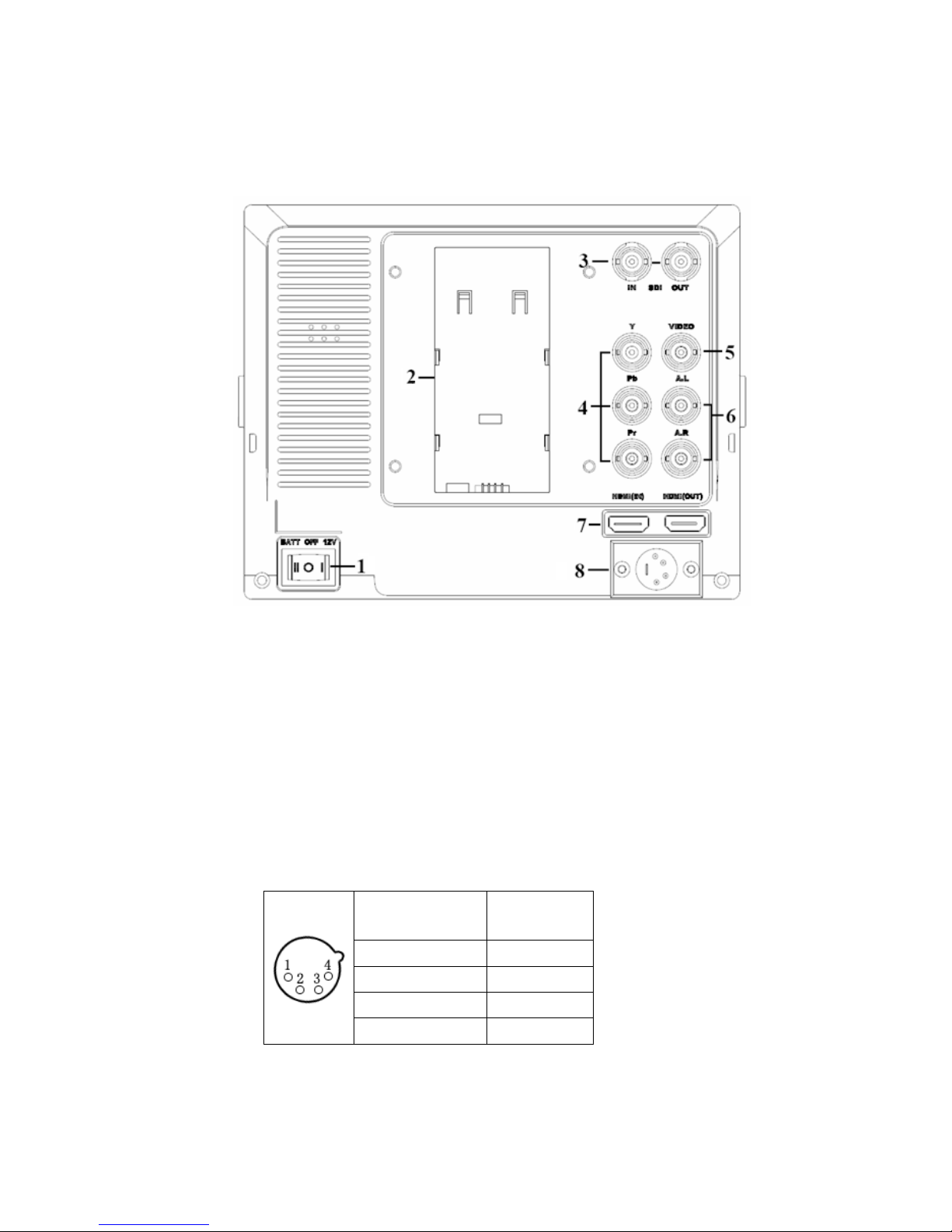

1. Battery power on/off switch: “‖” is battery power; “O”is power off; “|”is

DC power.

2. Battery pinch slots.

3. SDI signal input / output interface (optional).

4. YPbPr signal input interface.

5. Audio signal input.

6. Audio (L/R) input.

7. HDMI (High Definition Multimedia Interface) signal input / output.

8. 4-pin XLR DC power input.

Pin number

Signal

①

GND

②

Red Light

③

Green Light

④

+12V

* Advanced functions are only available for product model with"/P2"&"/S2"..

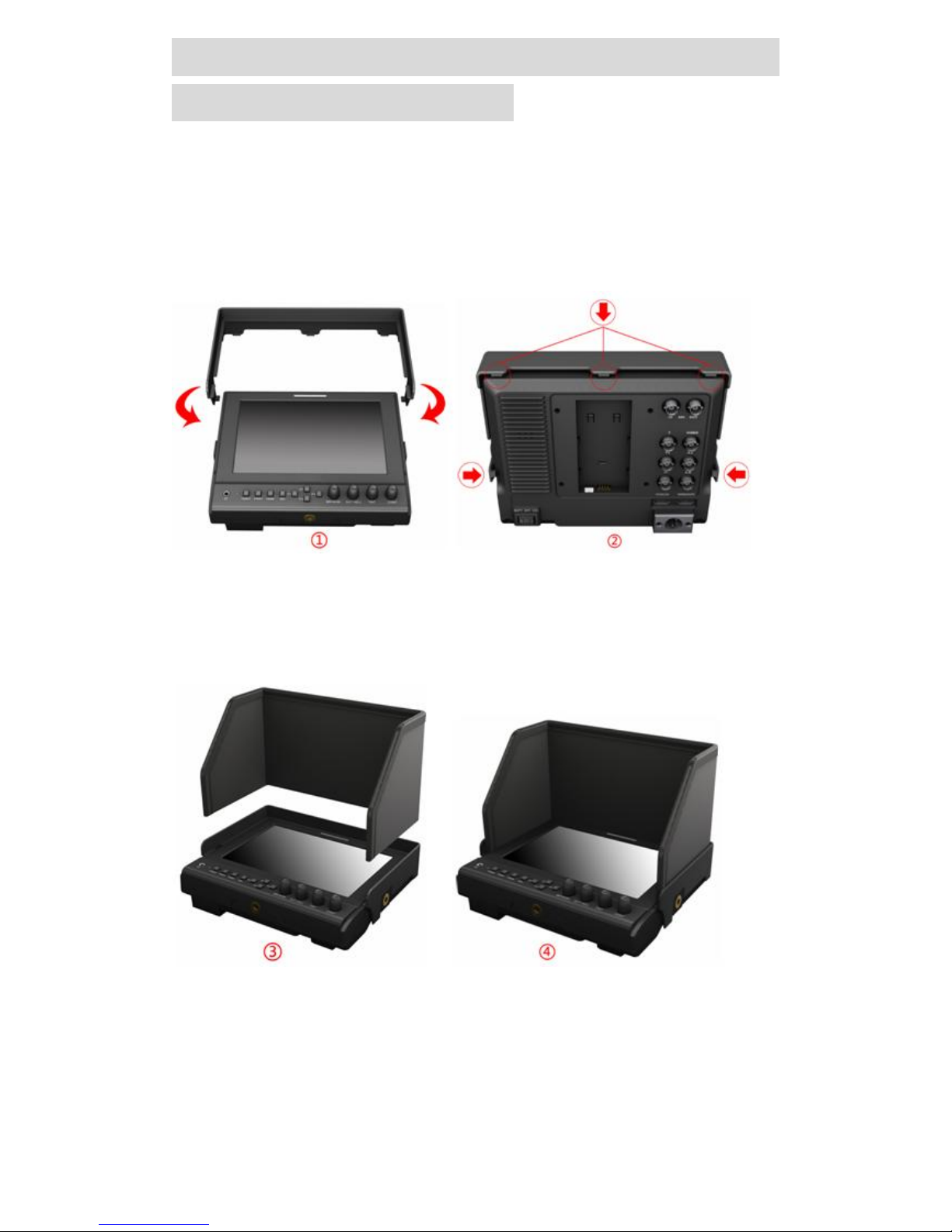

INSTALLATION OF SUNSHADE COVER

AND BATTERY PLATE

Installation of sunshade cover:

①As shown, buckle the sunshade cover on the device.

②As shown, cover buttoned into the appropriate slot, and fastened in accordance with

the order of the both sides.

③As shown, bend sunshade panel to meet and paste with sunshade cover interlocking.

④Installation completed.

* Advanced functions are only available for product model with"/P2"&"/S2"..

DV BATTERY MOUNT PLATE:

Standard mounts process

Following three types of battery plates are suitable for this device, model F970,

QM91D, DU21 & LP-E6 (choose 2 out of 4).

MODEL: F-970 MODEL: QM91D MODEL: DU21 MODEL: LP-E6

DV Battery Mount Plate:

DV Battery Mount Plate Specification:

Model DU21 for battery of Panasonic DV:

NV-GS/PV-GS/DZ-MV/GS/H28/H258/H288GK series, comply with

Panasonic battery DU06/VBD140/SANYO DZhs301sw/Hitachi

DZ-HS303SW/BZ-BP14S/DZ3200/BP07W.

Model QM91D for battery of SONY DV:

DSCR1/F/S/MVCCD/E/HC15E/HC1E/AE1u/DCRTRV828/E/CCD-TRV116/

DCR-DVD/PS105K/300K/10P/1E series.

Model F970 for battery of SONY DV:

DCR-TRV series, DCR-TRV E series, VX2100E PD P series, GV-A700,

GV-D800 FD/CCD-SC/TR3/FX1E/HVR-AIC, HDR-FX1000E, HVR-Z1C,

HVR-V1C, FX7E F330.

Model LP-E6 for battery of Canon DSLR:

5D Mark II/EOS7D/EOS60D;

* Advanced functions are only available for product model with"/P2"&"/S2"..

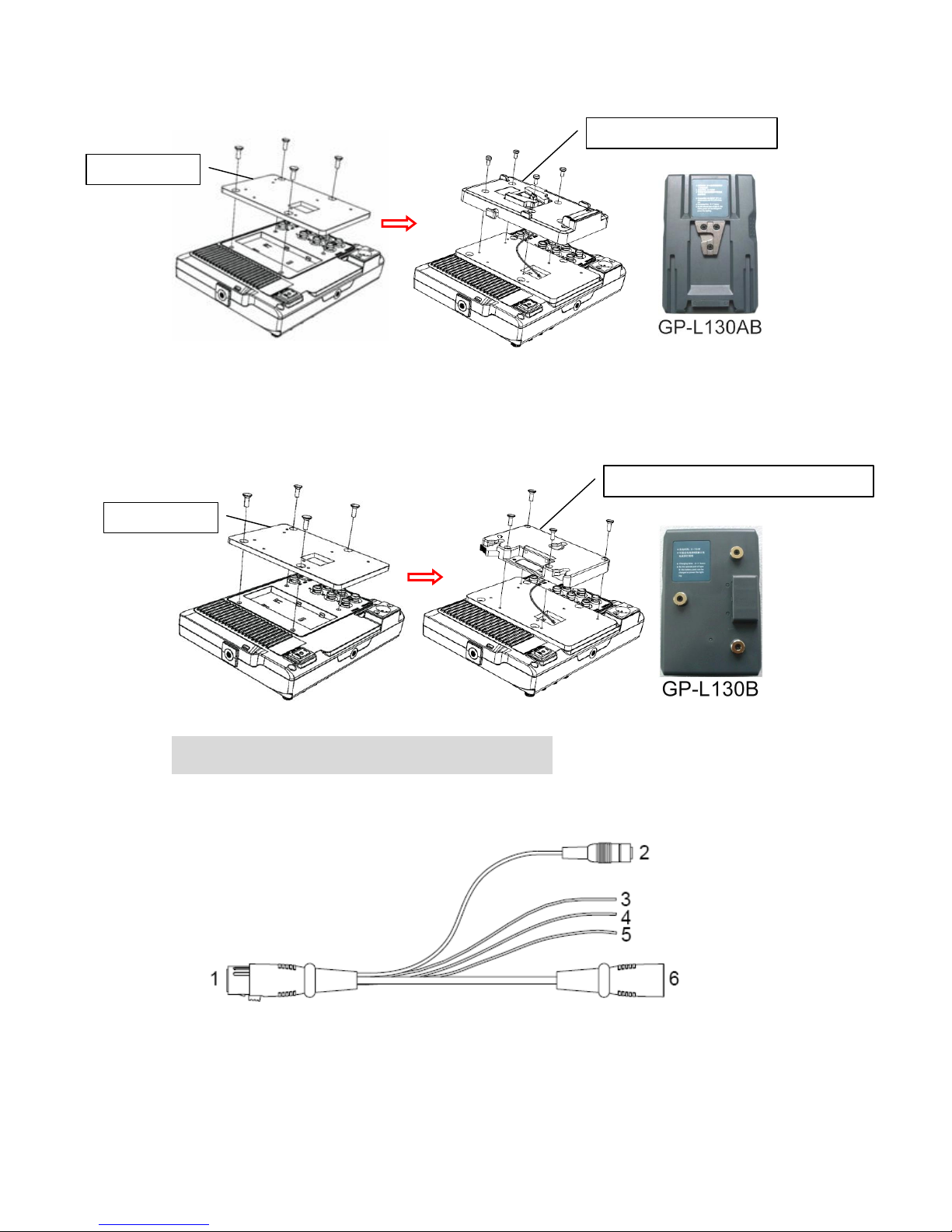

V-mount battery plate (optional): Please refer to GP-L130AB type

battery specifications.

Anton Bauer mount battery plate (optional): Please refer to

GP-L130B type battery specifications.

WIRING INSTRUCTIONS

Power & TALLY cable

1. XLR (M) connector: to connect the XLR connector on device.

2. DC Power adapter connector.

3. Red: for TALLY red light connector.

4. Green: for TALLY green light connector.

5. Black: for grounding.

6. XLR (F) connector: for the XLR adapter.

Adaptor Panel

V-mount Battery Plate

Adaptor Panel

Anton Bauer Mount Battery Plate

* Advanced functions are only available for product model with"/P2"&"/S2"..

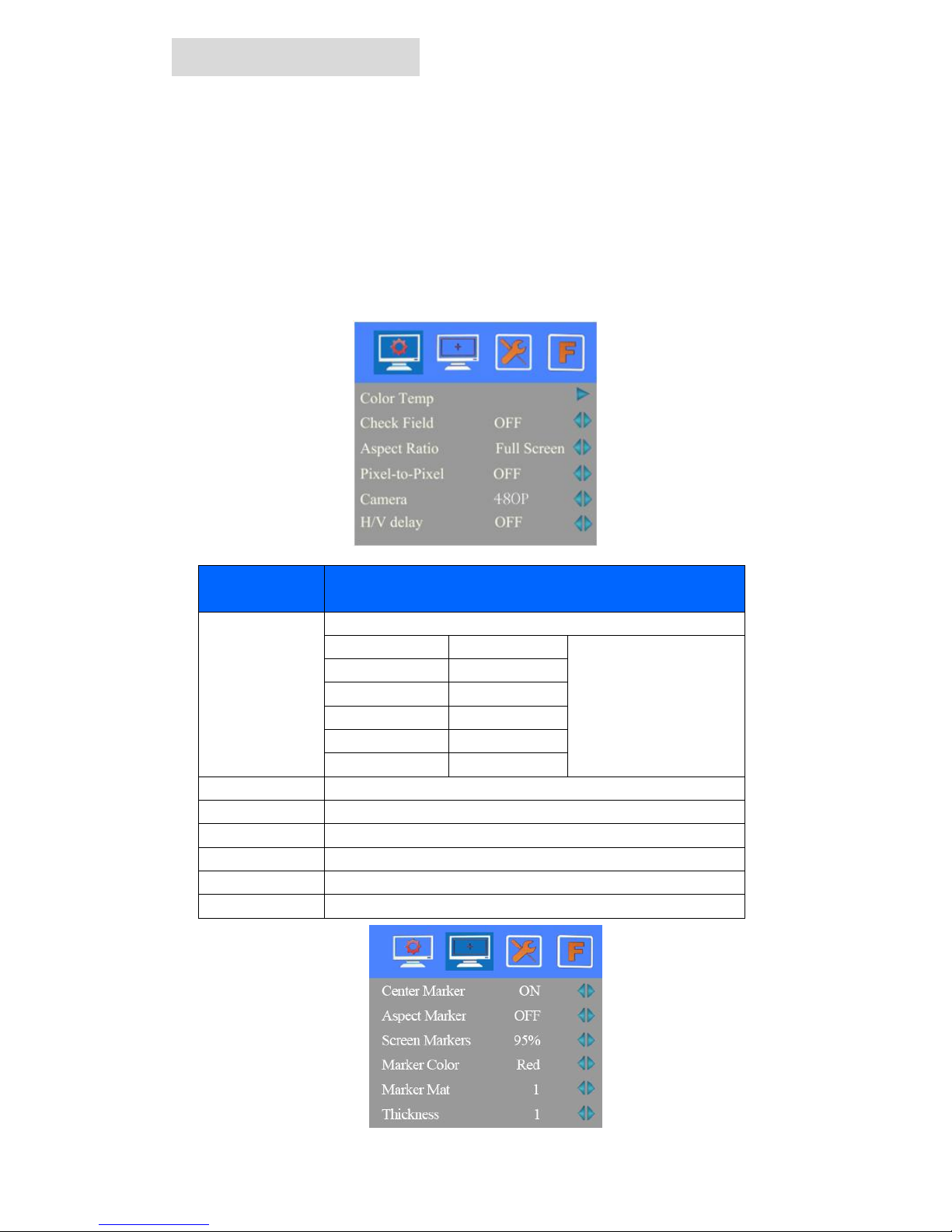

SETTING MENU

Before setting the functions, please make sure the device is connected correctly.

When power on, press BRI/MENU knob on the device, function menus will

pop-up on the screen. After confirm the option value, then press BRI/MENU

knob to return to the previous, and press the BRI/MENU knob again to exit the

menu settings.

BRI / MENU knob: to select an option.

SAT knob to select the main menu, adjusting option values and confirm the

selection.

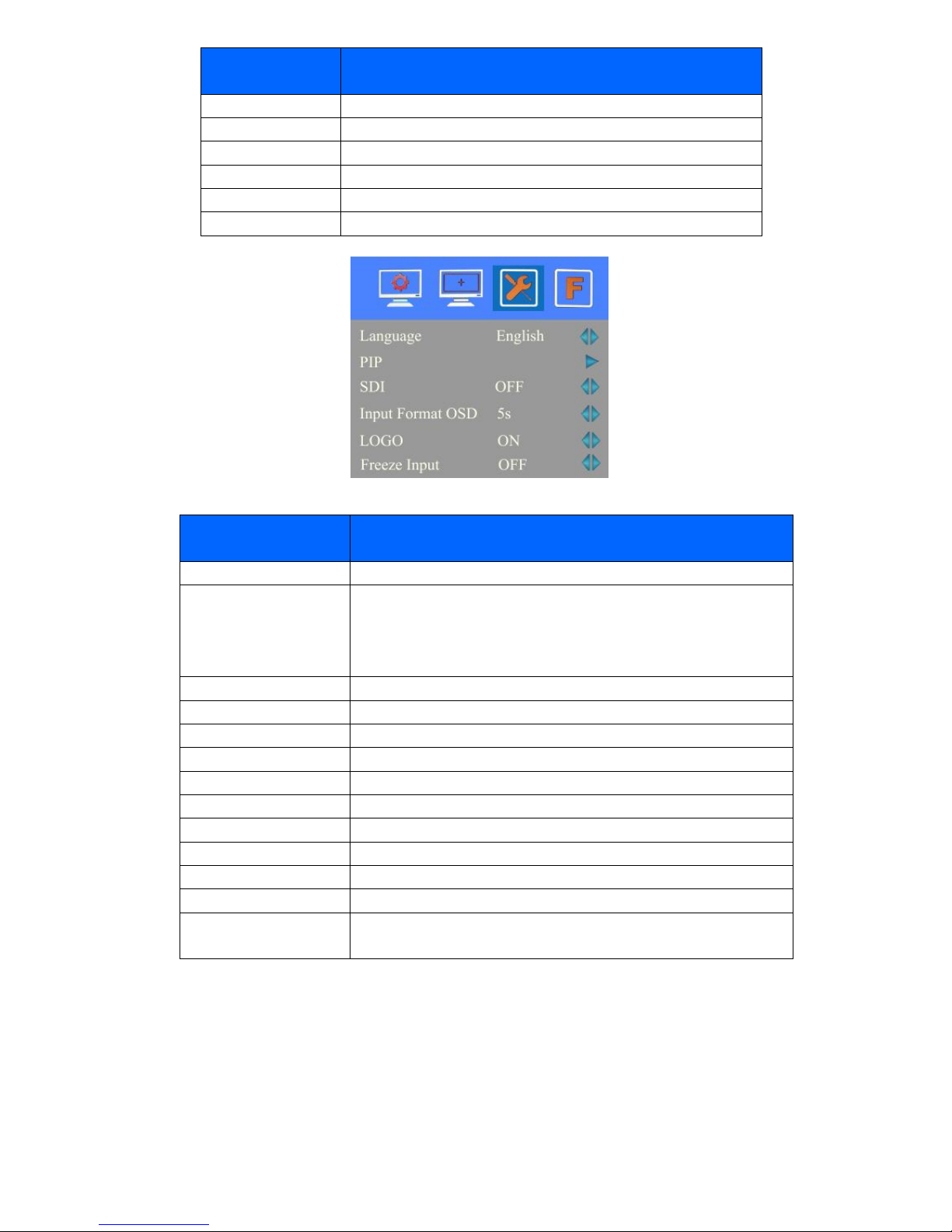

ITEMS

OPTIONS

Color Temp

6500ºK/7500 ºK/9300 ºK/User

R Gain

0-255

Note: Only available

under “User”mode to

meet the color value

you need.

G Gain

0-255

B Gain

0-255

R Offset

0-511

G Offset

0-511

B Offset

0-511

Check Field

OFF，MONO，Red, Green and Blue

Aspect Ratio

Full Screen,4:3 and 16:9

Pixel-to-Pixel

ON/OFF

Camera

480P (5DII Mode) / 1080I (5DIII Mode)

H/V delay

OFF,H&V Delay, V Delay and H Delay

Underscan

ON/OFF

* Advanced functions are only available for product model with"/P2"&"/S2"..

ITEMS

OPTIONS

Center Marker

ON/OFF

Aspect Marker

OFF, 16:9, 4:3, 14:9, 13:9,15:9,1.85:1, 2.35:1

Screen Markers

OFF, 95%,93%,90%,88%,85%, 80%

Marker Color

Red, Green, Blue, White, Black

Marker Mat

OFF, 1-6

Thickness

1-7

ITEMS

OPTIONS

Language

English /Chinese

PIP

Small, Medium, Large, PBP, POP

In small, medium and large interface can adjust the source,

position, and swap;

In PBP and POP interface can adjust the source and swap.

SDI

ON/ OFF

Input Format OSD

5s、10s、15s

LOGO

ON/ OFF

Freeze Input

ON/ OFF

Image Flip

H / V / H&V

*Wave/Vector

Y / Vector / R / G / B / Cb / Cr / OFF

* Waveform Trans

ON/ OFF

* Waveform Size

Small / Large

* Level Meter

Manual/Auto

Manufacturer Default

OK/Cancel(Reverse the SAT / ADJ knob to select "OK")

ISP

For program upgrades (Please reboot your computer if press

accidentally!)
