Lilin CMR7082N/P3.6 User manual
MERIT LILIN ENT. CO., LTD
http://www.meritlilin.com
INSTRUCTION MANUAL
CMR7082/7084/7088 N/P 3.6/6
66-CMR708CSE
D/N ATR 700TVL IR CAMERA
CMR7082X3.6 N/P
D/N ATR 700TVL VARI-FOCAL IR CAMERA
IMPORTANT SAFEGUARDS
GRAPHIC SYMBOL EXPLANATION
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated "dangerous voltage" within the product's enclosure
that may be of sufficient magnitude to constitute a risk of electric
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature
shock to persons.
accompanying the unit.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION：
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS
CAUTION
Do not drop or strike this equipment.
Do not install the equipment near any naked flames or heat
sources.
Do not expose this unit to rain or excessive moisture, avoid
smoke and dust.
Do not cover cloth or to install this unit in poorly ventilated
places.
Do not continue to operate if there appears to be fault.
Do not touch the power connection with wet hands.
Do not damage the power cord or leave it under pressure.
Sensitive electronics inside are vulnerable to excessive shock.
Excessive heat could damage this unit.
Please the camera in an environmental housing for protection.
If the camera gets wet, unplug it and have it checked by
qualified service personnel.
This may lead to overheating.
If the unit ceases to function, contact qualified service
personnel for help.
Risk of short circuit or electric shock.
Risk of fire or shock circuit.
CONGRATULATIONS
Thank you for purchasing this D/N ATR 700TVL (Vari-Focal)IR
Camera. You now own one of the many fine CCTV products we
manufactured. This product has been carefully inspected under
rigid quality control and should reach you in perfect condition.
With reasonable care, it will provide years of reliable performance.
We recommend that you read this installation and operation
manual thoroughly before installing and operation your new
system.
Here you will find all the information you need to set up and use
the system. If any questions are not answered in the manual,
please contact your dealer.
Before proceeding, please read and observe all instructions and
warnings contained in this manual. Retain this manual with the
original bill of sale for future reference and, if necessary, warranty
service.
When unpacking your new camera, check for missing or damaged
items. If any item is missing, or if damage is evident,
I . Contact your dealer for
assistance.
DO NOT
NSTALL OR OPERATE THIS PRODUCT
WARRANTY INFORMATION
Please complete the following product purchase information. The
factory will requests this information when contacted for technical
support, or warranty repair. It is also valuable in case of loss or
theft.
Purchase Date
Serial Number
Model Number
：
：
：
TABLE OF CONTENTS
PART DESCRIPTION & DIMENSION
INSTALLATION
CONFIGURATION OF THE MENU
SETTING MENU AND FUNCTION
To Open and Exit the Menu screen
Setting of shutter speed of AUTO IRIS mode
Notes
SPECIFICATIONS
1
2
7
9
9
9
10
11
1
TOP COVER
BOTTOM CHASSIS
BRACKET
PAN ADJUSTMENT SCREW
TILT ADJUSTMENT SCREW
WINDOW
VIDEO OUTPUT JACK (CMR7082)
DC POWER INPUT JACK (DC12V 10%,
CMR7082)
±
Unit: mm
154
101
72.5
67
82
PART DESCRIPTION & DIMENSION
2
DC power input
Video output
INSTALLATION
FIG. 1 FIG. 2
1. CMR7082
1-1. Take out the camera from the inner box first. Plug the video cable and
power cable to video output jack and DC power input jack of the camera
(FIG.1). Then fix bracket to the wall(FIG.2).
1-2. Loosen the screws of top cover with screw driver(FIG.3).
FIG. 3
2. CMR7084/8
2-1. Take out the camera from the inner box first. Loosen the pan adjustment
screw with hexagon screw driver. Then, separated the bracket from the
camera body(FIG.4). Put the power cable and video cable through the
bracket and then fix it to the wall(FIG.5&FIG.6).
3
FIG. 4
FIG. 6
FIG. 5
2-2. Open the top cover with screw driver(FIG.7).
FIG. 7

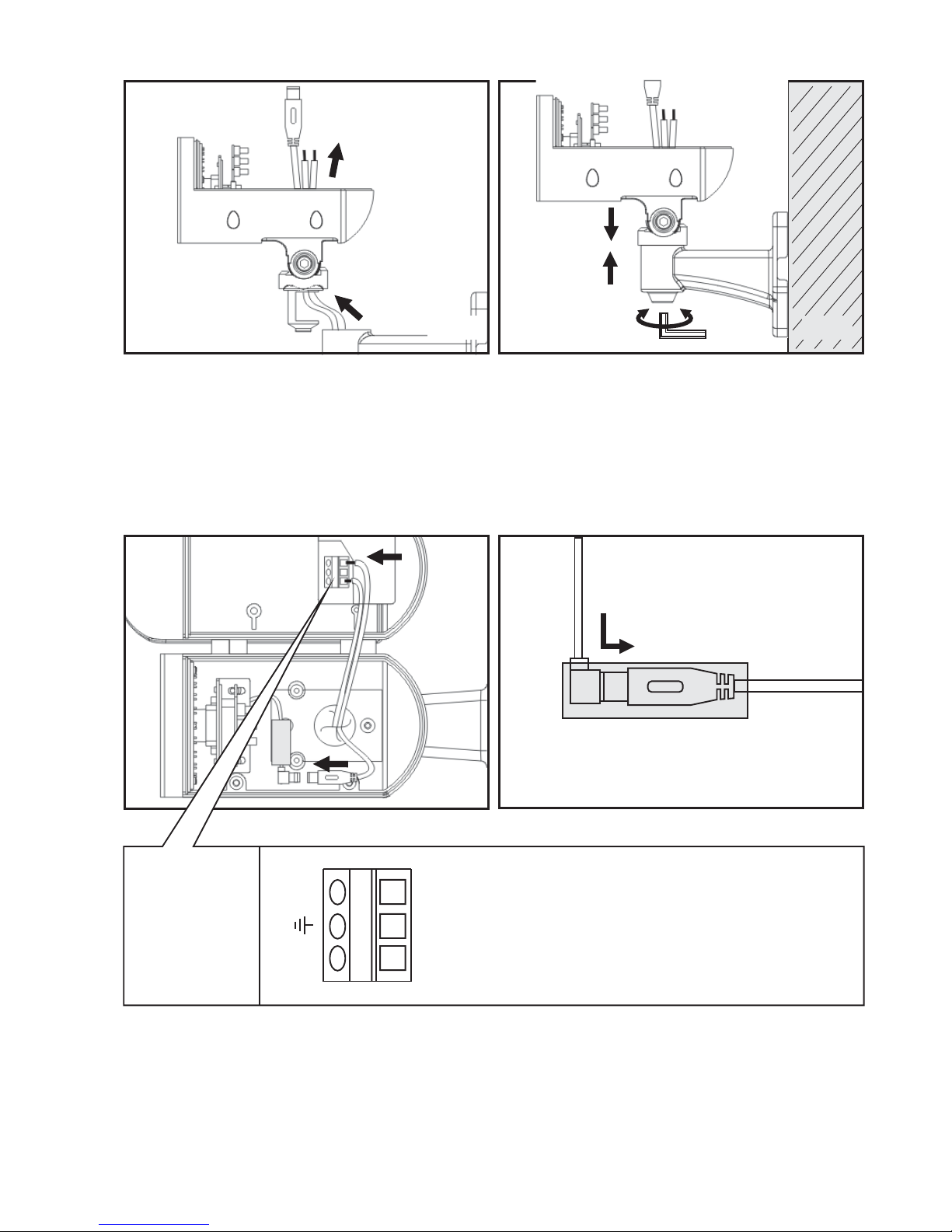

2-3. Next, Put the power cable and video cable through the bottom chassis and
rubble(FIG.8) and then fix the camera body on the bracket(FIG.9).
4
Video Output Video Cable
FIG. 9
FIG. 8
2-4. Plug and fix the power cable to the terminal and plug the video cable to
video output of the camera(FIG.10). For the safety reason, when plug
video cable to video output please use the cable tubing to cover the bare
part to avoid danger of electric shock or electric leakage(FIG.10&FIG.11).
FIG. 11
FIG. 10
Live
Earth
Neutral
NL
Note : When using two-cord
power cable, please
connect them to
"Live" and "Neutral".
3. Loosen the pan and tilt adjustment screw on the bracket to turn the camera body
to the desired angle and then tighten the screws(FIG.12).
4-1. USER OSD SETTING
Setting switches and Functions.
A. (UP)
B. (LEFT)
5
FIG. 12
: Press to move the cursor upwards or to select
items.
: Press to move the cursor to the left and to select
or adjust the parameters of the selected item.
The parameters changes each time this button is
pressed.
FIG. 13
F
TW
ZOOM
FOCUS
N
RIGHTLEFT
DOWN
UP
SET
4. First, adjust the lens on focus and zoom to form the optimal video image after
that tighten the screws(FIG.13). Then adjust the OSD menu to form the
optimal image. Please refer to page7~10.
This manual suits for next models
5
