Lilin IPD2322ESX User manual

Instr uction Manual

66-IPD2322CSE

IPD2322ESX / LD2322EX

MERIT LILIN ENT. CO., LTD

http://www.meritlilin.com

D/N 1080P HD Vari-Focal Dome IP Camera

IMPORTANT SAFEGUARDS

GRAPHIC SYMBOL EXPLANATION

The lightning flash with arrowhead symbol, within an equilateral

triangle, is intended to alert the user to the presence of

uninsulated "dangerous voltage" within the product's enclosure

that may be of sufficient magnitude to constitute a risk of electric

The exclamation point within an equilateral triangle is intended

to alert the user to the presence of important operating and

maintenance (servicing) instructions in the literature

shock to persons.

accompanying the unit.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION：

TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK)

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED

BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING

TO THE INSTRUCTIONS

IPD2322ESX & LD2322EX series is an 2 megapixel Day&Night

1080P HD Vari-Focal Dome IP Camera, built-in H.264 AVC

(Advanced Video Coding) video compression. H.264 AVC video

compression engine supports high definition video quality,

1080P(1920x1080) resolution, bandwidth efficiency with PPPoE

and DDNS.

Also it provides higher bit rate of internet and diverse alarm

functions such as movement video detection e-mail or FTP.

Moreover, IPD2322ESX & LD2322EX series can do remote

surveillance with iPad, iPhone or Android cell phone. The

software R&D engineer can use HTTP protocol (HTTPAPI) or

ONVIF protocol to develop related software, and integrate them

with existing application software system.

IPD2322ESX & LD2322EX series is ideal solution for remote

video monitoring via internet.

Executive Summary

Unit: mm

150.0

80.0

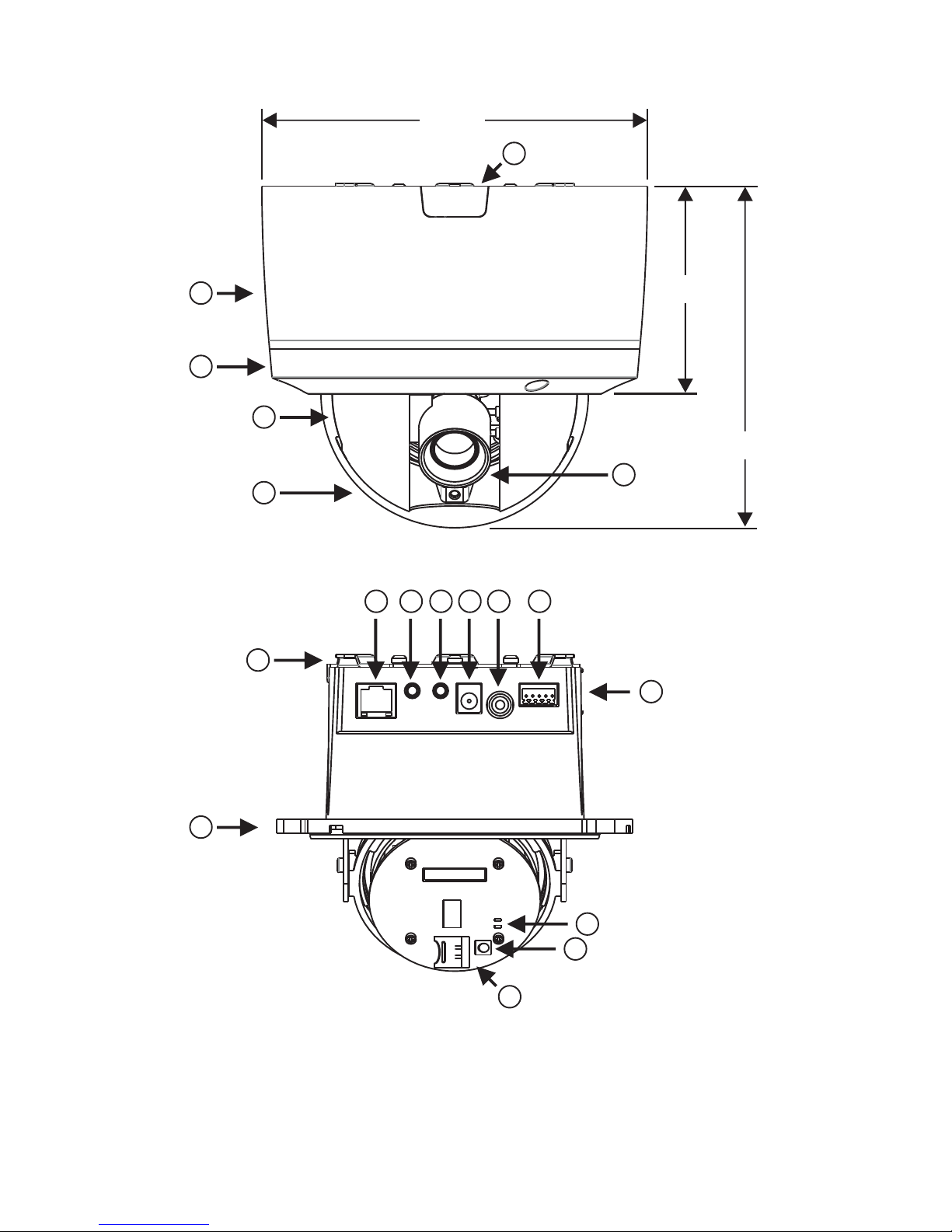

PART DESCRIPTION & DIMENSION

134.0

10 11 12 14 1513

COM.GND

N.O.DIN

5 4 3 2 1

+5V

1Cylinder (Ceiling Mount)

Top Cover

Inner Cover

Dome Cover

Lens

Slide Cover

Fixed Plate (Ceiling Mount)

Bottom Chassis

Lock Plate

RJ-45 Network Connector

Audio Input 3.5mm Phone Jack

Audio Output 3.5mm Phone Jack

DC12V Power Input Jack

Live Video Output RCA Jack

Plug the video input of monitor to the RCA jack and adjust focus and zoom.

Alarm In/Out Terminal

Network Indicator LEDs

Green(LINK): Network cable connected, this LED lit.

Orange(ACT): Data communications, this LED flashes.

Reset Button

To restore the server to factory default setting.

Micro SD Card Slot

This network camera is compliant with micro SD/SDHC card.

INSTALLATION

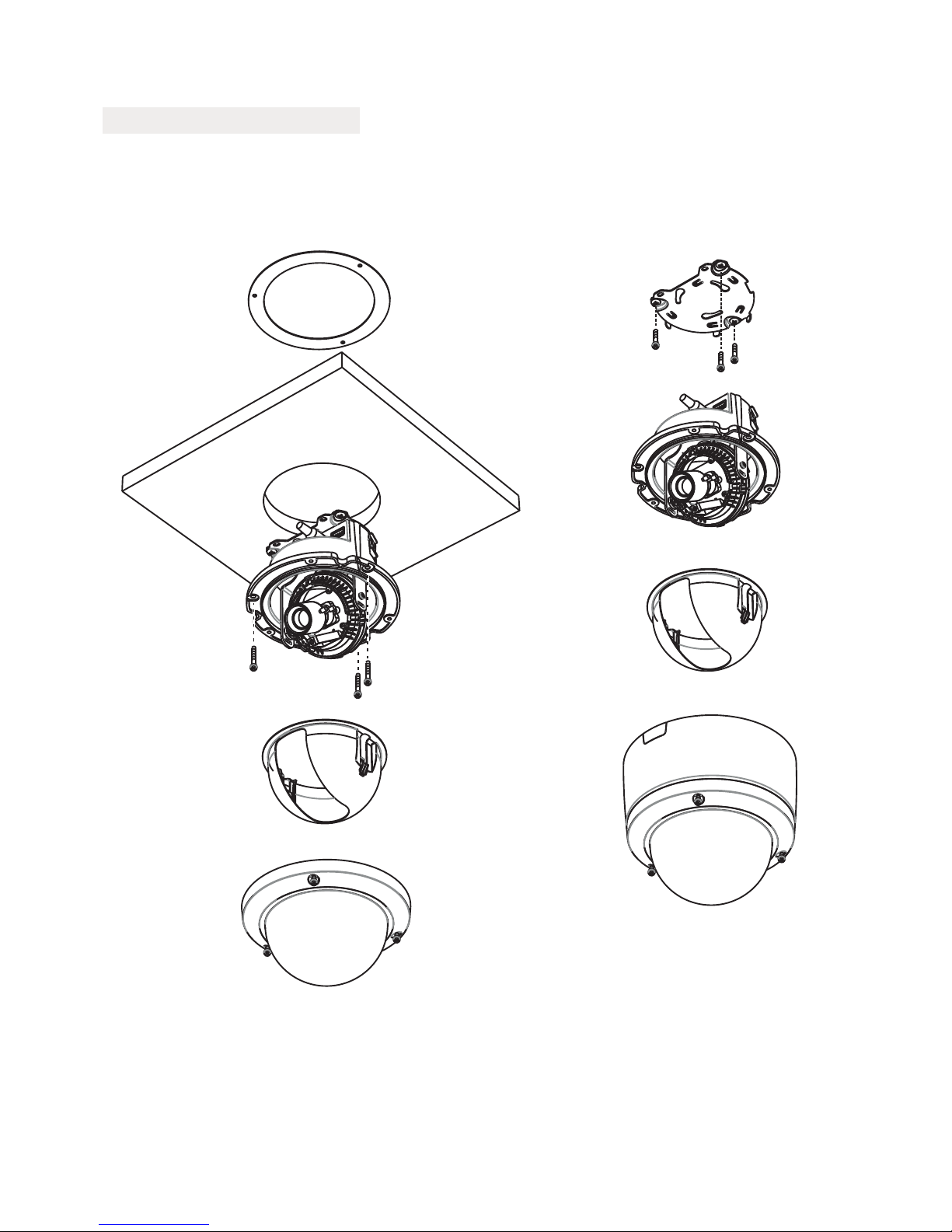

Installation Structural Drawing

Embedded Mounting Attached Mounting

FIG.3 FIG.4

FIG.1 FIG.2

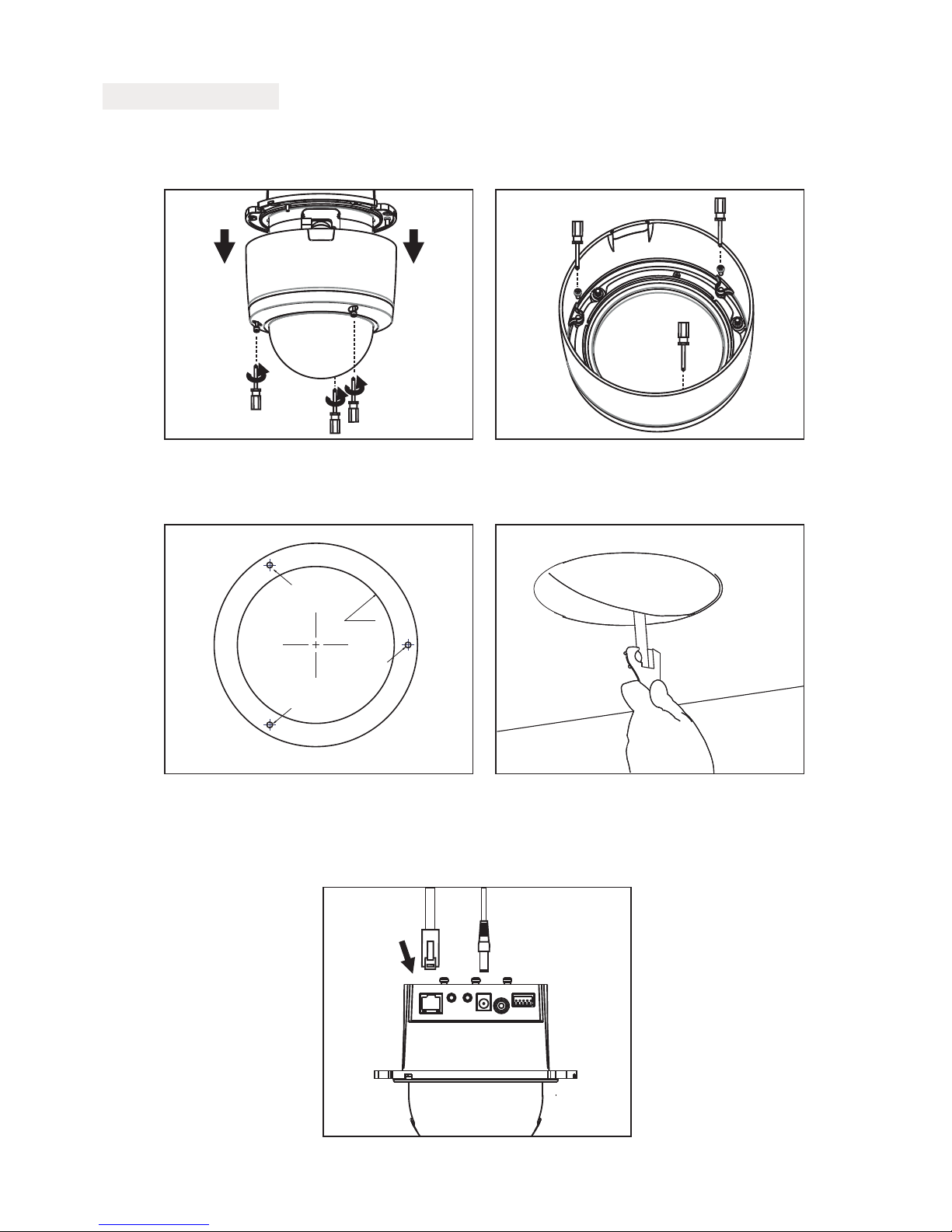

Embedded Mounting (False Ceiling)

1. Please use the screw driver to untighten the 3 screws on the top cover(FIG.1), and to

untighten the 3 screws on the cylinder(FIG.2).

2. Use a hole site diagram to cut the circle 108mm(FIG.3 & FIG.4).

3. Plug and fix the power cable to the jack and plug the network cable to RJ-45 connector

of the camera (FIG.5).

Ø 108

DRILL HOLE

FIG.5

PAN

TILT

FIG.8 FIG.9

FIG.6 FIG.7

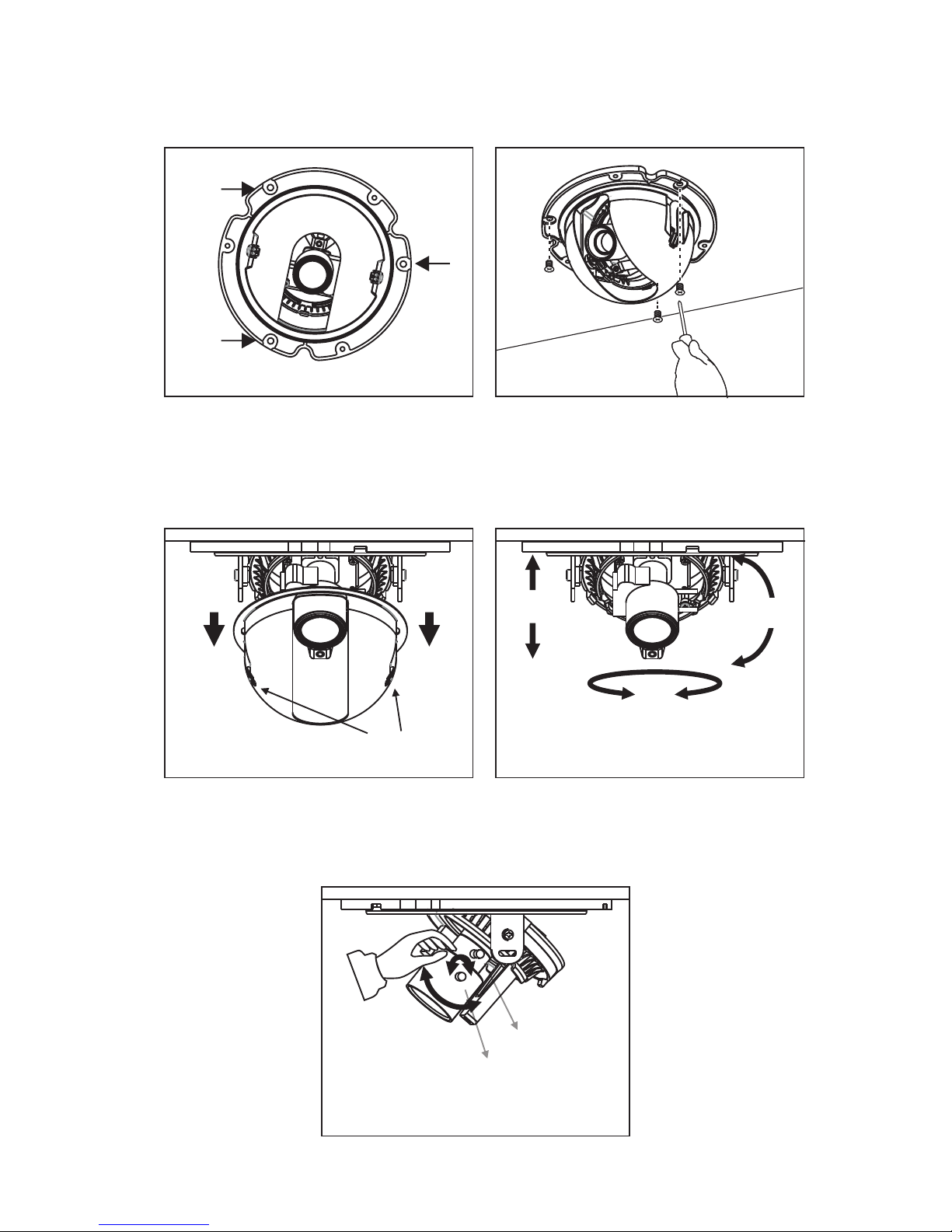

4. Put the provided screw(M3.0x25, wooden screw) through the holes marked as “a”, and

fix the bottom chassis in the desired area (FIG.6 & FIG.7)

5. Take down the inner cover from the camera module (FIG.8), and then adjust the direction

of the lens through the adjustable Pan/Tilt bracket and rotatable round bracket for

Azimuth (FIG.9).

Press inward

and pull down.

AZIMUTH

FOC US

FIG.10

6. Adjust the lens on focus and zoom to form the optimal video image after that tighten the

　screws (FIG.10).

ZOO M

FIG.13 FIG.14

FIG.11 FIG.12

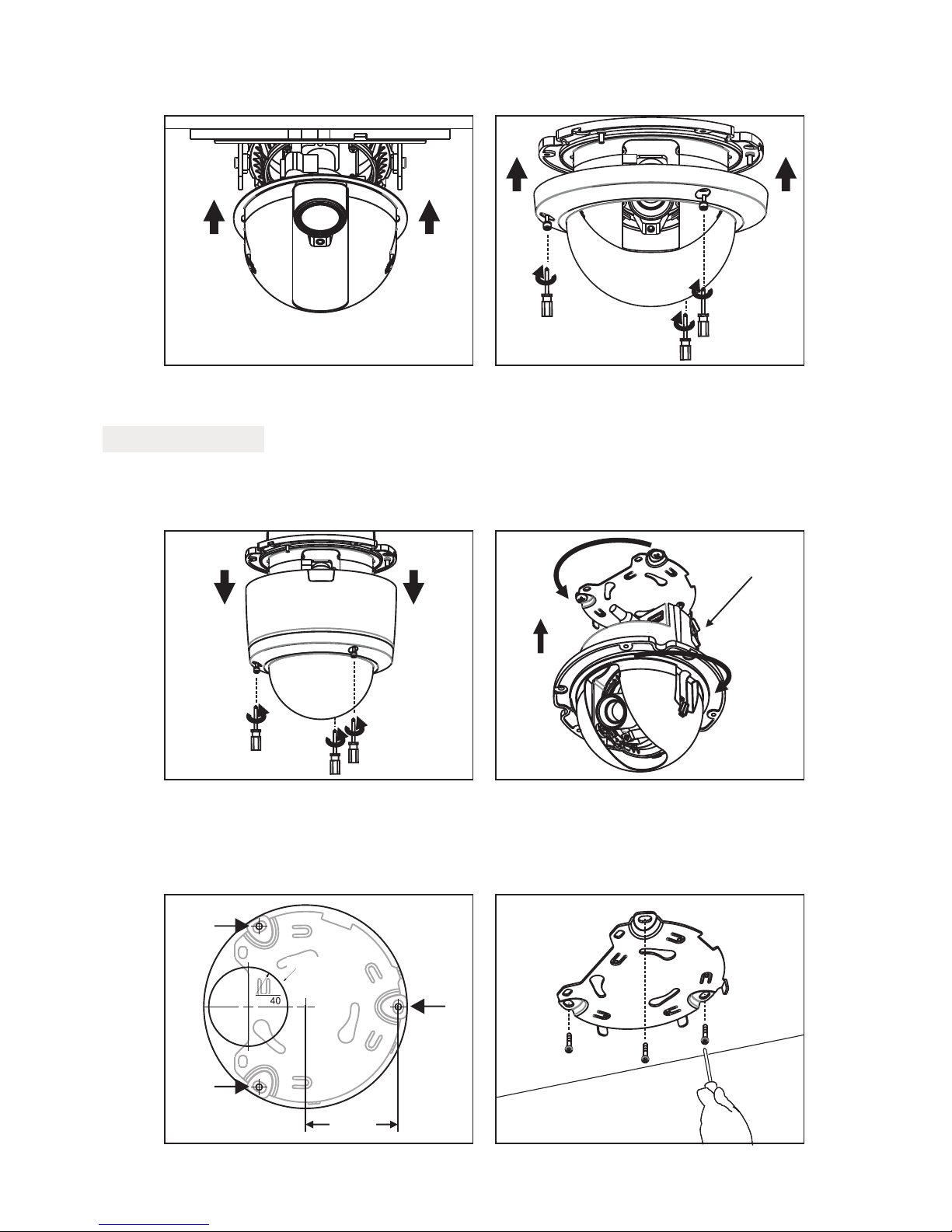

7. Put on the inner cover (FIG.11). Replace the top cover and tighten the screws (FIG.12).

Attached Mounting (Fixed Ceiling)

1. Please use the screw driver to untighten the 3 screws on the top cover(FIG.13). Push the

lock plate of bottom chassis down for unlocking(FIG.14).

Push the lock

plate down

FIG.15 FIG.16

2. Put the provided screw(M3.0x25, wooden screw) through the holes marked as “a”, and

fix the fixed plate in in the desired area (FIG.15 & FIG.16).

CABLE HOLE

47mm

FIG.17

Push the lock

plate up

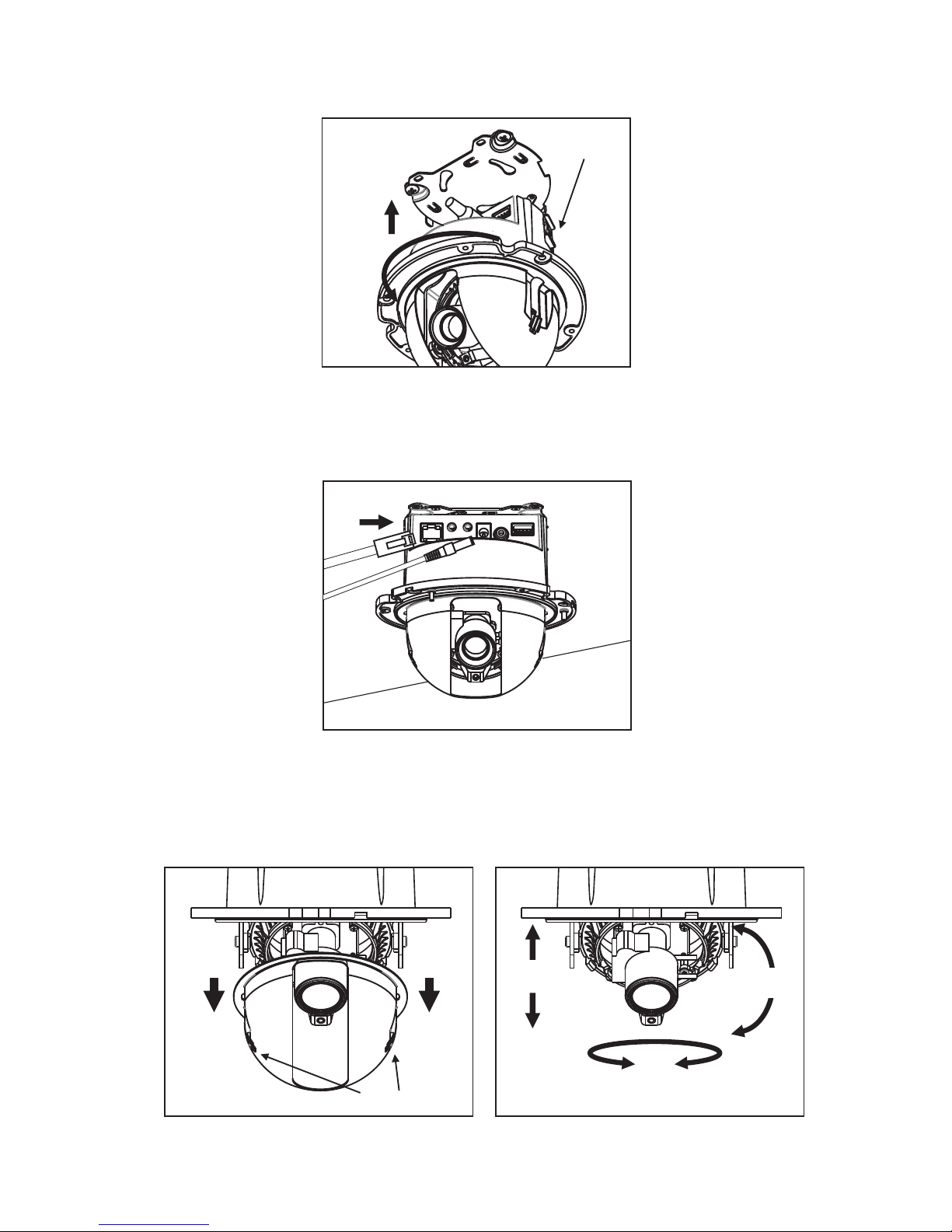

3. Put the camera module into fixed plate, and push the lock plate up for locking(FIG.17).

FIG.19 FIG.20

FIG.18

4. Plug and fix the power cable to the jack and plug the network cable to RJ-45 connector

of the camera (FIG.18).

5. Take down the inner cover from the camera module (FIG.19), and then adjust the

direction of the lens through the adjustable Pan/Tilt bracket and rotatable round bracket

for Azimuth (FIG.20).

Press inward

and pull down.

PAN

TILT AZIMUTH
