Lightolier LYTESPAN CONVENIENCE OUTLET Instructions for use

INSTRUCTION SHEET NO.

IS:6085

A0103 PAGE 1 OF 1

FALL RIVER, MASSACHUSETTS, 02720

MONTREAL, QUEBEC, CANADA

®

LYTESPAN CONVENIENCE OUTLET IS RATED AT 6 AMPS

MAX., 125 VOLTS. DO NOT EXCEED RATING.

INSTRUCTIONS FOR ATTACHING CONVENIENCE OUT-

LET FITTING TO BASIC TRACK (Single Circuit)

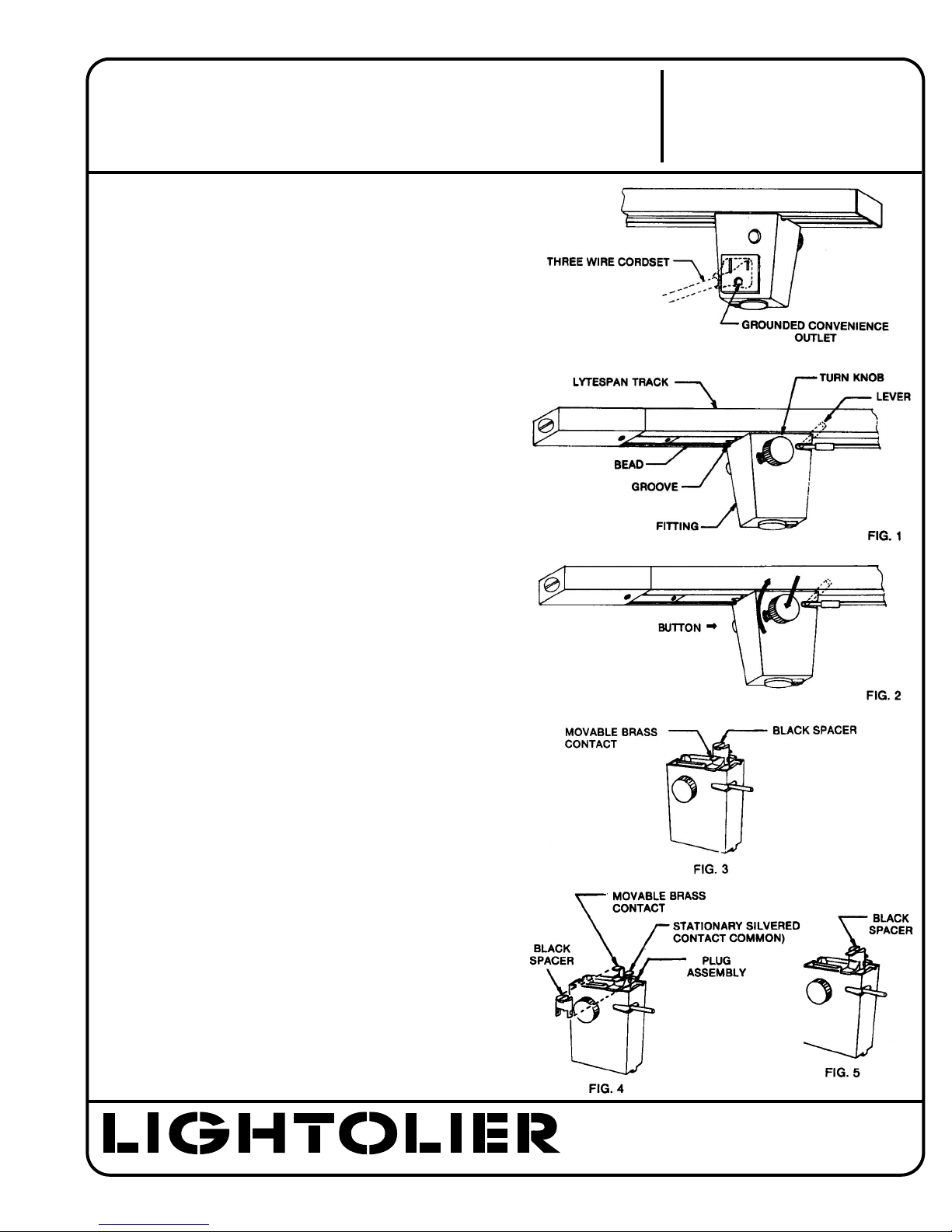

1. Align BEAD on LYTESPAN TRACK and GROOVE in FITTING

before inserting into LYTESPAN TRACK. See Fig. 1.

2. Unscrew the TURN KNOB partially and position LEVER.

See Figure1.

3. To attach FITTING, squeeze BUTTON and KNOB, insert into

LYTESPAN TRACK and release. Tighten TURN KNOB. This

holds FITTING to LYTESPAN TRACK.

4. To shift FITTING location on the LYTESPAN TRACK, loosen

TURN KNOB slightly, release LEVER and slide to new posi-

tion.

5. To remove FITTING reverse the procedure in (3), push

TURN KNOB in and allow FITTING to disengage.

6. FITTING can be left on LYTEPSAN TRACK when not in use

by turning LEVER to disconnect electrically.

INSTRUCTIONS FOR CONVERTING CONVENIENCE OUT-

LET FITTING TO OPERATE ON ADVENT TRACK (2 Circuit)

NOTE: To insure proper operation of FITTING on Two Circuit

Lytespan Track, the BLACK SPACER (supplied) must be

used at all times on the plug assembly.

LOWER CIRCUIT, FIG. 3:

Illustrates contacts in low position with spacer

in place for lower circuit.

UPPER CIRCUIT, FIG. 4 and 5:

To convert FITTING for upper circuit, raise BRASS

CONTACT to high position (as indicated by dotted

line) by pulling CONTACT as high as stop permits and

slipping on BLACK SPACER as shown in Fig. 4 and 5.

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE

This fixture is intended for installation in accordance with the National Electrical Code and local

regulations. To assure full compliance with local codes and regulations, check with your local

electrical inspector before installation. To prevent electrical shock, turn off electricity at fuse box

before proceeding.

Retain these instructions for maintenance reference.
