Lightolier FBP100FE User manual

FBP100FE

450 LUMEN LINEAR FLUORESCENT EM. BALLAST

Page 1 of 2

Job Information Type:

Job Name:

Cat. No.:

Notes:

Features

Illumination: The FBP100FE

provides 90 minutes of

emergency illumination by

utilizing existing fluorescent

lighting, and produces 350-450

lumens initial emergency light

output. The FBP100FE can be

used with most 17 to 40 W

(2’-4’) T8, T10, or T12

fluorescent lamps without

integral starters, including

U-shaped, HO, VHO, circline,

energy saving, and 4-pin

compacts. It is also compatible

with most 1-, 2-, 3-, and 4-lamp

electronic, standard, energy

saving and dimming AC ballasts.

See lamp operation for specific

lamp types.

Housing: Housing is

constructed of 20 gauge steel

with a high temperature

powder coat paint finish. Slim

housing allows for wireway

channel mounting on most

lighting fixtures.

Operating Temperature

Range:

32°F (0°C) to 131°F (55°C)

Electronics: 120/277 VAC

dual voltage input with surge

protected, solid-state charging

circuitry provides for a reliable

charging system. Charging

system is complete with AC

indicator lamp and test switch.

Electrical Specifications:

Input Power

3.5 W max.

Battery

Maintenance free, sealed nickel

cadmium battery. Supplies 90

minutes of emergency power.

Estimated service life of 10

years.

Lamp Operation1: Operates

the following lamp types2:

T8 linear fluorescent

T12 linear fluorescent

T9 circline

T12 U-bent

T5 long compact fluorescent

Notes:

1) Consult factory for compatibility

and performance of product with lamp

types not listed.

2) See Table 1 for specific lamp

performance and operation.

Code Compliance

UL 924 listed. NFPA 70, NFPA

101, NEC, BOCA, OSHA and

IBC illumination standards.

Suitable for use in sealed and

gasketed luminaires.

Warranty

One year full electronics

warranty. One year full battery

warranty.

FBP100FE

9.4"

(23.9 cm)

1.5"

(3.8 cm)

2.4"

(6.1 cm)

FBP100FE

450 LUMEN LINEAR FLUORESCENT EM. BALLAST

Page 2 of 2

Philips Lightolier

e: [email protected]

t: (508) 679-8131

w: www.lightolier.com

FBP100FE August 28, 2012

Specifications are subject to change without notice.

Job Information Type:

Ordering Information

Series

FBP100FE = 450 Lumen Max. Output

Fluorescent Emergency Ballast for One

Lamp Operation

FBP100FE

LAMP

TYPE

F20T12

F30T12

F40T12

F48T10

F17T8

F25T8

F32T8

F40T8

FC6T9

FC8T9

FC12T9

FC16T9

F39/36BX

F40/30BX

WATT.

110

BASE TYPE

G13/Med Bi-Pin

R17D/Recessed

G13/Med Bi-Pin

G10Q/4-Pin

2G11/4-Pin

NON-EMERGENCY

MAX. LUMEN OUTPUT

1275

2350

2650

6200

1350

2150

2950

3725

800

1100

1950

2700

2850

3150

NOTES

1) Maximum non-emergency lumen output can vary based on lamp manufacturer, ambient operating temperature,

and ballast manufacturer.

2) Maximum emergency lumen output is based on total output of one or two lamps, and can vary based on lamp

manufacturer and ambient operating temperature.

3) Consult factory for compatibility, operation, and performance of lamp types not listed.

ptions

EX1= Special Input Transformer

(specify voltage and frequency)

Lamp Operation and Performance

Table 1

Accessories (order as a separate item)

CCAPS = Wire Cover Kit for External Mounting

RTS = Remote Test Plate

RTS2 = Remote Test Switch & Pilot Light Kit (includes plate)

EMERGENCY OP.

MAX. LUMEN OUTPUT

350-450

EMERGENCY

LAMP OPERATION

One

Note

1) Some option combinations may impact UL listing. Consult factory for specifics.

Other Lightolier Accessories manuals

Lightolier

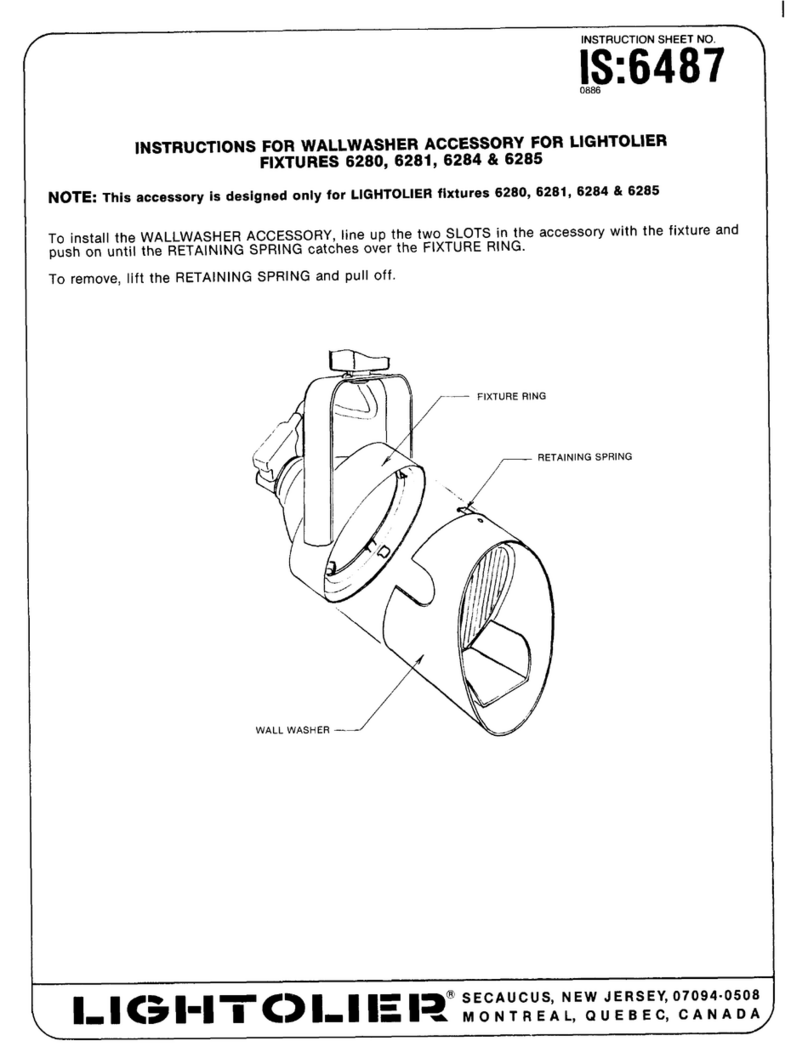

Lightolier 6280 User manual
