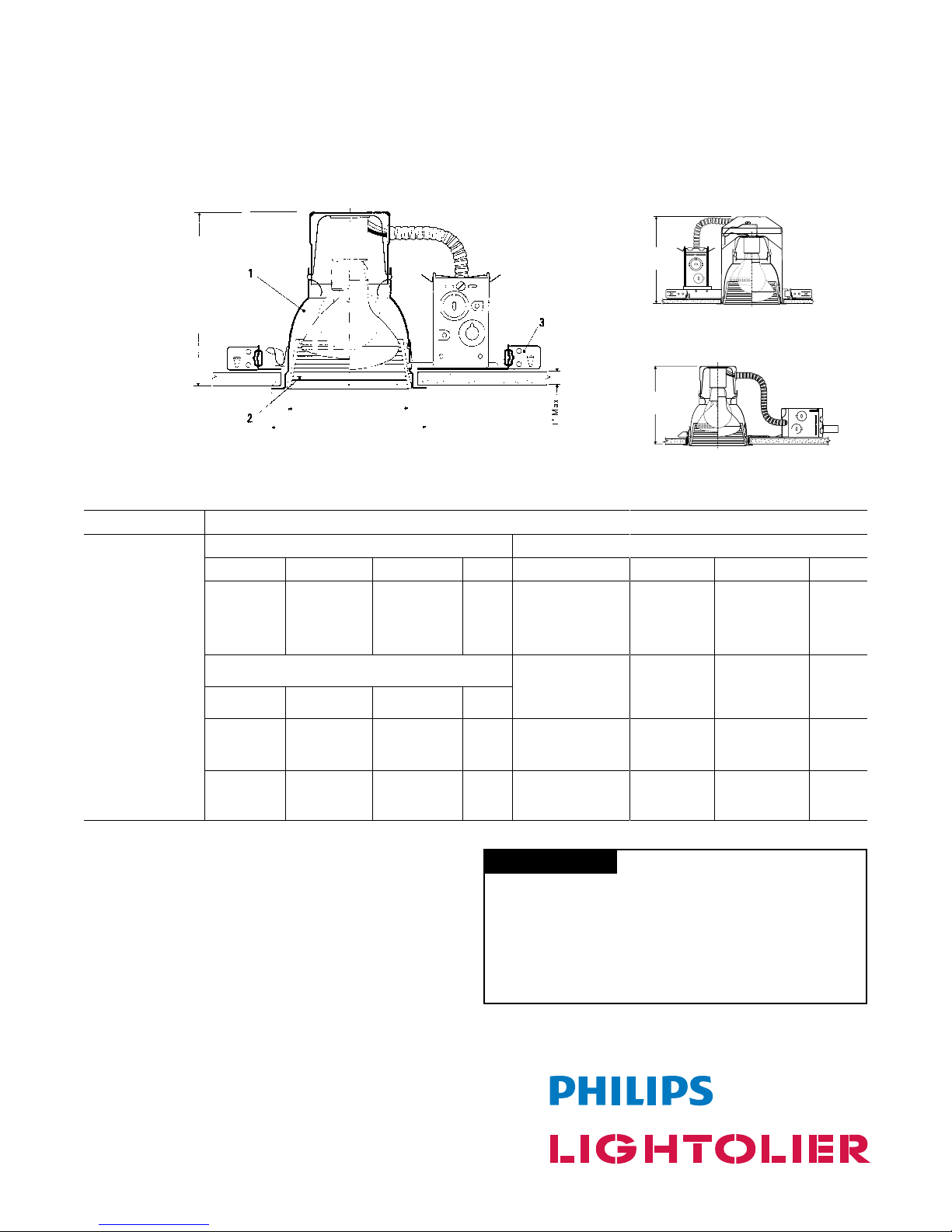

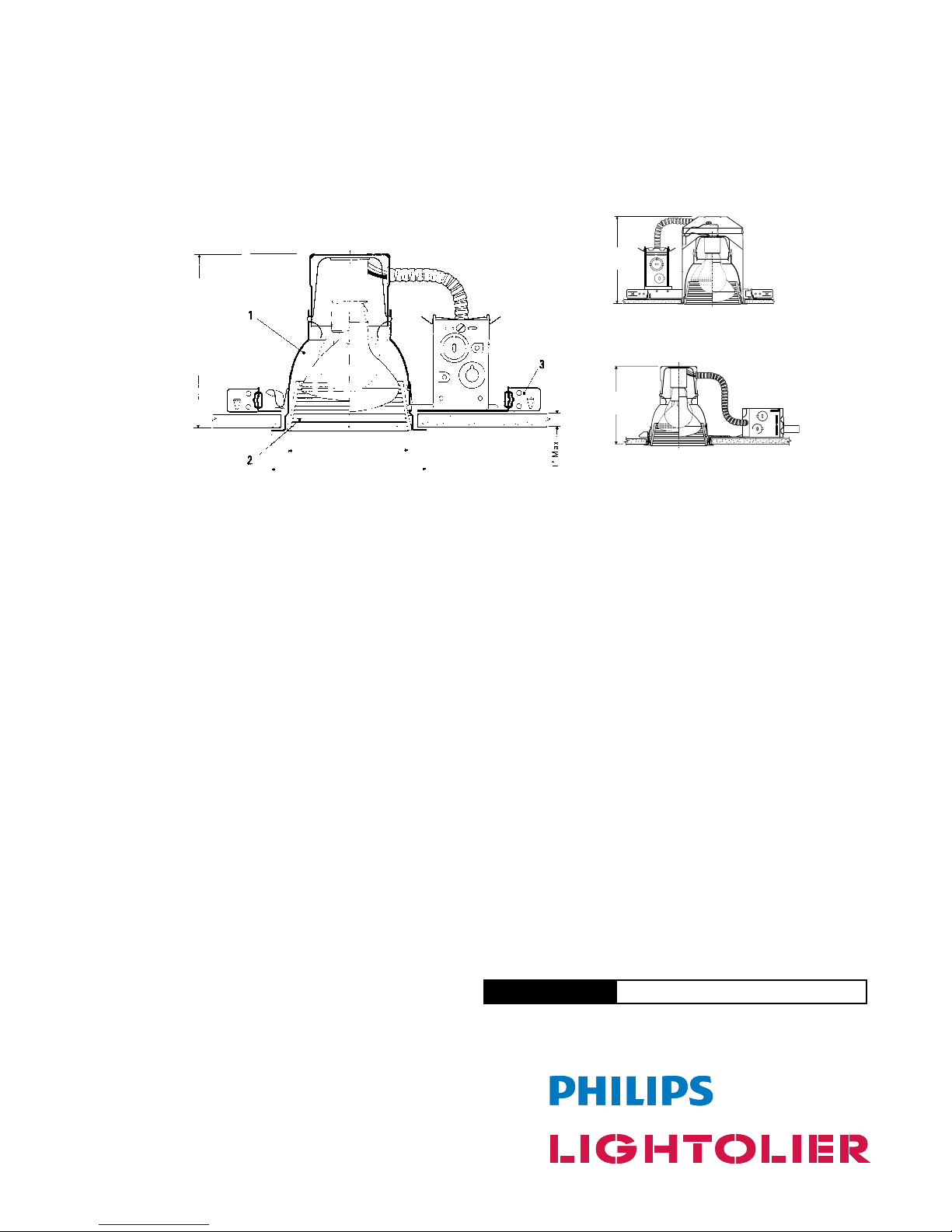

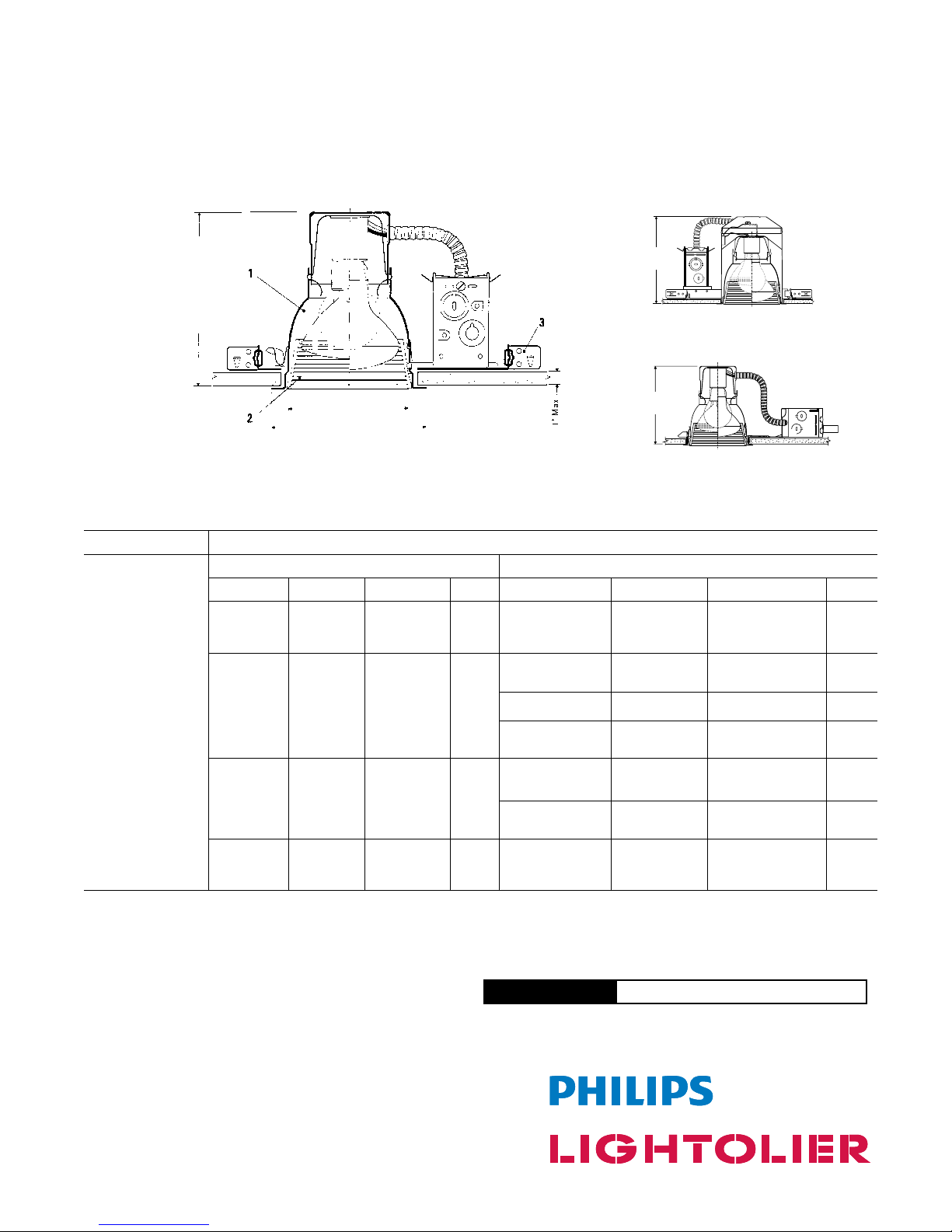

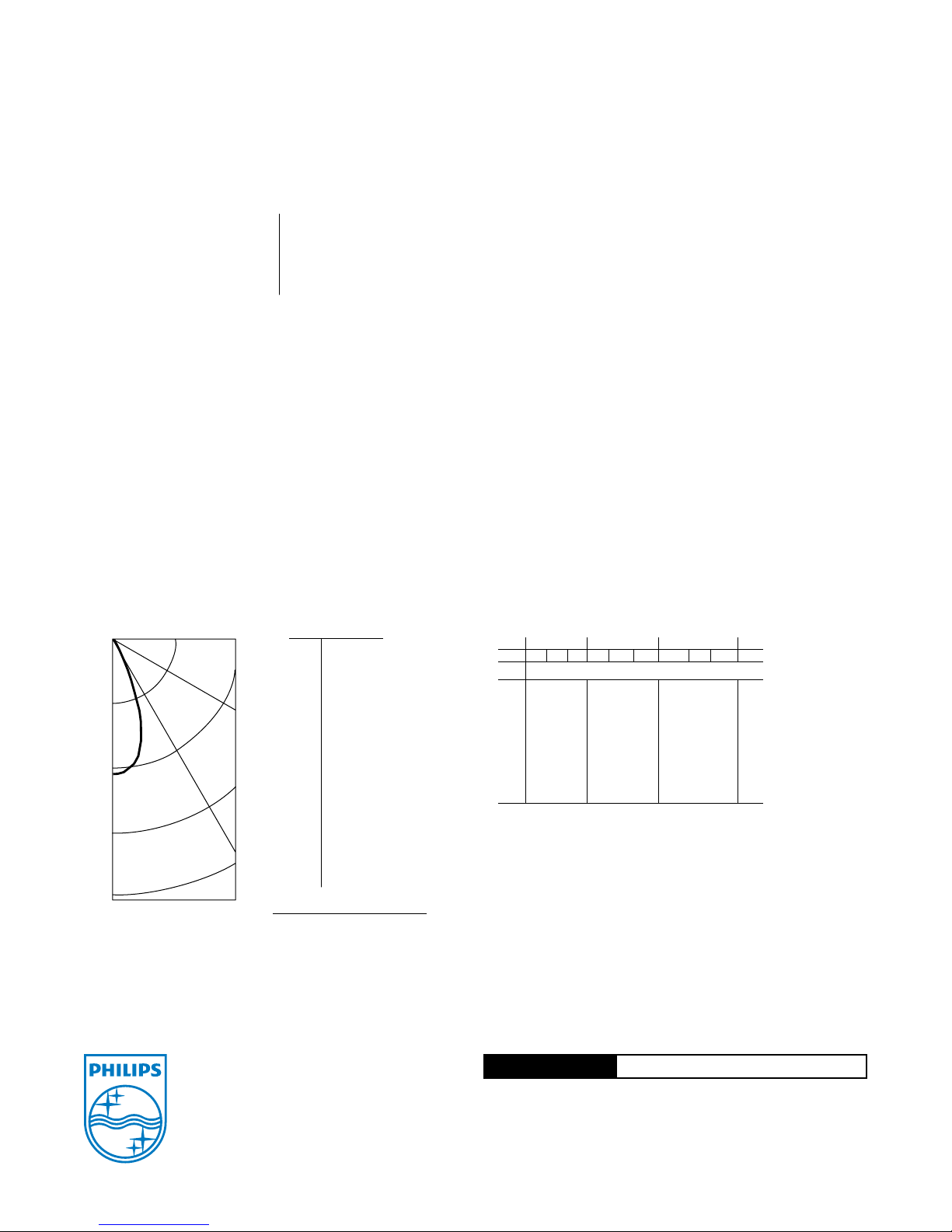

1005

5" Aperture Step Baffle Reflector Trim

Page 1 of 4

Job Information Type:

Job Name:

Cat. No.:

Notes:

1005/1004IC/N

0™Convertible

IC/Non-IC

7 1/2"

1005/1002P1

Standard Incandescent

6 3/4”

4 5/8"

5 7/8"

6 3/4"

1005/1003R

0™Non-IC

Remodeler Ring

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets

1005

Matte Black

1005BNM

Natural Metal baffle

Natural Metal flange

1005NM

Matte Black with

Natural Metal flange

1005WH

Matte White

LED

Incandescent

Frame-In Kit Installation Type Lamping Height

Frame-In Kit Ceiling Type Lamping Height

1001LED

1001LEDEM

1000LEDREM

L56LED

Non-IC

Non-IC EM

Non-IC

Remodeler

Non-IC Retrofit

LED

6 3/4""

6 3/4"

1000IC

1000AICM

1004ICX/N

IC AirSeal

40W A19

75W PAR30

65W BR30

7 5/16"

7 1/4"

Incandescent 1004IC/N

1004ICR

1004SIC/N

1004SICR

IC Remodeler

60W BR30

50W PAR30L

7 1/2"

5 1/2"

Frame-In Kit Ceiling Type Lamping Height

1002P1

1000P1

Non-IC

75W A19,

PAR30L

75W BR30

6 3/4" 1004IC/N

1004ICR

Non-IC

Remodeler

75W PAR30L

75W BR30

40W A19

7 1/2"

1003R Non-IC

Remodeler

75W A19,

PAR30L

85W BR30

6 3/4" 1004SIC/N

1004SICR

Non-IC

Remodeler

75W PAR30L

75W BR30

5 1/2"

1005

5" Aperture Step Baffle Reflector Trim

Page 2 of 4

Job Information Type:

1005/1004IC/N

0™Convertible

IC/Non-IC

7 1/2"

1005/1002P1

Standard Incandescent

6 3/4”

4 5/8"

5 7/8"

6 3/4"

1005/1003R

0™Non-IC

Remodeler Ring

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets

1005

Matte Black

1005BNM

Natural Metal baffle

Natural Metal flange

1005NM

Matte Black with

Natural Metal flange

1005WH

Matte White

Incandescent Fluorescent

Frame-In Kit Ceiling Type Lamping Height Frame-In Kit Ceiling Type Lamping Height

1000IC

1000AICM

1004ICX/N

IC AirSeal

40W A19

75W PAR30

65W BR30

7 5/16"

7 1/4"

1001F13U Series Uniframe

Non-IC

(1) Triple 13W

(GX24q-1)

5 7/8”

1004IC/N

1004ICR

1004SIC/N

1004SICR

Remodeler

60W BR30

50W PAR30L

7 1/2"

5 1/2"

1001F18U Series Uniframe

Non-IC

(1) Triple 18W

(GX24q-2)

5 7/8”

1004F13 Series IC (1) Quad/Triple

13W (GX24q-1)

7 1/2”

1004F18 Series IC (1) Triple

18W (GX24q-2)

7 1/2”

1004IC/N

1004ICR

Non-IC

Remodeler

75W PAR30L

75W BR30

40W A19

7 1/2"

1004F26 Series IC (1) Triple

26W (GX24q-3)

7 1/2”

1001F13ICU/N Performance IC (1) Triple

13W (GX24q-1)

7 1/4"

1004SIC/N

1004SICR

Non-IC

Remodeler

75W PAR30L

75W BR30

5 1/2"

1001F18ICU/N Performance IC (1) Triple 18W

(GX24q-2)

7 1/4"

1005

5" Aperture Step Baffle Reflector Trim

Page 3 of 4

Job Information Type:

1005/1002P1

Standard Incandescent

6 3/4”

4 5/8"

5 7/8"

1005/1004IC/N

0™Convertible

IC/Non-IC

7 1/2"

6 3/4"

1005/1003R

0™Non-IC

Remodeler Ring

Features

1.Reflector: Hydroformed aluminum, .040" (18 ga.);

Anobrite (anodic-processed) semi-specular finish for permanent reflectivity;

matte white or Natural Metal trim flange.

2. Step Baffle: Aluminum step baffle, painted or anodized finish.

3. Frame-In Kit: (1002P1 standard frame shown). Other frames listed

above and shown on the right. See Frame-In Kit specification sheet for

moredetails.

Options & Accessories

Retaining Clips: 1955 - For Installing in Existing Ceiling

Extra Wide Flange Trim Ring: 1957 - 7" O.D.

Spread Lens: L56WWLENS - Proprietary spread lens for use with

combination of wall washer optics and LED Frame-In Kits.

Labels

UL (Suitable for Damp Locations), I.B.E.W.

1005

5" Aperture Step Baffle Reflector Trim

Page 4 of 4

Philips Lightolier

e: [email protected]

t: (508) 679-8131

w: www.lightolier.com

1005 September 26, 2012

Specifications are subject to change without notice.

Job Information Type:

10 30 45 60 75 90 105 120

4 5 6 7 8 9 10 11

ROOM SURFACE RELECTANCES:

80% Ceiling; 50% Walls; 20% Floor 1200

Lumens Per Lamp

Large Room (RCR=1)

Small Room (RCR=5)

CENTER TO CENTER DISTANCE OF FIXTURES IN FEET

Use quick calculator chart to determine the spacing of 75 Watt PAR30 FL units (Black)

for a desired level of illumination. Conversion Factors: 75W PAR30 FL,White, F.C. x 1.1

AREA PER FIXTURE IN SQUARE FEET

1000

2000

3000

Zonal lumens and percentages

Zone Lumens %Lamp %Luminaire

0-30 962 75.4 87

96 1066 83.6 96

0-60 1109 87.01 100

0-90 1111 87.20 100

**Efficiency =87.2%

Angle Mean CP

0 2087

5 2051

10 1972

15 1721

20 1233

25 643

30 293

35 155

40 95

45 54

50 15

55 2

60 1

65 1

70 1

75 1

80 1

85 1

90 1

Tested according to IES

Procedures.Test distance

exceeds five times the

greatest luminous opening

of luminaire.

Coefficients of utilization

Ceiling 80% 70% 50% 0%

Wall 50 30 10 50 30 10 50 30 10 0

% WALL RELECTANCE

Room Cavity Ratio

1.99 .97 .96 .97 .95 .94 .93 .92 .91 .85

2.94 .92 .89 .93 .90 .89 .90 .88 .87 .81

3.90 .87 .85 .89 .87 .84 .87 .85 .83 .80

4.87 .84 .81 .86 .83 .81 .84 .82 .80 .77

5.84 .80 .77 .83 .79 .77 .81 .79 .76 .74

6.81 .77 .75 .80 .77 .74 .79 76 .74 .72

7.78 .74 .72 .77 .74 .71 .76 .73 .71 .69

8.75 .71 .69 .74 .71 .69 .74 .71 .69 .67

9.72 .69 .66 .72 .69 .66 .71 .68 .66 .66

10 70 .67 64 70 .67 64 69 66 .64 .63

Conversion Factor: 75W PAR30 FL;White, C.U. x 1.1 65W BR30

FL; Black, C.U. x .75;White, C.U. x 1.0.

To convert lighting data for a lower wattage incandescent lamp of

the same type, multiply the footcandle (or candlepower) values by

the ratio of the lumens of the two lamps.

The coefficients of utilization remain the same.

Certified Test Program No. 1868

Computed by LSI Program **TEST-LITE** Recessed Lytecaster Downlight 4 5/8" Dia. Aperture,

Black Step Baffle One 75W PAR30 Flood L:amp, Lumnen Rating = 1275 LMS.
