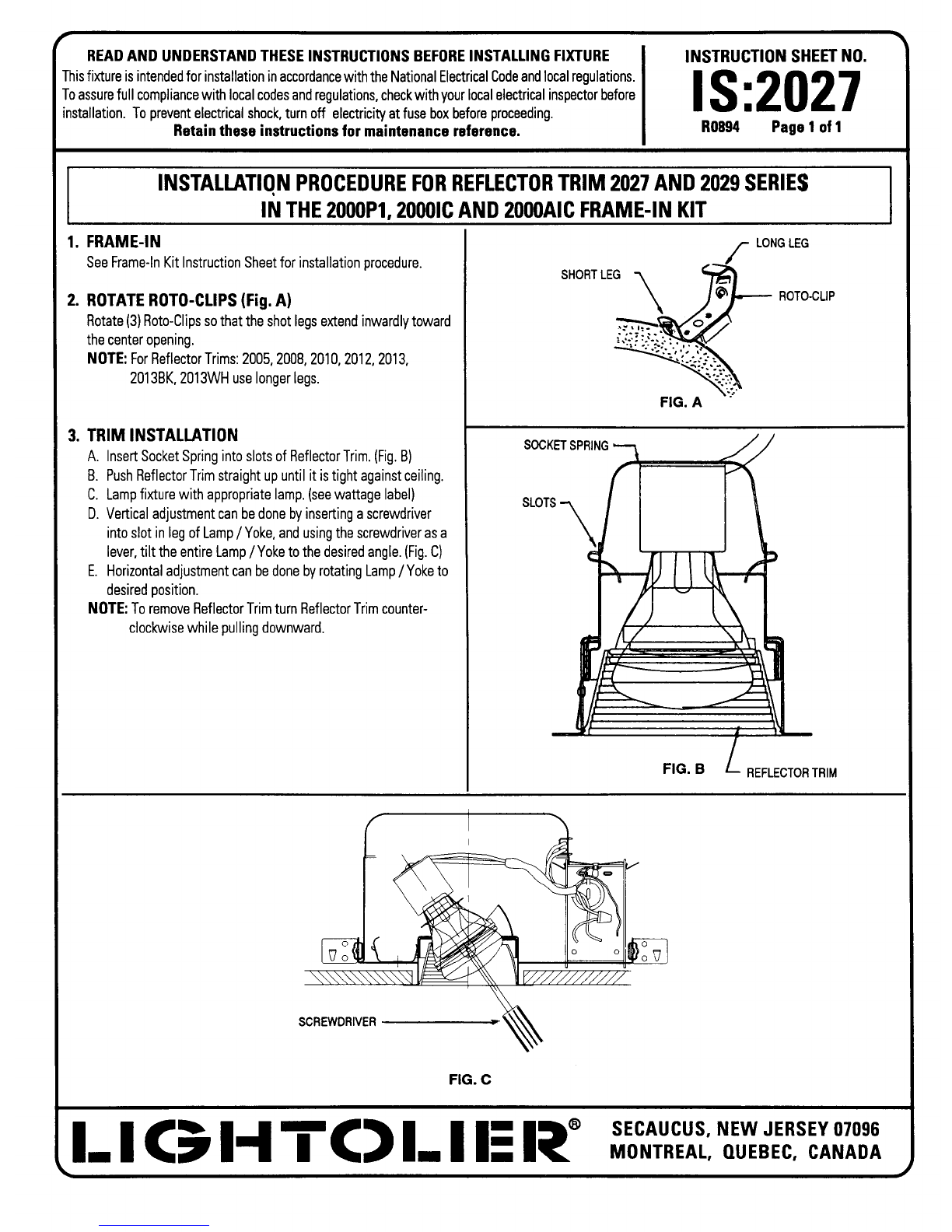

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE INSTRUCTIONSHEETNO.

hisfixtureisintendedforinstallationinaccordancewiththeNationalElectricalCodeandlocalregulations.

Toassurefull compliancewith localcodasandregulations,checkwithyourlocalelectricalinspectorbefora

installation.Topravantelectricalshock, turn off electricity at fuse box before proceeding. IS:2027

Retaintheseinstructionsformaintenancereference. R0894 Page1of1

INSTALLATION PROCEDURE FOR REFLECTOR TRIM 2027 AND 2029 SERIES

IN THE 2000P1, 20001C AND 2000AIC FRAME-IN KIT

1. FRAME-IN

See

Frame-In Kit Instruction Sheet for installation procedure.

2. ROTATE ROTO-CLIPS (Fig. A)

Rotate(3)Roto-Clipssothattheshot legs extend inwardly toward

the center opening.

NOTE: For Reflector Trims: 2005,2008,2010,2012, 2013,

201 3BK, 2013WH use longer legs.

3. TRIMINSTALLATION

A. Insert Socket Spring into slots of Reflector Trim. (Fig. B)

B. Push Reflector Trim straight up until it is tight against ceiling.

C. Lamp fixture with appropriate lamp. (see wattage label)

D. Vertical adjustment can be done by inserting ascrewdriver

into slot in leg of l-amp/Yoke, and using the screwdriver as a

lever, tilt the entire Lamp /Yoke to the desired angle. (Fig. C)

E. Horizontal adjustment can be done by rotating Lamp/Yoke to

desired position.

NOTE: To remove Reflector Trim turn Reflector Trim counter-

clockwise while pulling downward.

FIG. C

1-1 c> H-icm IER“ f:l:w?fusnl:i
