Lightolier Lytecaster 1102TH1R User manual

3 3/4” High

8”

Ceiling Opening 7" Diameter

Lytecaster®Recessed Downlighting 1102TH1R

6 3/4 Aperture Low Profile 2 Light 13W Twin Tube Fluorescent Non-IC Remodeler Frame-in Kit

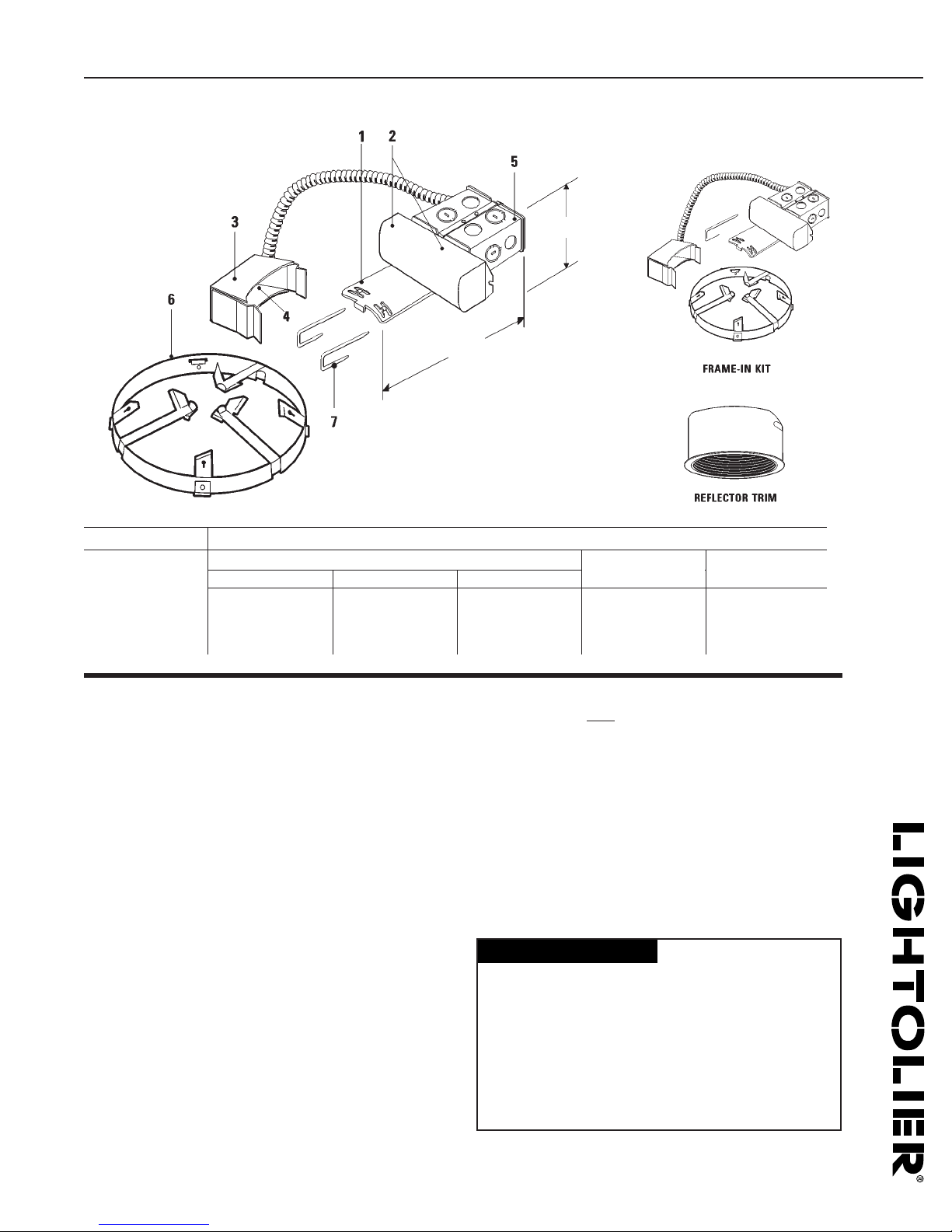

Features

1. Bracket: #18 ga. galvanized steel. Anchor nails are provided to secure J-box

bracket to ceiling. (3) retaining clips mount reflector trim to ceiling.

2. Thermally Protected Ballast: 2 light electromagnetic, encased and potted,

class "P" normal power factor or high power factor. Insulation must be kept 3"

away from fixture sides and wiring compartment and must not be placed

above fixture as to entrap heat.

3. Socket Housing: #22 ga. galvanized steel; snap-in quick assembly for

precise lamp location.

4. Socket: Two-pin, molded thermoplastic ; prewired with #18 AWM leads to

junction box.

5. Junction Box: #14 ga. 4" x 3 1/2" x 2" galvanized steel. Quick release "L"

shaped cover for access to wiring. Integral cable clamps permit attachment of

nonmetallic Romex®or armored cable without the need for separate

connectors. Rated for min. 75°C supply wire. .

6. Mounting Ring: .048 (#18 ga.) galvanized steel. Accommodates existing

ceilings up to 1 1/2" thick. Attaches securely to any type of ceiling material

without tools using (3) mounting straps provided. Push-in/twist out clips hold

reflector flush to ceiling. Included adhesive backed aperture template..

7. Nail Clips: Secures junction box to ceiling.

Electrical 120V

HPF: Input Watts 32

Amps: 0.28

Options & Accessories

Plaster Ceiling Ring: 1961- 7/8” depth for wet plaster ceilings

Labels

UL (Damp Locations), I.B.E.W.

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Frame-In Kit Reflector Trims — See Individual Reflector Trim Specification Sheets

Open Downlight

Cone Baffles Cross Blade

1102TH1R HPF 120V 1113TGD 1105T 1132T 1126T 1135T

1113TCL 1105TWH 1128T

1178T

Enclosed

Diffusers

Wall

Washer

Romex®is a registered trademark of General Cable Industries Inc.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

© 2006 Genlyte Group LLC • B0506
