Lexmark MS610de Configuration guide

Printing Guide

Loading trays

CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all other trays

closed until needed.

1Pull the tray completely out.

Note: Do not remove trays while a job prints or while Busy appears on the printer display. Doing so may cause a jam.

2Squeeze, and then slide the width guide tab to the correct position for the size of the paper you are loading.

LTR

EXEC

LTR

LGL

EXEC

A4B5A5

Printing Guide

Page 1 of 4

3Unlock the length guide. Squeeze, and then slide the length guide tab to the correct position for the size of the paper you

are loading.

LTR

EXEC

LTR

LGLA4

EXEC

B5A5A6

Notes:

•For some paper sizes like letter, legal, and A4, squeeze and slide the length guide tab backward to accommodate their

length.

•When loading legal‑size paper, the length guide extends beyond the base leaving the paper exposed to dust. To

protect the paper from dust, you can purchase a dust cover separately. For more information, contact customer

support.

•If you are loading A6-size paper in the standard tray, then squeeze and then slide the length guide tab toward the

center of the tray to the A6‑size position.

•Make sure the width and length guides are aligned with the paper size indicators on the bottom of the tray.

Printing Guide

Page 2 of 4

LTR

EXEC

LTR

LGLA4

EXEC

B5A5A6

4Flex the sheets back and forth to loosen them. Do not fold or crease the paper. Straighten the edges on a level surface.

5Load the paper stack.

Notes:

•Load with the printable side facedown when using recycled or preprinted paper.

•Load prepunched paper with the holes on the top edge toward the front of the tray.

Printing Guide

Page 3 of 4

•Load letterhead facedown, with the top edge of the sheet toward the front of the tray. For two‑sided printing, load

letterhead faceup with the bottom edge of the sheet toward the front of the tray.

•Make sure the paper is below the maximum paper fill indicator located on the side of the width guide.

LTR

EXEC

LTR

LGLA4

EXEC

B5A5A6

6Insert the tray.

7From the printer control panel, set the paper size and type in the Paper menu to match the paper loaded in the tray.

Note: Set the correct paper size and type to avoid paper jams and print quality problems.

Setting the paper size and type

From the home screen navigate to:

> Paper Menu > Paper Size/Type > select a tray > select the paper size or type >

Printing Guide

Page 4 of 4

Other manuals for MS610de

This manual suits for next models

Table of contents

Other Lexmark Printer manuals

Lexmark

Lexmark T620 User manual

Lexmark

Lexmark T420 Quick start guide

Lexmark

Lexmark Optra SC 1275 User manual

Lexmark

Lexmark Color Laser Instruction Manual

Lexmark

Lexmark MS810n Configuration guide

Lexmark

Lexmark MX810 Series User manual

Lexmark

Lexmark 13R0245 - X6575 USB 2.0/PictBridge/ 802.11g All-in-One Color Printer Scanner Copier Fax... Installation and maintenance instructions

Lexmark

Lexmark T420 Service manual

Lexmark

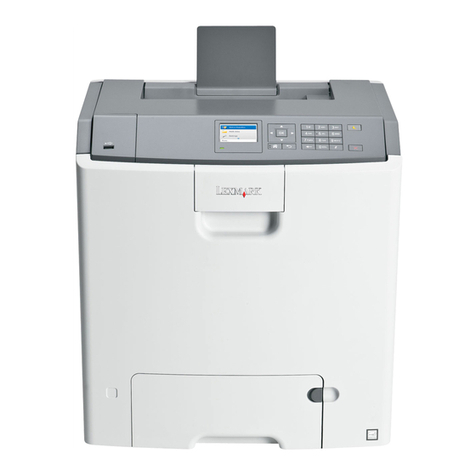

Lexmark C746 User manual
