Parts Catalog 127

Parts Catalog

How To Use This Parts Catalog

•SIMILAR ASSEMBLIES: If two assemblies contain a majority of

identical parts, they are broken down on the same list. Common

parts are shown by one index number. Parts peculiar to one or

the other of the assemblies are listed separately and identified

by description.

•AR: (As Required) in the Units column indicates that the quantity

is not the same for all machines.

•NP: (Non-Procurable) in the Units column indicates that the part

is non-procurable and that the individual parts or the next higher

assembly should be ordered.

•NR: (Not Recommended) in the Units column indicates that the

part is procurable but not recommended for field replacement,

and that the next higher assembly should be ordered.

•R: (Restricted) in the Units column indicates that the part has a

restricted availability.

•NS: (Not Shown) in the Asm-Index column indicates that the part

is procurable but is not pictured in the illustration.

•INDENTURE: The indenture is marked by a series of dots

located before the parts description. The indenture indicates the

relationship of a part to the next higher assembly. For example:

INDENTURE RELATIONSHIP OF PARTS

(No dot) MAIN ASSEMBLY

(One dot) o Detail parts of a main assembly

(One dot) o Subassembly of the main assembly

(Two dot) o o Detail part of a one-dot subassembly

(Two dot) o o Subassembly of a one-dot subassembly

128 Service Manual

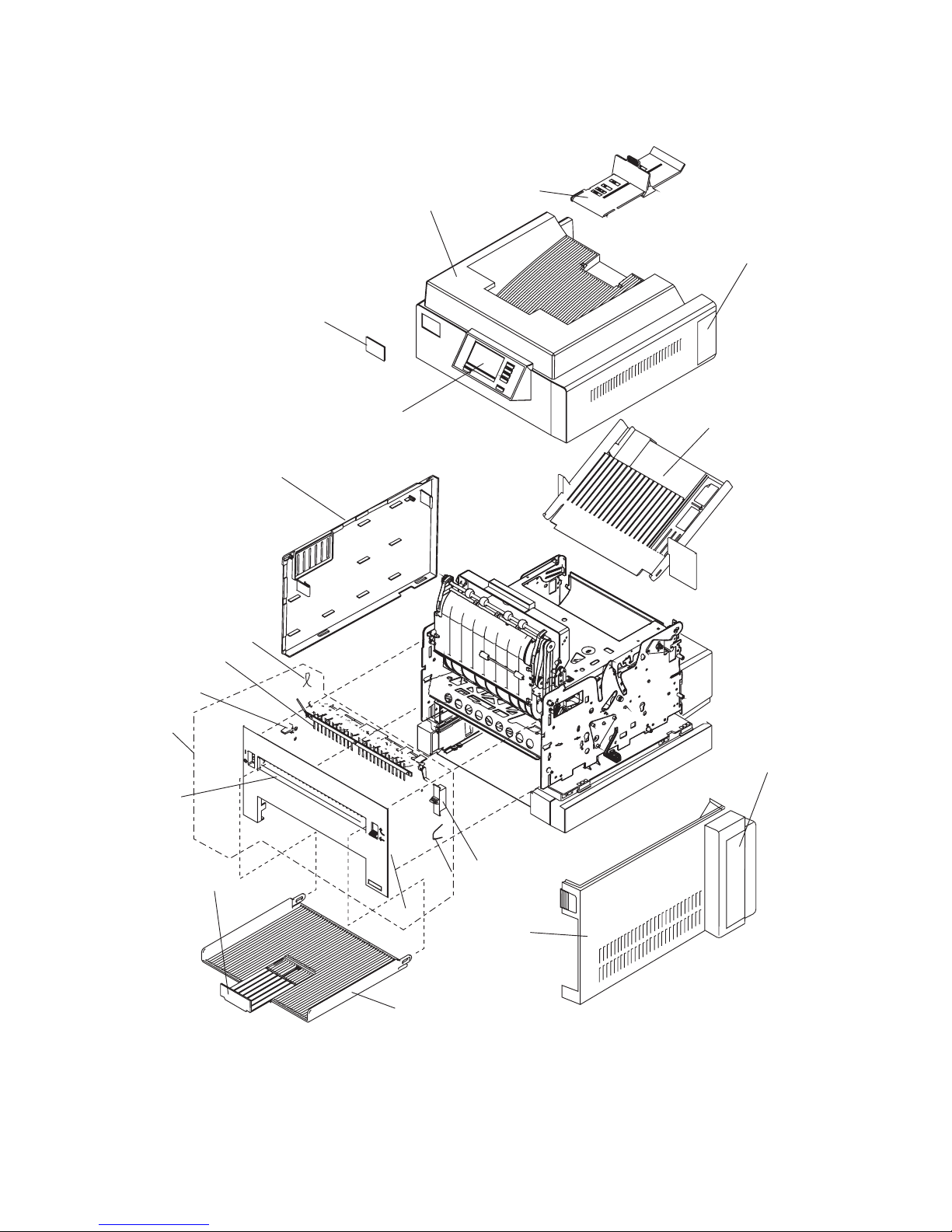

Assembly 1: Covers

114

Parts Catalog 129

Asm-

Index

Part

Number Units Description

1-1 1325311 1 Top Cover 10R/12R/12C/10P

-1 1328204 1 Top Cover 12L/16L

NS 1329607 1 Kit, Stacker Spring 16L

-1A 1381017 1 Operator Panel Asm

-1B 1328207 1 Door, Top Cover 12L/16L

NS 1328453 1 Screw, Operator Panel

-2 1325135 1 Front Logo, 10R

-2 1325136 1 Front Logo, 12R

-2 1325137 1 Front Logo, 12L

-2 1325952 1 Front Logo, 12C

-2 1328511 1 Front Logo, 16L

-2 1419451 1 Front Logo, 10P

-2 1375923 1 Front Logo, 10R plus

-2 1375925 1 Front Logo, 12R plus

-2 1375992 1 Front Logo 12C plus

-2 1375927 1 Front Logo 12L plus

-2 1377417 1 Front Logo 16L plus

-3 1325115 1 Right Cover Asm 10R/12R/12L/12C

-3 1328208 1 Right Cover Asm 10P/16L

-4 1328210 1 Door, Right Cover

NS 1328329 1 Label, Door, Right Cover 10R/12R/12L/12C/

16L

-5 1328186 1 Front Cover Asm

-6 1195318 1 On/Off Switch Lever

-7 1329070 1 Output Deflector

-8 1328473 1 Output Deflector Lever

-9 1 Spring, Deflector Lever, Parts Packet 1383316

-10 1058249 1 Spring, On-Off Actuator

-11 1183599 1 Spring, Front Cover Deflector

-12 1328185 1 Left Cover

-14 1325026 1 Paper Stop Asm,10R/12R/12C/10P

-14 1328509 1 Paper Stop Asm, 12L/16L

-15 1183536 1 Front Exit Slide

-16 1183538 1 Tray, Front Exit with slide

130 Service Manual

Assembly 1: Covers (Continued)

114

Parts Catalog 131

Asm-

Index

Part

Number Units Description

1-17 1328508 1 Manual Feed Tray with guide

NS 1 Screw (Deflector Spring Mtg.) Parts Packet

1383314

NS 1328482 1 Cover, Duplex mtg. slot

NS 1 Screw (Deflector Switch Mtg. plate) Parts

Packet 1383314

-27 1328189 1 Front Exit Door

132 Service Manual

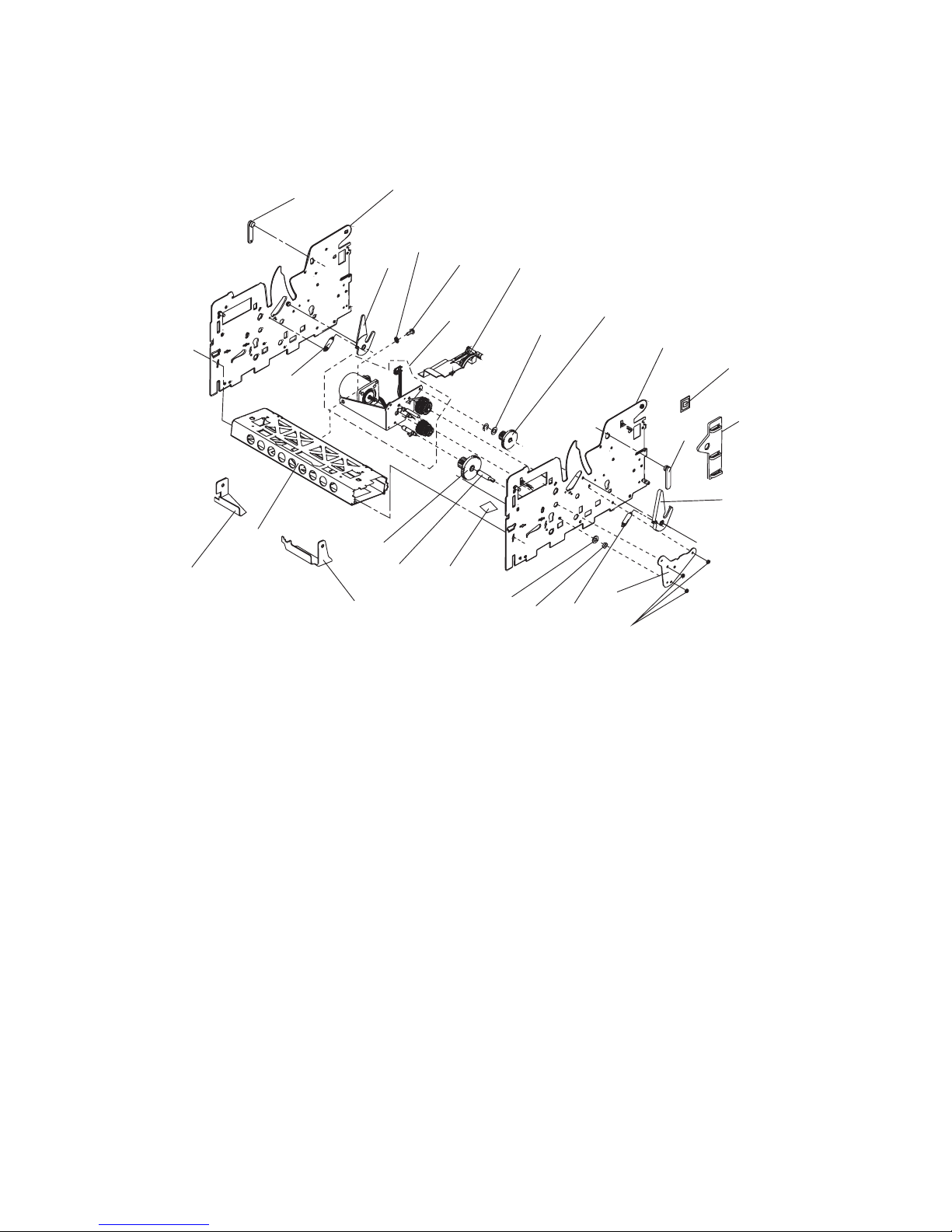

Assembly 2: Lower Frame

120

611

13 12

Parts Catalog 133

Asm-

Index

Part

Number Units Description

2-1 1381120 1 Lower Frame Assembly 10R/12R/12L/12C/16L/

10P

-1 1381001 1 Lower Frame Assembly (16L below serial

number 11-09885 U.S. & 11-10915 W.T.)

-2 1381046 1 Motor, Brkt. and Gear Asm. 10R

-2 1381047 1 Motor, Brkt. and Gear Asm. 12R/12L/12C

-2 1381121 1 Motor, Brkt. and Gear Asm. 16L

-2 1381002 1 Motor, Brkt. and Gear Asm. (16L below serial

number 11-09885 U.S. & 11-10915 W.T.)

-2 1381049 1 Bracket and Gear Asm. 10R (W/O motor)

-2 1381122 1 Bracket and Gear Asm. 12R/12L/12C/16L

(W/O motor)

-2 1381003 1 Bracket and Gear Asm. (W/O motor) (16L

below serial number 11-09885 U.S. & 11-10915

W.T.)

-2 1381623 1 Motor, Brkt. and Gear Asm., 10P - includes

Gear 6

-3 1325614 1 Plate Asm. Gear Box Mtg. 10R

-3 1329515 1 Plate Asm. Gear Box Mtg. 12R/12L/12C/16L

-3 1408672 1 Plate, Gear Box Mtg. 10P

-4 1328503 1 Screw, Motor Brkt. Mtg. (All except 10P)

-4A 1328441 1 Clip, Ground, Motor Mtg. (All except 10P)

NS 1623642 1 Mtg. Screw, motor (All except 10P)

NS 1623642 1 Mtg. Screw, Gear Asm. (All except 10P)

-5 1328244 1 Gear No. 6 (All except 10P)

-5A 1624875 1 Mtg. Screw, Gear # 6 (All except 10P)

-6 1328243 1 Gear No. 2

-7 1039391 2 Detent, Box

-8 1329013 1 Right Cartridge Latch

-9 1383316 1 Spring, Parts Packet

-10 1383314 1 Washer, Parts Packet

-11 1039271 1 Shaft, Gear 2

-12 1383314 1 Nut, Gear 2, PP

-13 1622347 1 Lockwasher, Gear 2

-14 1329144 1 Left Cartridge Latch

-15 1328245 1 Gear Train Cover (All except 10P)

-15 1408645 1 Gear Train Cover, 10P

134 Service Manual

Assembly 2: Lower Frame (Continued)

120

611

13 12
