Lexmark X860de User manual

Lexmark™ X860de, X862de, & X864de

Booklet Maker Finisher

7500-432, -632, and -832

• Table of contents

• Start diagnostics

• Safety and notices

• Trademarks

• Index

Lexmark and Lexmark with diamond design are

trademarks of Lexmark International, Inc., registered

in the United States and/or other countries.

Edition: December 12, 2011

www MK-Electronic de

Parts catalog 7-1

7500-432, -632, and -832

7. Parts catalog

How to use this parts catalog

The following legend is used in the parts catalog:

•Asm-index: Identifiesthe assembly and the item in the diagram. For example 3-1 indicates Assembly 3 and

item number 1 in the table.

•Part number: Identifies the unique number that identifies this FRU.

•Units/option: Refers to the number of units in a particular option. It does not include the rest of the base

machine.

•Units/FRU: Refers to the number of units packaged together and identified by the part number.

•NS: (Notshown) in the Assembly-Index column indicates thatthe partis procurable but is notpictured in the

illustration.

•PP: (Parts Packet) in the parts description column indicates the part is contained in a parts packet.

Asm-

Index Part

number Units/

option Units/

FRU Description

www MK-Electronic de

7-2 MFP Finisher Service Manual

7500-432, -632, and -832

Assembly 1: Finisher—bridge unit

Asm-

Index Part

number Units/

option Units/

FRU Description

1 40X0811 1 1 Bridge unit assembly

2 40X0810 1 2 Bridge unit assembly docking screw (2 each)

www MK-Electronic de

Parts catalog 7-3

7500-432, -632, and -832

Assembly 2: Finisher—bridge unit top cover assembly

Asm-

Index Part

number Units/

option Units/

FRU Description

1 40X0813 1 1 Bridge unit top cover assembly

2 40X0812 6 2 Bridge unit pinch roll kit includes:

•Bridge unit pinch roll (6 each)

•Spring (6 each)

www MK-Electronic de

7-4 MFP Finisher Service Manual

7500-432, -632, and -832

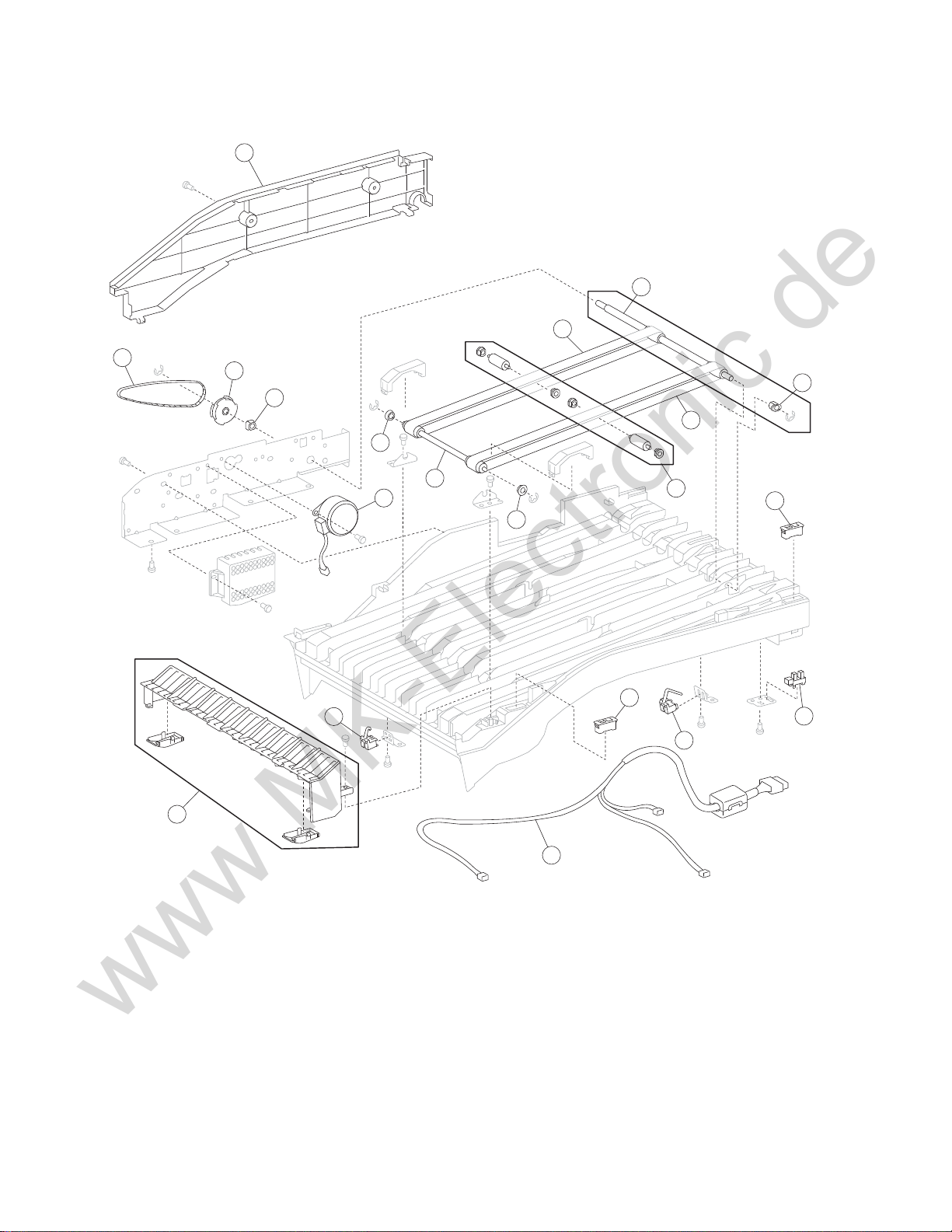

Assembly 3: Finisher—bridge unit lower assembly

www MK-Electronic de

Parts catalog 7-5

7500-432, -632, and -832

Assembly 3: Finisher—bridge unit lower assembly

Asm-

Index Part

number Units/

option Units/

FRU Description

1 40X0814 1 1 Bridge unit rear cover

2 40X0822 1 3 Bridge unit right shaft kit includes:

•6 mm bushing - front

•Bridge unit right shaft assembly

•6 mm bushing - rear

3 40X0820 1 2 Transport belts (2 each)

4 40X0821 1 6 Idler roll kit includes:

•Idler roll (2 each)

•Bushing (4 each)

5 40X0824 8 1 Magnetic catch

6 40X0825 1 1 Sensor (bridge unit top cover interlock)

7 40X0826 1 1 Sensor (bridge unit media exit)

8 40X0828 1 1 Bridge unit cable assembly

9 40X0827 1 1 Sensor (bridge unit media entrance)

10 40X0818 1 3 Bridge unit entrance guide kit includes:

•Bridge unit entrance guide

•Lower guides (2 each)

11 40X0817 1 1 Bridge unit drive motor

12 40X0819 2 1 Ball bearing 4 mm

13 40X0823 1 1 Bridge unit left shaft assembly

14 40X0816 1 1 Bridge unit drive pulley

15 40X0815 1 1 Bridge unit drive belt

www MK-Electronic de

7-6 MFP Finisher Service Manual

7500-432, -632, and -832

Assembly 4: Finisher—covers

www MK-Electronic de

Parts catalog 7-7

7500-432, -632, and -832

Assembly 4: Finisher—covers

Asm-

Index Part

number Units/

option Units/

FRU Description

1 40X0829 1 1 Top cover

2 40X0831 1 1 Upper media bin assembly

3 40X0830 1 1 Upper media bin vertical cover

4 40X0832 1 1 Right eject cover

5 40X0833 1 1 Stacker media bin

6 40X0834 1 1 Right lower LVPS cover

7 40X4405 4 1 Caster (booklet finisher only)

7 40X0835 4 1 Caster

8 40X0836 1 1 Rear lower cover

9 40X0837 1 1 Bridge unit hookup cover

10 40X0838 1 1 Rear upper cover

www MK-Electronic de

7-8 MFP Finisher Service Manual

7500-432, -632, and -832

Assembly 5: Finisher—covers and front door

www MK-Electronic de

Parts catalog 7-9

7500-432, -632, and -832

Assembly 5: Finisher—covers and front door

Asm-

Index Part

number Units/

option Units/

FRU Description

1 40X0839 1 1 Upper media bin front cover

2 40X0841 1 1 Finisher front door assembly (this comes assembled)

3 40X0840 1 1 Switch (finisher front door interlock)

4 40X0842 1 2 Finisher docking latch kit includes:

•Finisher docking latch assembly

•Spring

5 40X0843 1 3 Finisher docking bracket kit includes:

•Finisher docking bracket

•Screw (2 each)

6 40X0844 1 1 Left lower cover

7 40X0845 1 1 Left upper cover
