USB Hub and Fast Ethernet Combo Adapter
User Manual
User ManualUser Manual
User Manual
V1.1
2
ABOUT THIS MANUAL
This manual is designed for use with the
USB-0501
USB Hub and Fast Ethernet
Combo Ada ter. Information in this document has been carefully checked for accuracy;
however, no guarantee is given to the correctness of the contents. The information in
this document is subject to change without notice. The manufacturer does not make
any re resentations or warranties (im lied or otherwise) regarding the accuracy and
com leteness of this document and shall in no event be liable for any loss of rofit or
any commercial damage, including but not limited to s ecial, incidental, consequential,
or other damage.
SAFETY INSTRUCTIONS
Always read the safety instructions carefully:
Kee this User’s Manual for future reference
Kee this equi ment away from humidity
If any of the following situation arises, get the equi ment checked by a service
technician:
•
The equi ment has been ex osed to moisture.
•
The equi ment has been dro ed and damaged.
•
The equi ment has obvious sign of breakage.
•
The equi ment has not been working well or you cannot get it to work
according to the User’s Manual.
COPYRIGHT
This document contains ro rietary information rotected by co yright. All right are
reserved. No art of this manual may be re roduced by any mechanical, electronic or
other means, in any form, without rior written ermission of the manufacturer.
TRADEMARKS
All trademarks and registered trademarks are the ro erty of their res ective owners or
com anies.
3
Table of Contents
1 Introduction 4
Features ....................................................................................................... 5
Package Contents ........................................................................................ 5
System Requirements ................................................................................. 5
2 Installation 6
Hardware Connection ................................................................................. 6
Driver nstallation ....................................................................................... 7
On Windows XP/Vista/7 ............................................................................. 7
On MAC OS X 10.5 ................................................................................. 11
Verifying the Driver nstallation ............................................................... 14
On Windows XP/Vista/7 ........................................................................... 14
On MAC OS X 10.5 ................................................................................. 15
3 Specifications 16
4 Regulatory Compliance 17
FCC Conditions ........................................................................................ 17
CE ............................................................................................................. 17
WEEE nformation ................................................................................... 17
4
1 Introduction
USB-0501 USB Hub and Fast Ethernet Combo Ada ter is com liant with
USB 2.0 S ecification and with the stylish a earance. It is the USB Hub
with Ethernet ort for you easily connecting u to 4 USB 2.0 devices or
LAN devices via RJ-45 ort. It is the erfect solution for USB ort
ex ansion to your com uter, such as a MP3 layer, digital camera, or
rinters.
5
Features
Com liant with USB 2.0 s ecifications (1.5/12/480 Mb s)
The advanced design kee s o timal s eeds when using multi le
USB devices simultaneously.
Plug-and- lay function.
1 Ethernet ort, 1 USB u stream ort and 4 USB downstream
orts.
Package Contents
USB-0501 USB Hub and Fast Ethernet Combo Ada ter x1
CD (Manual & Driver) x 1
Quick Installation Guide x 1
System Requirements
PC with RJ-45 and USB ort.
La to with RJ-45 and USB ort.
One of the following o eration systems: Windows XP, Vista, 7
& Mac 10.1 u .
6
2 Installation
Hardware Connection

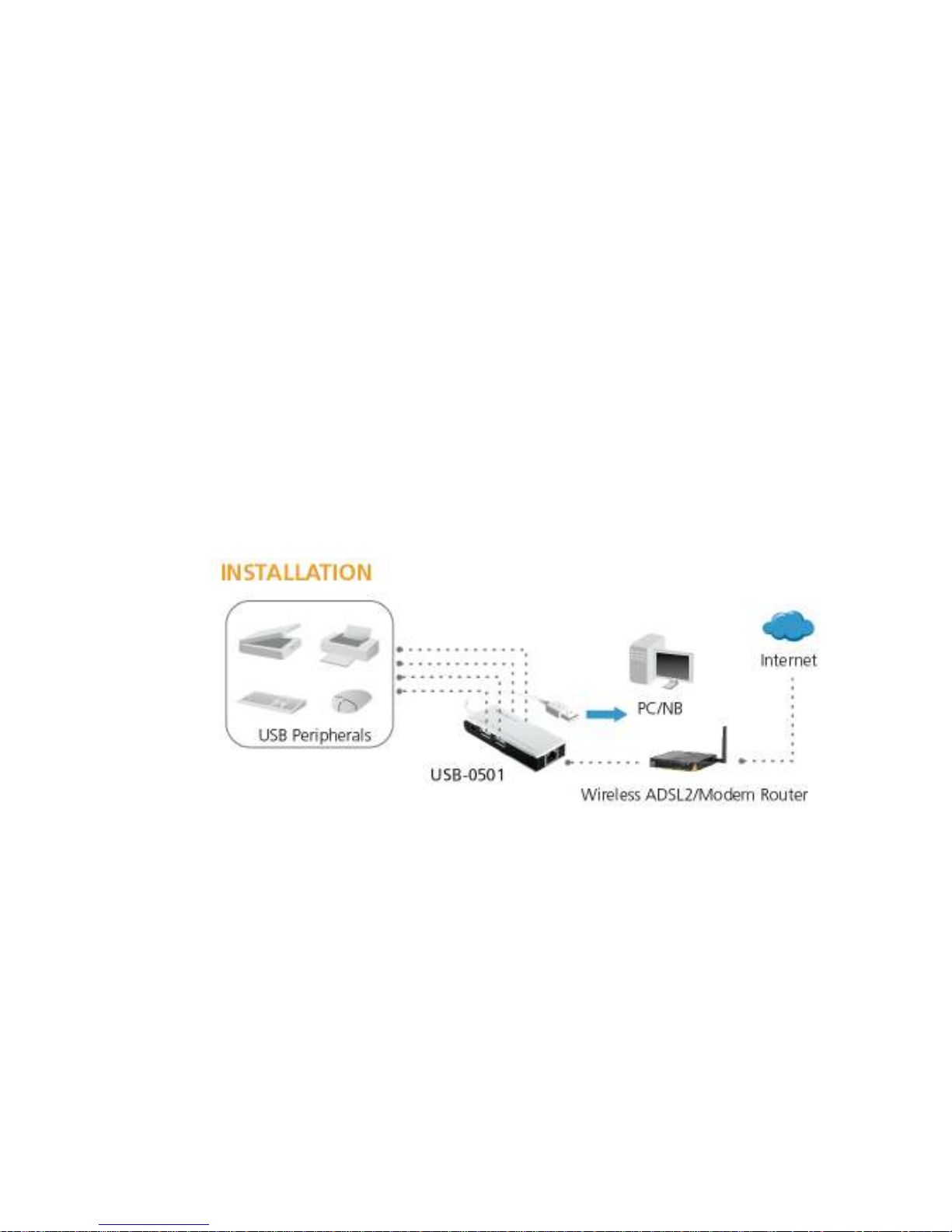

General instructions for installing the USB 2.0 4 Port Hub with Ethernet Ada ter
are rovided below. Since the design of system may vary, refer to your system’s
reference manual for further information, if needed.
7
Driver Installation
On Windows XP/Vista/7
Caution: DO NOT connect the Ethernet ada ter to your com uter before
you install the rovided driver. You will be instructed to do so later.

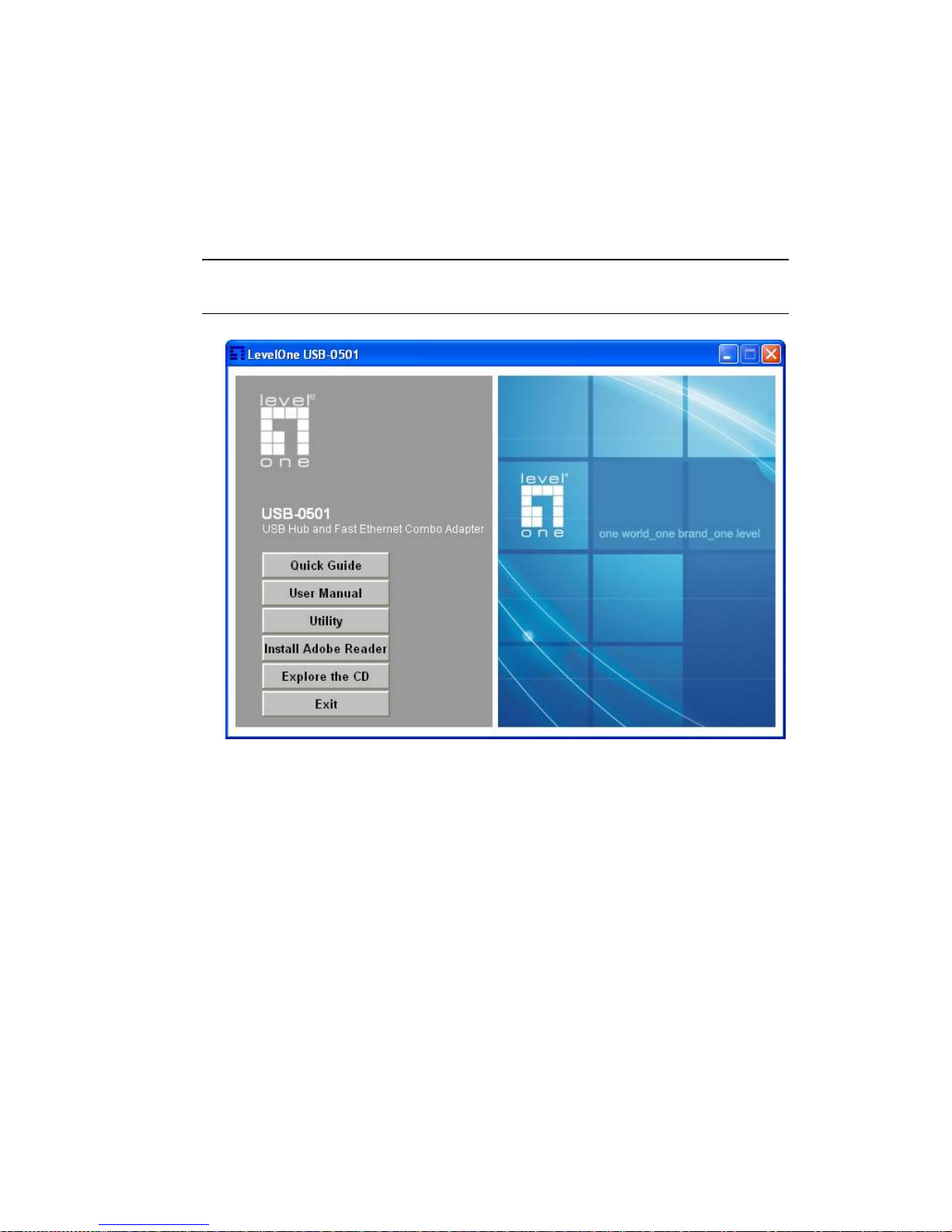

For CD autorun, lease click Utility begins software installation
1. Insert the rovided CD into your disc drive. Then locate and
double-click the setup exe file under x:\Driver\Windows where x is
your disc drive letter.
8

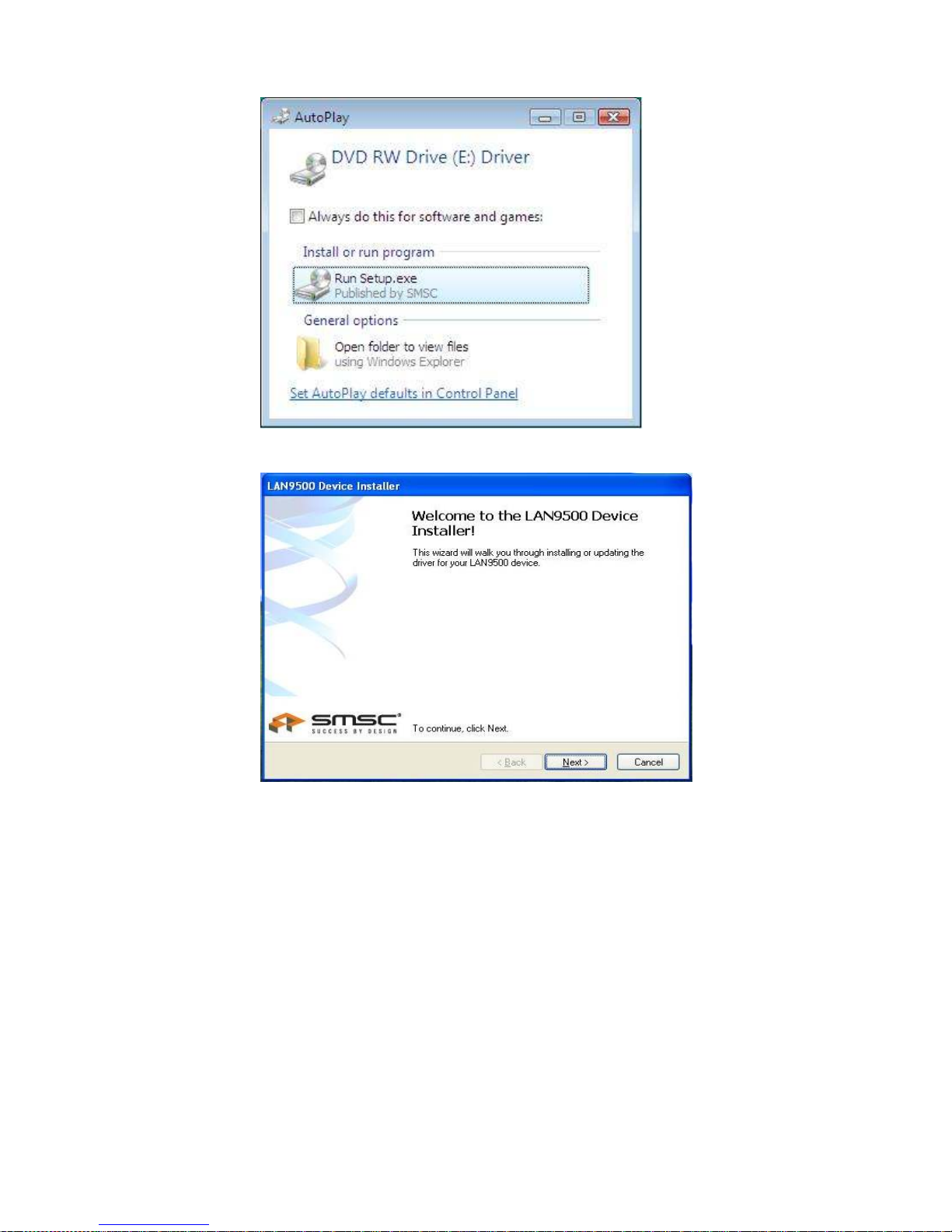

2. When you see the screen below, lease click Next.
3. Please choose “I accept this EULA” and click “Next”.
9
4. Click Finish to com lete Ethernet Driver.
Notice for Vista Users: If the USB 2.0 4-Port Hub with Ethernet
Ada ter does not work after com leting driver installation, lease
restart you system.

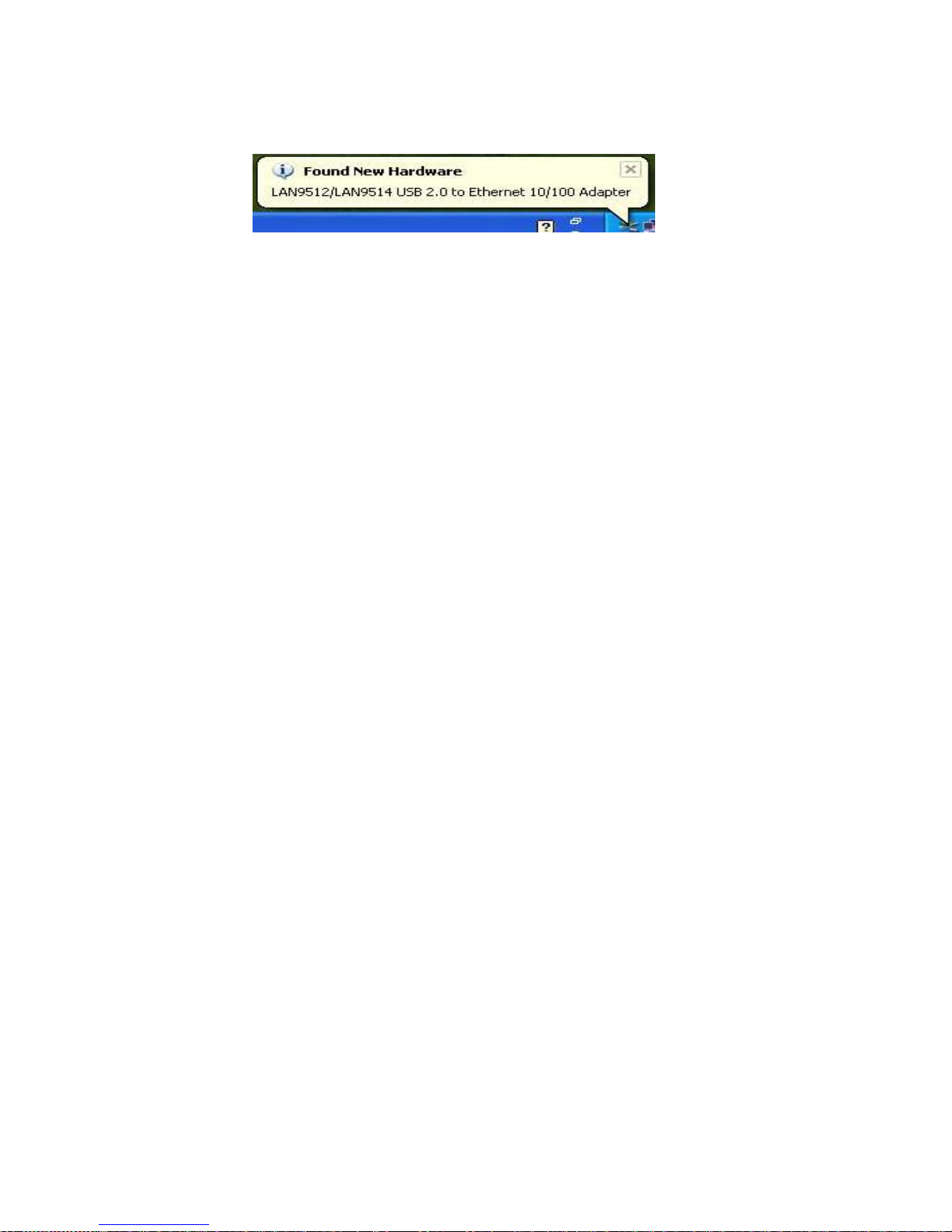

5. Connect the Ethernet ada ter’s USB end to a free USB ort of your
10
com uter. Then a o -u message will a ear in the notification area
indicating the installation is com leted.
* Actual strings de end on your o eration system. These screen shots are from
Windows XP and Vista, it might vary slightly for each o eration system.
Now the installation is com leted. You can connect the ada ter to a
network device by an Ethernet cable:
1. Connect an Ethernet cable to the Ethernet ort on the ada ter.
2. Connect the other end of the Ethernet cable to your network hub,
switch or router.
The Link LED should light u green to indicate a ro er hysical
connection between the ada ter and the network. If the Link LED
doesn’t light u , lease verify the cable connections between all the
network devices.
