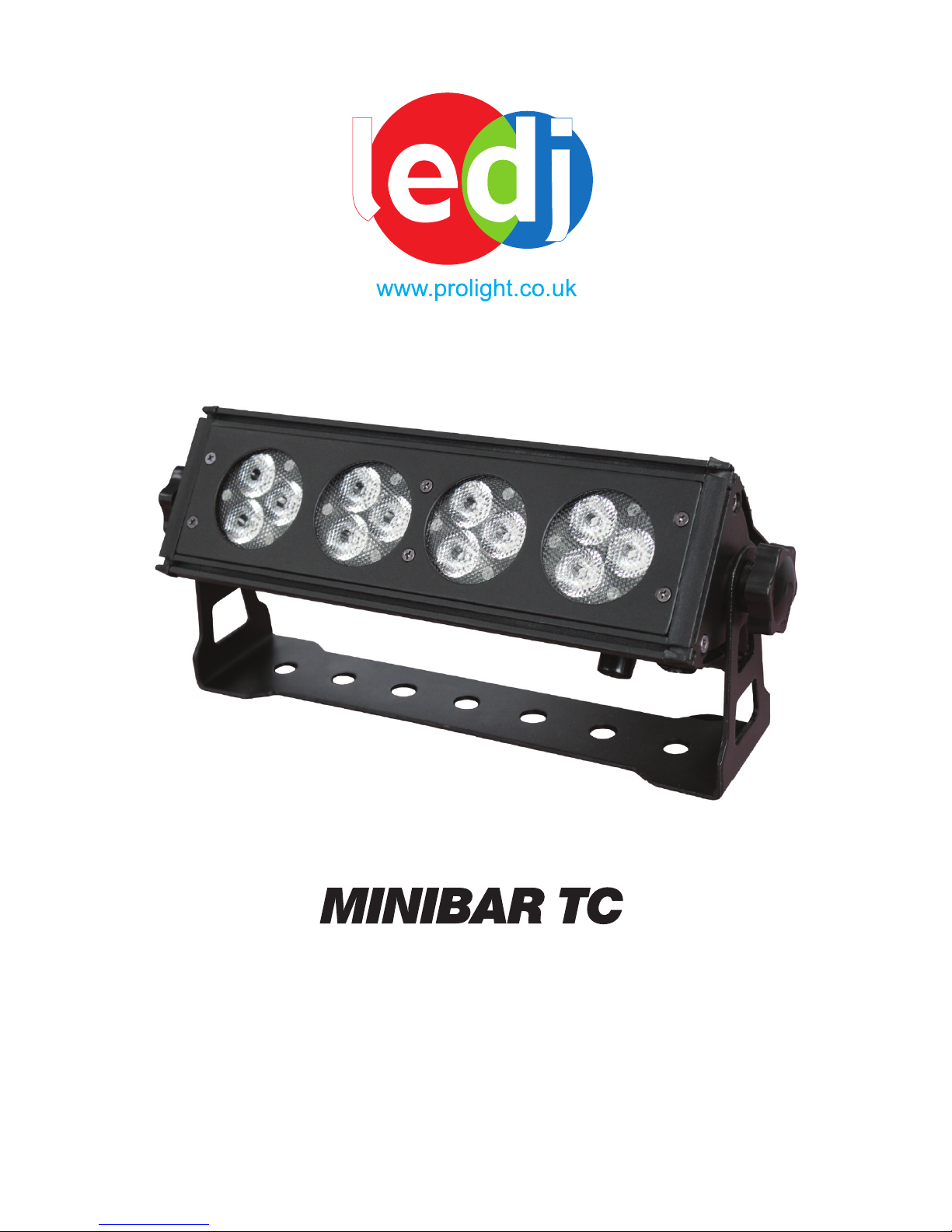

Ledj Minibar TC User manual

Order code: LEDJ161

USER MANUAL

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

CAUTION!

Keep this equipment away from rain,

moisture and liquids.

SAFETY INSTRUCTIONS

Every person involved with the installation, operation & maintenance of this

equipment should:

- Be competent

- Follow the instructions of this manual

CAUTION! TAKE CARE USING THIS EQUIPMENT!

HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!!

Before your initial start-up, please make sure that there is no damage caused during

transportation. Should there be any, consult your dealer and do not use the

equipment.

To maintain the equipment in good working condition and to ensure safe operation, it is necessary

for the user to follow the safety instructions and warning notes written in this manual.

Please note that damages caused by user modifications to this equipment are not

subject to warranty.

MINI BAR TC SAFETY

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused

by the non-observance of this manual or any unauthorised modification to the

equipment.

• Never let the power-cable come into contact with other cables. Handle the power-cable

and all mains voltage connections with particular caution!

• Never remove warning or informative labels from the equipment.

• Do not open the equipment and do not modify the equipment.

• Do not connect this equipment to a dimmer-pack.

• Do not switch the equipment on and off in short intervals, as this will reduce the

system’s life.

• Only use the equipment indoors.

• Do not expose to flammable sources, liquids or gases.

• Always disconnect the power from the mains when equipment is not in use or before

cleaning! Only handle the power-cable by the plug. Never pull out the plug by pulling the

power-cable.

• Make sure that the available voltage is between 220v/240v.

• Make sure that the power-cable is never crimped or damaged. Check the equipment and

the power-cable periodically.

• If the equipment is dropped or damaged, disconnect the mains power supply immediately.

Have a qualified engineer inspect the equipment before operating again.

• If the equipment has been exposed to drastic temperature fluctuation (e.g. after

transportation), do not switch it on immediately. The arising condensation might damage

the equipment. Leave the equipment switched off until it has reached room temperature.

• If your product fails to function correctly, discontinue use immediately. Pack the unit

securely (preferably in the original packing material), and return it to your Prolight dealer

for service.

• Only use fuses of same type and rating.

• Repairs, servicing and power connection must only be carried out by a qualified

technician. THIS UNIT CONTAINS NO USER SERVICEABLE PARTS.

• WARRANTY; One year from date of purchase.

OPERATING DETERMINATIONS

If this equipment is operated in any other way, than those described in this manual,

the product may suffer damage and the warranty becomes void.

Incorrect operation may lead to danger e.g.: short-circuit, burns, electric shocks,

lamp failure etc.

Do not endanger your own safety and the safety of others!

Incorrect installation or use can cause serious damage to people and property.

MINI BAR TC SAFETY

Introduction

CONTROL FEATURES

• DMX channels: 3/6 selectable

• Blackout/Dimmer/Strobe/sound activation

• Individual control of Red, Green and Blue LEDs

• Optional DMX controllers: LEDJ S-1 (LEDJ126), LEDJ S-1F Foot controller (LEDJ127)

Features

• 12 x 1W LEDs (R: 4, G: 4, B: 4)

• RGB colour mixing

• Static colour selection, built-in programmes, sound active and DMX modes

• Power consumption: 22W

• Long life LEDs

• Master/Slave

• Small rugged compact housing

• Power supply: 240V

• Dimensions: 295 x 80 x 112mm

• Weight: 1.5Kgs

Overview:

Operating Instructions

The Mini Bar TC is a DMX-512 controllable, full RGB colour mixing bar made up of high

efficiency and super bright LEDs. There are three colour groups (red, blue and green) whose

intensity can be controlled individually allowing the creation of an unlimited range of colours.

The Colour Bar will operate in stand-alone, Master/Slave, sound activated and DMX.

MINI BAR TC INTRODUCTION

DMX IN DMX OUT

FUSE: F1A~250V

MIC

Mode Button Down Button Up Button

Microphone LED Display

Fuse

Power Supply

DMX In DMX Out

MINI BAR TC OPERATIONS

Note: For full function of the S-1 controller, please set the unit into the 3 channel DMX

mode.

Note: When using the S-1F foot switch controller please make sure that the unit is set into

3 channel DMX mode.

Note: When the unit is being used in the 6 channel DMX mode, only the corresponding

DMX sliders will work on the S-1 controller.

MINI BAR TC OPERATIONS

DMX-512:

• DMX (Digital Multiplex) is a universal protocol used as a form of communication between

intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the

controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the

DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have

a data “out” terminal).

DMX Linking:

• DMX is a language allowing all makes and models of different manufactures to be linked

together and operate from a single controller, as long as all fixtures and the controller are DMX

compliant. To ensure proper DMX data transmission, when using several DMX fixtures try to use

the shortest cable path possible. The order in which fixtures are connected in a DMX line does not

influence the DMX addressing. For example; a fixture assigned to a DMX address of 1 may be

placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a

fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to

address 1 to that unit, no matter where it is located in the DMX chain.

DATA Cable (DMX cable) requirements (for DMX operation):

• The Mini Bar TC can be controlled via DMX-512 protocol. The DMX address is set on the back

of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data

input/output (figure 1).

Figure 1

Also remember that DMX cable must be daisy chained and cannot be split.

MINI BAR TC DMX SET UP

Notice:

• Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield

conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer

casing. Grounding the shield could cause a short circuit and erratic behaviour.

Special Note: Line termination:

• When longer runs of cable are used, you may need to use a terminator on the last unit to

avoid erratic behaviour.

Using a cable terminator (part number CABL90) will decrease the possibilities of erratic

behaviour.

5-Pin XLR DMX Connectors:

• Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-Pin

XLR fixtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin

XLR connectors in to a 3-pin line a cable adaptor must be used. The chart below details the

correct cable conversion.

Termination reduces signal transmission problems

and interferance. it is always advisable to connect a

DMX terminal, (resistance 120 Ohm 1/4 W) between

pin 2 (DMX-) and pin 3 (DMX+) of the last fixture.

MINI BAR TC DMX SET UP
