Ledj Colour Storm Quad User manual

www.prolight.co.uk

(Order code: LEDJ168)

USER MANUAL

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

CAUTION!

Keep this equipment away from rain,

moisture and liquids.

SAFETY INSTRUCTIONS

Every person involved with the installation, operation & maintenance of this

equipment should:

- Be competent

- Follow the instructions of this manual

CAUTION! TAKE CARE USING THIS EQUIPMENT!

HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!!

Before your initial start-up, please make sure that there is no damage caused during

transportation. Should there be any, consult your dealer and do not use the

equipment.

To maintain the equipment in good working condition and to ensure safe operation, it is necessary

for the user to follow the safety instructions and warning notes written in this manual.

Please note that damages caused by user modifications to this equipment are not

subject to warranty.

Colour Storm Quad Safety

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused

by the non-observance of this manual or any unauthorised modification to the

equipment.

• Never let the power-cable come into contact with other cables. Handle the power-cable

and all mains voltage connections with particular caution!

• Never remove warning or informative labels from the equipment.

• Do not open the equipment and do not modify the equipment.

• Do not connect this equipment to a dimmer-pack.

• Do not switch the equipment on and off in short intervals, as this will reduce the

system’s life.

• Only use the equipment indoors.

• Do not expose to flammable sources, liquids or gases.

• Always disconnect the power from the mains when equipment is not in use or before

cleaning! Only handle the power-cable by the plug. Never pull out the plug by pulling the

power-cable.

• Make sure that the available voltage is between 220v/240v.

• Make sure that the power-cable is never crimped or damaged. Check the equipment and

the power-cable periodically.

• If the equipment is dropped or damaged, disconnect the mains power supply immediately.

Have a qualified engineer inspect the equipment before operating again.

• If the equipment has been exposed to drastic temperature fluctuation (e.g. after

transportation), do not switch it on immediately. The arising condensation might damage

the equipment. Leave the equipment switched off until it has reached room temperature.

• If your product fails to function correctly, discontinue use immediately. Pack the unit

securely (preferably in the original packing material), and return it to your Prolight dealer

for service.

• Only use fuses of same type and rating.

• Repairs, servicing and power connection must only be carried out by a qualified

technician. THIS UNIT CONTAINS NO USER SERVICEABLE PARTS.

• WARRANTY; One year from date of purchase.

OPERATING DETERMINATIONS

If this equipment is operated in any other way, than those described in this manual,

the product may suffer damage and the warranty becomes void.

Incorrect operation may lead to danger e.g.: short-circuit, burns, electric shocks,

lamp failure etc.

Do not endanger your own safety and the safety of others!

Incorrect installation or use can cause serious damage to people and property.

Setup

Operating Instructions

The Colour Storm Quad is a DMX-512 controllable unit made up of high efficiency and Ultra Bright

Quad-colour LEDs and will operate in auto run, master/slave, sound activated or DMX control

modes.

Colour Storm Quad Introduction

Introduction

Features

•DMX channels: 4/6/7/11/19/64 and 67 selectable

• LEDs: 16 x Mega Bright 8W quad-colour LEDs

• Sound active, auto run, master/slave and DMX modes

• 400Hz flicker free LEDs

• Powercon in/out sockets

• 3-Pin XLR in/out sockets

• 5-pin XLR in/out sockets

• 4 push button LCD display

• 0-100% dimming

• Long life LEDs

• Beam angle: 25 degrees

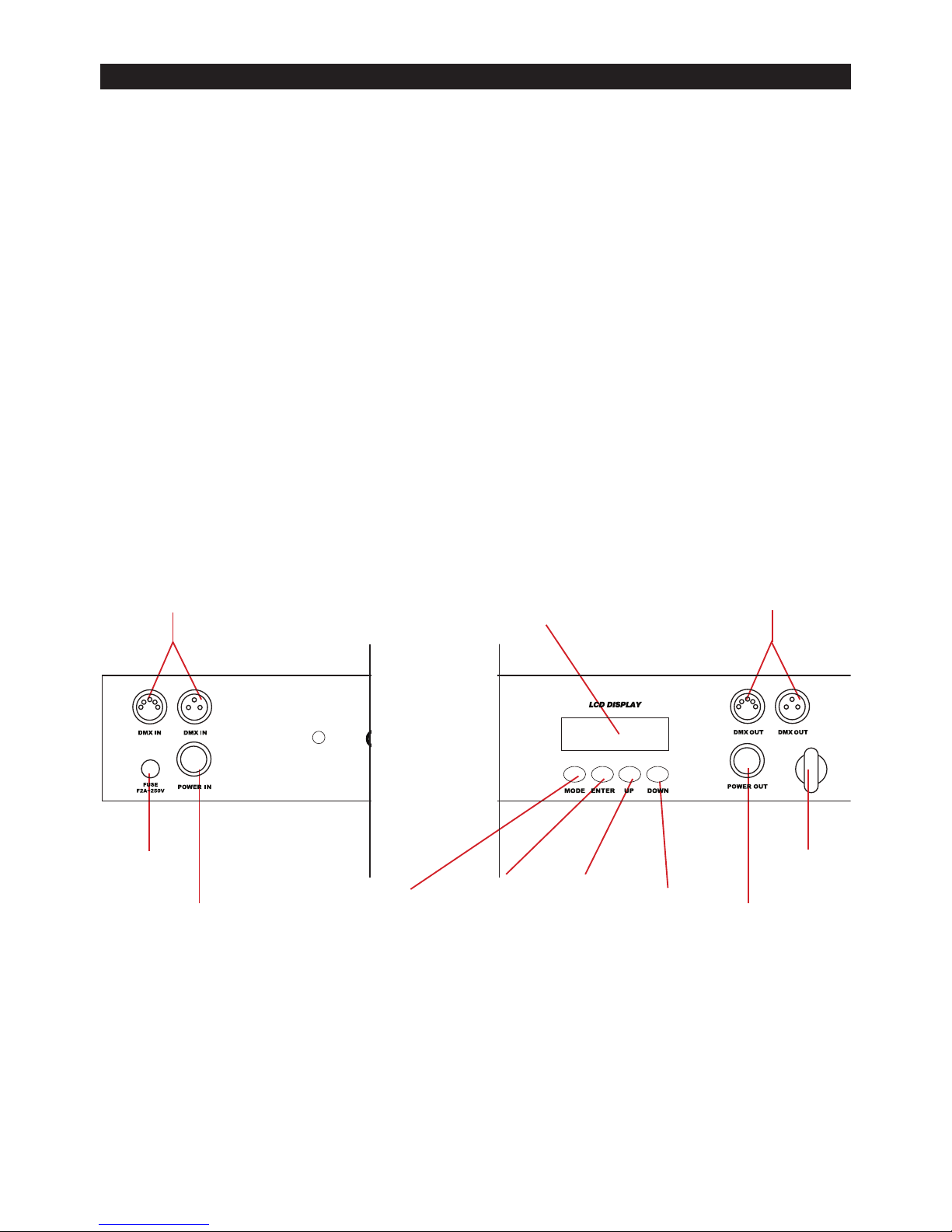

Overview

Power In

DMX In DMX Out

LCD Display

Mode Button Enter Button Up Button Down Button

Power Out

Fuse Safety eye

Colour Storm Quad Operation Modes

Operation modes

Sound Active mode:

To activate the unit in sound active mode, press the “MODE” button to show “SOUND MODE”

on the LCD screen. Now press the “ENTER” button to select the desired sensitivity level by using

the “UP” and “DOWN” buttons. Press the “ENTER” button again to select the frequency level

and adjust by using the “UP” and “DOWN” buttons.

“SENS” 00 - 31 (00 = low, 31 = high)

“FQN” 01-99 (01 = low, 99 = high)

Auto run mode:

To activate the unit in auto run mode, press the “MODE” button to show “AUTO RUN” on the

LCD screen. Now press the “ENTER” button to select the desired frequency level by using the

“UP” and “DOWN” buttons.

“FQN” 01-99 (01 = low, 99 = high)

Note: In this mode, it will run 13 built-in programmes in a continuous loop.

Slave mode:

To activate the unit in slave mode, first you must link multiple units together and press the

“MODE” button to show “SLAVE MODE” on the LCD screen. Now on the master unit press the

“MODE” button to select the desired mode and the slave units will now run in sequence with the

master unit.

Built-in programmes:

To activate the units built-in programmes, press the “MODE” button to show “01.STATIC” on the

LCD screen. Press the “ENTER” button to choose between the 14 built-in programmes by

using the “UP” and “DOWN” buttons. Now press the “ENTER” button to select the desired speed

and adjust by using the “UP” and “DOWN” buttons. Press the “ENTER” button once more to

select the desired flash value and adjust by using the “UP” and “DOWN” buttons.

Speed values: 00 - 99 (00 = slow, 99 = fast)

Flash values: 00 - 99 (00 = slow, 99 = fast)

For the 14 built-in programmes please see page 5.

DMX mode:

To activate the unit in DMX mode, press the “MODE” button to show “DMX MODE” on the LCD

screen. Press the “ENTER” button and select the desired DMX address setting by using the “UP”

and “DOWN” buttons. Then to select one of the 5 DMX modes 4, 6, 7, 11, 19, 64 or 67 channel,

press the “ENTER” button again to choose the desired DMX mode by using the “UP” and

“DOWN” buttons.

For the 4, 6, 7, 11, 19, 64 or 67 channel DMX address information please see pages 6, 7 & 8.

NOTE: Once the desired settings have been selected in each of the above modes, ALWAYS

confirm the settings by pressing the “ENTER” button.

Colour Storm Quad Built-in Programme Chart

14 Built-in programme chart

Colour Storm Quad DMX Programme Charts

4 channel DMX chart

6 channel DMX chart

7 channel DMX chart

Note that from address 0-15 and 16 - 255 also applies to DMX channel modes 67, 19 and 11.

11 channel DMX chart

CH1

All

Red

0-255

CH2

All

Green

0-255

CH3

All

Blue

0-255

CH4

All

White

0-255

CH1

All

Red

0-255

CH2

All

Green

0-255

CH3

All

Blue

0-255

CH4

All

White

0-255

CH5

Master

Dimmer

0-255

CH6

Flash

0-255

CH1

0-15

CH2

Master

Dimmer

0-255

CH3

Flash

0-255

CH4

0-255

CH5

0-255

CH6

0-255

CH7

0-255

CH8

0-255

CH9

0-255

CH10

0-255

CH11

0-255

CH1 CH2 CH3 CH4 CH5 CH6 CH7

0-15

Master

Dimmer

0-255

Flash

0-255

All Red

0-255

All Green

0-255

All Blue

0-255

All White

0-255

16-23 Red

24-31 Green

32-39 Blue

40-47 White

48-55 Yellow

56-63 Cyan

64-71 light Blue

72-79 Pink

80-87 Light Green

88-95 Purple

96-103 White, rgb

104-111 Light green

112-119 Light yellow

120-127 Light purple

128-135 White, rgbw

136-143 Dream

144-151 Meteor

152-159 Fade

160-167 Change

168-175 Flow 1

176-183 Flow 2

184-191 Flow 3

192-199 Flow 4

200-207 Flow 5

208-215 Flow 6

216-223 Flow 7

224-231 Flow 8

232-239 Flow 9

240-255 Sound

Speed 0-255

Sensitivity 0-255

Flash 0-255

Colour select

0-255

Colour select

0-255

Colour select

0-255

Colour select

0-255

19 channel DMX chart

64 channel DMX chart

Colour Storm Quad DMX Programme Charts

CH1

0-15

CH2

Master

Dimmer

0-255

CH3

Flash

0-255

CH4

0-255

CH5

0-255

CH6

0-255

CH7

0-255

CH8

0-255

CH9

0-255

CH10

0-255

CH11

0-255

CH12

0-255

CH13

0-255

CH14

0-255

CH15

0-255

CH16

0-255

CH17

0-255

CH18

0-255

CH19

0-255

CH1

0-255

CH2

0-255

CH3

0-255

CH4

0-255

CH5

0-255

CH6

0-255

CH7

0-255

CH8

0-255

CH9

0-255

CH10

0-255

CH11

0-255

CH12

0-255

CH13

0-255

CH14

0-255

CH15

0-255

CH16

0-255

CH17

0-255

CH18

0-255

CH19

0-255

CH20

0-255

CH21

0-255

CH22

0-255

CH23

0-255

CH24

0-255

CH25

0-255

CH26

0-255

CH27

0-255

CH28

0-255

CH29

0-255

CH30

0-255

CH31

0-255

CH32

0-255

CH33

0-255

CH34

0-255

CH3

0-255

CH36

0-255

CH37

R10

0-255

CH38

G10

0-255

CH39

B10

0-255

CH40

W10

0-255

CH41

R11

0-255

CH42

G11

0-255

CH43

B11

0-255

CH44

W11

0-255

CH45

R12

0-255

CH46

G12

0-255

CH47

B12

0-255

CH48

W12

0-255

CH49

R13

0-255

CH50

G13

0-255

CH51

B13

0-255

CH52

W13

0-255

CH53

R14

0-255

CH54

G14

0-255

CH55

B14

0-255

CH56

W14

0-255

CH57

R15

0-255

CH58

G15

0-255

CH59

B15

0-255

CH60

W15

0-255

CH61

R16

0-255

CH62

G16

0-255

CH63

B16

0-255

CH64

W16

0-255

67 channel DMX chart

Colour Storm Quad DMX Programme Charts

CH1

0-15

CH2

Master

Dimmer

0-255

CH3

Flash

0-255

CH4

0-255

CH5

0-255

CH6

0-255

CH7

0-255

CH8

0-255

CH9

0-255

CH10

0-255

CH11

0-255

CH12

0-255

CH13

0-255

CH14

0-255

CH15

0-255

CH16

0-255

CH17

0-255

CH18

0-255

CH19

0-255

CH20

0-255

CH21

0-255

CH22

0-255

CH23

0-255

CH24

0-255

CH25

0-255

CH26

0-255

CH27

0-255

CH28

0-255

CH29

0-255

CH30

0-255

CH31

0-255

CH32

0-255

CH33

0-255

CH34

0-255

CH3

0-255

CH36

0-255

CH37

0-255

CH38

0-255

CH39

0-255

CH40

R10

0-255

CH41

G10

0-255

CH42

B10

0-255

CH43

W10

0-255

CH44

R11

0-255

CH45

G11

0-255

CH46

B11

0-255

CH47

W11

0-255

CH48

R12

0-255

CH49

G12

0-255

CH50

B12

0-255

CH51

W12

0-255

CH52

R13

0-255

CH53

G13

0-255

CH54

B13

0-255

CH55

W13

0-255

CH56

R14

0-255

CH57

G14

0-255

CH58

B14

0-255

CH59

W14

0-255

CH60

R15

0-255

CH61

G15

0-255

CH62

B15

0-255

CH63

W15

0-255

CH64

R16

0-255

CH65

G16

0-255

CH66

B16

0-255

CH67

W16

0-255

Colour Storm Quad DMX Set up

DMX-512:

• DMX (Digital Multiplex) is a universal protocol used as a form of communication between

intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the

controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the

DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only

have a data “out” terminal).

DMX Linking:

• DMX is a language allowing all makes and models of different manufactures to be linked together

and operate from a single controller, as long as all fixtures and the controller are DMX compliant.

To ensure proper DMX data transmission, when using several DMX fixtures try to use the

shortest cable path possible. The order in which fixtures are connected in a DMX line does not

influence the DMX addressing. For example; a fixture assigned to a DMX address of 1 may be

placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a

fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to

address 1 to that unit, no matter where it is located in the DMX chain.

DATA Cable (DMX cable) requirements (for DMX operation):

• The Colour Storm Quad can be controlled via DMX-512 protocol. The DMX address is set on

the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector

for data input/output (figure 1).

Figure 1

Also remember that DMX cable must be daisy chained and cannot be split.

Further DMX cables can be purchased

from all good sound and lighting suppliers

or Prolight dealers.

Please quote:

CABL10 – 2M

CABL11 – 5M

CABL12 – 10M

Table of contents

Other Ledj Lighting Equipment manuals

Ledj

Ledj Pixel Bar LEDJ73A User manual

Ledj

Ledj STAGE PAR 64 User manual

Ledj

Ledj SPECTRA BATTEN12T3 EXTERIOR User manual

Ledj

Ledj LEDJ255 User manual

Ledj

Ledj HEX Par 9 LEDJ226 User manual

Ledj

Ledj STAGE BAR 16 User manual

Ledj

Ledj Slimline 1T100 User manual

Ledj

Ledj Slimline 3HEX12 Series User manual

Ledj

Ledj STAR18 User manual

Ledj

Ledj Stage Par CZ200 Dual White User manual

Ledj

Ledj Spectra Flood 18HEX10 User manual

Ledj

Ledj LEDJ02 User manual

Ledj

Ledj ALU ZOOM PAR 64 User manual

Ledj

Ledj LEDJ24 User manual

Ledj

Ledj Event Panel User manual

Ledj

Ledj LEDJ472 User manual

Ledj

Ledj Pixel Storm 6 Tri Batten User manual

Ledj

Ledj LEDJ188 User manual

Ledj

Ledj Archi BAR 48 User manual

Ledj

Ledj Razor Beam User manual

Ledj

Ledj Intense 9P10 RGBWA LED Slim Panel User manual

Ledj

Ledj Spectra Par LEDJ88 User manual

Ledj

Ledj Stage Par CZ 120 RGBA User manual

Ledj

Ledj STRATOS SPOT User manual

Popular Lighting Equipment manuals by other brands

Brizo

Brizo 8SP-MU-4 manual

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 installation instructions

IKEA

IKEA BJÖRKSPIREA manual

Laserworld

Laserworld Evolution Series ES-400RGB manual

Alien

Alien RG STAR user manual

EuroLite

EuroLite LED B-40 user manual

Qazqa

Qazqa Suplux SL 3 Black 103062 instruction manual

Commercial Electric

Commercial Electric 54568141 Use and care guide

CREE LIGHTING

CREE LIGHTING 304 Series installation instructions

Goobay

Goobay 49867 user manual

ECOMAN ITALIA

ECOMAN ITALIA LED T8 instruction manual

Alkalite

Alkalite Krypton KT-81 user manual

Clas Ohlson

Clas Ohlson GU10 manual

DTS

DTS DELTA 10 F user manual

ring

ring Solar Steplight manual

One Stop Gardens

One Stop Gardens 57696 Owner's manual & safety instructions

Chauvet DJ

Chauvet DJ COREpar UV120 ILS user manual

SIREM

SIREM Swimeo A2 instructions
