KT&C KPT-SPDN300 User manual
KA-ICM
Installation Guide for KPT-SPDN300
1. Install three (3) support and screw (M4x10) assemblies
through the holes in the upper position of ‘Shield Cover’.
2. After assembling supporter(L45) to the support bracket,
secure the screws(M4x10) on to the camera.
1. Cut a hole in the ceiling
to use a Mounting Guide
in the Package by Ø7.87 and
insert the in-ceiling housing.
2. Using screwdriver, tighten
the three (3) screws clockwise.
To prevent from falling, secure the Safety wire
using screws or eyebolt.
1. Secure the eyebolts (M6)
to prevent falling of the
in-ceiling Housing body.
2. Use three (3 ) screws
(M3X8, flat head type) to
secure the eyebolt. Fasten the top cover by turning it to the diretion
of CLOSE.
1 2 4
3 5
Ø7.87
OPEN
CLOSE
Unit: inch

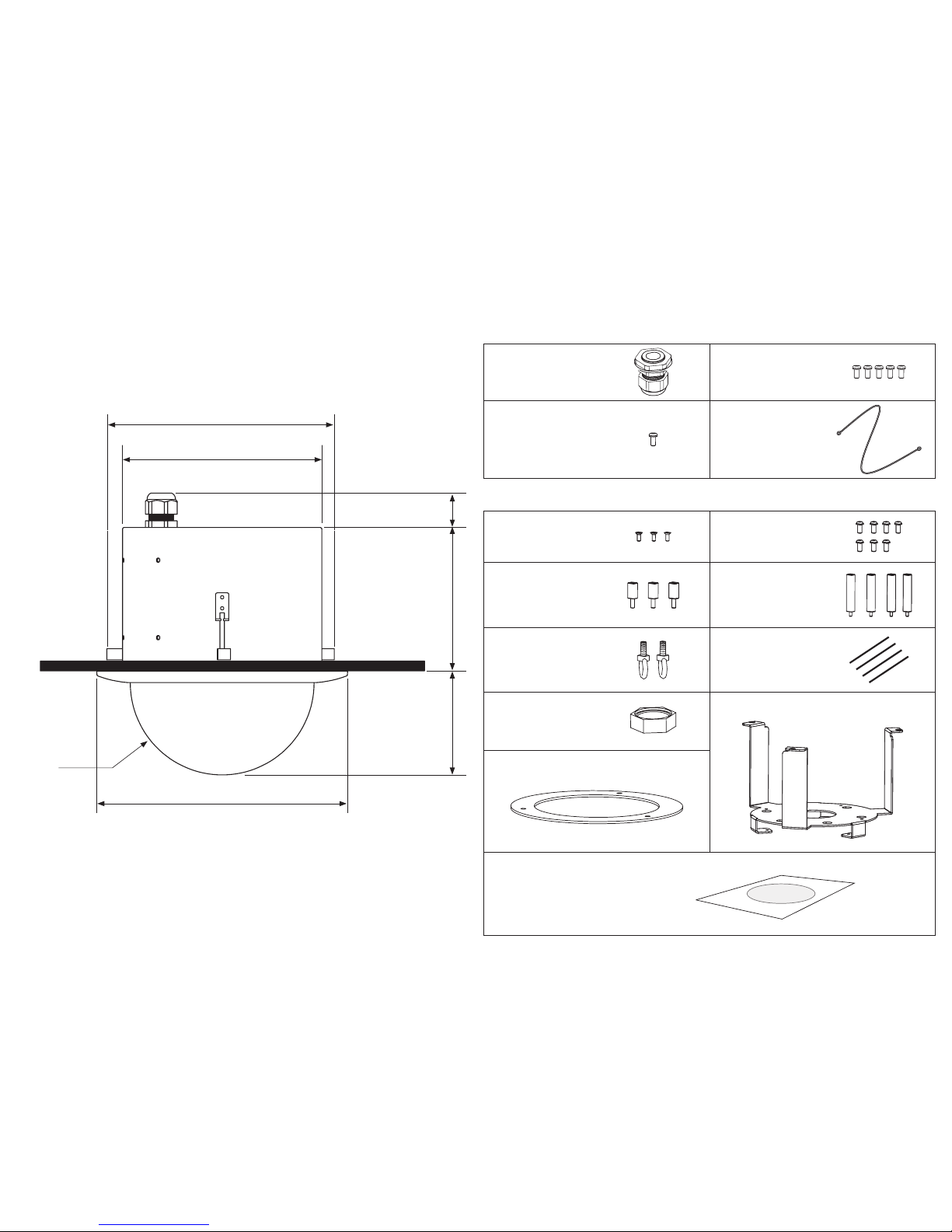

Dimensions
Ø8.89
Ø7.08
4.72 5.11 1.37
CUT CEILING TILE Ø7.87
Ø6.53
Unit: inch
Accessories in the package
1.
Cable Grand
(1ea)
M3X8,Tapping
(5ea)
M3X6, Machine screw
(1ea)
Safety wire
(1ea)
2.
Machine Screw
(M3X8,FH, 3ea)
Machine Screw
(M4X10,BLK, 7ea)
Spacer
(L16, 3ea)
Spacer
(L45, 4ea)
Eye Bolt
(2ea)
Cable tie
(4ea)
NUT
(PT1.5”)
Support Bracket (BLK)
Shield Cover (BLK)
Mounting Guide
(Ø7.87 inch)
This manual suits for next models
