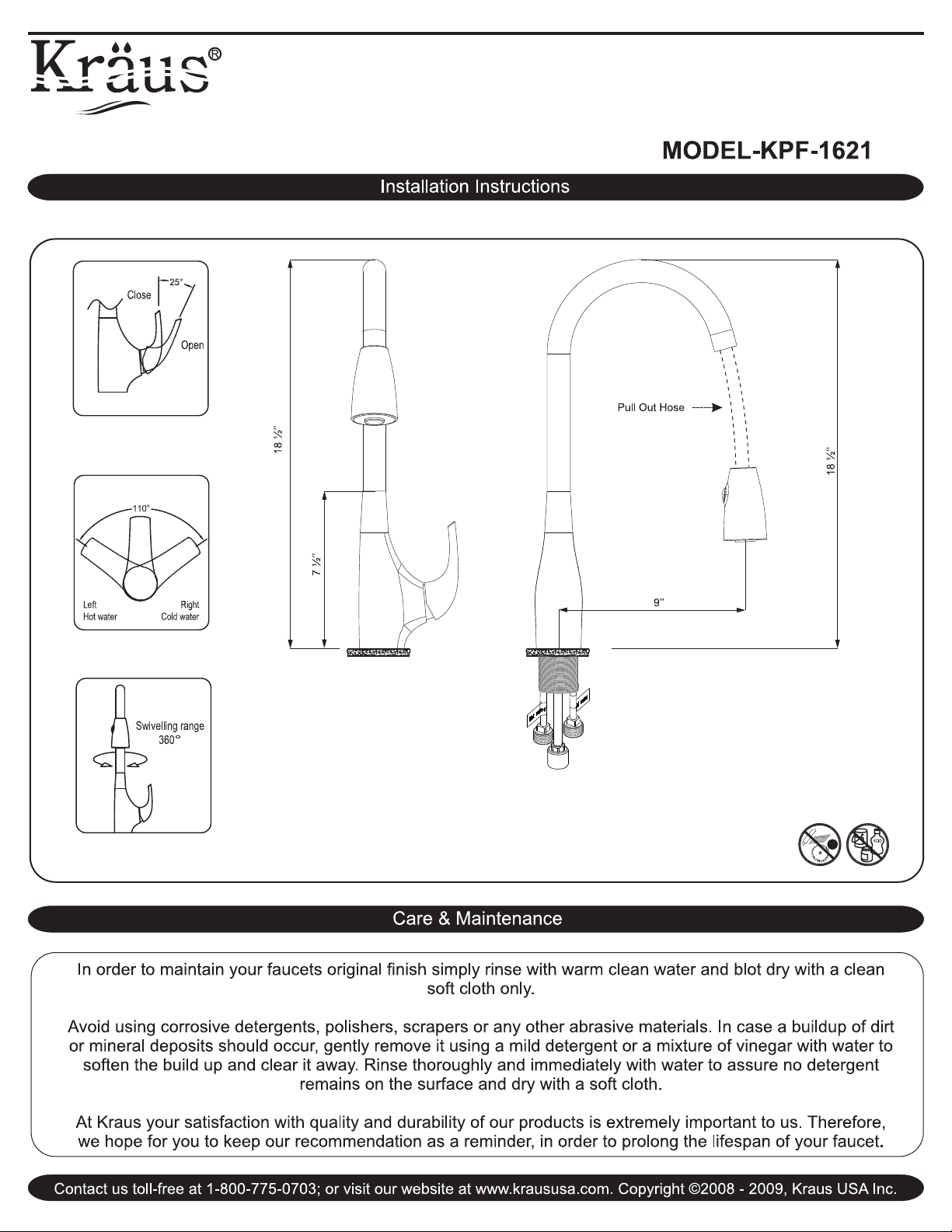

Kraus KPF-1621 User manual

3. Place the faucet on the countertop.

4. If the countertop is thin or the faucet is being mounted on the sink itself, place the countertop extender (#11)

from underneath the countertop and tighten it onto the tailpiece (#5). **OPTIONAL**

5. Place the metal washer (#6) onto the tailpiece (#5) from underneath

the countertop.

6. Place the fixing set (#7) onto tailpiece (#5) underneath the countertop and tighten it.

7. Connect pullout hose (#10) to copper tube. see details on page 2

8. Place the weight (#8) onto pullout hose (#10).

9. Screw in the hot and cold waterlines (#9) and attach them to the water supply.

8

7

4

6

11

Connecting pullout hose to copper tube

9

5

Copper Tube

10

10

Rubber Washe

Tailpiece

Metal Washer

Fixing set

Weight

Hot & Cold Water Lines

Pullout hose

Faucet Extender (optional)

Screw at back of faucet

tightens the goose

neck to the body.

IMPORTANT

(ALREADY ATTACHED)
