Kraus KCA-1102 User manual

KCA-1102

All-In-One

Kitchen Set

www.kraususa.com I Toll Free: 1.800.775.0703 I © 2018 Kraus USA Inc. I REV. December 11, 2020

R

INSTALLATION MANUAL

Congratulations on the purchase of your new

Kraus plumbing fixture!

Please keep the box and packaging materials until your product is

completely installed. If you have any questions, require technical

assistance or have any problems with your product:

2

Please contact our Customer Service Team

1-800-775-0703 / [email protected]

Have the model number available and retain a copy of your receipt

with purchase date for reference.

If for any reason this product does not meet your expectations,

please be sure to repack this product in the original box and

packaging material to avoid damage during transit.

DO NOT RETURN TO STORE

STOP

For technical assistance or replacement parts, please contact Kraus

Customer Service and one of our representatives will be happy to help:

Toll-Free: 800-775-0703 or [email protected]

NOTE: Please reference your batch number when calling, it

can be found on the cold waterline.

Batch

number

3

Make sure to check off that you have all of the following items

Prior to Installation:

·Make sure that you have all necessary parts by checking the parts list. If any part is missing

or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement

·Inspect the sink prior to installation to make sure that it has not been damaged or during

shipping

·Use the cut-out template provided by Kraus

·Observe all plumbing and building codes according to your state requirements

·Turn off the cold and hot water at the angle stops and turn on the old faucet to release and

built up pressure

·Flush angle stops to release any debris prior to installation

·Pre-drilled hole size requirement: 1 3/8" (min) - 1 1/2" (max)

·Max countertop thickness: 1 1/2"

Kitchen Sink - KHT400-33

Kitchen Faucet - KPF-1610SS

Cut-Out Template

Undermounting Hardware

Top Mount Hardware

Bottom Grid - KBG-T400-33

Drain - ST-1

The step-by-step guidelines in the installation instructions are a general reference for installing a

Kraus Sink. Should there be any discrepancies, Kraus cannot be held liable. It is recommended to

install all Kraus products by hiring a licensed professional.

4

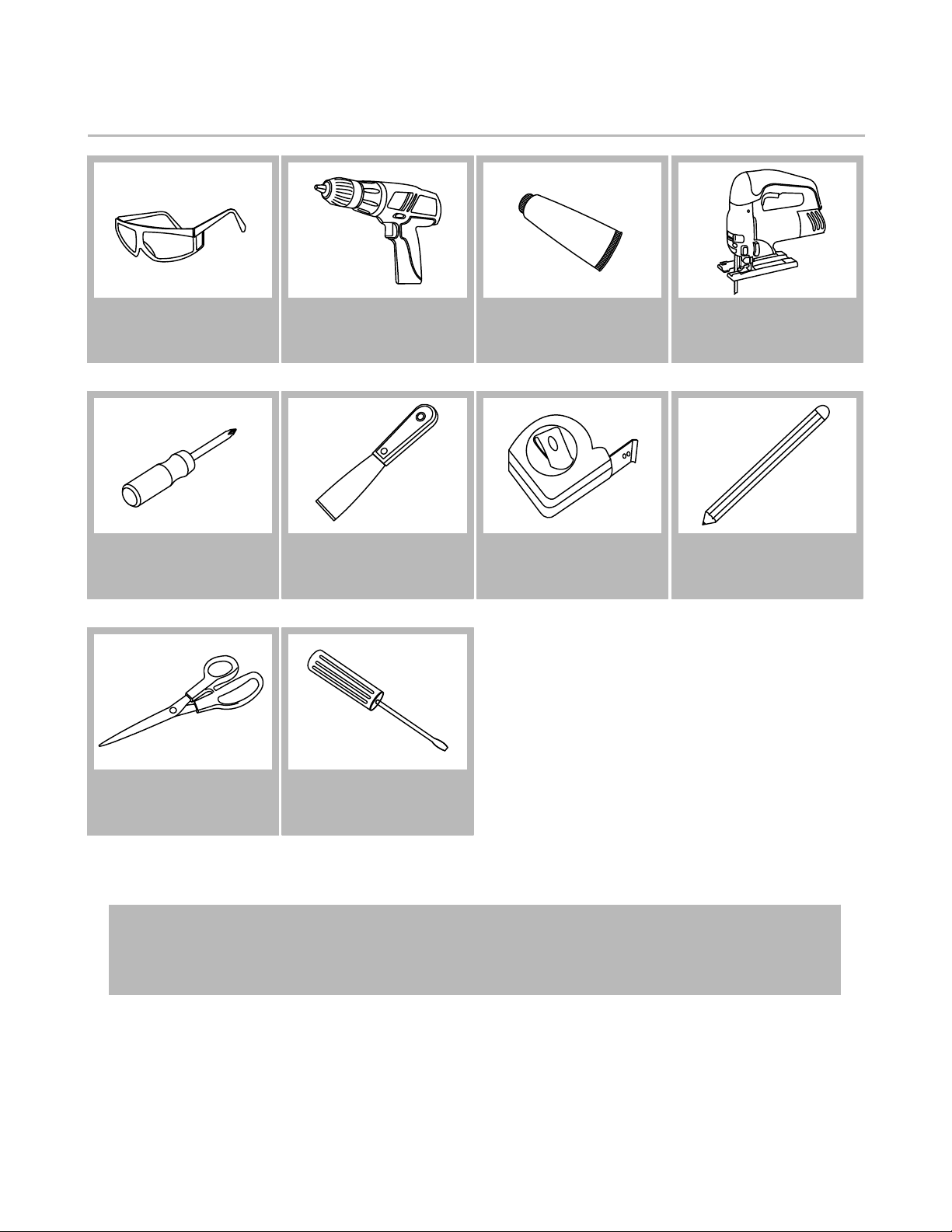

Tools you will need:

4

NOTE: Specialized tools may be necessary to install Kraus Stainless Steel Kitchen

sinks with countertop materials other than wood, marble or granite.

Phillips Screwdriver Pencil

Tape Measure

Putty Knife

Safety Goggles Silicone Adhesive Jig Saw

Drill

Scissors Screwdriver

55

Model #: KHT400-33

Sink Dimensions: 33” x 22” x 9”

Min Cabinet Size: 36”

Matching Grid: KBG-T400-33

Drain Model #: ST-1

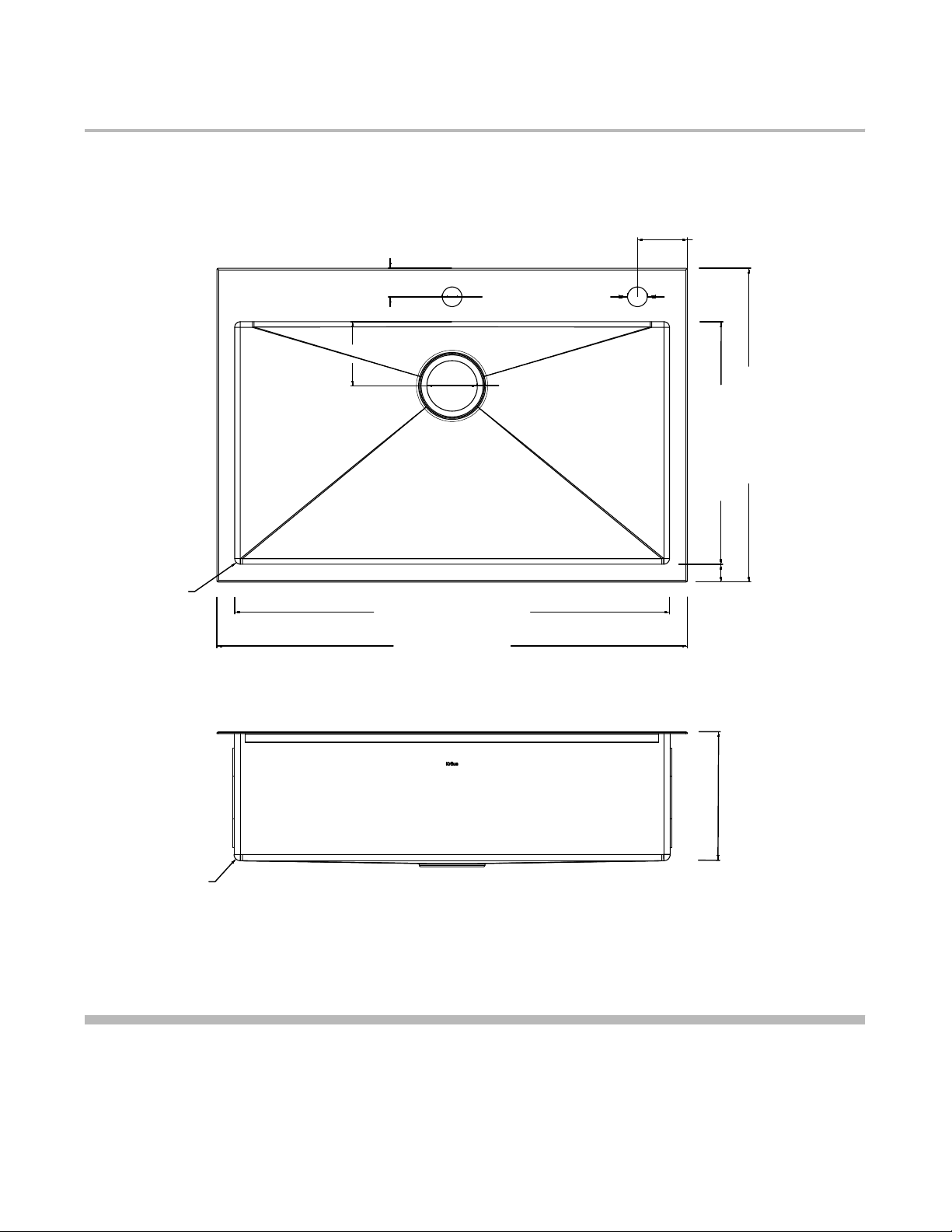

Sink Dimensions:

33" (838.2mm)

30 1/2" (774.7mm)

22" (558.8mm)

17" (431.8mm)

3 1/2" (90mm)

1 3/8" (35mm)

3 1/2" (88.9mm)

2" (50.8mm)

4 1/2" (114.3mm)

1 1/4"

(31.8mm)

3/8"

(10mm)

9" (228.6mm)

3/8"

(10mm)

66

Topmount Installation

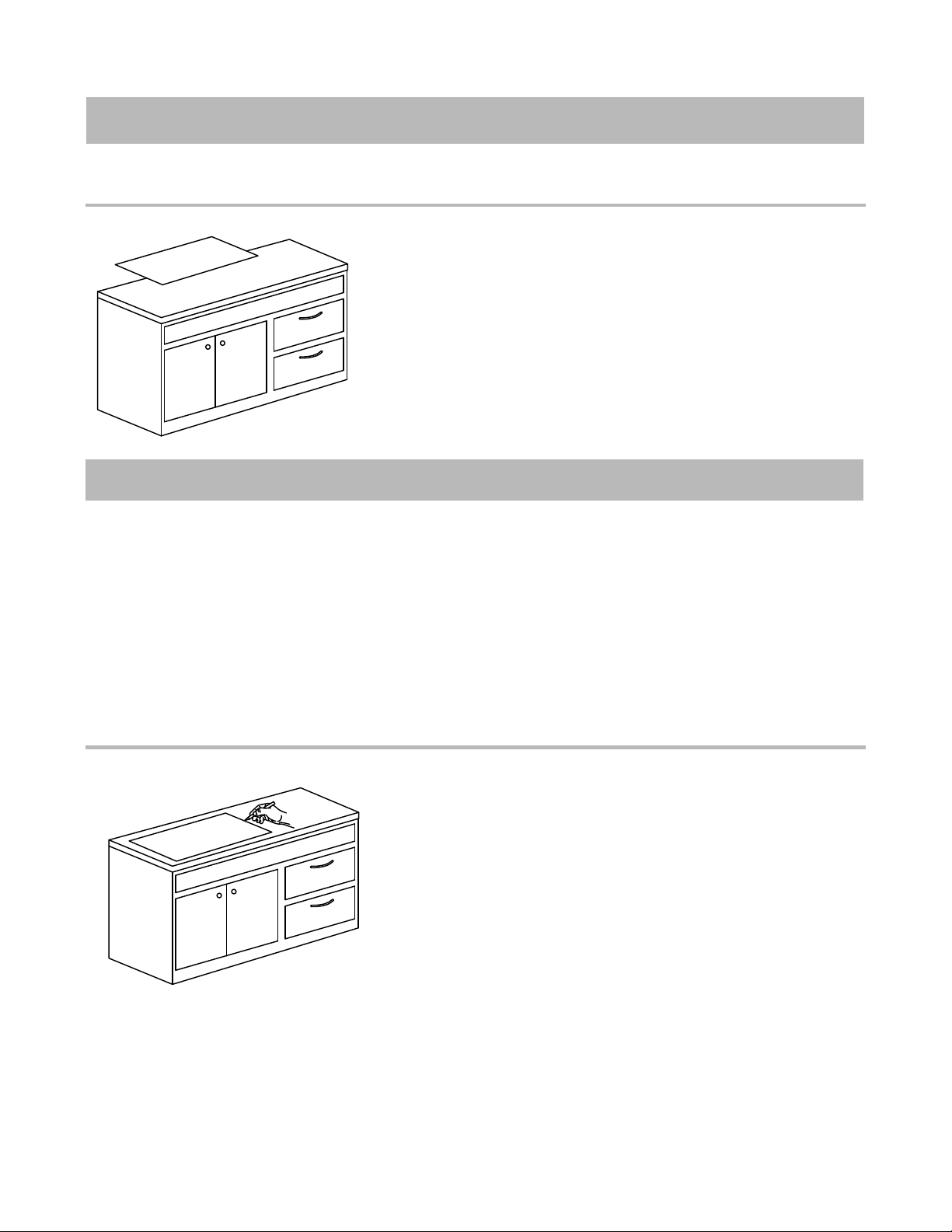

Step 1. Position Template

·Check the cut-out template against the actual sink to ensure a proper

sized cut-out.

·Place the cut-out template in the desired location on the countertop.

NOTE: Make sure clearance is suitable for backsplash, faucet and plumbing for the sink.

Step 2. Trace Template

·Trace template on countertop with a pencil.

Paper Template

Paper Template

7

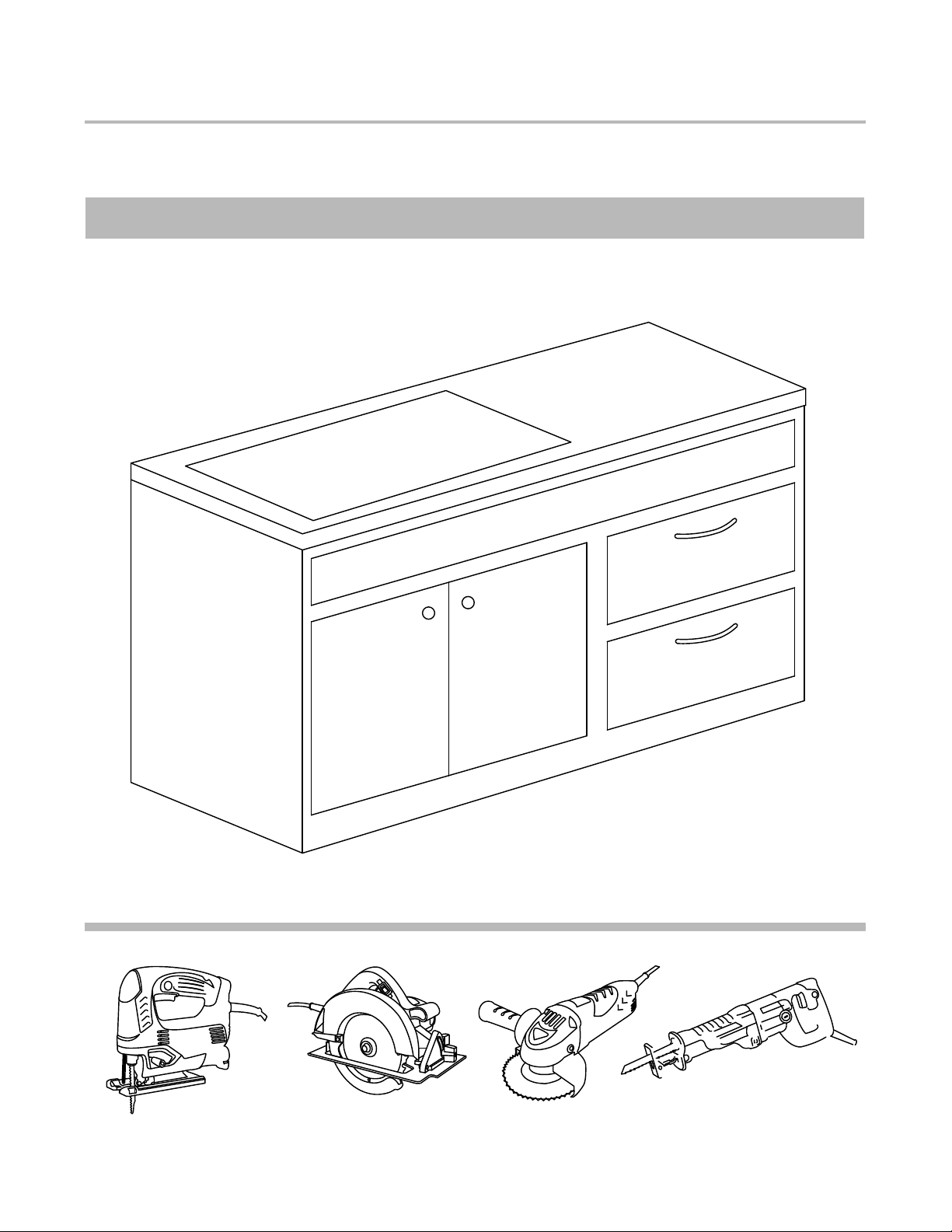

Step 3. Cut Countertop

·Cut the opening in the countertop by carefully following the traced line.

NOTE: Please use the appropriate saw that best fits your countertop material.

8

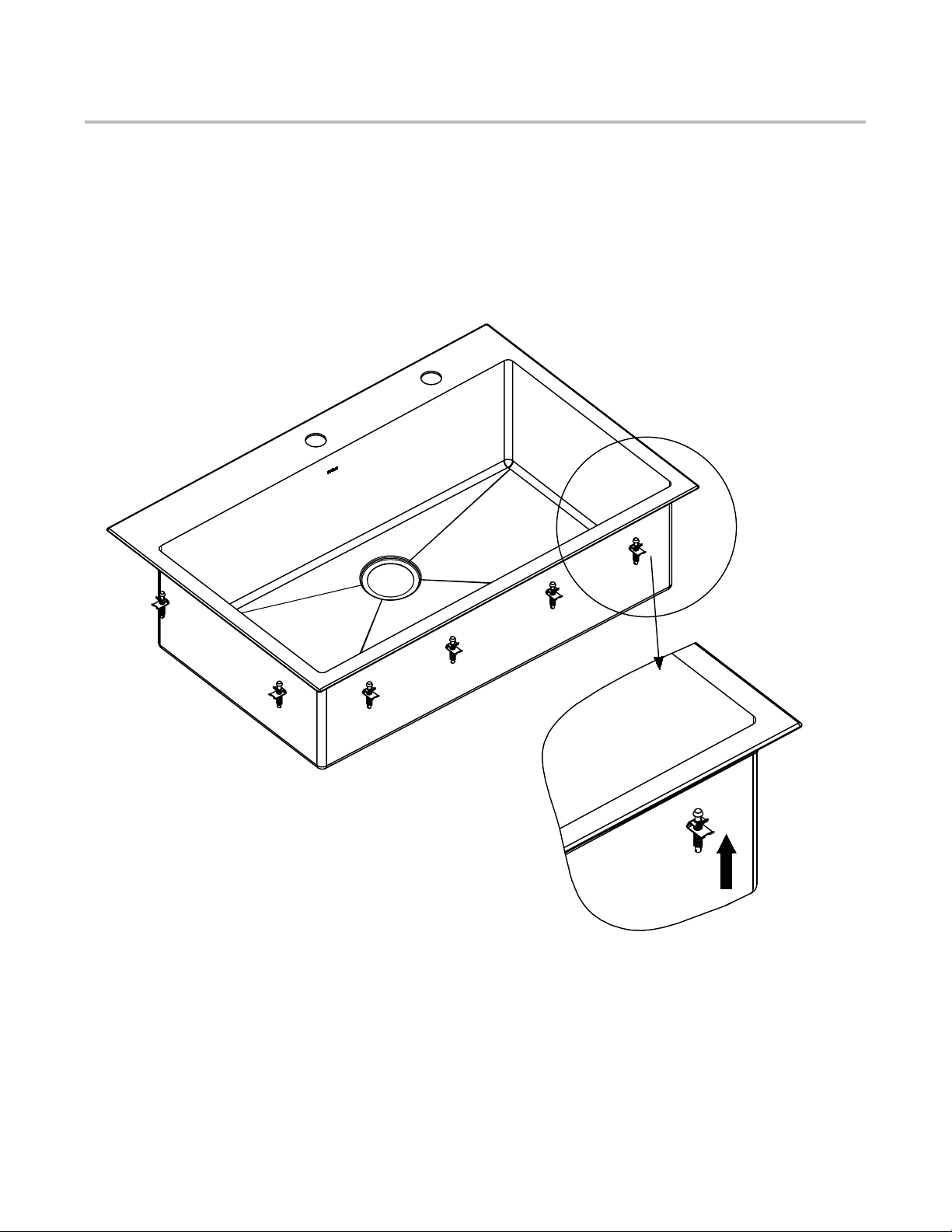

Step 4. Attach Mounting Hardware

·Attach mounting hardware to the prongs protruding from the underside of the sink rim.

·Make sure the hooked side of the mounting clip is facing away from the sink.

Insert

9

Step 5. Apply Silicone or Plumber's Putty

·Clean and dry the surface around the opening of the sink.

·Turn the unit upside down to apply sealant. Apply silicone-based sealant (not included) underneath the edge of the

sink.

10

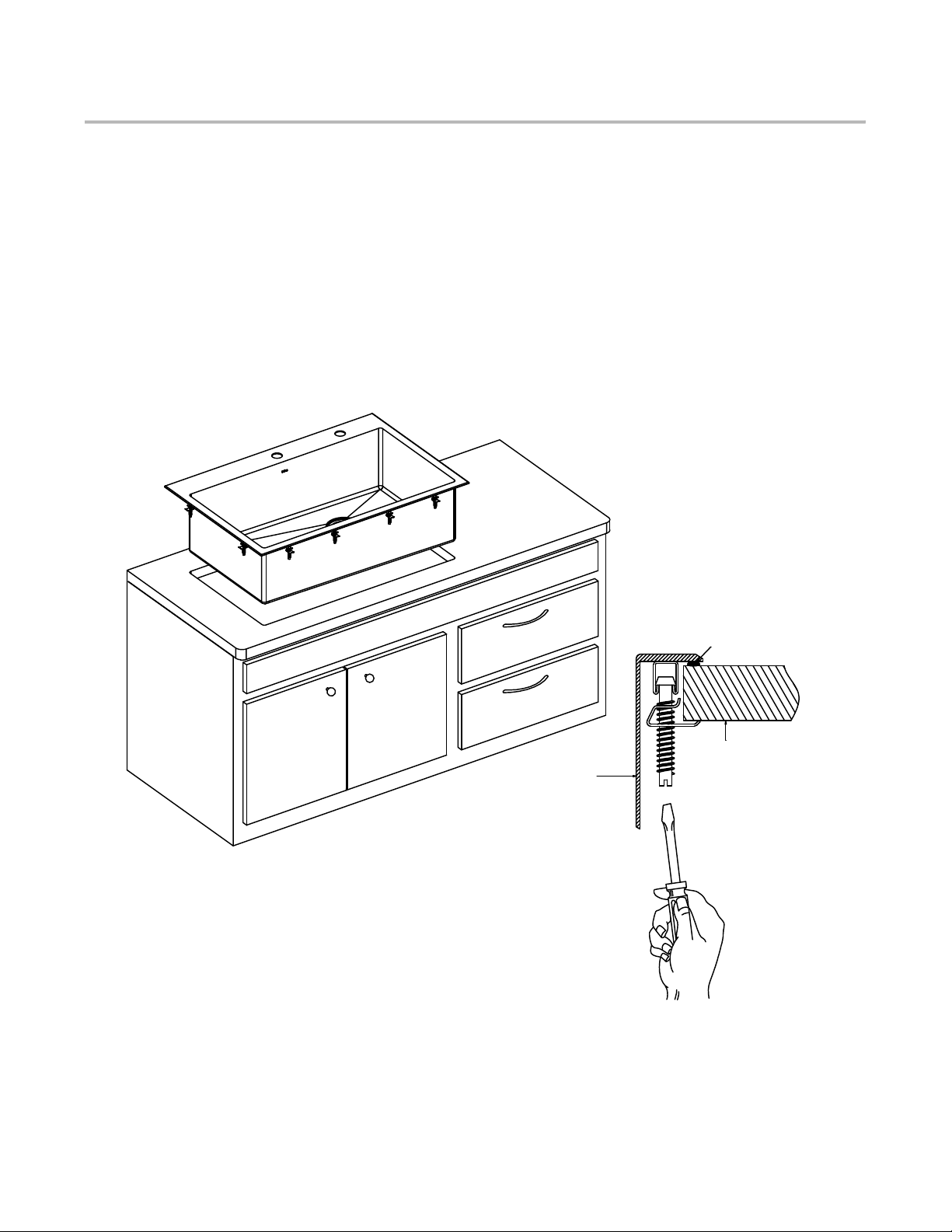

Step 6. Secure Sink to Countertop

• Insert the sink into the opening, check the alignment of the sink to the cutout in the countertop and press firmly.

• Tighten the screws in the front of the sink, followed by the ones in the back and on the sides of the sink.

• Remove excess silicone-based sealant.

· Allow sealant to set for 30-60 minutes.

Sealant or Putty

Sink

Countertop

Fasten the Screw
