Kraus KBU11 User manual

KBU11 / KBU12 / KBU14 / KBU15 /

KBU16 / KBU17 / KBU21 / KBU22 / KBU24 /

KBU25 / KBU27 / KBU29 / KBU32

Kraus Stainless Steel

Undermount Kitchen Sink

INSTALLATION MANUAL

Congratulations on the purchase of your new

Kraus plumbing fixture!

Please keep the box and packaging materials until your product is

completely installed. If you have any questions, require technical

assistance or have any problems with your product:

Please contact our Customer Service Team

1-800-775-0703 / [email protected]

Have the model number available and retain a copy of your receipt

with purchase date for reference.

If for any reason this product does not meet your expectations,

please be sure to repack this product in the original box and

packaging material to avoid damage during transit.

DO NOT RETURN TO STORE

STOP

Prior to Installation:

·Make sure that you have all necessary parts by checking the parts list.

If any part is missing or damaged, please contact Kraus Customer

Service at 800-775-0703 for a replacement.

·Inspect the sink prior to installation to make sure that it has not been

damaged during shipping.

·Use the cut-out template provided by Kraus.

·Observe all plumbing and building codes according to your state

requirements.

·Not recommended to be installed with laminate countertop.

·Note: Before installation, please check that the drain kit complies with

ASME A112.18.2/CSA B125.2 and with CUPC certification.

For technical assistance or replacement parts, please contact Kraus

Customer Service and one of our representatives will be happy to help:

Toll-Free: 800-775-0703 or [email protected]

The step-by-step guidelines in the installation instructions are a general reference for installing a

Kraus Sink. Should there be any discrepancies, Kraus cannot be held liable. It is recommended to

install all Kraus products by hiring a licensed professional.

STOP

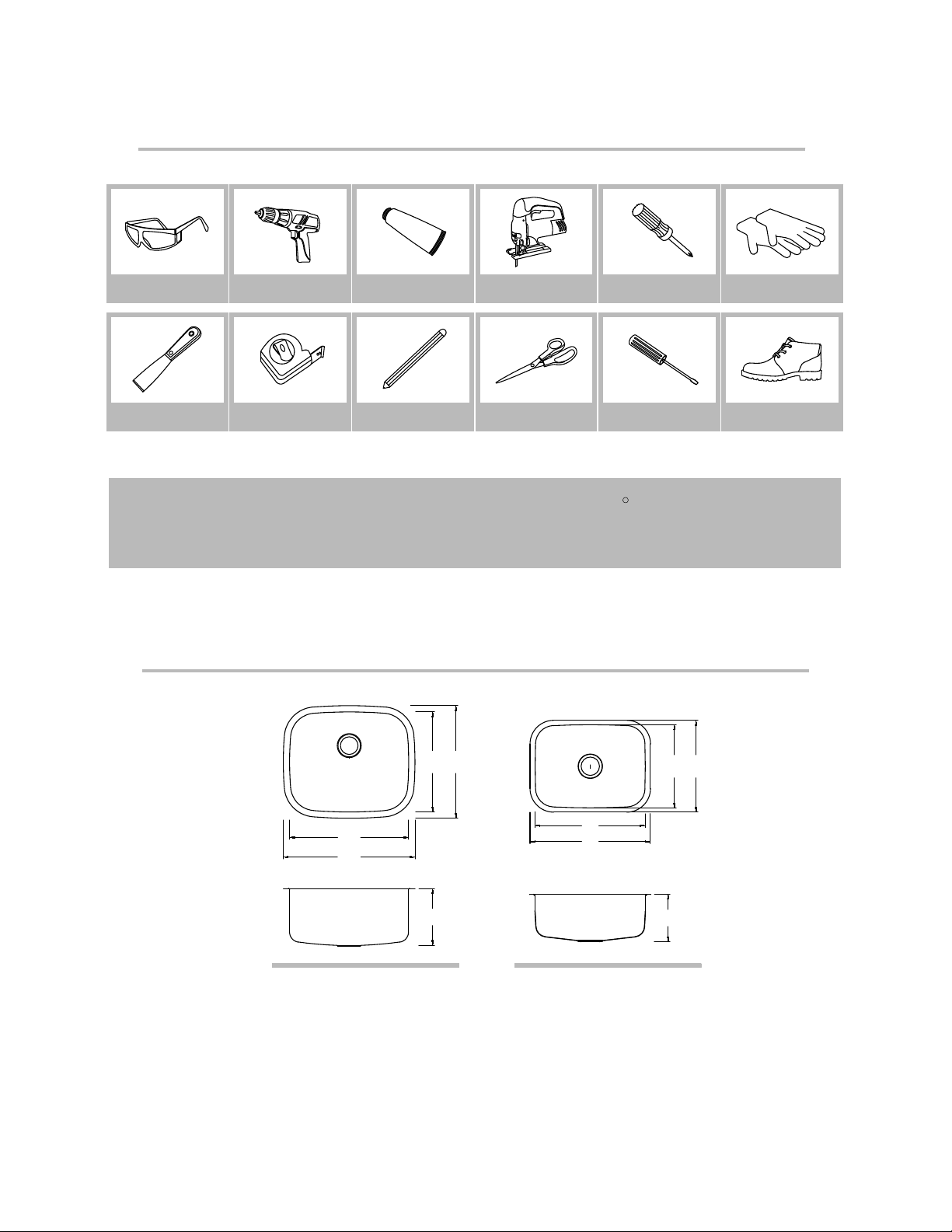

Tools you will need:

NOTE: Specialized tools may be necessary to install Kraus Stainless Steel

Undermount sinks with countertop materials other than wood, marble or granite.

Dimensions

KBU11

20 3/4” x 17 3/4” x 9”

Min Cabinet Size: 24”

Matching Grid: KBG-11

Drain Model #: ST-1

KBU12

23” x 17 1/2” x 9”

Min Cabinet Size: 27”

Matching Grid: KBG-12

Drain Model #: ST-1

21"

534mm

23"

584mm

15 7/8"

403mm

17 1/2"

445mm

230mm

17 3/4"

450mm

15 3/4"

400mm

18 3/4"

476mm

20 3/4"

526mm

230mm

Safety Goggles Silicone Adhesive Jig Saw Phillips Screwdriver

Putty Knife Tape Measure Pencil Scissors Screwdriver

Drill Cut Resistant Gloves

Closed Toe Shoes

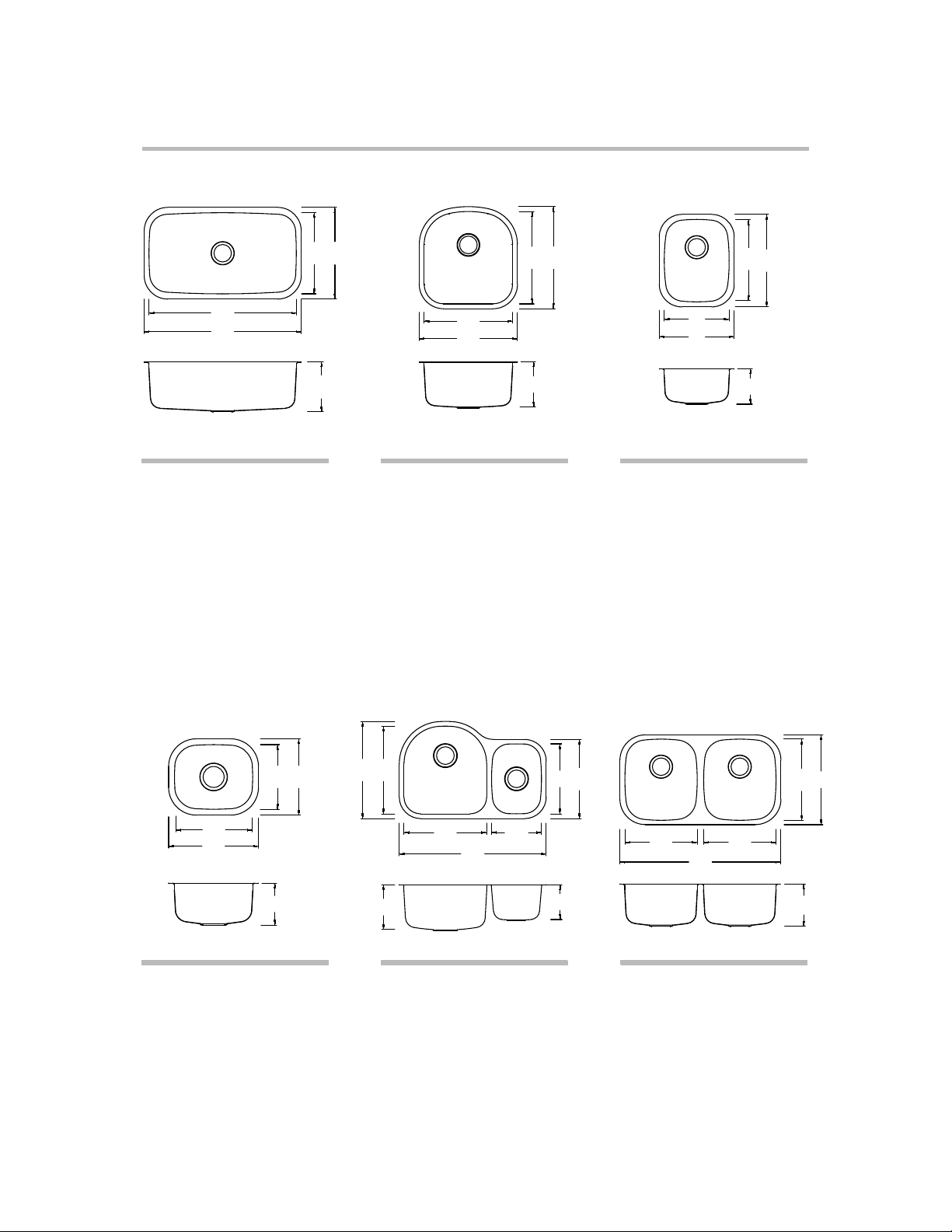

Dimensions

KBU14

31 1/2” x 18 3/8” x 10”

Min Cabinet Size: 36”

Matching Grid: KBG-14

Drain Model #: BST-1

KBU15

19 3/4” x 20 1/2” x 9”

Min Cabinet Size: 24”

Matching Grid: KBG-15

Drain Model #: BST-1

KBU16

15” x 18 1/2” x 7”

Min Cabinet Size: 18”

Drain Model #: ST-1

KBU17

15 1/8” x 12 3/4” x 7”

Min Cabinet Size: 18”

Drain Model #: ST-1

KBU21

29 1/8” x 19 1/2” x 9”

Min Cabinet Size: 33”

Matching Grid: KBG-21-1

and KBG-21-2

Drain Model #: BST-1 & ST-1

KBU22

32 1/4” x 18” x 8 1/2”

Min Cabinet Size: 36”

Matching Grid: KBG-22 (2)

Drain Model #: BST-1 & ST-1

29 1/2"

750mm

31 1/2"

800mm

16 1/4"

413mm

18 3/8"

467mm

10"

255mm

230mm

17 3/4"

450mm

19 3/4"

500mm

18 1/2"

470mm

20 1/2"

520mm

16 1/2"

419mm

17 1/2"

446mm

19 1/2"

495mm

29 1/8"

748mm

10"

255mm

14"

355mm

15 7/8"

403mm

178mm

228mm

14 1/2"

368mm

14 1/2"

368mm

16 1/8"

409mm

8 1/2"

218mm

32 1/4"

820mm

18"

457mm

18 1/2"

470mm

16 1/2"

419mm

179mm

13"

330mm

15"

381mm

12 3/4"

324mm

10 3/4"

274mm

13 1/8"

332mm

15 1/8"

382mm

179mm

Dimensions

KBU24

32” x 20 5/8” x 9”

Min Cabinet Size: 36”

Matching Grid: KBG-24-1

and KBG-24-2

Drain Model #: BST-1 & ST-1

KBU25

32 3/8” x 20 1/2” x 9”

Min Cabinet Size: 36”

Matching Grid: KBG-25-1

and KBG-25-2

Drain Model #: BST-1 & ST-1

KBU27

34 3/8” x 20 1/2” x 9”

Min Cabinet Size: 39”

Matching Grid: KBG-27-1

and KBG-27-2

Drain Model #: BST-1 & ST-1

KBU29

31 3/8” x 18” x 8”

Min Cabinet Size: 36”

Matching Grid: KBG-29 (2)

Drain Model #: BST-1 & ST-1

KBU32

32” x 19” x 8 1/2”

Min Cabinet Size: 36”

Matching Grid: KBG-32 (2)

Drain Model #: ST-1 (2)

32"

813mm

14 1/2"

368mm

19"

483mm

17"

432mm

8 1/2"

216mm

14 1/2"

368mm

17 3/4"

450mm

10 1/2"

266mm

16"

406mm

18"

457mm

18 1/2"

470mm

20 1/2"

520mm

229mm

178mm

31 1/2"

800mm

15 3/4"

400mm

13 3/8"

340mm

17 3/4"

450mm

18 1/2"

470mm

17 3/4"

450mm

20 1/2"

520mm

34 3/8"

872mm

7 1/2"

190mm

228mm

14"

355mm

14"

355mm

31 3/8"

796mm

15 3/4"

400mm

18"

456mm

203mm

229mm

7 3/8"

187mm

18 1/2"

470mm

20 1/2"

520mm

17 3/4"

450mm

11 3/8"

290mm

32 3/8"

822mm

15 3/8"

391mm

17 3/4"

450mm

1. Determine Reveal Type

Use scissors to cut along the line of the paper template for your desired

reveal type (Negative, Positive or Flushed Reveal).

3/8“ Positive Reveal

Flushed/Zero Reveal

1/8“ Negative Reveal

KRAUS Recommended Installation Type

3/8”POSITIVE

1/8”NEGATIVE

FLUSHED/ZERO

Centerline

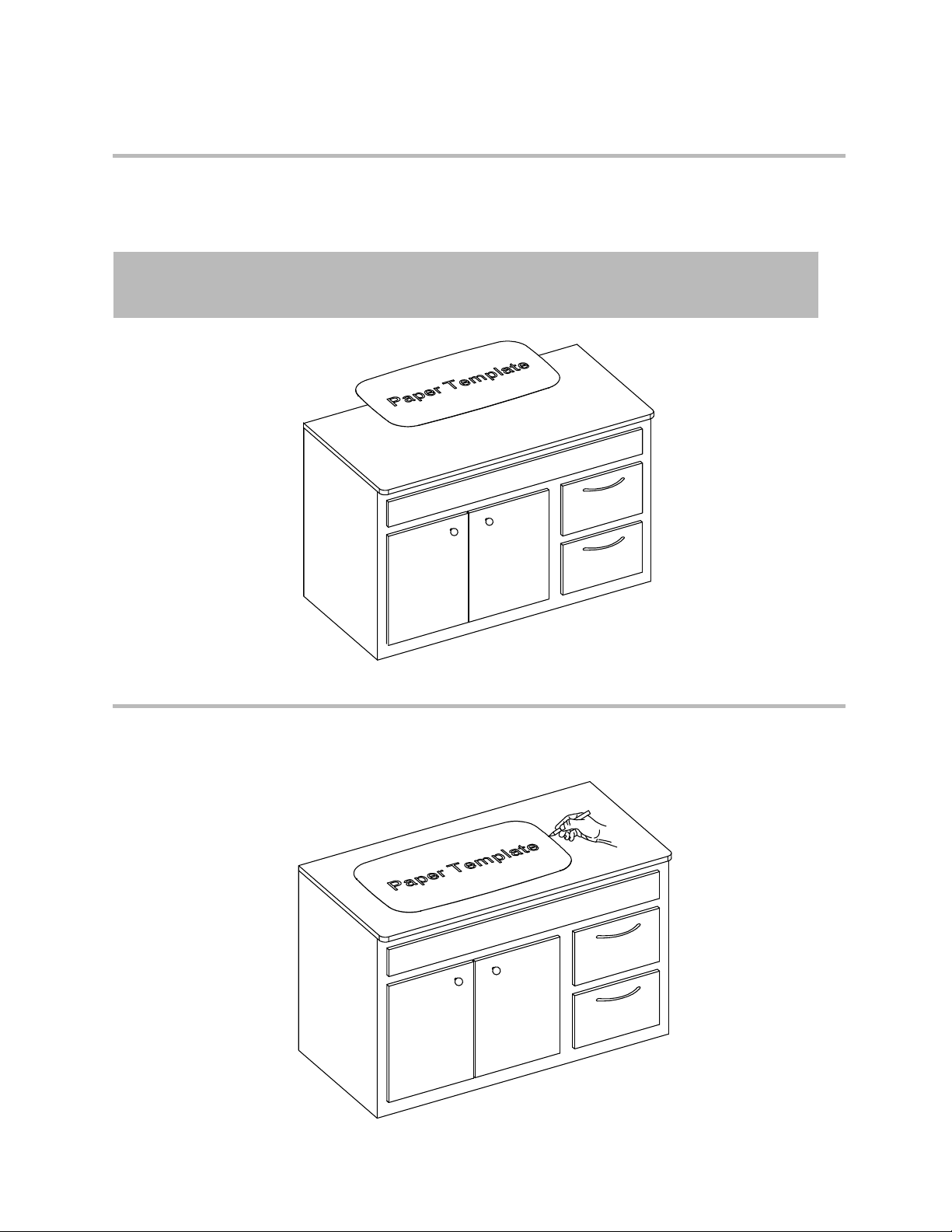

2. Position Template

Check the cut-out template against the actual sink to ensure a proper sized cut-out.

Place the cut-out template in the desired location on the countertop.

NOTE: Make sure clearance is suitable for backsplash, faucet and plumbing for

the sink.

3. Trace Template

Trace template on countertop with a pencil.

4. Cut Countertop

Cut the opening in the countertop by carefully following the traced line.

NOTE: Please use the appropriate saw that best fits your countertop material.

! CAUTION - To avoid the risk of personal injury,

wear safety glasses and cut resistant gloves

with non-slip grip when cutting.

5. Set up Mounting Brackets

Turn countertop over and align sink with countertop. Decide location for mounting

brackets.

Mounting holes should be 1/2" from edge of sink.

6. Drill Hole in Countertop

Drill 3/8" diameter x 1/2" deep hole in countertop.

1/2"

(13mm)

3/8 1/2

! CAUTION - To avoid the risk of personal

injury, wear safety glasses and cut resistant

gloves with non-slip grip when drilling.
