Introduction

The PagePro™ 1350W is a simple-

to-use, low-cost, reliable printing

solution for users needing to print

professional business documents

efficiently.

The PagePro 1350W is a compact yet very fast personal laser printer.

At 20 pages per minute, this printer rivals the speed and print quality of

much larger laser printers that customers may have used in the past.

Most printers of comparable size to the PagePro 1350W cannot match

its speed.

KONICA MINOLTA has designed the PagePro 1350W to be extremely

easy to use. It functions seamlessly with computers running Windows

XP, 2000, Me, and 98SE. It includes all drivers and utilities necessary

for installing and operating the printer in any small or medium-sized

office, including home offices. Maintaining the PagePro 1350W is

simple and straightforward. The toner cartridge and photoconductive

drum (OPC) are separately replaceable for more economic use.

This Technical Guide is intended for use by KONICA MINOLTA sales

personnel and our reseller partners. It includes complete information

about the PagePro 1350W and provides helpful data that can help

sales personnel explain the features of the printer to customers

Specs at a glance

An overview of the PagePro 1350W

printer features

The PagePro 1350W is based on the Minolta NC-L701L laser printer

engine. The engine features selectable resolutions of 600 x 600, 1200 x

600, and 1200 x 1200 dpi. (At 1200 x 1200 dpi, the print speed reduces

by approximately half.)

Print method Electrophotographic monochrome laser

Processor Naltec N-1

Paper size Up to A4

Print speed Up to 20 pages per minute

Paper input 150 sheet multipurpose tray

Paper output 100 sheet face-down tray

Print resolution True 1200x1200 dpi

Memory 8 MB on controller board

Interfaces Bidirectional IEEE 1284 parallel

USB 1.1

First page out 13 seconds or less

Print media types Plain paper, thick stock, OHP

transparencies, laser-quality labels,

envelopes

Duty cycle Up to 15,000 prints per month

Software utilities Printer drivers for Windows XP, 2000, ME

and 98SE

Warranty One year swap service (local law applies)

Special features Midnight mode for silent printing

Hooks for convenient cable leading

Paper trays fixable in different

positions

Engine

Excellent print quality and durability

are hallmarks of the PagePro

1350W print engine.

The PagePro 1350W is based on the Minolta NC-L701L laser printer

engine. The engine features selectable resolutions of 600 x 600, 1200 x

600, and 1200 x 1200 dpi. (At 1200 x 1200 dpi, the print speed reduces

by approximately half.)

Duty cycle

15,000 prints (A4 size) per month maximum.

Print speeds by page size and resolution

Page size* 600x600 dpi

1200x600 dpi 1200x1200 dpi

Letter 16 ppm 8 ppm

Legal 12 ppm 6 ppm

A4 16 ppm 8 ppm

A5 16 ppm 8 ppm

B5 16 ppm 8 ppm

* Normal paper

Note: print speeds for 1200x600 dpi are the same as 600x600 dpi

The PagePro 1350W produces high

quality prints like the one above at

full speed in both 600 dpi and 1200

x 600 dpi resolutions. Get 1200 x

1200 dpi resolution prints at 8 ppm.

First page out times

Page size*

600x600 dpi

1200x600 dpi 1200x1200 dpi

Letter 13 seconds 22 seconds

Legal 14 seconds 24 seconds

A4 13 seconds 22 seconds

A5 13 seconds 22 seconds

B5 13 seconds 22 seconds

* Normal paper

Note: First page out time for 1200x600 dpi is the same as 600x600 dpi

Physical dimensions

Packaging

Width Depth Height

496 mm (19.5”) 396 mm (15.6”) 393 mm (15.5”)

Printer (multipurpose tray extended)

Width Depth Height

386.8 mm (15.2”) 405 mm (15.9”) 348 mm (13.7”)

Weight

Shipping 9.3 kg (20.5 lbs)

Printer w/ consumables 7.8 kg (17.2 lbs)

Printer w/o consumables 7 kg (15.4 lbs)

Operating environment conditions

Power supply 100/120VAC, 50/60 Hz

Power consumption •900W maximum

•400W or less (printing)

•15W (Energy Saver)

Temperature (operating) 10° -35° C (50°-95° F)

Humidity (operating) 15 - 85% RH

Noise •54 dB (printing)

•52 dB (Midnight Mode)

•35 dB (standby)

Use the Status Display to enable “Midnight Mode” quieter printing for all

times or selected times during the day:

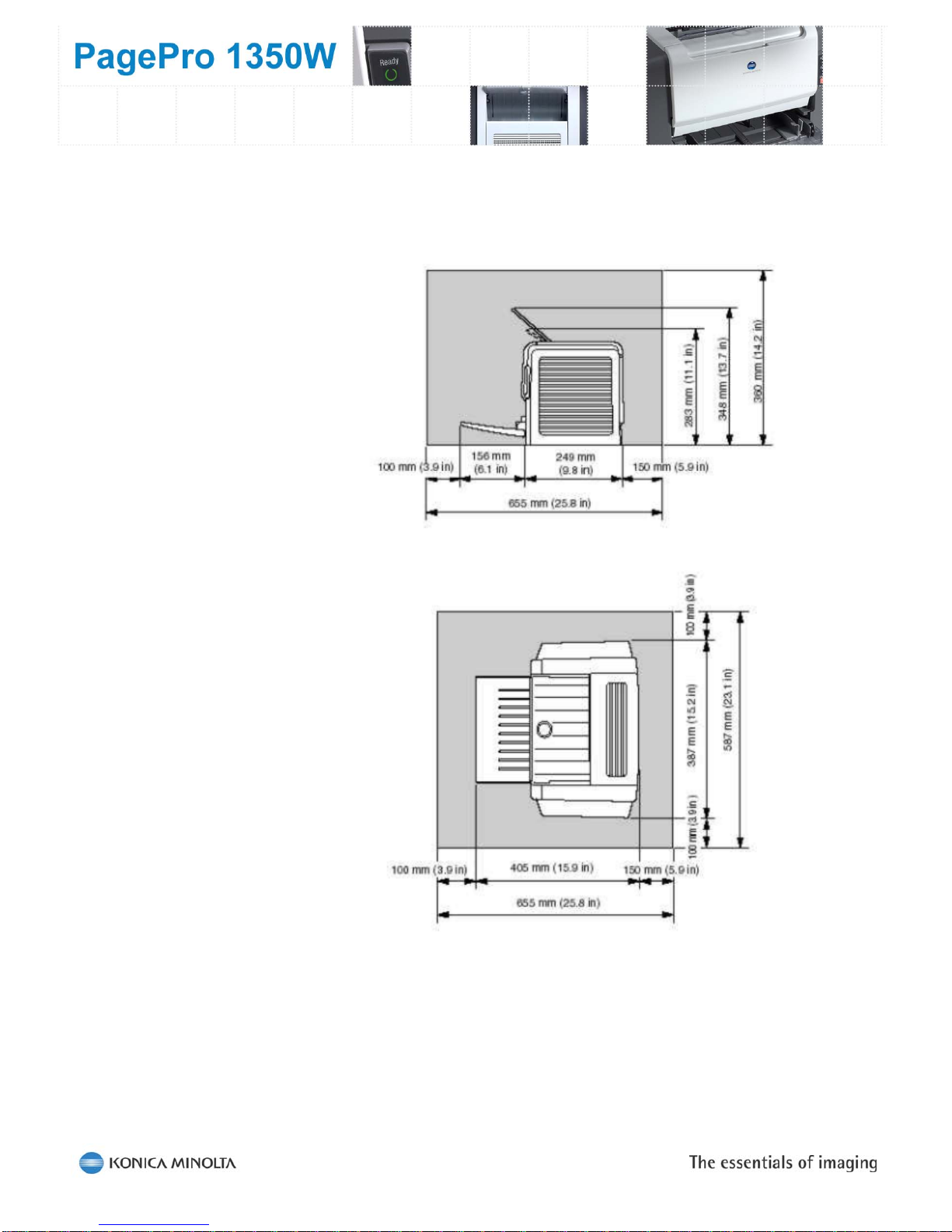

Clearance dimensions

(side view)

Clearance dimensions

(top view)

Controller

The PagePro 1350W uses the

power of the Windows operating

system to deliver great performance

for less cost.

The PagePro 1350W supports the Graphical Display Interface (GDI) for

Windows and, as such, utilizes the power of the host computer’s Pentium-

class CPU for processing documents prior to printing. The printer’s

controller features a Naltec N-1 ASIC for imaging the document.

Printer memory

The PagePro 1350W includes 8 MB of RAM on the controller. This

memory is sufficient for printing all supported page sizes at all supported

resolutions. There is no need for installing additional memory in the

printer. Increasing memory of the host computer may improve

transmission speed and overall performance of the printer.

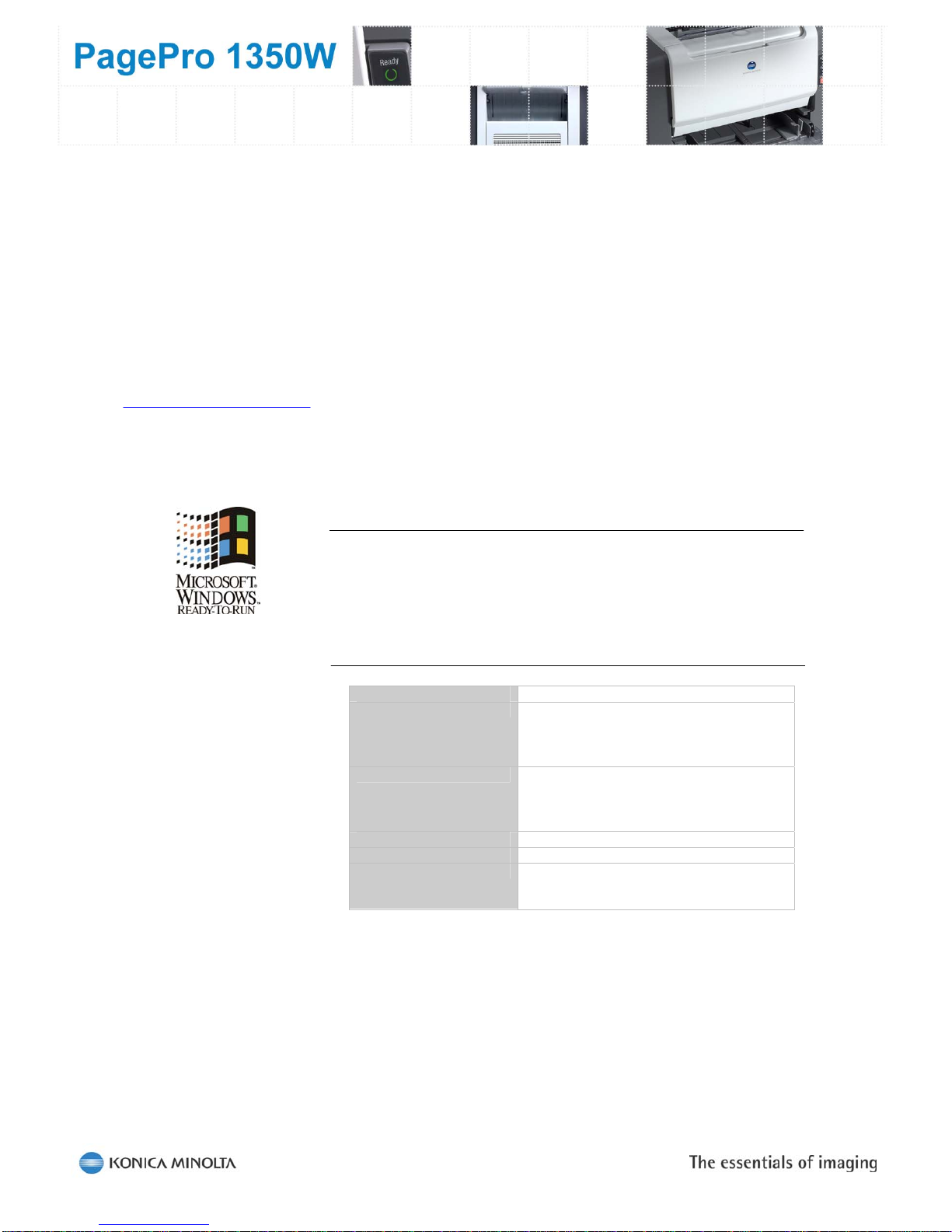

Host computer requirements

PC Hardware 300 MHz Pentium-class CPU

Operating System •Windows XP

•Windows 2000

•Windows ME

•Windows 98 SE

PC memory •128 MB (XP)

•64 MB (2000)

•32 MB (ME)

•16 MB (98 SE)

Hard disk space 36 MB or more

CD-ROM For installation of drivers and utilities

Interface USB 1.1

IEEE 1284 parallel

(ECP, Nibble, or compatible)

Paper handling

The PagePro 1350W supports a

wide range of paper sizes to meet

the needs of busy offices.

The multipurpose tray holds up to

150 sheets of paper.

The output tray must be fully

extended for proper stacking and full

100-sheet capacity.

The PagePro 1350W includes a 150-sheet multipurpose tray for paper

and other print media. The tray accommodates all supported page sizes

up to 216 mm x 356 mm.

Print media

The PagePro 1350W supports a range of print media to handle a variety

of applications.

Supported media

Normal paper 60 – 90 gsm 16 – 24 lb

Recycled paper 60 – 90 gsm 16 – 24 lb

OHP transparency * *

Envelopes * *

Letterhead 60 – 90 gsm 16 – 24 lb

Labels (sheet) * *

Thick stock 90 – 163 gsm 24 – 90 lb

* Must be certified for laser printer and capable of withstanding fusing temperature

of 205° C (401° F)

Non-printable regions

The PagePro 1350W has a non-printable area of 4mm (0.16") from all

page edges.
