Konica Minolta AccurioPress C7100 User manual
Table of Contents
1
2
3
4
5
6
7
Quick Guide
Basic Operations
Ver. 01.00
- QG No. 01 -
Confirmation of Product
Configuration
Name of Each Component
and Control Panel
Power-On/Off
Paper Feed Route and
Paper Jam Processing
Replenishment and
Replacement of Consumables
Cleaning
Usage Environment and
Machine Specifications
C7100 / C7090
1Confirmation of Product Configuration
2
□
Relay Unit [RU-518m]
□
Humidifier [HM-103]
□
Intelligent Quality Optimizer [IQ-501]
□
Auto Inspection Unit [UK-301]
□
Relay Unit [RU-702]
□
Relay Unit [RU-510]
□
Banner Output Tray Unit [MK-761]
□
Folding Unit [FD-503]
□
Trimmer Unit [TU-510]
┗ □ Job Separator [JS-507]
┗ □ Creaser Unit [CR-102/CR-103]
┗ □ Trimmer Unit [TU-504]
┗ □ Perforation Unit [PE-101/PE-102]
┗ □ Banner Unit [MK-764]
┗ □ Dust Box [MK-765]
□
Large Capacity Stacker [LS-507]
□
Saddle Stitcher [SD-513]
┗ □ Folding Unit [FD-504]
┗ □ Creaser Unit [CR-101]
┗ □ Trimmer Unit [TU-503]
□
Saddle Stitcher [SD-506]
□
Perfect Binder [PB-503]
□
Finisher [FS-532/FS-541]
┗ □ Saddle Stitcher [SD-510]
┗ □ Punch Unit [PK-525]
┗ □ Post Inserter [PI-502]
□
Output Tray [OT-512]
□
Output Tray [OT-511]
❖Paper output system options
1-1. Introduction of Names and Functions of Machines and Options (Including the
Controller)
This chapter explains the configuration and simple functions of the installed devices.
1Confirmation of Product Configuration
3
本体
Control Panel
❖Machine
□
C7100
□
C7090
❖Paper feed system options
□
Paper Feeder Unit [PF-712]
□
Paper Feeder Unit with scanner and ADF [PF-713]
□
Large Capacity 3-stage Paper Feed Unit [PF-812]
□
Multi Bypass Tray [MB-510/MB-511]
□
Large Capacity Unit [LU-208/LU-208XL]
□
Banner Paper Tray Unit [MK-760]
□
Dehumidifier Heater [HT-506/HT-511/HT-515/HT-518]
□
Feed Adjuster [FA-505]
❖Controller system options
□
Image Controller [IC-609]
□
Image Controller [IC-318L/IC-319/IC-316]
❖Other options
□
Intelligent Media Sensor [IM-101]
□
Authentication Unit [AU-201S]
□
Status indicator light [MK-744C]
*For other options, please refer to the User's Guide.
* The product configuration (combination of options) is an example.
2Name of Each Component and Control Panel
4
2-1. Name of Each Machine Component
Front door
Main power switch
Toner bottle
Sub power switch
Fusing Conveyance
Unit
2-2. Control Panel of Machine
●Power Save
Press this button to
manually set or reset Power
Save mode.
●Brightness adjustment
dial
Turn this dial to adjust the
brightness of the touch
panel.
●Utility/Counter
Press this button to display
the Utility screen and
counters. ●Start
Lights up blue when operation is possible, and
orange when operation cannot be started.
●Reset
Press this button to
return the setting
value to the default.
●Power LED
Lights up orange when
the main power switch
is turned on, then turns
blue when the sub
power switch is turned
on.
●Data LED
Flashes while the
system is receiving
print data.
●Stop
Press this button to pause
output or interrupt any
machine operation.
2Name of Each Component and Control Panel
5
［PI-502］
2-3. Control Panel of Option
For details about how to use the control panel of each option, view the video.
●Start/Stop button
●Function selection button
[LS-507]
LS-507 operation button
●Storage button (Output Tray)
●Eject button (Paper in stacker tray)
PI-502 operation button
[FD-503]
●Start/Stop button
●Finishing Options button
FD-503 operation button
3Power-On/Off
6
3-1. Machine
This system has 2 power switches, namely, main power switch and sub power switch.
Be careful of the order of turning these 2 power switches on and off.
Approx. 6 minutes and 30 seconds
Power-On
Power-Off
Main power ON
Power LED: Turned off =>
Orange
Sub Power ON
Power LED: Orange =>
Blue
"Please wait"
"Confirming scanner
connection" *1
Sub Power OFF
Power LED: Blue => Orange
"Please wait for a while"* Power LED: Orange =>
Turned off.
The control panel becomes
dark.
Main power OFF
* If the following messages are displayed, do not turn the main power off.
"Cooling in progress Power is turned off automatically"
"Power off in progress Please do not turn the main power off"
3Power-On/Off
7
"Please wait"
"Now adjusting"
"Machine is warming up"
"Please wait for a while"
"Ready to print"
*1: The displayed message varies depending on the option you are using.
•It takes a certain amount of time from when the main power is turned on until it is ready
for printing.
Therefore, it is recommended to leave the main power ON except when the machine will
not be used for a long period of time.
•If you want to turn the power on immediately after turning the main power off, be sure to
wait at least 10 seconds before turning the power on.
•If you set the Power Save function and weekly timer, you can automatically manage the sub
power ON/OFF operation and reduce power consumption. For details, refer to the User's
Guide.
•Power ON/OFF setting image of this system in line with business hours
•Job output during power save
If you input a job from the printer driver while the Power Save function is set and the
power consumption is suppressed, this system recognizes the job, cancels Power Save
mode, and begins output.
Tips
A: Monday to Friday:
ON at 9 am, OFF for lunch break
/ ON at 1 pm, OFF at 6 pm
B: Saturday:
ON at 9 am, OFF at 3 pm
C: Sunday: All day OFF
3Power-On/Off
8

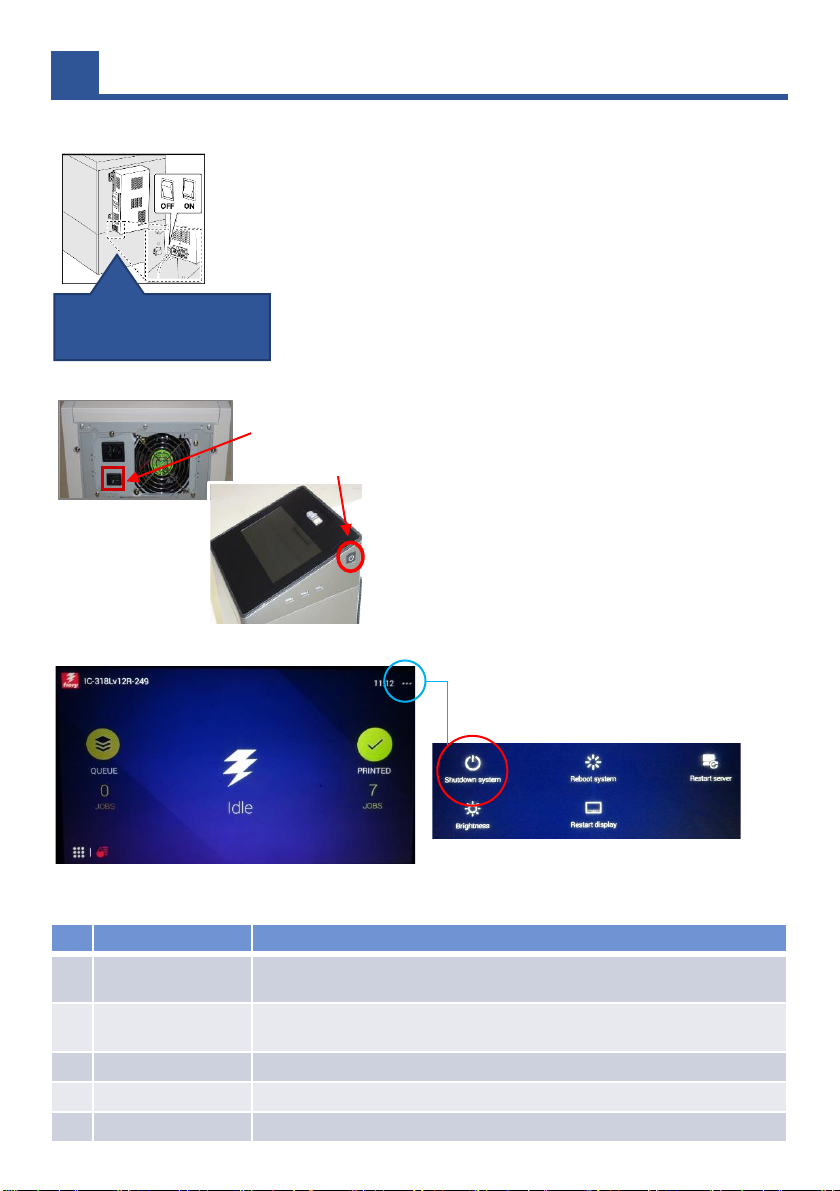

3-2. KM Controller Power-ON/OFF
Turn the power on/off in the following order.
1. Turn the machine on or off.
2. Turn the controller on or off.
•For information about how to turn the machine on, refer to
"3-1. Machine".
•When the message "Ready to print" is displayed on the
control panel, turn the power on.
•After the machine has completely turned off, turn the
controller off.
The controller is
mounted on the back of
the machine.
3-3. Fiery Controller Power-ON
1. Turn on the main power (rear: enclosed by a red frame).
2. Turn on the Power button (side of the LCD panel: marked by a
red circle).
Turn the power on in the following order.
•The main power can normally be left "ON".
•If you do not use the product for a long period of
time (for example, 1 or more weeks), turn off the
main power.
3-4. Fiery Controller Power-OFF (Shutdown system)
1. Touch the upper right corner of the
LCD panel. The power-related window
is displayed.
2. Press [Shutdown system].
No.
Button name Overview
1
Shutdown system
Turns the controller off. (Both the Fiery system and the Windows
server (OS) are turned off.)
2
Reboot system
Reboots only the Fiery system. The Windows server (OS) does not
reboot.
3
Restart server
Reboots both the Fiery system and Windows server.
4
Brightness
Allows you to change the screen brightness.
5
Restart display
Reboots only the display.
5 buttons are displayed. For an explanation of
each button, refer to the table below.
* The displayed contents vary depending on
the version.
3Power-On/Off
9
3-5. Recommended Useful Functions
This system provides useful functions related to the power supply and job output of
the KM and Fiery controllers.
Name Description KM Fiery
Machine/controller
power
synchronization
setting
Set whether to synchronize the power supply
of the machine with that of the image
controller.
✓*1 ✓*2
Next day
continuation
setting
When the sub power of this system is turned
off, a job in progress or a job reserved for
output is held, and executed continuously at
the next startup.
✓*1 -
*1: Can be set from Administrator Setting. For details, refer to the User's Guide.
*2: Can be set from Command WorkStation - Configure.
✓: Functions are provided.
•For information about how to turn the machine on,
refer to "3-1. Machine".
•The UK-301 power supply is mounted on the back
of the IQ-501.
1. Turn the machine on.
2. Turn the UK-301 on.
3-6. Option
The optional UK-301 must also be turned on and off.
Turn the UK-301 on in the following order.
* This option is synchronized with the sub power switch of the machine, so normally,
you do not need to turn it off.
4Paper Feed Route and Paper Jam Processing
10
1.
3.
2.
4. 5.
4-1. Paper Feed Route in the Machine
Output Tray Output Tray
Output Tray
* The product configuration (combination of options) is an example.
4-2. How to See the Paper Jam Display
•If a paper jam occurs while printing or copying, the message [Paper JAM] and the
paper jam location are displayed on the control panel (screen).
•Follow the on-screen instructions to clear the paper jam.
[JAM Position] screen: Example
How to clear a paper jam
[Illustration] screen:
Example
1. Message display area
Displays the concrete method to clear
paper jams.
2. Jam number/work procedure
illustration display area
Displays the paper jam location, the
work procedure, and others.
3. [Illustration]
Press this key to display the screen that
illustrates how to process with the
highest priority.
4. [Next]
Press this key to see the next page of
the paper jam clearing procedure.
5. [JAM Position]
Press this key to return to the [JAM
Position] screen.
