Konica Minolta AU-201S User manual
E-1
AU-201S Authentication Unit
INSTALLATION MANUAL
A795-9632-00
Applied Machines: PRO958/958/808/758
MFP: 95 ppm/80 ppm/75 ppm
Product Code: A796/A8KN/A795
1. Accessory parts
* This part is not used in this installation.
Note:
• To install this authentication unit, the Working
Table WT-506 or the Mount Kit MK-735 is
required.
• When you attach this authentication unit to the
Working Table WT-506, we recommend you
attach this unit to the working table before you
attach the working table to the machine.
• When you use the Mount Kit MK-735 to attach
this authentication unit to the machine, see the
installation manual of the mount kit for informa-
tion on the installation procedure.
• This manual provides the illustrations of the
accessory parts and machine that may be
slightly different in shape from yours. In that
case, instead of the illustrations, use the
appearance of your machine to follow the
installation procedure. This does not cause any
significant change or problem with the proce-
dure.
No. Name Shape Q’ty
1. Authentication
unit
1
2. Ferrite core
1
3. Hook-and-loop
fastener A
(hook)
(25.4 × 10 mm)
*
3
4. Hook-and-loop
fastener B
(loop)
(25.4 × 10 mm)
*
3
5. Rubber foot *
1
6. Safety
information
guide 1
set
7. Additional
information
1
set
Keep this bag away from babies and
children. Do not use in cribs, beds,
carriages, or playpens.
The thin film may cling to nose and
mouth and prevent breathing. This bag is
not a toy.
E-2
2. Installation procedures
(1) Turn OFF the power switch and unplug the
power cord from the power outlet.
(2) Attach the ferrite core as shown in the illustra-
tion.
Note:
• Install the ferrite core by winding the cable two
turns.
• Place the ferrite core approximately 60 mm
away from the authentication unit.
(3)
<When the Working Table WT-506 is mounted to the
main body>
Refer to the installation manual for the Working
Table WT-506 and remove the working table.
(4) Remove the cover from the working table.
(Three screws)
Note:
The cushion, cable tie, and authentication label
are contained inside the cover.
(5) Paste the cushion to the cover, aligning the
cushion with the line marked inside the cover.
Note:
The cushion is supplied with the working table.
(6) Position the authentication unit, aligning its four
corners with the four marks indicated on the
underside of the working table.
(7) Secure the authentication unit cable to the work-
ing table plate with the cable tie.
Note:
• The cable tie is supplied with the working table.
• Cut the excess portion of the cable tie.
(8) Attach the cover removed in step (4).
(Three screws)
Note:
Put the ferrite core inside the cover.
Line
Mark
Cable tie
E-3

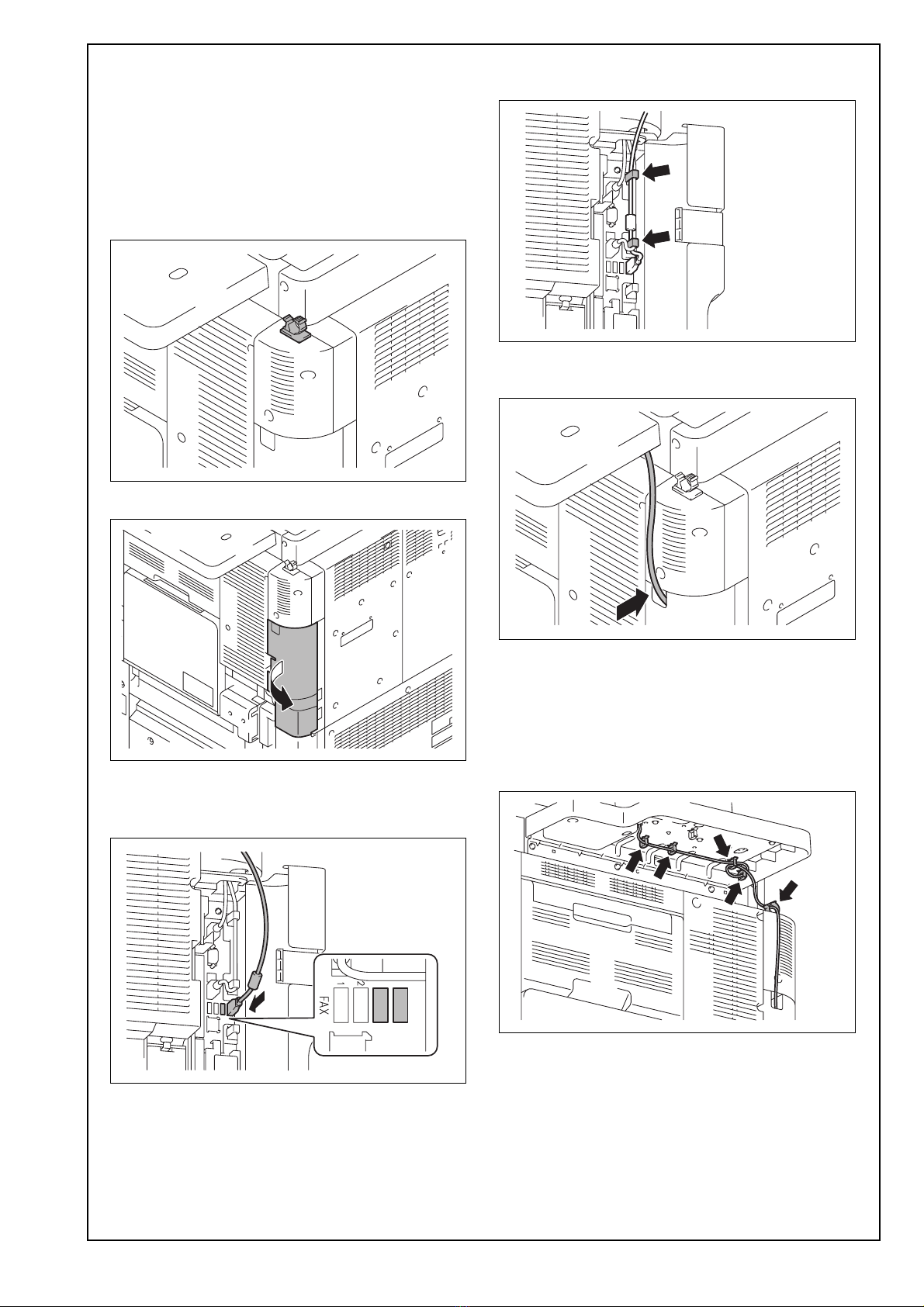

(9) Attach the working table to the main body.
Note:
For the installation procedure, see the working
table installation manual.
(10) Attach the cable clamp onto the position shown
in the illustration.
Note:
The cable clamp is supplied with the working
table.
(11) Open the upper rear right door.
(12) Connect the USB cable to the main body.
Note:
Connect it to either of the two ports.
(13) Fit the USB cable into the two cable guides.
Pull the USB cable up in order to remove slack.
(14) Route the USB cable through the notch of the
upper rear right door and close the door.
(15) Route the USB cable as shown in the illustra-
tion.
Route the USB cable through the four wire sad-
dles and the cable clamp.
Note:
Arrange the cable so that it does not interfere with
opening or closing of the right door.
Port
E-4
(16) Paste the authentication label to the position
shown in the illustration.
Note:
The authentication label is supplied with the work-
ing table.
3. Configuration procedures
<Installation of the loadable device driver>
Install the AU-201S loadable driver (ICC_LDR.tar) to
the main unit.
(1) Prepare a USB memory where only the loadable
device driver is stored in the ROOT directory.
(Please do not save any other data in the USB
memory.)
(2) Connect the USB memory to the USB port of the
main unit.
(3) Plug the power cord into the power outlet and
turn on the machine.
(4) Display the Service Mode screen.
(For details of how to display the Service Mode
screen, see the service manual.)
(5) Touch “System 2” →→“Driver Install.”
(6) Touch “SET” and press Start key to install the
data.
(7) Check that the data are normally installed from
the message that appears on the control panel.
(8) Turn OFF the power switch.
(9) Remove the USB memory.
(10) Turn ON the power switch.
Note:
When displayed the Service Mode screen, be sure
to turn off the power after exiting the Service Mode
screen and wait for 10 seconds or more before
turning on.
<Setting IC card authentication>
(1) Display the Service Mode screen.
(For details of how to display the Service Mode
screen, see the service manual.)
(2) Display the Billing Setting screen.
(To display the Billing Setting screen, press Stop
→ 9 on the Control Panel.)
(3) Touch “Authentication Device2.”
(4) Touch “Authentication Device2.”
(5) Touch “Card.”
(6) Touch “END.”
(7) Turn OFF and ON the power switch.
Note:
When displayed the Service Mode screen, be sure
to turn off the power after exiting the Service Mode
screen and wait for 10 seconds or more before
turning on.
