Konica Minolta Di1611 User manual

$I$I

___________________________________________________________________________

5SER-ANUAL4WAIN$RIVER

Contents

Di1611/Di2011 Twain Driver i

Contents

1 Setting Up PC Scanning

2 Connecting to the USB Port

3 Installing the TWAIN Driver

3.1 Installing the TWAIN Driver Using Plug and Play ......................3-1

Installing the TWAIN Driver Using Plug and

Play Under Windows XP ............................................................3-1

Installing the TWAIN Driver Using Plug and

Play Under Windows 2000 .........................................................3-3

Installing the TWAIN Driver Using Plug and

Play Under Windows Me/98 .......................................................3-4

4 How to Scan Document

4.1 Using the Automatic Document Feeder......................................4-1

4.2 Using the Original Glass ..............................................................4-2

5 Common Settings

5.1 Auto Options .................................................................................5-1

6 Error Message

6.1 Original Document Jam................................................................6-1

To clear a misfeed in the Automatic Document Feeder .............6-2

Communication Error..................................................................6-3

Scanner Busy .............................................................................6-3

Read Data Error .........................................................................6-4

Automatic Document Feeder No Paper......................................6-5

Other Machine Error...................................................................6-6

Contents

ii Di1611/Di2011 Twain Driver

Setting Up PC Scanning 1

Di1611/Di2011 Twain Driver 1-1

1 Setting Up PC Scanning

If the enclosed TWAIN Driver is installed on the computer, this copier can

be used for to scan documents to a PC.

The following software and hardware system environment is required for

PC scanning.

GOS: Windows 98, Windows Me, Windows 2000, or Windows XP

GTWAIN-compatible image-processing software (such as, Adobe Pho-

toshop)

GUSB V.1.1 (or later version)

1Setting Up PC Scanning

1-2 Di1611/Di2011 Twain Driver

Connecting to the USB Port 2

Di1611/Di2011 Twain Driver 2-1

2 Connecting to the USB Port



Important!

Be sure to use a shielded USB cable. Use of an unshielded cable may

result in radio interference.

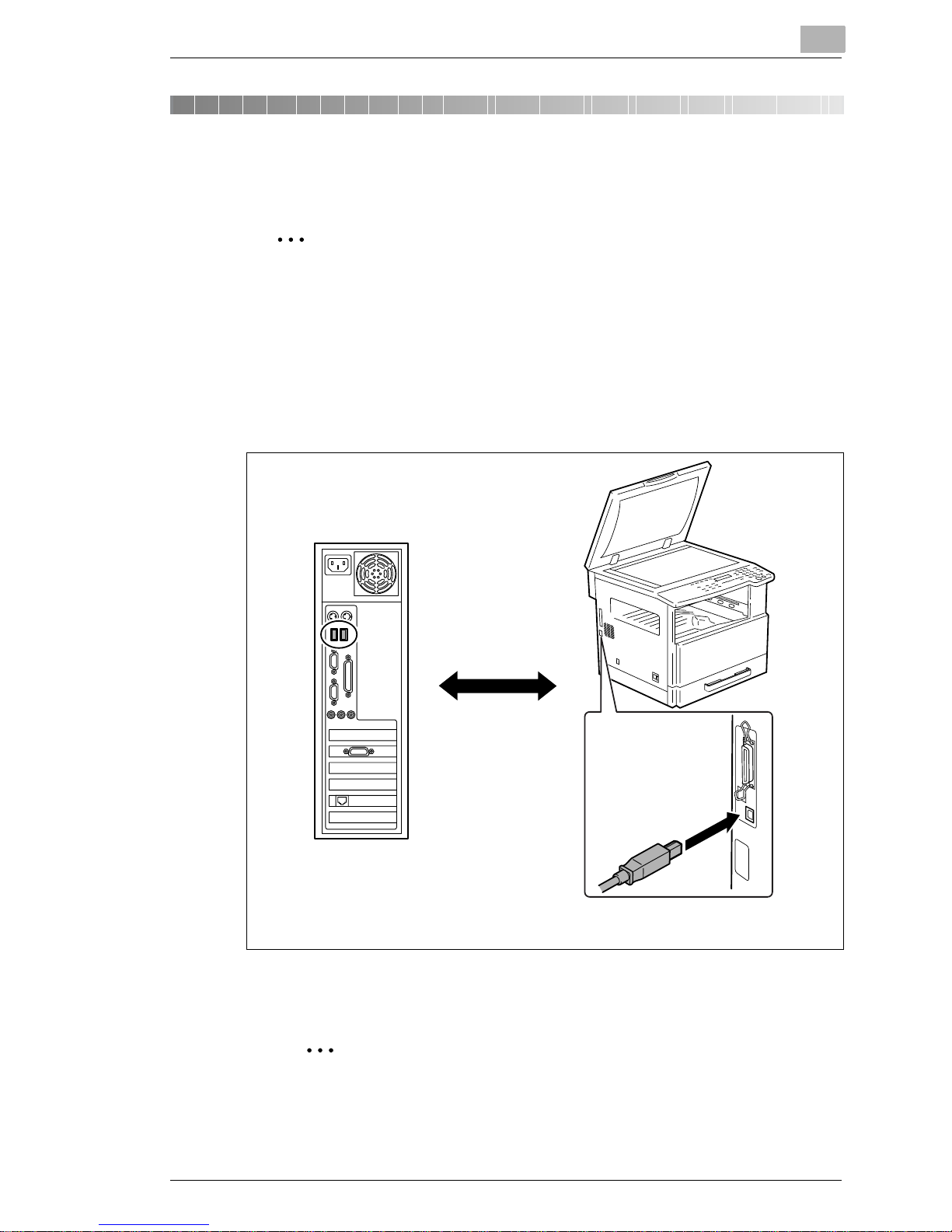

1Make sure that the copier and the computer to be connected to the

copier are turned OFF.

2Connect one end of the USB cable to the USB port of the copier.

This completes the connection.



Note

USB1.1 is only supported on Windows 98, Windows Me, Windows

2000, and Windows XP.

Connect

Copier

2Connecting to the USB Port

2-2 Di1611/Di2011 Twain Driver

Installing the TWAIN Driver 3

Di1611/Di2011 Twain Driver 3-1

3 Installing the TWAIN Driver

This section describes the procedure for installing both of the TWAIN driv-

er and GDI Diver. The TWAIN driver can be installed by using Plug and

Play.

3.1 Installing the TWAIN Driver Using Plug and Play

Installing the TWAIN Driver Using Plug and Play Under Windows XP

1With Windows running, insert the CD-ROM into your computer’s CD-

ROM drive.

2Turn on the copier.

3When the copier is ready, connect it to the computer with the USB cable.

The “Found New Hardware Wizard” dialog box appears.

4Select Install from a list or specific location [Advanced], and then

click [Next].

5Select Include this location in the search: under Search for the

best driver in these locations., and then click [Browse].

6Browse to “Driver\(language)\WinXP” on the CD-ROM, and then click

[OK].



Tip

Select the language you prefer. For example, if you prefer English,

browse to:

Driver\English\WinXP

3Installing the TWAIN Driver

3-2 Di1611/Di2011 Twain Driver

7Click [Next].

8The “Completing the Found New Hardware Wizard” dialog box ap-

pears.

HClick [Finish].

9The “Found New Hardware Wizard” dialog box appears again.

HRepeat steps 4 through 7.



Note

This completes the installation of the TWAIN driver.
