Kohler C3-129 Assembly instructions
Homeowners Guide
用户手册
Smart Seat
清舒宝智能便盖
C3-129
K-18659T-0
English page 2-19
中 文 页 码 20-37
科勒（中国）投资有限公司
中国上海市静安区江场三路158号 邮编：200436
制造商：上海科勒电子科技有限公司
中国上海市宝山区丰翔路1955号 邮编：200444
1261355-T01-L
CAUTIONS AND WARNINGS
Children, elders or those with disabilities from their body, sensitivity or
mental disabilities or lacking of common sense should not use or get close to
this product unless under close tutelage. Children are not allowed to use or
touch this product. Do not leave children alone in a room with such product.
Warning: Risk of electric shock, fire or personal injury. This product
must be installed safely. Connect only to dedicated 220V~, 50Hz, 10A
circuit protected by Ground-Fault Circuit-Interrupters (GFCI’s) or
Earth-Leakage Circuit-Breakers (ELCB’s).
Warning: Risk of electric shock or product damage. Do not immerse
the product into water.
Important! Risk of product damage. Do not install at a place where it may be
splashed by water.
Important! Risk of product damage. Do not install the product at a place
with excessive humidity, where moisture may condense at the surface of the
product. Please maintain that the usage envi-ronment is under adequate
ventilation, so as to prevent damage to electronic components.
Important! Risk of product damage or property loss. Water leakage may
happen if the water pipe connector is pulled or pushed with excessive force.
Important! Risk of product damage. The product may be damaged if the
nozzle is applied with excessive force.
Important! Risk of product damage. The part of the pipe where water may be
frozen should be protected by thermal insulation. Any water left in the product
may be frozen during the winter season. Please keep the product in room
temperature before reinstallation or usage.
Important! Risk of product damage. The power shall not be connected before
the work is finished. Otherwise it may lead to product failure.
Attention: The thermal protector may be out of order during storage or
transportation in warm climate which can lead to product failure. Please
ensure the product cools to room temperature before reinstallation or usage.
When an
electrical product is used, especially when children are near, the
following basic safety precautions shall be abided by:
Danger-Reduce risk of electric shock:
□Do not place or store this appliance where it can fall or be pulled into a bath
or sink.
Do not place in or drop into water or other liquid.
Do not reach for a product that has fallen into water. Unplug immediately.
WARNING - To reduce the risk of low grade burns, electric shock, fire or
injury to persons:
□
□
□
1261355-T01-L
2
Kohler Co.
□
□
recommended by Kohler Co. such as T-valve etc.
Do not lean on cover when use this appliance to prevent product from damage.
□
□
□
□
□
□
(cont.)
For those children and the elderly who are unable to adjust the
temperature, they should ask for help to adjust seat temp, water temp and
wind temp of toilet cover to proper gears.
□
□
been dropped into water.
Install this product properly by following the installation procedure.
This product shall be repaired by professionals only. The warranty will
become invalid if you try to repair this product by yourself.
When install the product in the room, a stop valve shall be installed in a close
proximity. For emergency circumstances, the water inlet valve shall be stopped
without using any tools; otherwise unexpected failure may cause the loss to
the customer.
Keep power line far from heated surface.
Do not drop or insert any substance to pipeline or the opening.
Do not use this product outdoor or in a place where a particle mist spray
device is used,neither at a place of provisions.
The installation should be subject to the instructions before the power is
connected.
Water should not be poured into the power plug.
Exposed skin should not make contact with heating seat for too long a time
to prevent low temperature burning.
□
□
□
□
□
□
□
the professionals from its maintenance
department or similar departments, to avoid the occurrence of danger.
Please use the water supply hose accompanying with new machine. The old
hose assembly shall not be used again.
When customer cut power supply off, if reactivation of power supply is
required, please wait until the end of “beep……” indication, and then turn on
power supply again.
Kohler Co.
3
1261355-T01-L
Specifications
Water efficiency grade*Level II
Min water pressure 0.07MPa (dynamic pressure)
Max water pressure 0.74MPa
Water pressure
Rated voltage 220V~, 50Hz
Power cord length About 1.5m
Rated power* 1070W
Max instantaneous power About 1600W
Product outline dimension About 521mm x 435mm x 157mm
Weight of product About 3.0kg
Inlet water temp 1-35°C
Operation Environment 1-40°C
Rear wash YES, adjustable
Front wash YES, adjustable
Water flow (water pressure 0.2MPa)
Max rear wash shall be no less than 500mL/min
Cleaning water temp OFF, adjustable 5 dials (ambient temp, about 31-39°C)
Spray time (the longest) About 300s
Cleaning Nozzle adjustment 5 Positions
Oscillating Oscillate / Wide Oscillate
Thermal fuse
Check valve
OFF, adjustable 5 dials
Safety devices Thermal fuse
Cover Slow close
Comfort Seat Slow close
OFF, adjustable 5 dials
Dryer
Safety devices Thermal fuse
Self-cleaning nozzle Yes
Quick-release body Push release button
Sanitary Antibacterial material Seat and Cover
UV sanitize Yes
Other safety devices Circuit-Breakers
Other Control panel Located on side panel
Seat sensing Located inside the seat
*The description of water efficiency label marked on Bidet: water efficiency label represents a compliance mark of the water
efficiency grade etc. performance of Bidet.
*Power value testing condition: dynamic pressure 0.2MPa, inlet water temp 15°C.
Overheating
prevention
Safety
devices Back-flow
prevention
Temperature
adjustments
Heated
Seat
Temperature
adjustment
1261355-T01-L
4
Kohler Co.
Keypad and Panel Diagram
D
F
A
G
H
front
女性冲洗
rear
臀部冲洗
oscillate
移动冲洗
wand
喷嘴移动
water temp
水温
dryer
暖风
seat temp
圈温
stop
停止
E
C
B
Cover (antibacterial*)
Seat (antibacterial*)
Thank You For Choosing Kohler Company
Thank you for choosing a Kohler product. Kohler craftsmanship offers you
a rare combination of proven performance and graceful sophistication that will
satisfy you for years to come. The dependability and beauty of your Kohler
product will surpass your highest expectations. We are very proud of our products
here at Kohler and we know you will be too.
Please take a few minutes to study this Homeowners Guide. Pay special attention
to the care and cleaning instructions.
All information in this manual is based upon the latest product information
available at the time of publication. At Kohler, we constantly strive to improve the
quality of our products. We reserve the right to make changes in product
characteristics, packaging or availability at any time without notice.
*Antibacterial: the seat and cover contains long term inorganic anti-bacteria material which will inhibit bacteria growth on
surface, this does not represent the mildew and other incidental effects. The antibacterial rate is more than 90%. (Perform
test in accordance with GB21551.2-2010 requirements. Testing lab: China household electrical appliances testing institute;
electromechanical products testing technology center of Shanghai Entry-Exit inspection and quarantine bureau.)
Kohler Co.
5
1261355-T01-L

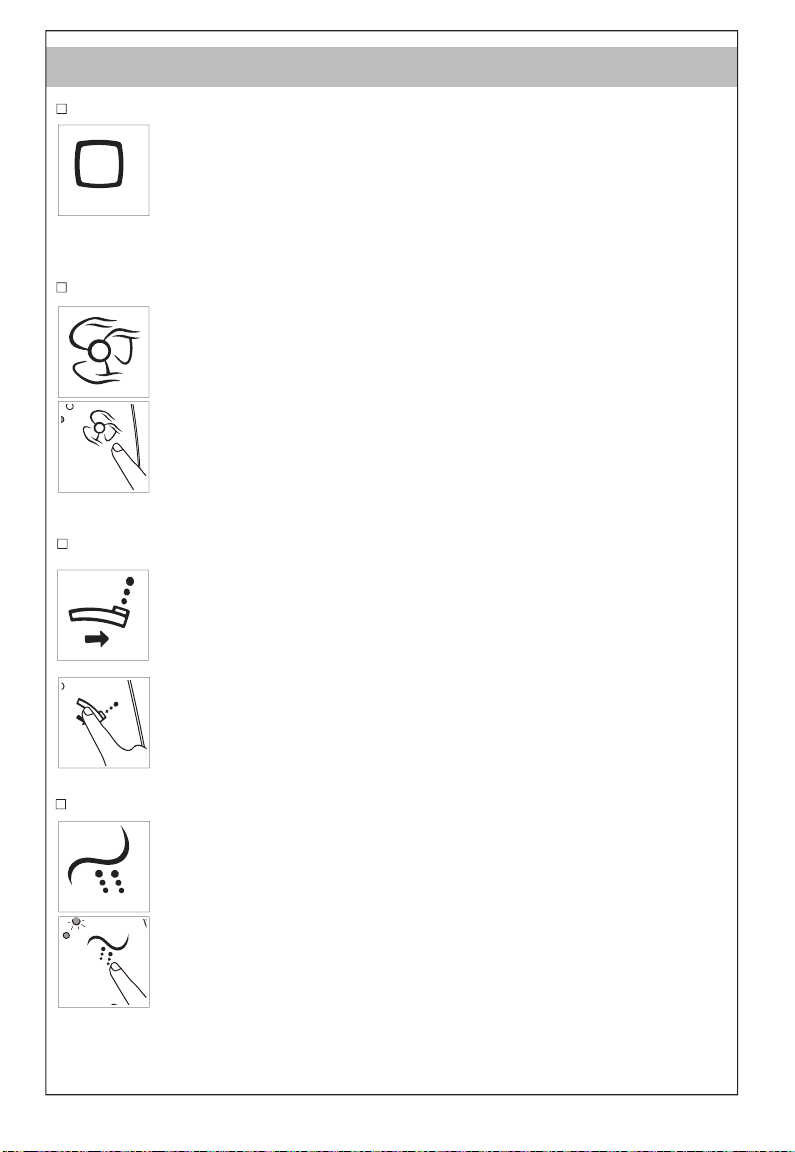

A - Stop
Operation
When flushing or heater is activated, the flushing or heater features
can be halted by pressing the STOP button. When the user is seated,
the deodorizer feature is activated automatically. Only when
deodorizer feature is activated can it be deactivated by pressing the
STOP button. After the deodorizer feature is deactivated, it will no
longer be activated before being reseated.
The indicator will display the current heater temperature, and the
temperature of warm air can be changed first from low to high and
then from high to low, stage by stage cyclically by pressing the
HEATER button continuously. This feature will stop automatically after
running continuously for 4 minute.
In the flush state, the bidet wand can be controlled by pressing the
BIDET WAND button, and the distance of bidet wand can be changed
first from short to long and then from long to short cyclically by
continuously pressing the BIDET WAND button.
In the case when nobody is seated, press and hold the BIDET WAND
button for over 2 seconds, the bidet wand will extend. Press and hold
the BIDET WAND button for over 2 seconds again, the bidet wand
will retract. If there is no action on the button for 2 minute, the bidet
wand will retract automatically.
Press REAR WASH button to activate rear wash and the current
flushing intensity will be shown.
In the rear wash state, the flushing intensity can be changed first from
low to high and then from high to low, stage by stage cyclically by
continuously pressing the REAR WASH button. It will stop
automatically after 5 minutes of continuous flushing.
When being seated, the heater feature will be activated by pressing
the HEATER button. If the wash feature is activated, it will be halted
immediately.
使用方法
C - Bidet Wand Position
D - Rear
B - dryer
1261355-T01-L
6
Kohler Co.
Press FRONT WASH button to activate front wash (female exclusive
use) and the current flushing intensity will be shown. In the front wash
state, the flushing intensity can be changed first from low to high and
then from high to low stage by stage cyclically by continuously
pressing the FRONT WASH button. It will stop automatically after 300
seconds of continuous flushing.
E - Front
In the flush state, press this button to activate oscillating flush.
F -
Oscillate
The Bidet is equipped with Wide Oscillate function. If you would like
to use Wide Oscillate function, please hold oscillate key about 2s to
activate rear wash and pulsate flush.
The temperature of flushing water can be changed first from low to high
and then from high to low, stage by stage, and back to off again,
cyclically by pressing the WATER TEMPERATURE button. The
indicators will be lit up to show the parameter of corresponding water
temperature. If it is turned off, the indicator will not light.
G - Water temperature
The temperature of the ring can be changed first from low to high and
then from high to low stage by stage, and back to off again, cyclically
by pressing the RING TEMPERATURE button. The indicators will be lit
up to show the parameter of corresponding ring temperature. If it is
turned off, the indicator will not light.
H - Seat temperature
Press and hold the RING TEMPERATURE button for 2 seconds, the
energy-saving feature will be turned on (with a short tone) or turn off
(with a long tone). The ring temperature light flashing indicates that the
energy-saving feature is turned on; while the ring temperature light stop
flashing indicates that the energy-saving feature is turned off, or while
being seated, the cistern and seat heaters will be turned off.
One week after the activation, the ring performs an automatic detection
in user’s habitual routine. Starting from the second week, the ring
automatically gets itself into Power Save mode when it is less used,
depending on the detected user routine of the first week.
During the third week, the ring bases its judgment on the data collected
during the previous week to decide when it enters into Power Save
mode. It works the same for the following weeks.
Press OSCILLATE button to activate oscillate wash under spray status.
When press OSCILLATE button, it shall circulate per oscillate (1 LED
indicator ON), wide oscillate (1,2 LED indicators ON), OFF oscillate.
When turn OFF oscillate (return back to female wash or rear wash),
LED indicator is OFF.
The Bidet is equipped with Wide Oscillate function. If you would like to
use Wide Oscillate function, please hold oscillate key about 2s to
activate rear wash.
Kohler Co.
7
1261355-T01-L
I - Installation instructions
Low-mid
small indicator
lights up and
medium
indicator flashes
Mid
small and
medium indica-
tors light up
simultaneously
Mid-high
small and
medium indica-
tors light up; large
indicator flashes
High
small, medium
and large
indicators light up
simultaneously
Low
small
indicator
lights up
J - Sanitize
Auto UV sterilization function will be activated and start sterilizing nozzle when
unseated for a long time. No sterilization function shall be activated after this
process in another 24hrs.
*UV sterilization (refers to the ultraviolet sterilization generated by UV lamp): During UV working cycle, the bacteria on
nozzle surface will be eliminated by irradiation. The antibacterial rate is more than 99%. (Measured after one UV working
cycle, it was measured within 16mm×8mm irradiation area. Perform test in accordance with GB /T 23131 requirements,
UV radiation zone was shown in the diagram, UV working cycle activation mode refers to users guide. Testing lab: China
household electrical appliances testing institute.)
UV radiation range Bidet nozzle
1261355-T01-L
8
Kohler Co.
Preparation before the First Use
Toilet makes one short beep once it is plugged in. The nozzle stretches out
and draws back once. Backlight on the side keyboard lights up and the night
light flashes. All the actions last until the initialization process completes.
Wait for the host to finish self-checking. During that time, it is normal to hear
rotating sound of the motor and bicker. Self-checking is completed when the
light flashes.
When the unit is used for the first time, the following has been preset.
Front Wash:
Water Temperature: mid
Water Pressure: mid
Position: mid
Rear Wash:
Water Temperature: mid
Water Pressure: mid
Position: mid
Seat temperature: mid
Dryer temperature: mid
Power save: off
Ensure if water inlet valve is OPEN.
Connect the inlet hose; open the water stop valve and connect the power.
Kohler Co.
9
1261355-T01-L
Test the Functions
Wrap the seat with plastic wrap to prevent water from spraying from the toilet
during testing.
The seat is designed not to function without an occupant. To activate the seat
controls for testing purposes, when facing the toilet, place your hand or a damp
wash cloth on the right side of the seat approximately 1/3 from the front of the
seat (sensor area).
Proceed to the “Keypad and Panel Diagram” and “Operation” Sections to test
the various seat functions.
1261355-T01-L
10
Kohler Co.
This manual suits for next models
1
Table of contents
Other Kohler Toilet manuals
Kohler
Kohler K-3484 Assembly instructions
Kohler
Kohler K-3723 Assembly instructions
Kohler
Kohler REVIVAL User manual
Kohler
Kohler Quiet-Close C3-455 User manual
Kohler
Kohler Escale K-25091T-S User manual
Kohler
Kohler K-5401X User manual
Kohler
Kohler K-8688X Assembly instructions
Kohler
Kohler K-3654-7 Assembly instructions
Kohler
Kohler EIR K-77798T-0 User manual
Kohler
Kohler STRUKTURA K-5888T User manual
Kohler
Kohler K-3417 Fleur Operating instructions
Kohler
Kohler EIR Assembly instructions
Kohler
Kohler K-31333TW-0 User manual
Kohler
Kohler K-3434-X User manual
Kohler
Kohler K-3447 User manual
Kohler
Kohler K-3519 Assembly instructions
Kohler
Kohler K-4737 Assembly instructions
Kohler
Kohler K-3422 User manual
Kohler
Kohler K-22250T-130 User manual
Kohler
Kohler K-3323 User manual
Popular Toilet manuals by other brands
Toto
Toto Washlet TCF4911 Series installation guide
Grohe
Grohe Sensia ARENA user manual
Geberit
Geberit AQUACLEAN MERA CLASSIC user manual
Better Bathrooms
Better Bathrooms BUN/BeBa 27555/78725 user manual
American Standard
American Standard CONCEPT Cube TF-2704 installation manual
BIOLAN
BIOLAN ECO Instructions for installation, use and maintenance
Olympia
Olympia EPOQUE 69209 Installation and Maintenance
GSi
GSi TRACCIA 691711 installation instructions
DENCK
DENCK PURE-D user manual
Silent Venus
Silent Venus SVP600 Installation & maintenance
InBe
InBe IB/04.06050 installation instructions
Swiss Madison
Swiss Madison Carré SM-1T264 installation instructions
