Kohler K-11340X Assembly instructions

Installation and Care Guide

Pedestal Lavatory





K-2018X/K-11340X K-2018X/K-2019X

Thank you for choosing Kohler Company



Thank you for choosing the Bold Look of Kohler. Kohler craftsmanship oers

you a rare combination of proven performance and graceful sophistication

that will satisfy you for years to come. The dependability and beauty of your

Kohler product will surpass your highest expectations. We’re very proud of

our products here at Kohler and we know you will be too.

Please take a few minutes to review this manual before you start installation. If

you encounter any installation or performance problems, please don’t hesitate

to contact us. Our phone numbers and website are listed on back cover.

All information in this manual is based upon the latest product information

available at the time of publication. At Kohler, we constantly strive to improve

the quality of our products. We reserve the right to make changes in product

characteristics, packaging or availability at any time without notice.

Thank you for choosing Kohler Company.

 

The Bold Look of Kohler



 





 



  



 





 

1037277-X2-B 2 Kohler Co.

Before You Begin

CAUTION: Risk of personal injury or product damage. Handle with

care. Product can break, chip, or cause injury if handled carelessly.

Get help lifting the lavatory.



Important Information

IMPORTANT NOTICE TO INSTALLERS!: Please leave these instructions for

the consumer. They contain important information.

In addition to installation procedures, this manual contains important care and

cleaning. Please retain for future reference.

NOTE: Some installation parts might not be provided.

NOTE: The toilet pictured in the installation steps may dier from the model

being installed.

 

 



 

 



CAUTION: Risk of personal injury. This pedestal lavatory is heavy.

Do not aempt to lift or install the pedestal lavatory without assistance.

¨Observe all local plumbing and building codes.

¨Prior to installation, unpack the new lavatory and inspect it for damage.

Return the lavatory to its protective carton until you are ready to install it.

¨ This installation guide provides installation steps for aaching the lavatory

to concrete frame construction. For other installations, supply suitable

bracing and fastening devices of sucient size and strength.

¨ The walls and the oor must be square, plumb, and level.

¨Fixture dimensions are nominal and conform to tolerances established by

Standards TIS.

Kohler Co. 3 1037277-X2-B









 



¨ 

¨ 



¨  



 

¨ 

¨ 

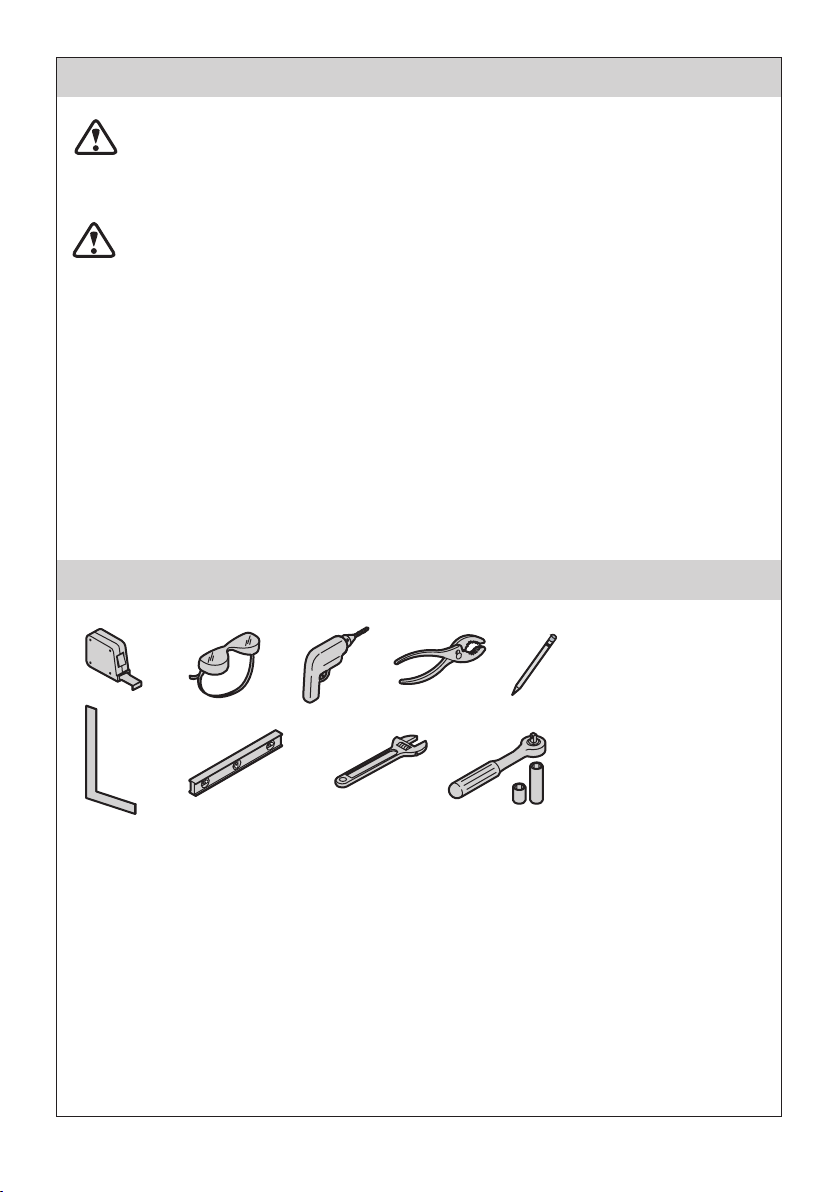

Tools/

1037277-X2-B 4 Kohler Co.

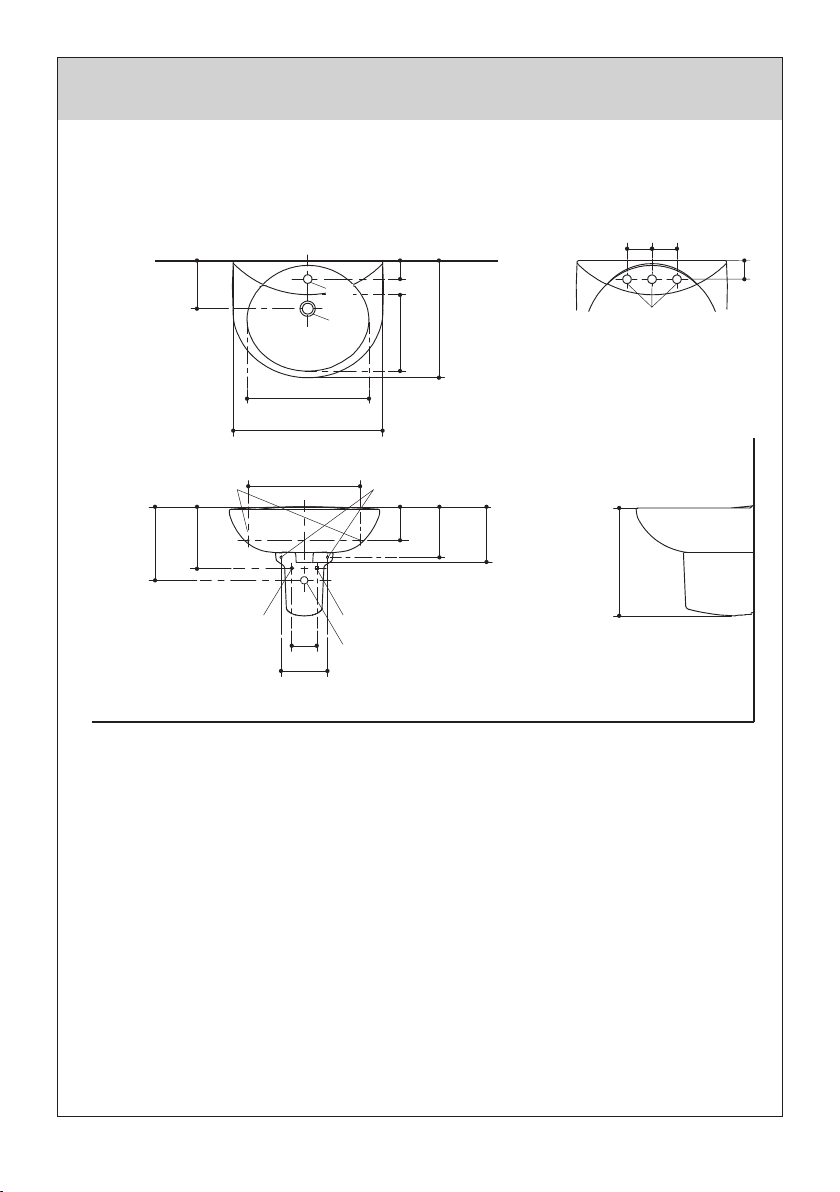

Roughing-In For Semi-Pedestal Lavatory



Dimensions are approximate. Unit: mm.

 

K-2018X-1/K-11340X K-2018X-8/K-11340X

313

197

479

610

499

ø44

102102

ø35

457

197

230

300

127

216

190

440

ø35

ø10 Anchor Holes/รูพุก

1/2" Hot/นํ�าร้อน 1/2" Cold/นํ�าเย็น

Finished Wall/ผนัง

Finished Floor/พื �น

1-1/2" OD

เส้นผ่าศูนย์กลาง

Kohler Co. 5 1037277-X2-B

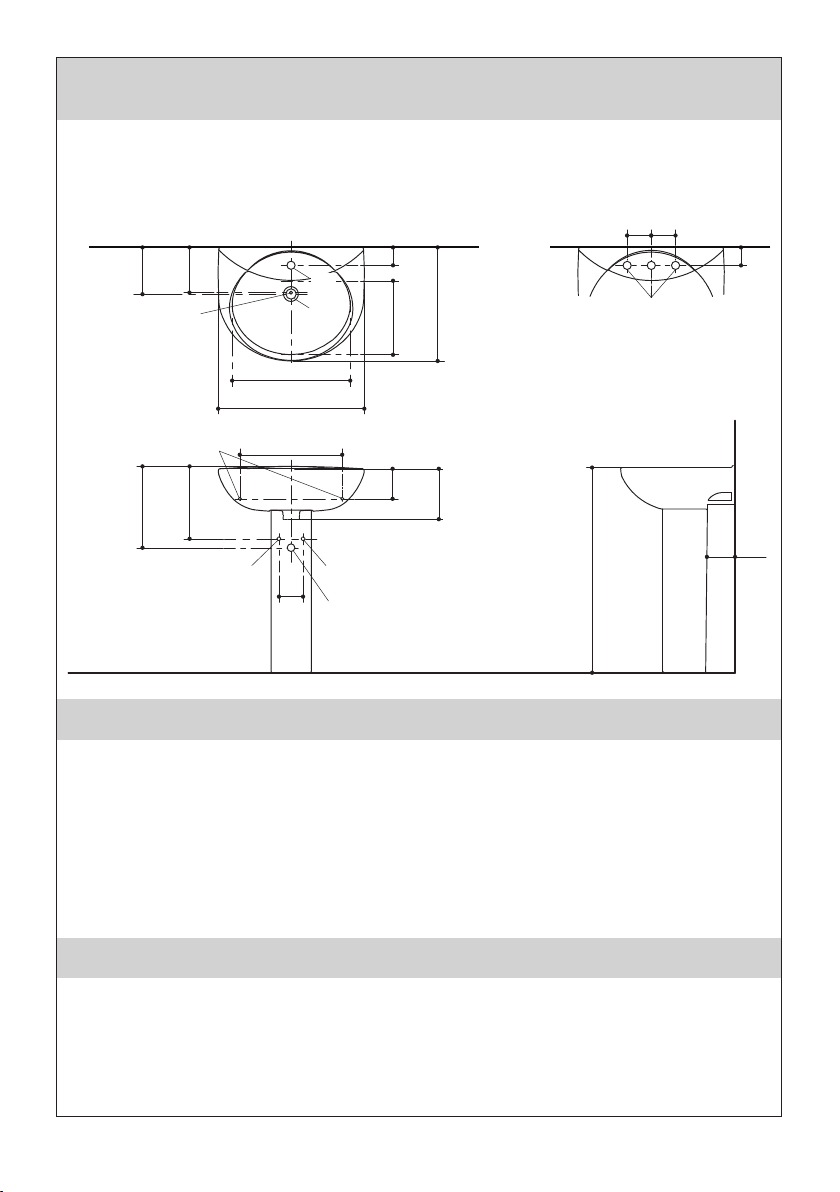

Roughing-In For Pedestal Lavvatory



Dimensions are approximate. Unit: mm.

 

 

¨ 

¨ 

1. Prepare the site



NOTE: The open position of the supply stop handles must not extend more

than 76 mm from the nished wall.

¨Install the 1/2” water supply lines and 1-1/2” drain piping according to the

roughing-in information.

¨ Install sucient backing behind the nish wall to provide a secure material

for the anchoring devices.

1/2" Hot/นํ�าร้อน 1/2" Cold/นํ�าเย็น

ø10 Anchor Holes/รูพุก Finished Wall/ผนัง

Finished Floor/พื �น

K-2018X-1/K-2019X K-2018X-8/K-2019X

313

197 191

479

ø44

610

499

432

270

343

102

127 213

860

108

102 102

ø35

ø10 Mounting Hole

In Pedestal

รูยึดขารองอ่าง

1-1/2" OD

เส้นผ่าศูนย์กลาง

1037277-X2-B 6 Kohler Co.

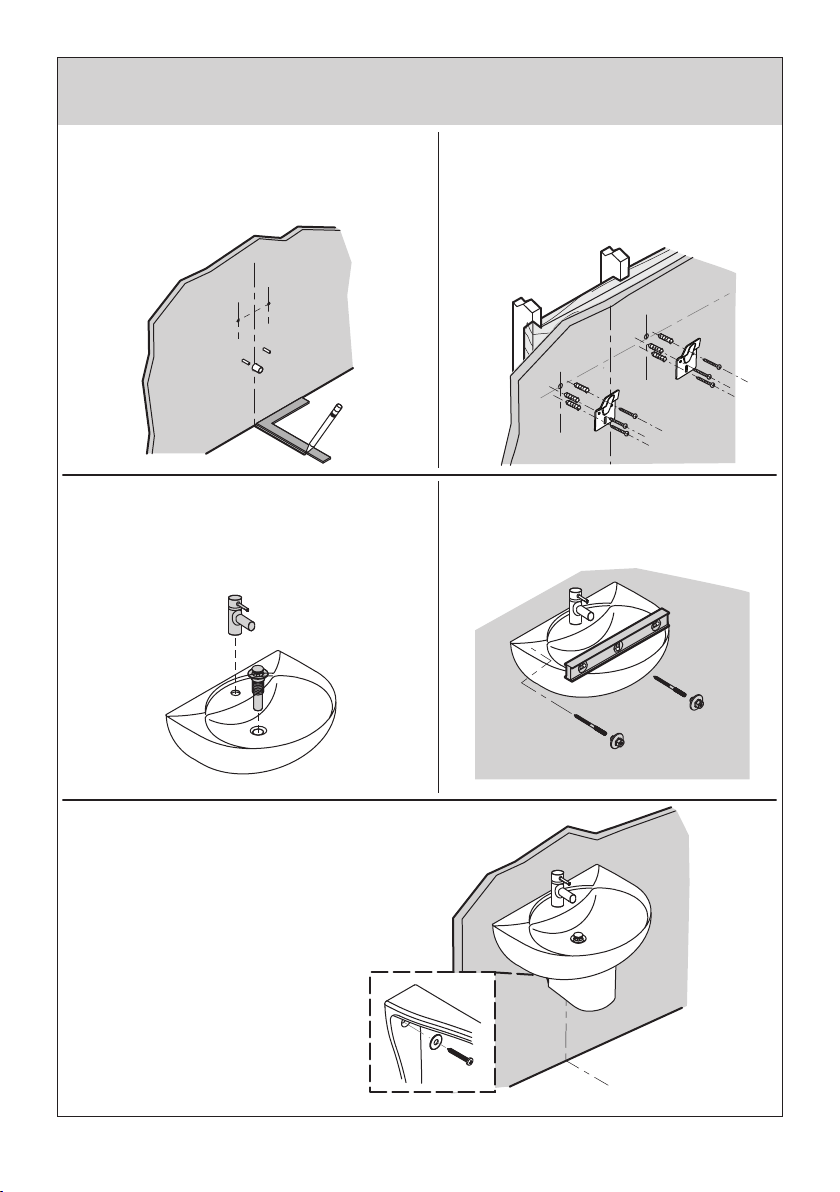

Install Semi-Pedestal Lavatory





Mark the centerline on the wall

and ﬂoor.

Install the faucet and drain to

the lavatory.

Install the semi-pedestal to the wall with washers

and nuts.

Insert studs tighten the nuts.





Drill 3 mounting holes on

the wall. Fix hangers on the wall.

4









Kohler Co. 7 1037277-X2-B

1037277-X2-B 8 Kohler Co.

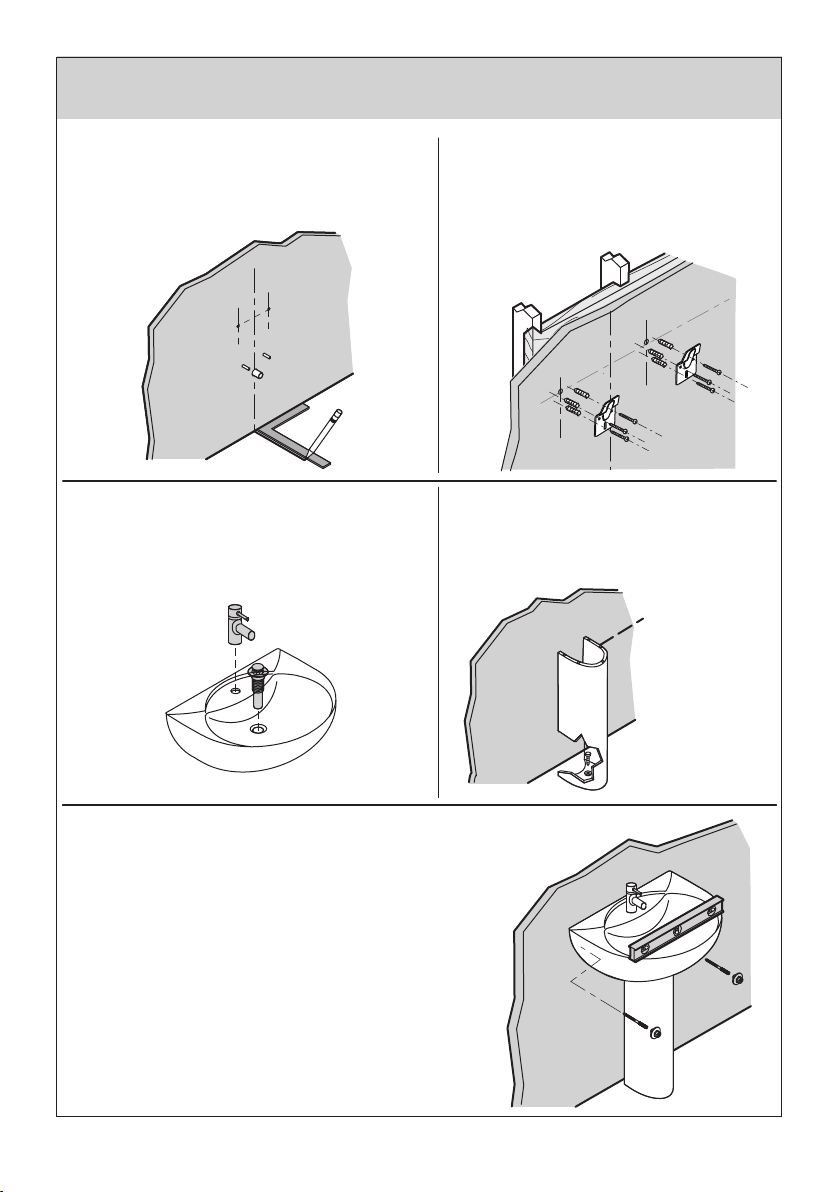

Install Pedestal Lavatory





Apply adhesive

gasket

ติดเทปกาว

กันกระแทก



Mark the centerline on the wall

and floor.

Install the faucet and drain to the

lavatory.

Gently up the front of the lavatory and hold it

and position. While the lavatory is being held up,

place the pedestal underneath the lavatory.

Gently lower the lavatory down onto the pedestal.

Fully tighten the nuts.

Install the pedestal to the wall

with clamp accessory pack kit.





Drill 3 mounting holes on

the wall. Fix hangers on the wall.

Install the faucet and drain to the lavatory.













Care and Cleaning

For best results, keep the following in mind when caring for your product:

• Carefully read the cleaner product label to ensure the cleaner is safe for use

on the material.

• Always test your cleaning solution on an inconspicuous area before applying

to the entire surface.

• Wipe surfaces clean and rinse completely with water immediately after

cleaner application. Rinse and dry any overspray that lands on nearby

surfaces.

• Do not allow cleaners to sit or soak on the surface.

• Use a soft, dampened sponge or cloth. Never use an abrasive material such as

a brush or scouring pad to clean surfaces.

• Be careful not to leave staining materials in contact with the surface for

extended periods of time.

• The ideal cleaning technique is to rinse thoroughly and blot dry any water

from the surface after each use.



 



•   



• 



• 



• 

• 



• 

• 

 

Kohler Co. 9 1037277-X2-B

1037277-X2-B 10 Kohler Co.
