Kodak I800 Series Guide

Manual Feeder / for i800 Series Scanners A-61530_EN

Part No. 8CK187

January 2006

The Kodak Manual Feeder / for i800 Series Scanners provides a flat work surface to aid in manual feeding.

This document provides instructions on how to install and use the manual feeder.

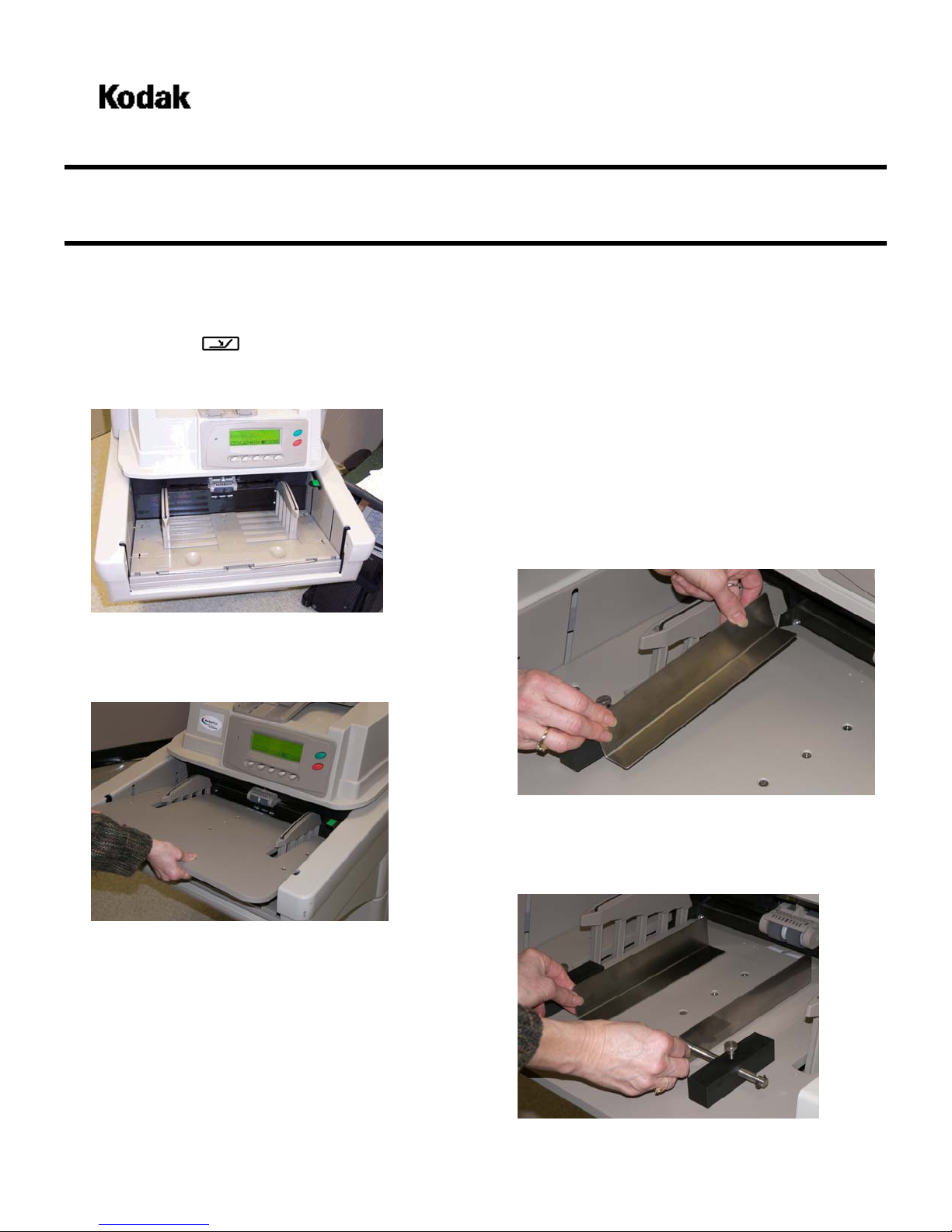

Installing and using the Manual Feeder

Before installing the manual feeder the elevator tray

must be in the lowest position.

1. Select this icon to lower the elevator tray.

2. Open the side guides on the scanner to the widest

position.

3. Place the manual feeder on top of the elevator tray

using the slots in the manual feeder to align with the

side guides. Position the manual feeder to the fully

seated position.

Attaching the manual feeder side guides

After installing the manual feeder, attach the side

guides that are packed with the manual feeder.

The manual feeder has two locations for the side

guides. Depending on the size of the documents you

are scanning:

 use the holes closest to the center of the manual

feeder if you are scanning documents smaller

than 22.23 cm (8.75 in.), or

 use the holes farthest away from the center of the

manual feeder if you are scanning documents

larger than 22 cm (8.66 in.).

4. Align the holes on the manual feeder with the pegs

on the left side guide as shown.

5. Repeat step 4 for the right side guide.

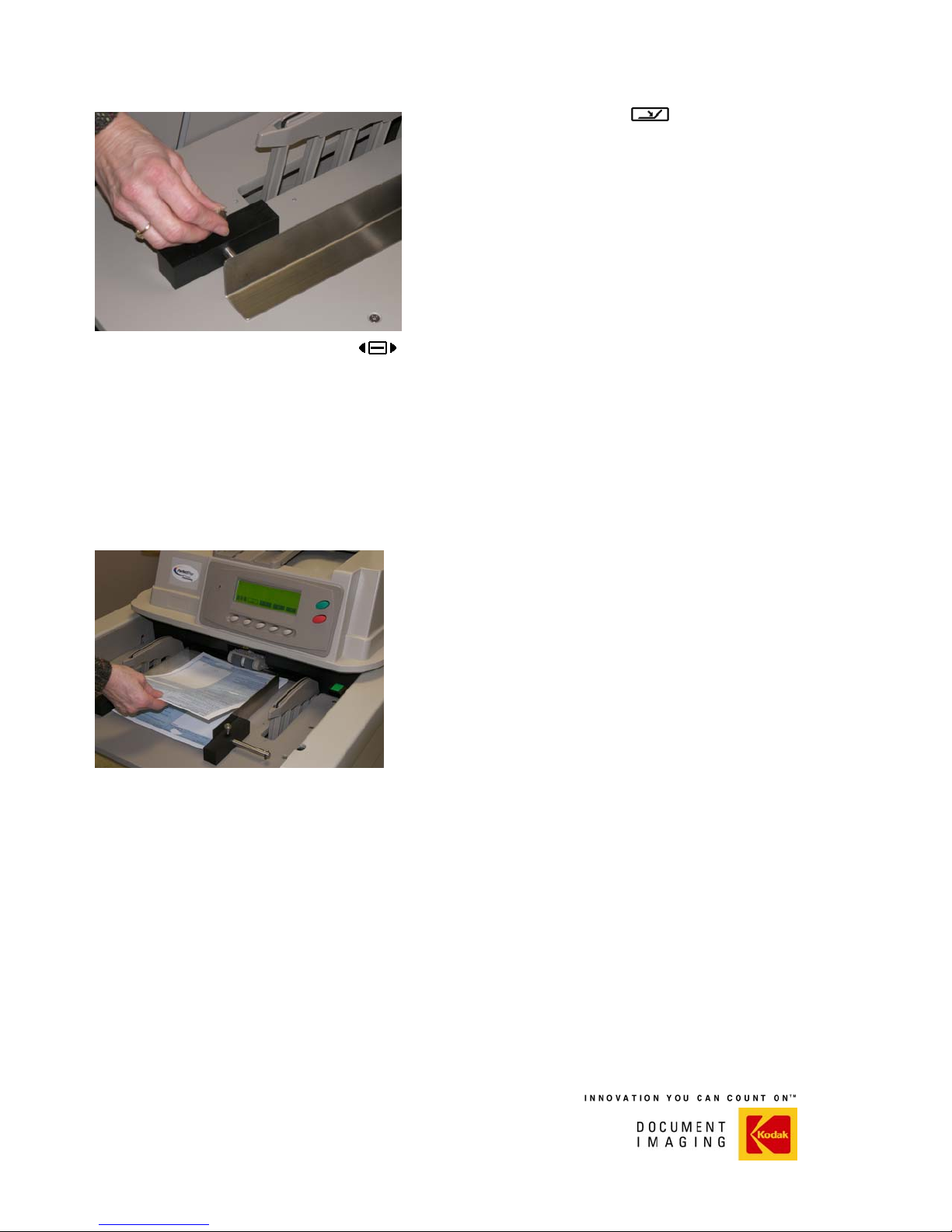

6. Adjust the side guides to the desired position by

sliding them in or out to accommodate the size of the

documents you are scanning.

7. When the side guides are adjusted, tighten the

screw.

8. Select the Diagnostics Settings menu icon.

9. Use the right or left arrow to navigate to the Setting

function.

10. Press the down arrow until Set elevator position is

displayed on the Operator Control Panel.

11. The setting of 25 should be used for manual or

continuous feed operation.

12. Scan the document(s) in single-sheet or hand-held

position.

Removing the manual feeder

1. Select this icon to lower the elevator tray to its

lowest position.

2. Remove the manual feeder.

EASTMAN KODAK COMPANY

Document Imaging

Rochester, New York 14650

Kodak is a trademark of Eastman Kodak Company.

© Eastman Kodak Company, 2006

www.kodak.com/go/docimaging

A-61530 _EN 1/2006

Part No. 8CK187
