Knightsbridge LEDM06 Series Instruction Manual

INSTALLATION & MAINTENANCE MANUAL

LEDM06 series

230V

50Hz

These instructions should be read carefully and retained after installation by the end user for future

reference and maintenance.

These instructions should be used to aid installation of the following products:

LEDM06B / LEDM06W

GENERAL INSTRUCTIONS

SAFETY

INSTALLATION

• Installation of this luminaire should only be carried out by a qualiﬁed electrician or competent

person to the latest Building and current IEE Wiring Regulations (BS7671)

• Please isolate mains prior to installation/maintenance

• Check the total load on the circuit (including when this luminaire is ﬁtted) does not exceed the

rating of the circuit cable, fuse or circuit breaker

• Please note the IP (Ingress of Protection) rating of this luminaire when deciding the location for

installation

• This product is Class II double insulated

• This product is IP65 rated

• This product is non-dimmable

• Cut a suitable hole in the mounting surface as per the cut-out details (Fig 1) ensuring that it does

not infringe with electrical cables or water/gas pipes

• Provide power to the required point of installation. Suitable IP rated junction boxes should be used

where required

• Ensure the power source is via an RCD or an RCBO

• Connect the mains supply, Live (brown) and Neutral (blue) (see Fig 2)

Fig 1

LEDM07 series

These instructions should be read carefully and retained after installation by the end user for future reference and

maintenance.

These instructions should be used to aid installation of the following products:

LEDM07W / LEDM07

SAFETY

•Installation of this luminaire should only be carried out by a qualified electrician or competent person to the

latest Building and current IEE Wiring Regulations (BS7671)

•Please isolate mains prior to installation/maintenance

•Check the total load on the circuit (including when this luminaire is fitted) does not exceed the rating of the

circuit cable, fuse or circuit breaker

•Please note the IP (Ingress of Protection) rating of this luminaire when deciding the location for installation

•This product is Class I and requires an earth

•This product is IP65 rated

•This product is non-dimmable

INSTALLATION

•Cut a suitable hole in the mounting surface as per the cut-out details (Fig 1) ensuring that it does not infringe

with electrical cables or water/gas pipes.

Fig 1

•If using product on wooden decking, remove fitting from mounting sleeve and cut a suitable hole (see Fig 2)

•Provide power to the required point of installation. Suitable IP rated junction boxes should be used where

required

•Ensure the power source is via an RCD or an RCBO

58mm

48mm

32mm

• The power source connections should be local and accessible via a suitable IP rated enclosure

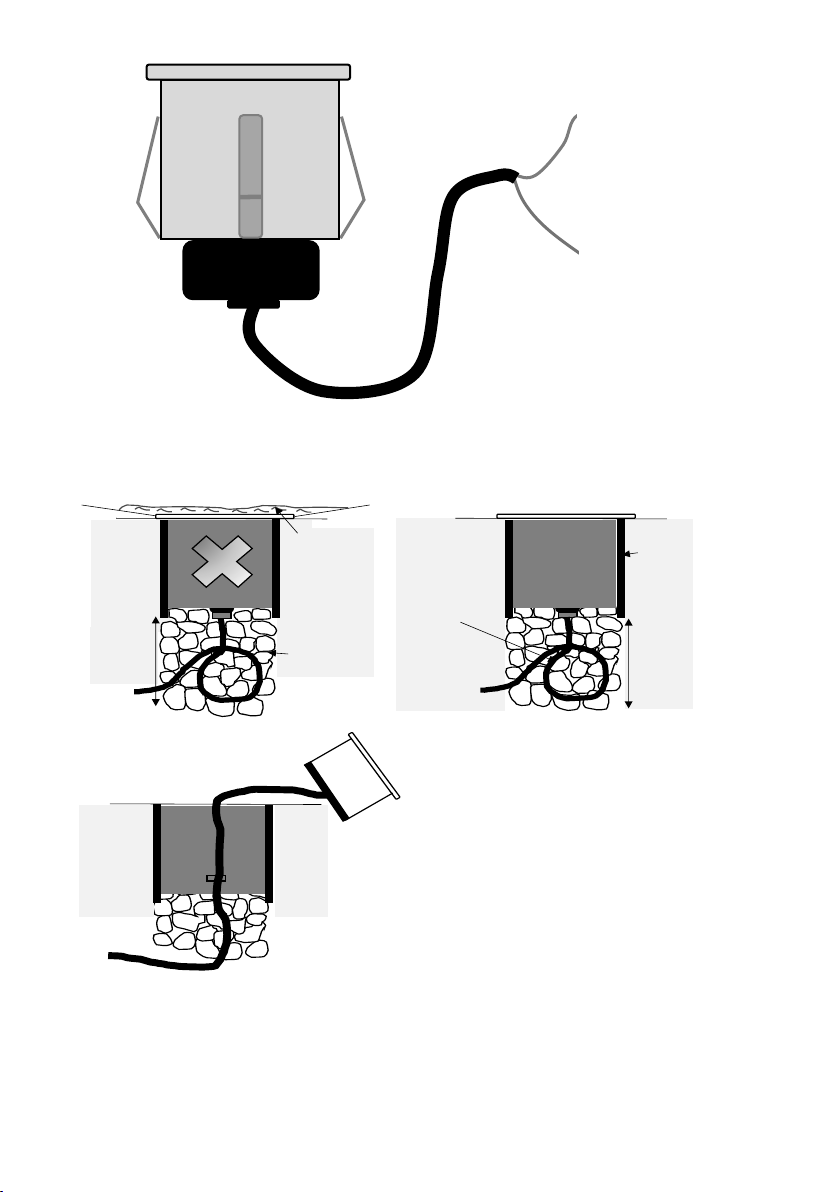

• Avoid installing in areas where water will sit on top of the ﬁtting for long periods of time (see Fig 3)

• Ensure a minimum of 300mm drainage is put in

below the luminaire (see Fig 4).

Note: the drainage below the luminaire should be

able to drain the water away within 30 minutes

• Ensure there is enough cable below the ﬁtting in

order to carry out maintenance work. The ﬁnal

circuit connection should also be accessible

(see Fig 3, Fig 4 and Fig 5)

• Switch on the power and test for correct operation

Fig 2

LEDM06 series

These instructions should be read carefully and retained after installation by the end user for future reference and

maintenance.

These instructions should be used to aid installation of the following products:

LEDM06W / LEDM06B

SAFETY

•Installation of this luminaire should only be carried out by a qualified electrician or competent person to the

latest Building and current IEE Wiring Regulations (BS7671)

•Please isolate mains prior to installation/maintenance

•Check the total load on the circuit (including when this luminaire is fitted) does not exceed the rating of the

circuit cable, fuse or circuit breaker

•Please note the IP (Ingress of Protection) rating of this luminaire when deciding the location for installation

•This product is Class II double insulated

•This product is IP65 rated

•This product is non-dimmable

INSTALLATION

•Cut a suitable hole in the mounting surface as per the cut-out details (Fig 1) ensuring that it does not infringe

with electrical cables or water/gas pipes.

Fig 1

•Provide power to the required point of installation. Suitable IP rated junction boxes should be used where

required

•Ensure the power source is via an RCD or an RCBO

•Connect the mains supply, Live (brown) and Neutral (blue) (see Fig 2)

Fig 2

•The power source connections should be local and accessible via a suitable IP rated enclosure

32mm

Live (brown)

Neutral (blue)

•Connect the mains supply, Live (brown), Neutral (blue) and Earth (green/yellow) (see Fig 3)

Fig 3

•The power source connections should be local and accessible via a suitable IP rated enclosure

•Avoid installing in areas where water will sit on top of the fitting for long periods of time (see Fig 4)

300mm

minimum

drainage

required

Loop cable to

allow for

maintenance

Pea shingle or

gravel for

drainage

230V AC

Mounting

Sleeve

Fig 4

Fig 5

Avoid installing

in areas with

likelihood of

flooding or

standing water

300mm

minimum

drainage

required

Live (brown)

Earth (green/yellow)

Neutral (blue)

Fig 3 Fig 4

Fig 5

ML Accessories Limited

LU5 5TA

www.mlaccessories.co.uk SBJUN18_V4

WARRANTY

This product has a warranty of 3 years from date of purchase. Failure to install this product in

accordance with the current edition of the IEE Wiring Regulations, improper use, or removal of

the batch codes will invalidate the warranty. If this product should fail within its warranty period it

should be returned to the place of purchase for a free of charge replacement. ML Accessories does

not accept responsibility for any installation costs associated with the replacement product. Your

statutory rights are not affected. ML Accessories reserve the right to alter product speciﬁcation

without prior notice.

The LED lamps ﬁtted in this product are non-replaceable. The product should be recycled in the

correct manner when it reaches the end of its life. Check local authorities for where facilities exist.

Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which may

damage the product. A light ﬁlm of acid-free oil is recommended after installation and maintained

periodically (2-3 times a year) to aid corrosion prevention.

This product must be disconnected from the circuit if it subjected to any high voltage or insulation

resistance testing. Irreparable damage will occur if this instruction is not followed.

This product is unsuitable for installation in or near coastal and marine environments.

Care should be taken when installing into high ‘clay’ content soils which naturally retain water and

have poor drainage. We recommend IP67 or IP68 products to be installed where these environmental

conditions occur as IP65 luminaires will likely be compromised.

When installing in the ground, ensure the soil/ground is ﬁrm enough and suitable to support the

ﬁtting. Do not install in very wet areas that are liable to ﬂooding

Do not use any source of high pressure washers to maintain or clean this product.

This product should be installed vertically with the light facing upwards.

Note: If this product is being used in conjunction with external PIR or sensors, please conﬁrm with

the manufacturer of the sensors that they are compatible with LED products

GENERAL
