Klipsch R-51PM-BK User manual
1
R-41PM and R-51PM
2
2 - INSIDE
4 - RIGHT SPEAKER (ACTIVE)
6 - SETUP
7 - CONNECTIONS - TV
8 - CONNECTIONS - COMPUTER
9 - CONNECTIONS - TURNTABLE
10 - REMOTE
12 -
BLUETOOTH
® WIRELESS TECHNOLOGY
14 - SUBWOOFER OUTPUT
14 - LED SOURCE INDICATOR
15 - SELECT SOURCE
15 - CARE AND CLEANING
16 - DYNAMIC BASE EQ
18 - FACTORY RESET
19 - DISABLE AUTO-STANDBY
20 - REMOTE CONTROL CODES
21 - TROUBLESHOOTING
22 - PRODUCT REGISTRATION
INSIDETABLE OF CONTENTS
CONTENU • CONTENIDO • INHALT • CONTENUTO • CONTEÚDO • 目录 •
Speakers (2)
Speakers (2)
Enceintes (2)
Altavoces (2)
Lautsprecher (2)
Altoparlanti (2)
Caixas acústicas (2)
音箱 (2)
3
INSIDE
Speaker WireMain Power Cord USB Cable (A to B)
Remote Rubber Feet Batteries
LED
USB
PHONO OPT
AUX
SUBSUB
SUB
LED
USB
PHONO OPT
AUX
SUBSUB
SUB
LED
USB
PHONO OPT
AUX
SUBSUB
SUB
Remote
Télécommande
Control remoto
Fernbedienung
Telecomando
Controle remoto
遥控器
Rubber Feet
Pieds en caoutchouc
Patas de goma
Gummifüßchen
Piedini di gomma
Pés de borracha
橡胶脚垫
Batteries
Les Piles
Pilas
Batterien
Baterias
Batterie
电池
Main Power Cord
Cordon d’alimentation principal
Cordón principal de alimentación
Hauptnetzkabel
Cavo di alimentazione principale
Cabo de alimentação principal
主电源线
Speaker Wire
Fil d’enceinte
Cable de altavoz
Lautsprecherkabel
Cavo altoparlante
Cabo para caixa acústica
音箱导线
USB Cable
Câble USB
Cable USB
USB-Kabel
Cavo USB
Cabo USB
USB 电缆
Digital Optical Cable
Câble optique numérique
Cable óptico digital
Optisches Digitalkabel
Cavo ottico digitale
Cabo ótico digital
光纖線
(R-51PM Only)
USB
Digital Optical Cable
4
RIGHT SPEAKER (ACTIVE)
ENCEINTE DROITE (ACTIVE) • ALTAVOZ DERECHO (ACTIVO) • RECHTER LAUTSPRECHER (AKTIV) • ALTOPARLANTE DESTRO (ATTIVO) • CAIXA ACÚSTICA DIREITA (ATIVA) • 右音箱（有源）•
Made in China
1
62
7
11
3
8
4
9
5
10
5
LED Source Indicator
Indicateur de source à DEL
Indicador LED de fuente
LED-Quellenanzeige
Spia LED sorgente audio
LED indicador de fonte
LED 源指示灯
Phono/Line Switch
Interrupteur Phono/Ligne
Conmutador de tocadiscos y línea
Phono/Line-Schalter
Selettore phono/linea
Chave fono/linha
唱机/线路开关
Volume/Source Control
Commande Volume/Source
Control de volumen y fuente
Regler Lautstärke/Quelle
Comando volume/sorgente audio
Controle de volume/fonte
音量/源控制
Phono Inputs
Entrées phono
Entradas de tocadiscos
Phono-Eingänge
Ingressi phono
Entradas fono
唱机输入
Auxiliary 3.5mm Input
Entrée auxiliaire de 3,5 m
Entrada auxiliar de 3.5 mm
3,5-mm-AUX-Eingang
Ingresso ausiliario da 3,5 mm
Entrada auxiliar de 3,5 mm
辅助 3.5mm 输入
Subwoofer Output
Sortie du haut-parleur d’extrêmes graves
Salida de subwoofer
Subwoofer-Ausgang
Uscita subwoofer
Saída para subwoofer
低音炮输出
Optical Input
Connexion Optique
Conexión Óptica
Optische verbindung
Connessione Ottica
Conexão Ótica
数字光纤连接
USB Audio Input
Entrée USB
Entrada de audio USB
USB-Audio-Eingang
Ingresso audio USB
Entrada de áudio USB
USB 音频输入
Left Speaker Terminal
Borne d’enceinte gauche
Terminal de altavoz izquierdo
Linker Lautsprecherterminal
Terminale altoparlante sinistro
Terminal da caixa acústica esquerda
左音箱端子
Ground Screw Terminal
Borne de la vis de raccord à la terre
Terminal de tornillo de conexión a tierra
Erdungsanschluss
Terminale a vite di messa a terra
Terminal de parafuso terra
接地螺钉端子
Mains Inlet
Entrée du secteur
Entrada principal de corriente
Netzeingang
Spina di alimentazione
Entrada de energia elétrica
市电接入口
1
6
2
7
11
3
8
4
9
5
10
LED
USB
3.5
6
SETUP
INSTALLATION • CONFIGURACIÓN • SETUP • INSTALLAZIONE • INSTALAÇÃO • 设置 •
1
2
LEFT SPEAKER OUT
+–
+–
3
7
CONNECTIONS - TV
CONNEXIONS – TV • CONEXIONES DEL TELEVISOR • ANSCHLÜSSE – TV • CONNESSIONI – TV • CONEXÕES - TV • 连接 – 电视 •
Made in China
Made in China
Made in China
Optical
Digital Audio Out
Audio Out
R
L
OR
OU
O BIEN
ODER
OPPURE
OU
或
OR
OU
O BIEN
ODER
OPPURE
OU
或
*
* Your TV will need to be set to PCM (or Stereo Only)
* Votre télévision devra être réglée sur la sortie MIC (Modulation d’impulsion codée) (ou stéréo seulement) * Su televisor debe fijarse en PCM (o Solo estéreo) * Ihr Fernseher muss auf PCM (oder Nur Stereo) eingestellt sein * Il televisore deve essere impostato su PCM (o solo stereo)
* A TV precisa ser configurada para PCM (ou apenas estéreo) * 需要将您的电视设置为 PCM （或仅设置为“立体声”）
PCM
8
CONNECTIONS - COMPUTER
CONNEXIONS – ORDINATEUR • CONEXIONES DE LA COMPUTADORA • ANSCHLÜSSE – COMPUTER • CONNESSIONI – COMPUTER • CONEXÕES - COMPUTADOR • 连接 – 计算机 •
PC / MAC PC / MAC
Made in China
Made in China
USB
OR
OU
O BIEN
ODER
OPPURE
OU
或
9

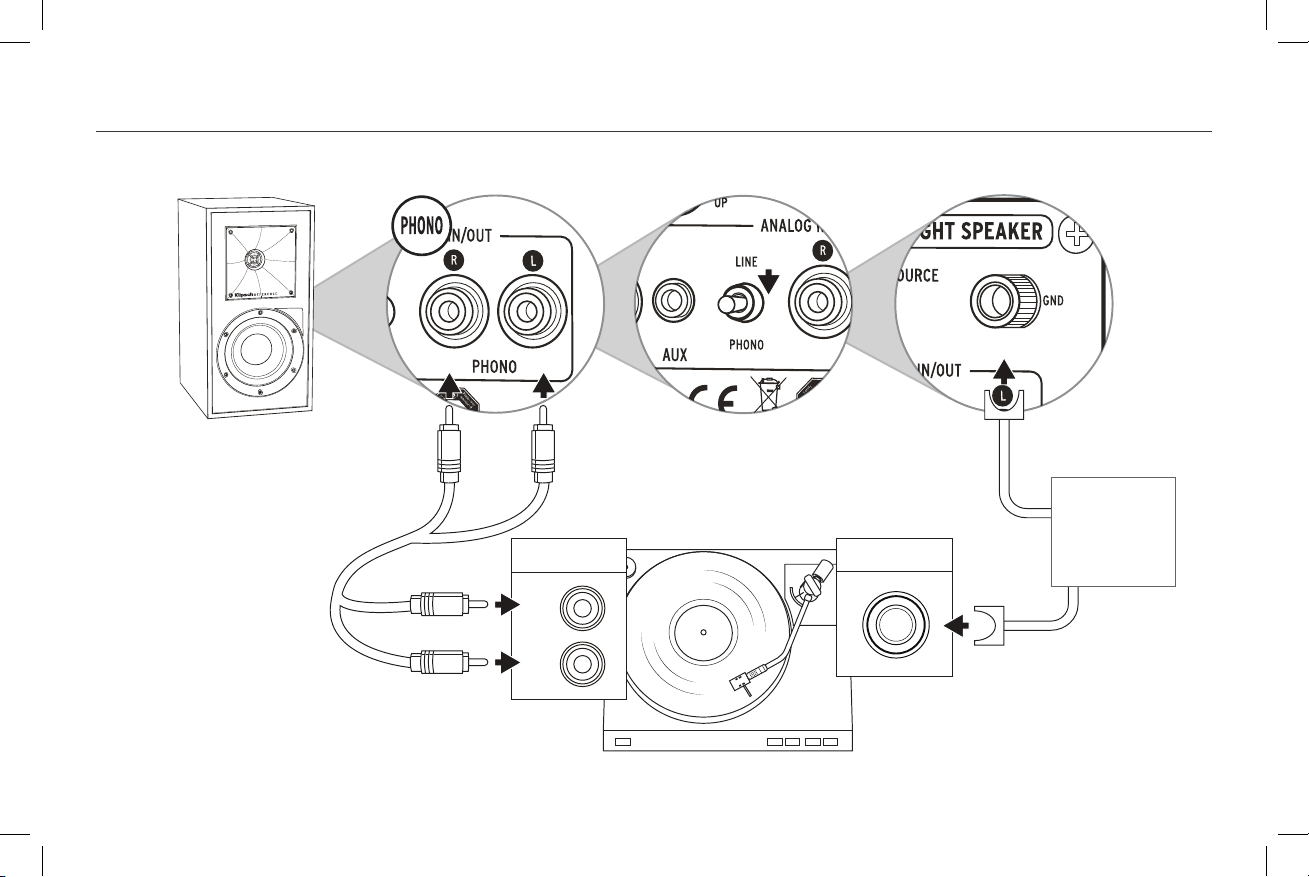

CONNECTIONS - TURNTABLE
CONNEXIONS – PLATINES • CONEXIONES DEL TOCADISCOS • ANSCHLÜSSE – PLATTENSPIELER • CONNESSIONI – GIRADISCHI • CONEXÕES - TOCA-DISCOS • 连接 – 计算机 •
Made in China
Made in China
Made in China
Audio Out
R
L
GND
OPTIONAL
OPTIONNEL
OPCIONAL
OPTIONAL
FACOLTATIVO
OPCIONAL
可选项
10

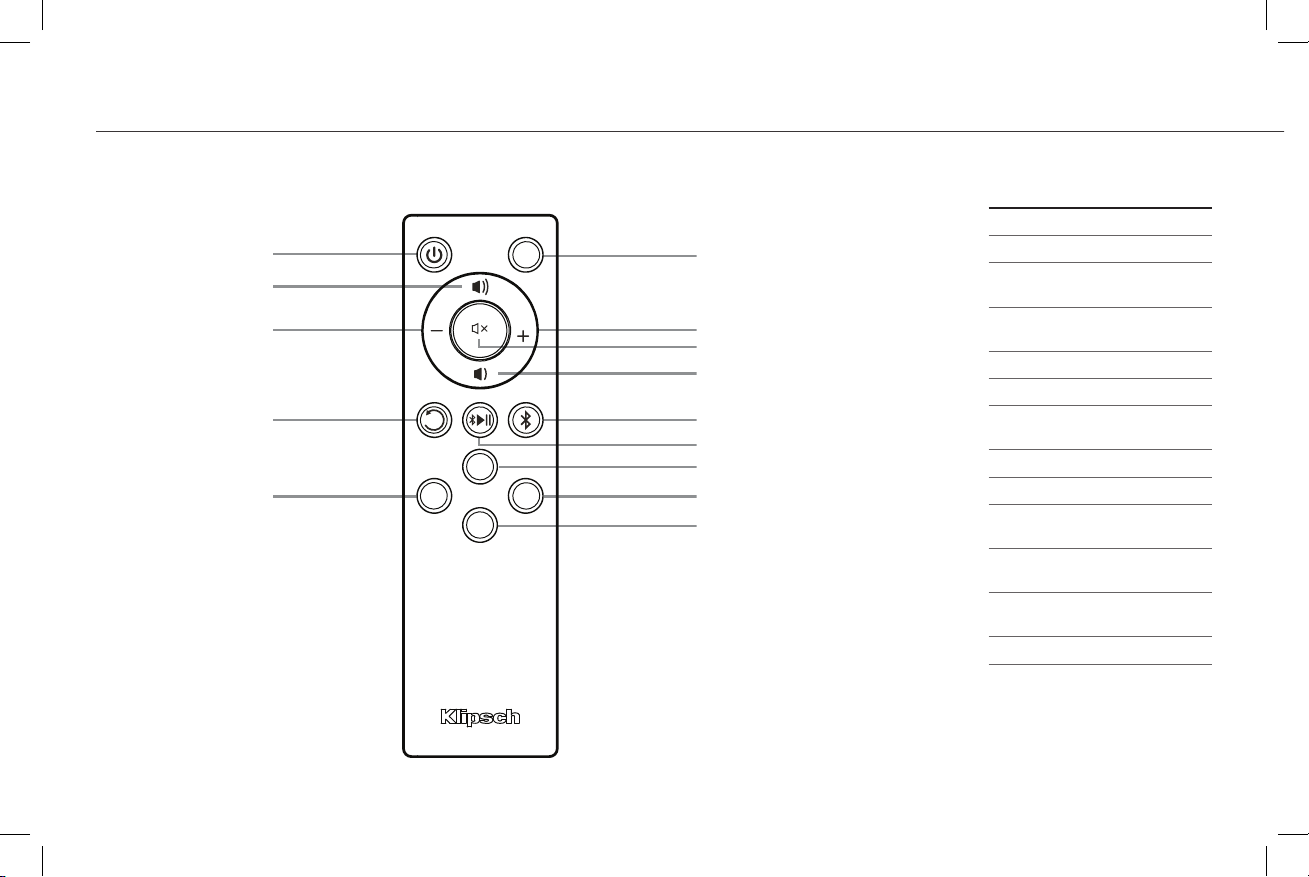

REMOTE
TÉLÉCOMMANDE • CONTROL REMOTO • FERNBEDIENUNG • TELECOMANDO • CONTROLE REMOTO • 遥控器 •
LED
USB
PHONO OPT
AUX
SUBSUB
SUB
Auxiliary Source Select
Mute
Digital/Optical Source Select
USB Source Select
Volume Up
Volume Down
Subwoofer Level Up
Subwoofer Level Down
Play/Pause
LED ON/OFF
Subwoofer Level Reset
Bluetooth
® Source Select
Phono Source Select
ON/OFF
IR REMOTE CONTROL CODES
ON / OFF 0x 02FD 0AF5
Mute 0x 02FD 0DF2
Subwoofer
Level Up 0x 02FD 0CF3
Subwoofer
Level Down 0x 02FD 04FB
Volume Up 0x 02FD 1CE3
Volume Down 0x 02FD 07F8
Subwoofer
Level Reset 0x 02FD 03FC
LED ON / OFF 0x 02FD 08F7
Play/Pause 0x 02FD 1EE1
Phono
Source Select 0x 02FD 01FE
Auxiliary
Source Select 0x 02FD 09F6
Digital Optical
Source Select 0x 02FD 00FF
USB Source Select 0x 02FD 48B7
Bluetooth
®
Source Select 0x 02FD 5CA3
