Klipsch CP-4T User manual
CP-T SERIES
OWNER’S MANUAL

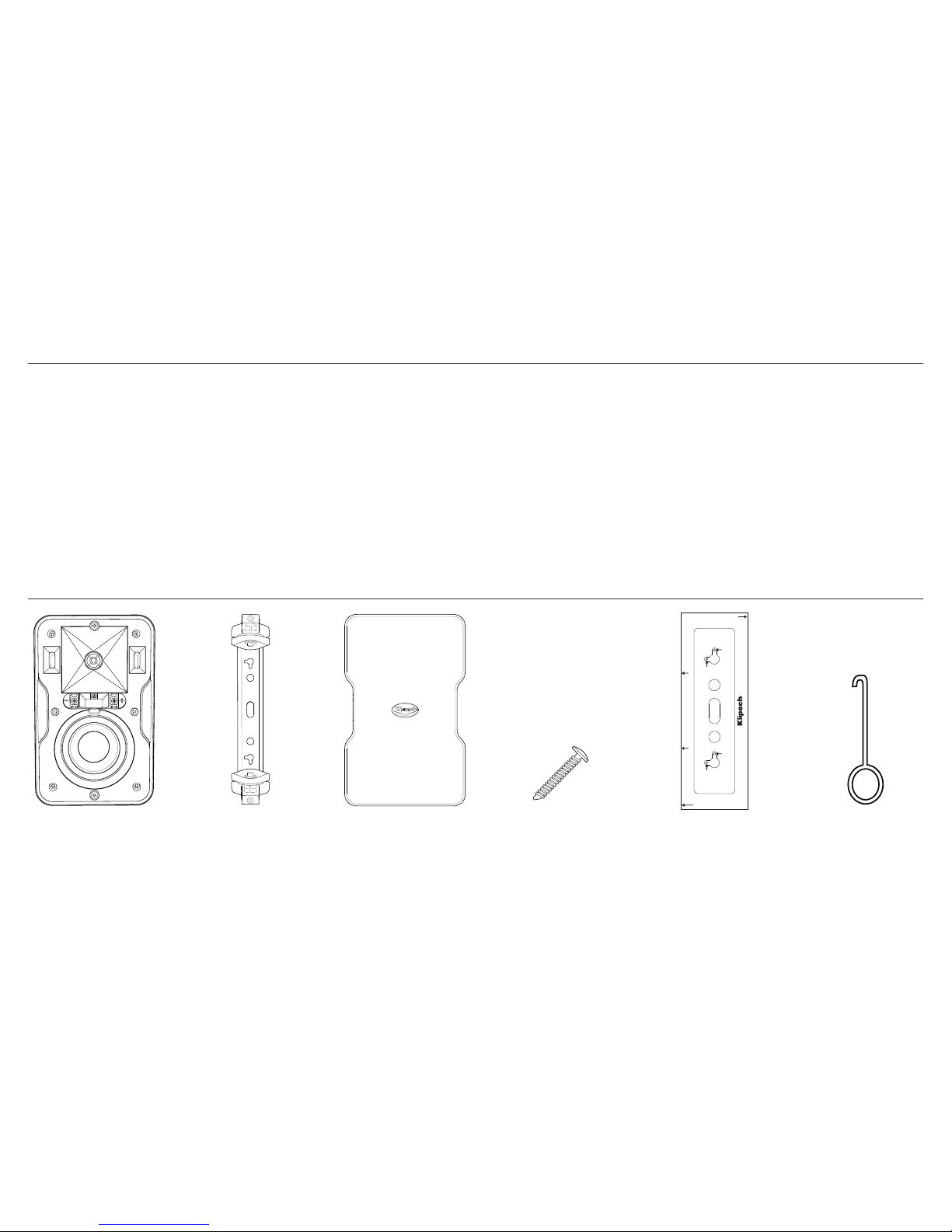

WHAT’S INSIDE
Speakers (x2) Brackets (x2) Grills (x2) Mounting Template Grill Remover Tool
Mount Wall Bracket Template for CP-4/4T
MAKE SURE TEMPLATE IS LEVEL BEFORE DRILLING PILOT HOLES!
Horizontal
Pilot Hole
Vertical
Pilot Hole
Vertical
Pilot Hole
Horizontal
Pilot Hole
MAKE SURE TEMPLATE IS LEVEL
BEFORE DRILLING PILOT HOLES!
To mount speaker HORIZONTALLYUP in ceiling/wall corner putting bracket on wall
put THIS SIDE on wall flush against ceiling and mark horizontal pilot holes
To mount speaker vertically in corner PUTTING
BRACKET ON LEFT WALL against corner put THIS SIDE
flush in corner on left wall and mark vertical pilot holes
To mount speaker vertically in corner PUTTING
BRACKET ON RIGHT WALL against corner put
THIS SIDE flush in corner on left wall and mark
vertical pilot holes
CP-T SERIES
Thank you for your purchase of the Klipsch CP-T Series 70/100
Volt speakers! They are designed to both withstand the rigors of
outdoor use while also complimenting any indoor décor. The 90°x
90° horn dispersion pattern assures wide, even coverage with
either horizontal or vertical placement. The long-throw woofers are
combined with front-firing ports for tight, musical bass no matter
how they are mounted or placed. The included, unique speaker
bracket allows for not only quick vertical or horizontal mounting but
also allows for tight, wall/wall or wall/ceiling corner mounting for a
highly aesthetic look that allows for increased overall bass output.
The CP-4T contains a high quality, built-in 70/100 Volt transformer
with a single, fixed 5/10 watt tap while the CP-6T contains a 70/100
Volt transformer with multiple tap settings of 3.75/7.5 watts, 7.5/15
watts, 15/30 watts and 30 watt taps. The CP-6T also has an 8 ohm
bypass setting for 8 ohm operation.
Bracket Retaining
Screws (x4)
SPEAKER DIMENSIONS WITH/WITHOUT INCLUDED BRACKETS
CP-4T CP-6T
Tools/Parts Needed For Installation:
a) A level
b) A pencil
c) A Philips #2 screwdriver or Phillips #2 bit with a drill with a LOW TORQUE SETTING
d) Two #10 or #12 2.5-3 inch (4-5cm) Pan Head Screws for each speaker for mounting into wall
stud OR minimum 10 lb. (5 kg) Wall Anchors for mounting if stud unavailable
e) (If using Safety Cables) One 1” (2.5cm) long, 1/4”- 20-thread screw for each speaker
BEFORE SPEAKER INSTALLATION/CONNECTION
5.5”
(14.0cm)
8.8”
(22.4cm) 7.2”
(18.3cm)
5.5”
(14.0cm)
4.7”
(11.9cm)
7.0”
(17.8cm)
11.0”
(27.9cm)
9.4”
(23.9cm)
6.9”
(17.5cm)
6.1”
(15.5cm)
STEP 1
OR
Choose speaker location and run speaker wire to location. Use included template
and a level to mark bracket hole locations where speaker will be mounted.
Typical Wall-Mounting With Included Bracket (Level not included)
If Wall/Wall Corner or Ceiling/Wall Corner Mounting With Included Bracket
V
V
H H
V
V
H H
V
V
H H
V
V
H H
V
V
H H
V
V
H H
V
V
H H
V
V
H H
OR
STEP 2
Run speaker wire (and Safety Cable if used) through hole in bracket back and attach wall bracket to wall.
OR
Speaker
Wires
Safety Cable
(if desired or required)
Use #10-#12, 2.5-3 INCH
Pan Head Screws
STEP 3
Remove front terminal cover then slide speaker partially onto mounted bracket arms.
Channel speaker wire from rear slot through front opening while keeping speaker in
position with hand.
Terminal Cover
OR
STEP 4
To keep speaker on bracket while adjusting use Phillips
head screwdriver (or drill/screwdriver bit AT LOW TORQUE
SETTING) and partially screw in front top/bottom bracket
screws (2-3 revolutions) then gently pull out speaker to
detente position 3/4ths of way on bracket.
IF USING A SPEAKER SAFETY CABLE
Attach it with a 1” (2.5cm) 20-thread screw (not included) to
either threaded insert on speaker rear. Use a LOW TORQUE
setting if drill and screwdriver bit are used.
OR
STEP 5
Speaker
Wires
OR
45˚45˚
45˚
WALL
45˚
CEILING OR WALL
With speaker still loosely on bracket arms, adjust speaker to
desired angle on wall.
MOUNTING OPTIONS
45˚
45˚
45˚
WALL
45˚
CEILING OR WALL
45˚
45˚
45˚
WALL
45˚
CEILING OR WALL
45˚45˚
45˚
WALL
45˚
CEILING OR WALL
45˚45˚
45˚
WALL
45˚
CEILING OR WALL
OR OR
STEP 6
Connect speaker wires to terminals (in parallel with all
speakers) with Phillips screwdriver or LOW TORQUE drill/bit.
CP-6T SPEAKER ONLY
Select desired wattage tap setting on speaker front for either
70 or 100 Volt operation.
STEP 7
STEP 8
Once speaker is positioned as desired push back all the way
back on bracket arms until flush with bracket caps and screw
two partially inserted screws all the way in to lock position.
TEST SOUND: Play music/test signal through speaker to
make sure connections are tight, and, IF USING CP-6T, tap
setting is correct for desired volume.
