CABINET PARTS

For Models: KSSS42QTW00, KSSS42QTB00, KSSS42QTX00

(White) (Black) (Etched Aluminum)

42" BUILT IN

REFRIGERATOR

12−07 Litho In U.S.A. (mat) Part No. W10136389 Rev. B

42" BUILT IN

REFRIGERATOR

CABINET PARTS

For Models: KSSS42QTW00, KSSS42QTB00, KSSS42QTX00

(White) (Black) (Etched Aluminum)

W10136389

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2316571 Use & Care Guide

2316573 Energy Guide

2316566 Service & Wiring

Sheet

2306424 Icemaker and

Ingredient Care

Center Service

Sheet

2318069 Main Control

Service Sheet

2316565 Installation

Instructions

2 Cabinet (Not A

Serviceable Part)

3 2260503B Button, Filter

4 1112023 Roller, Front &

Rear (4)

5 Support, Leveler

Assembly

2318194 Refrigerator Side

2318193 Freezer Side

6 Cap, Water Filter

2260518B Black

7 2307640 Mounting Stud,

Grille

8 2307584 Grommet, Crossover

Tube

9 2005783 Cam, Door Closer

10 2260526 Housing, Water

Filter

11 2318189 Tray, Drip Filter

12 3400525 Screw

13 4396841 Filter, Water

14 489399 Screw

15 3400230 Screw, Door Stop

16 2257644 Hinge (Top)

17 2318190 Bracket, Mtg

(Water Filter)

18 489464 Screw

19 2004994 Lock, Adjustable

Bushing

20 2300082 Bushing

21 Spring, Door

Closure

2221242 Right Side

2004517 Left Side

22 486194 Screw

23 2005008 Retaining Ring,

Adjustable Bushing

W10129069

Wire Clip (5)

25 2006342 Gap, Cover

Assembly (Bottom)

26 Hinge (Bottom)

2006780 Freezer Side

2006779 Refrigerator Side

27 2302876 Bushing,

Adjustable

28 8533913 Screw 1/4−20 x 5/8

29 Skirt−Grille,

Bottom

2209025W White

2209025B Black

30 Extension Arm,

Door Closer

2266882 Right

2266881 Left

31 Grille Bottom,

Front

2325185W White

2325185B Black

32 2005921 Screw

33 Bracket, Support

Base (Front)

2006616 Left

2006556 Right

34 1157158 Screw

35 2006617 Bracket, Support

Base (Rear) (2)

36 2006346 Washer

37 2266880 Bushing,

Extension Arm

38 1163283 Screw

39 Connector, Water

Tube

2209709 5/16−1/4"

2300868 1/4"

40 8281163 Screw

41 Switch, Rocker Arm

1118894 Refrigerator Door

Side

1115373 Freezer Door Side

42 2215938 Cover, Switch (2)

43 487415 Screw (2)

44 Bracket, Switch

2221097 Right

2221096 Left

45 2215612 Cover, Rear

CABINET TRIM PARTS

For Models: KSSS42QTW00, KSSS42QTB00, KSSS42QTX00

(White) (Black) (Etched Aluminum)

W10136389

Illus. Part

No. No. DESCRIPTION

1 Cabinet, Trim

(Right Side)

W10132470

White

W10132471

Black

W10132472

Stainless Steel

2 Screw

1163283 Stainless Steel

3 2316687 Cabinet, Trim

(Bottom)

4 486194 Screw

5 Cabinet, Trim Top

2314017W White

2314017B Black

2314017 Brushed Aluminum

6 Cabinet Trim

(Left Side)

W10132537

White

W10132540

Black

W10132541

Stainless Steel

W10121451

Nutsert (4)

8 2005925 Seal−Trim, Side

9 489464 Screw

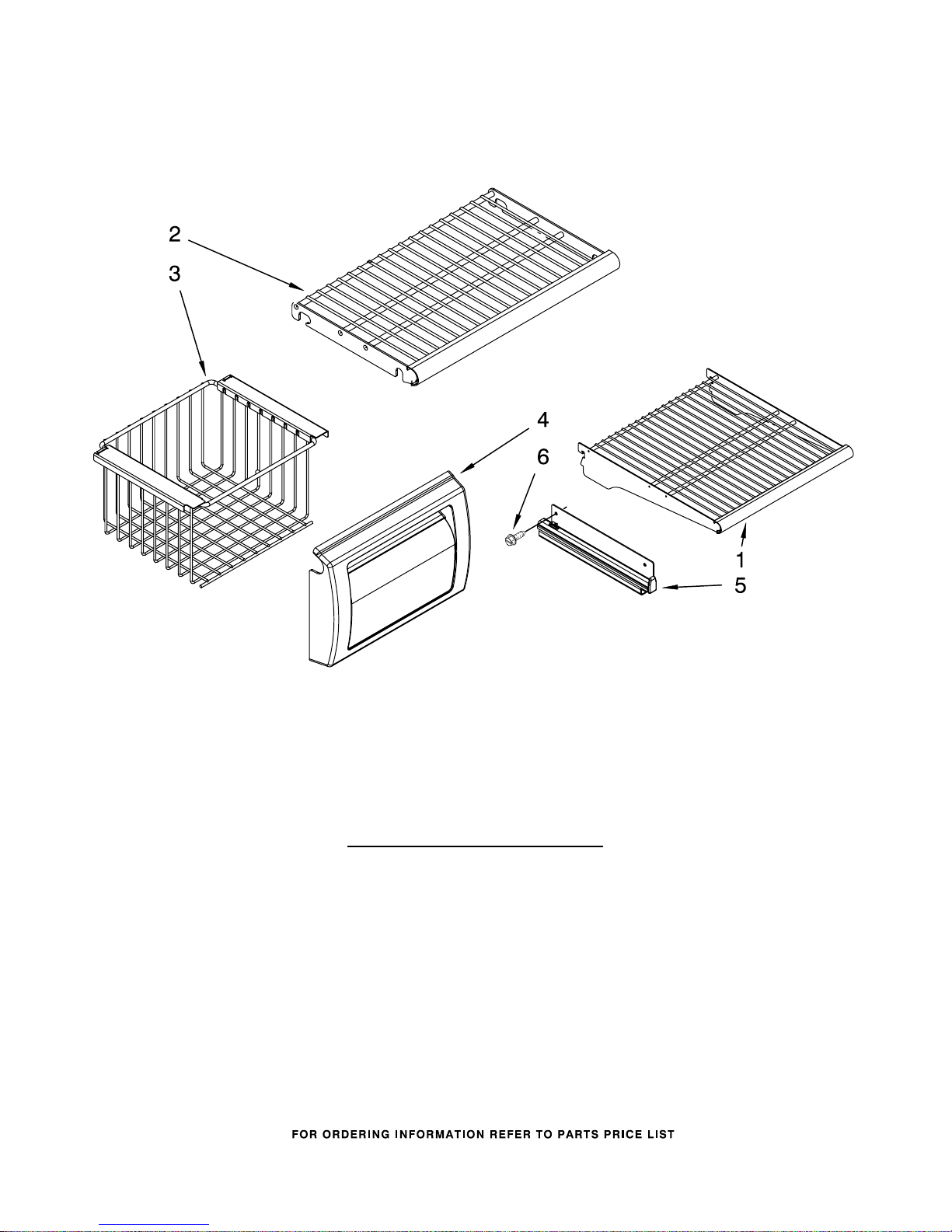

FREEZER SHELF PARTS

For Models: KSSS42QTW00, KSSS42QTB00, KSSS42QTX00

(White) (Black) (Etched Aluminum)

W10136389

Illus. Part

No. No. DESCRIPTION

1 2302868 Wire, Shelf

2 2302883 Shelf, Fixed (2)

3 2259082 Basket

4 2256270 Front, Basket

5 Slide, Basket

2259317 Right Side

2259318 Left Side

6 8533928 Screw

REFRIGERATOR LINER PARTS

For Models: KSSS42QTW00, KSSS42QTB00, KSSS42QTX00

(White) (Black) (Etched Aluminum)

W10136389

REFRIGERATOR LINER PARTS

For Models: KSSS42QTW00, KSSS42QTB00, KSSS42QTX00

(White) (Black) (Etched Aluminum)

W10136389

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2306010 Thermistor

3 2208970 Air Duct

4 2259077 Ladder, Shelf (2)

5 520965 Screw Support,

Ladder (8)

6 2006475 Screw

7 487539 Screw

8 2302937 Thermistor

9 2302986 Lid, Meat Pan

Baffle

10 2320635 Baffle Control

Assembly

11 2171846 Release Valve

12 2310205 Jumper, Air Baffle

13 488357 Screw

14 486194 Screw

15 2221296 Air Baffle

Assembly

16 2327509 Reservoir

17 488280 Screw

18 2309222 Diffuser Assembly

19 2317105 Cover, Thermistor

20 2188820 Thermistor

21 2302992 Spacer, Air−

Baffle

22 2309087 Cover, Diffuser

23 2259412 Seal, Air Duct

(Round Hole)

24 2259398 Seal, Air Duct

(Square Hole)

CONTROL PANEL PARTS

For Models: KSSS42QTW00, KSSS42QTB00, KSSS42QTX00

(White) (Black) (Etched Aluminum)

W10136389

Illus. Part

No. No. DESCRIPTION

1 2316545 Control Box

2 2317000 Clip, Box

3 2310390 Wire, Jumper

4 2307592 Bracket,

Control Box

5 2307595 Shield,

Control Box

6 487539 Screw (2)

7 2306086 Display,

Ingredient Care

Center

8 2223857 Socket, Light

9 2326255 Light Bulb (2)

10 8281185 Screw

TOP GRILLE AND UNIT COVER PARTS

For Models: KSSS42QTW00, KSSS42QTB00, KSSS42QTX00

(White) (Black) (Etched Aluminum)

W10136389

Illus. Part

No. No. DESCRIPTION

1 Panel, Decorative

Assembly

2316825W White

2316825B Black

2316825S Stainless Steel

2 2320502 Cover, Unit

3 486194 Screw

4 2256466 Back Panel

W10121229

Cover, Unit Front

6 487415 Screw

7 2310194 Wire Assembly

RC/FC Light Switch

8 Badge, Kitchen Aid

2317923W White

2317923B Black

2317923S Stainless Steel

9 489348 Clamp

10 2004333 Nut

REFRIGERATOR SHELF PARTS

For Models: KSSS42QTW00, KSSS42QTB00, KSSS42QTX00

(White) (Black) (Etched Aluminum)

W10136389

REFRIGERATOR SHELF PARTS

For Models: KSSS42QTW00, KSSS42QTB00, KSSS42QTX00

(White) (Black) (Etched Aluminum)

W10136389

Illus. Part

No. No. DESCRIPTION

1 2222592 Shelf Assembly

2 2179404 Rack, Wine

3 2302842 Assembly, Meat Pan

Cover

4 2302835 Assembly, Crisper

Cover

5 2257582 Trim, Glass Rear

6 2252412 Crisper Pan (2)

7 Slide, Meat Pan

2302954 Left Side

2302955 Right Side

8 2302831 Trim, Glass Front

9 2256254 Trim, Glass Rear

10 2256248 Front, Crisper

Pan

11 2252255 Trim, Glass Side

Crisper Pan

12 2256250 Trim, Glass Side

Meat Pan

13 Spacer, Crisper

2256222 Right Side (2)

2256223 Left Side (2)

14 Slide, Crisper

2302956 Right Side

2302957 Left Side

15 Spacer, Meat Pan

2256243 Left Side

2256244 Right Side

16 Screw

8533929 Right Side−

(8−18 x 1.375)

8533928 Left Side−

(8−18 x .750)

17 2256369 Pan Assembly

Meat

18 2256366 Front, Meat Pan

This manual suits for next models
