KitchenAid KSSO36FTX00 User manual

CABINET PARTS

For Model: KSSO36FTX00

(Etched Aluminum)

10−07 Litho In U.S.A. (dmm) Part No. W10127716 Rev. C

36" BUILT IN

REFRIGERATOR

CABINET PARTS

For Model: KSSO36FTX00

(Etched Aluminum)

W10127716

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2316571 Use & Care Guide

2316575 Energy Label

2318165 Service & Wiring

Sheet

2306337 Icemaker and

Ingredient Care

Center

Service Sheet

2318069 Main Control

Service Sheet

2316565 Installation

Instructions

2 Cabinet (Not A

Serviceable Part)

3 2318189 Tray, Drip

Filter

W10138054

Roller, Front &

Rear (4)

5 Support, Leveler

Assembly

2318194 Refrigerator Side

2318193 Freezer Side

8 Cap, Water Filter

2260518B Black

9 2307640 Mounting,

Grill

11 2005783 Cam, Door Closer

12 2260526 Housing, Water

Filter

13 2307584 Grommet, Crossover

Tube

14 3400525 Screw

15 4396841 Filter, Water

16 489399 Screw

17 3400230 Screw, Door Stop

18 Hinge (Top)

2252292 (RC)

2252291 (FC)

19 2318190 Bracket, Mtg.

(Water Filter)

20 489464 Screw

21 2004994 Lock, Adjustable

Bushing

22 2300082 Bushing

24 Spring, Door

Closure

2221242 Right Side

2004517 Left Side

25 486194 Screw

26 2005008 Retaining Ring,

Adjustable Bushing

W10129069

Wire clip (5)

28 2006342 Gap, Cover

Assembly (Bottom)

29 Hinge (Bottom)

2309472 Freezer Side

2309471 Refrigerator Side

30 2302876 Bushing,

Adjustable

31 8533913 Screw 1/4−20 x 5/8

32 Skirt−Grille, Bottom

2209024B Black

33 Extension Arm,

Door Closer

2267192 Right

2267193 Left

34 Grille Bottom,

Front

2325184B Black

35 2005921 Screw

36 Bracket, Support

Base (Front)

2006616 Left

2006556 Right

37 1157158 Screw

38 2006617 Bracket, Support

Base (Rear) (2)

39 2006346 Washer

40 2266880 Bushing,

Extension Arm

41 1163283 Screw

42 2260503B Button, Filter

44 Switch, Rocker Arm

1118894 Refrigerator DoorSide

1115373 Freezer Door Side

45 2215938 Cover, Switch (2)

46 487415 Screw (2)

47 Bracket, Switch

2221097 Right

2221096 Left

48 2215612 Cover, Rear

CABINET TRIM PARTS

For Model: KSSO36FTX00

(Etched Aluminum)

W10127716

Illus. Part

No. No. DESCRIPTION

1 Cabinet, Trim

(Right Side)

W10132411

Etched Aluminum

3 Screw

8281250 Stainless Steel

4 2316686 Cabinet, Trim

(Bottom)

5 486194 Screw

6 2313960S Cabinet, Trim Top

7 Cabinet Trim

(Left Side)

W10132416

Etched Aluminum

W10121451

Nutsert (4)

9 2005925 Seal−Trim, Side

10 489464 Screw

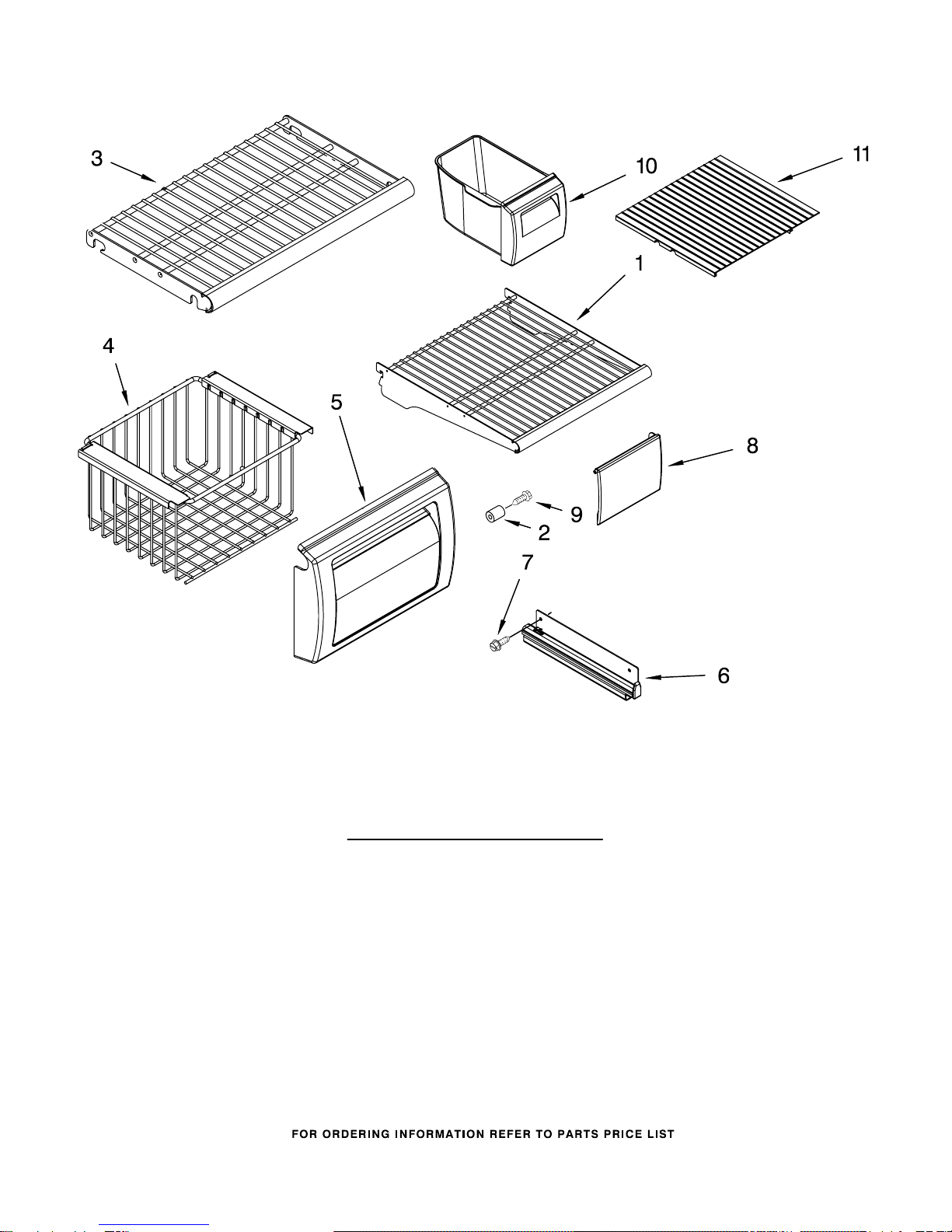

FREEZER SHELF PARTS

For Model: KSSO36FTX00

(Etched Aluminum)

W10127716

Illus. Part

No. No. DESCRIPTION

1 2302867 Wire, Shelf

2 2266955 Spacer, Ice Door

3 2302882 Shelf, Fixed (2)

4 2259081 Basket

5 2256269 Front, Basket

6 Slide, Basket

2259317 Right Side

2259318 Left Side

7 8533928 Screw

8 2266933 Door, Ice

9 8533929 Screw

10 2266930 Bucket, Ice

11 2302870 Cover, Shelf

REFRIGERATOR LINER PARTS

For Model: KSSO36FTX00

(Etched Aluminum)

W10127716

REFRIGERATOR LINER PARTS

For Model: KSSO36FTX00

(Etched Aluminum)

W10127716

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2306010 Thermistor

3 2208970 Air Duct

5 2259077 Ladder, Shelf (2)

6 520965 Screw Support,

Ladder (8)

7 2006475 Screw

8 487539 Screw

9 2302937 Thermistor

10 2302986 Lid, Meat Pan

Baffle

11 2320635 Baffle, Control

Assembly

12 2171846 Release Valve

13 2310205 Jumper, Air Baffle

14 488357 Screw

15 486194 Screw

17 2221296 Air Baffle

Assembly

21 2309222 Diffuser Assembly

22 2317105 Cover, Thermistor

23 2188820 Thermistor

24 2302992 Spacer, Air−

Baffle

25 2309087 Cover, Diffuser

27 2259412 Seal, Air Duct

(Round Hole)

28 2259398 Seal, Air Duct

(Square Hole)

CONTROL PANEL PARTS

For Model: KSSO36FTX00

(Etched Aluminum)

W10127716

Illus. Part

No. No. DESCRIPTION

1 2307585 Control Box Assy

2 2317000 Clip, Control Box

4 2310164 Control Box

Wire Harness

5 2324971 Bracket,

Control Box

7 487539 Screw

9 2306086 Display Board,

Ingredient

Care Center

10 2307594 Shield, Light

11 2223857 Socket, Light

12 2326255 Light Bulb

13 486194 Screw

14 8281185 Screw

TOP GRILLE AND UNIT COVER PARTS

For Model: KSSO36FTX00

(Etched Aluminum)

W10127716

Illus. Part

No. No. DESCRIPTION

1 Top Grille

Assembly

2313977S Etched Aluminum

2 2320502 Cover, Unit

3 486194 Screw

4 2256466 Back Panel

W10121229

Cover, Unit Front

6 487415 Screw

7 2310194 Wire Assembly

RC/FC Light Switch

8 2317881 Grille, Condenser

9 489348 Clamp

10 1161548 Nut

11 2003347 Tee Bolt

REFRIGERATOR SHELF PARTS

For Model: KSSO36FTX00

(Etched Aluminum)

W10127716

REFRIGERATOR SHELF PARTS

For Model: KSSO36FTX00

(Etched Aluminum)

W10127716

Illus. Part

No. No. DESCRIPTION

1 2222591 Shelf Assembly

5 2179404 Rack, Wine

9 2302841 Meat Pan

Cover Assembly

10 2302834 Crisper Cover

Assembly

13 2257581 Trim, Glass Rear

14 2252411 Crisper Pan (2)

17 Slide, Meat Pan

2302954 Left Side

2302955 Right Side

18 Trim, Glass Front

(Not Serviceable)

19 2256253 Trim, Glass Rear

21 2256247 Front, Crisper

Pan

23 2252255 Trim, Glass Side

Crisper Pan

24 2256250 Trim, Glass Side

Meat Pan

25 Spacer, Crisper

2256222 Right Side (2)

2256223 Left Side (2)

27 Slide, Crisper

2302957 Right Side (2)

2302956 Left Side (2)

28 Spacer, Meat Pan

2256243 Left Side

2256244 Right Side

29 Screw

8533929 Right Side

8533928 Left Side

30 2256368 Pan Assembly

Meat

31 2256365 Front, Meat Pan
