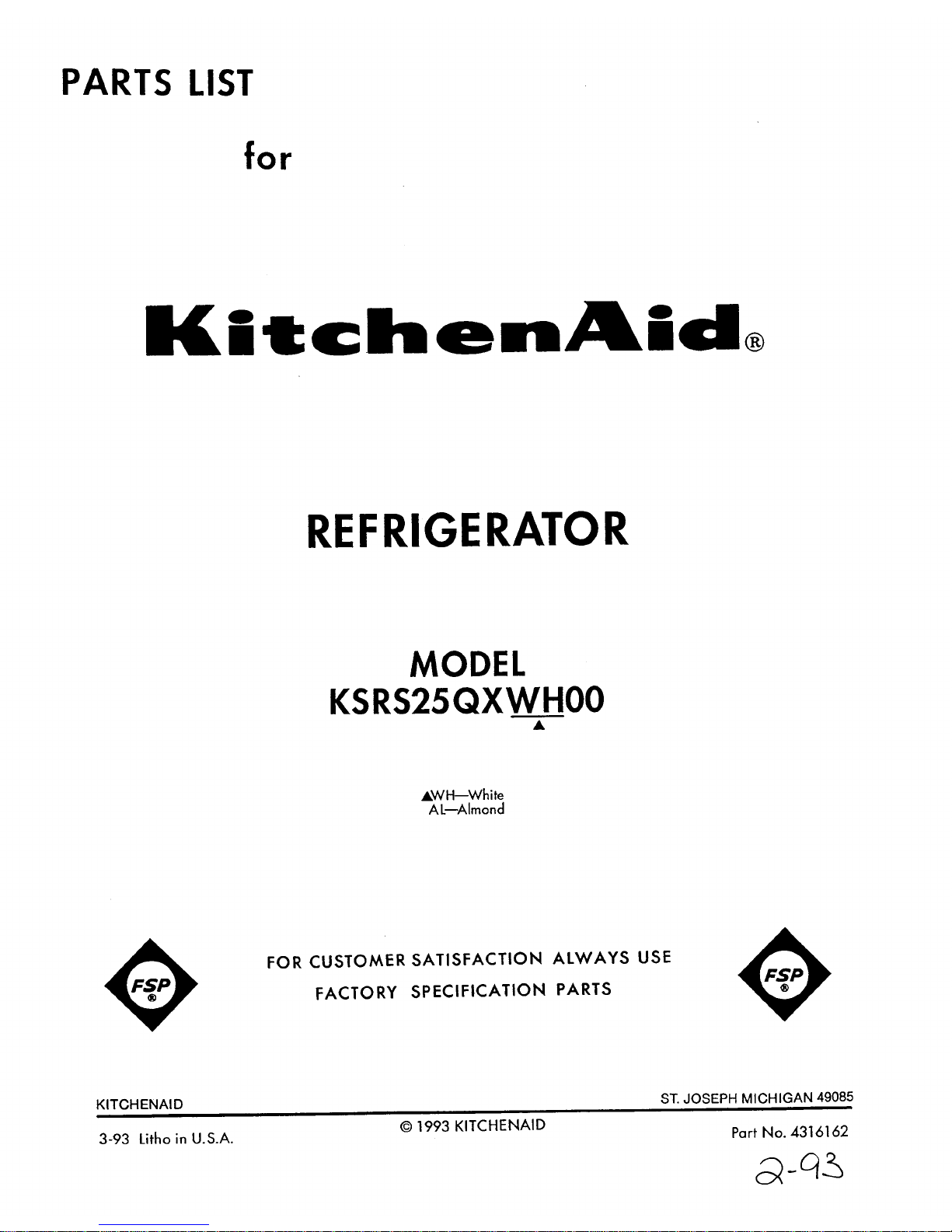

KitchenAid KSRS25QXAL User manual

1 Cabinet (Not A Serviceable Part

2 2152011 Front Roller (2)

3 489333 Screw, 5/16-24 x 1-1/4

4 981122 Roller (Rear) (2)

5 489339 Screw, (4) 1/4-28 x 1/2

6 1118355 Mullion Rail

7 1110606 Heater Mullion

8 Front Mullion Rail

1123972 White

1123975 Almond

9 489366 Washer

10 Filler Bottom Mullion

1118361 White

1118362 Almond

11 1110607 Clip Ground

12 1117892 Hinge, Top

13 1123515 Shim, Hinge Top

14 487869 Screw, Bind

15 Hinge Cover

1129262 White

2150343 Almond

16 2151629 Hinge Bottom (R.H)

17 986759 Door Closer Lower Cam (2)

18 489296 Screw, (2)

19 2151630 Hinge Bottom (L.H)

20 1129868 Spacer, Hinge

21 Filler, Wrapper

1110708 White

1110709 Almond

22 Grille

1125715 White

1125717 Almond

23 489327 Screw,

24 836196 Shim .030

27 1114789 Clip, Grille Retainer (2)

29 1129178 Grommet

30 1117936 Hinge, Top (L.H.)

31 2147310 Tap Plate (2)

32 2149745 Cabinet Harness

33 489048 Screw, Ground

34 937357 Clamp

35 489337 Screw

36 1129193 Cover, Wiring

37 1108440 Wiring Shield, Short

38 1119063 Wiring Shield, Long

39 1105607 Tube Clamp (2)

40 937360 Service Cord

41 842258 Drain Ferrule

42 1108438 Extension Tube

43 1108439 Clip, Drain Tube

44 487909 Screw

45 1110626 Cover, Plug

46 1115322 Sealing Gasket

47 2147323 Cover, Unit

48 489084 Screw, 8 x 1/2 (6)

49 Hinge Cover

1119787 White

1119789 Almond

51 1118237 Insulation

52 549193 Clamp, Service Cord

53 548745 Clip, Wire

54 1129188 Wiring Assembly (Icemaker)

56 836472 Clamp, Water Line (2)

1 Liner (Not A Serviceable Part)

2 985468 Escutcheon, Meat Pan Control

3 984102 Slide Meat Pan Control

4 992358 Foam Pad

5 486214 Screw, 8-15 x 1/2

6 1125675 Stud, Pan Cover

7 1119096 Tube, Water

8 1110718 Stud (9)

9 1116794 Ladder, Shelf (2)

10 658944 Stud, Shelf (2)

11 486298 Screw (2)

12 487539 Screw, 8 x 1/2 (4)

13 487559 Screw (2)

15 1115399 Stud, Spacer (2)

16 1125913 Rack, Wine & Egg

19 1129177 Insert, Plastic Tube

21 1129179 Nut, Compression

22 1123919 Bracket Retainer

23 489290 Screw, (2)

24 2157403 Air Diffuser Assembly

25 2152019 Air Diffuser Cover

26 2150331 Cover, Conduit

29 851067 Socket

30 842534 Clip, Air Duct

31 1129170 Reservoir

32 1129176 Tube

33 527949 Light Bulb

34 1125586 Light Lens

37 488280 Screw (2)

1 1125597 Shelf Assembly, Cantilever (3)

2 1125593 Glass, Shelf

3 1125594 Retainer, Glass

4 1125786 Gasket, Front

5 1126153 Pan Cover Assembly (2)

6 1125705 Gasket, Cover (Front)

7 1125706 Gasket, Cover (Rear)

8 1125822 Glass, Cover (2)

9 1125599 Pan Shelf & Slide Assembly

10 1125595 Glass, Shelf

11 1125814 Gasket (Front)

12 1125817 Gasket (Rear)

13 1112308 Eyelet, Roller

14 1112303 Roller

15 489212 Screw

16 1117908 Crisper Pan (2)

17 1117910 Utility Pan

18 1125530 Roller

1 Liner (Not A Seviceable Part)

2 1125824 Shelf, Top Compartment

3 1125657 Door, Ice Compartment

4 1108436 Evaporator, Support

5 946356 Stud, R.S. Front

6 842534 Clip, Air Duct (2)

7 1115317 Support, Stud (4)

8 946355 Support, Stud (2)

9 1110779 Grommet (2)

10 Slide, Container

1119237 Left Side

1119293 Right Side

11 1125609 Shelf

12 489100 Screw (4)

14 1114607 Wiring Cover

15 489176 Screw

16 942768 Drain Fitting

17 Shelf Track

1113678 Right Side (3)

1113679 Left Side (3)

18 487042 Screw

19 1115373 Switch, Rocker Arm

20 489242 Screw

21 2152095 Basket, Middle

22 1125770 Front, Basket

23 2152093 Basket, Upper

24 1125612 Front, Basket

25 2152102 Basket, Lower

26 1129195 Shim, Track

27 1115386 Stud, Shelf (4) Compartment

29 1115389 Light Lens

30 1106982 Stud, R.S. Rear
