KitchenAid KSSS36QHX00 User manual
1

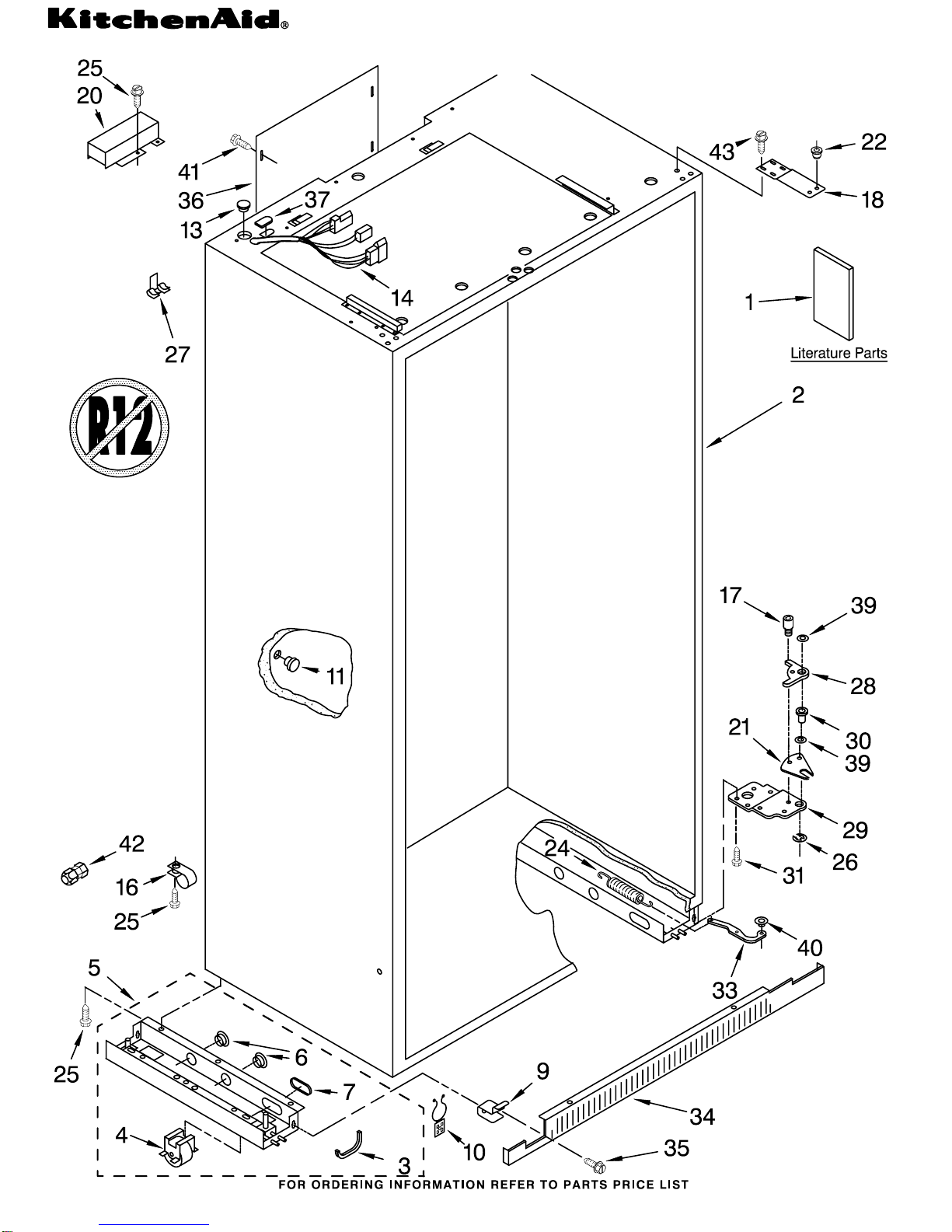

CABINET PARTS
For Model: KSSS36QHX00
(Stainless Steel)
12−99 Litho In U.S.A. (mek) Part No. 4398458
36" BUILT IN
REFRIGERATOR
2
CABINET PARTS
For Model: KSSS36QHX00
(Stainless Steel)
4398458
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 LITERATURE PARTS
LIT2006136
Use & Care Guide
LIT2006651
Energy Label
LIT2005930
Service & Wiring
Sheet
LIT628370
Modular Icemaker
Service Sheet
LIT2006137
Installation
Instructions
2 Cabinet (Not A
Serviceable Part)
3 2005004 Grommet, Tube
Crossover
4 1112023 Roller, Front &
Rear (4)
5 Support, Leveler
Assembly
2004506 Refrigerator Side
2004505 Freezer Side
6 2005006 Grommet, Wiring
7 2005007 Grommet,
Flexible
9 2006442 Mounting Stud,
Grill
10 2005237 Wire, Clip
11 1112849 Cap, Grommet
13 1113122 Grommet, Wiring
14 2006752 Wiring Harness,
Cabinet
16 488946 Tube, Clamp
17 2005378 Screw, Door Stop
18 2005295 Hinge (Top)
19 2004520 Shim, Hinge
Top
20 1112805 Guard, Wiring
21 2004994 Lock, Adjustable
Bushing
22 2002903 Bushing
24 2004567 Spring, Door
Closure
25 489464 Screw
26 2005008 Retaining Ring,
Adjustable Bushing
27 1113227 Fastener (3)
28 2006342 Gap, Cover
Assembly (Bottom)
29 Hinge (Bottom)
2006732 Freezer Side
2006733 Refrigerator Side
30 2004992 Bushing,
Adjustable
31 2001415 Screw
33 2004516 Linkage, Door
Closure
34 2004530 Grille Base,
Front
35 489238 Screw
36 2004512 Cover, Rear
37 2207518 Grommet, Wiring
39 2006346 Washer
40 2004565 Bushing, Door
Closure
41 1163283 Screw
42 2150347 Union
43 2001415 Screw (4)
3

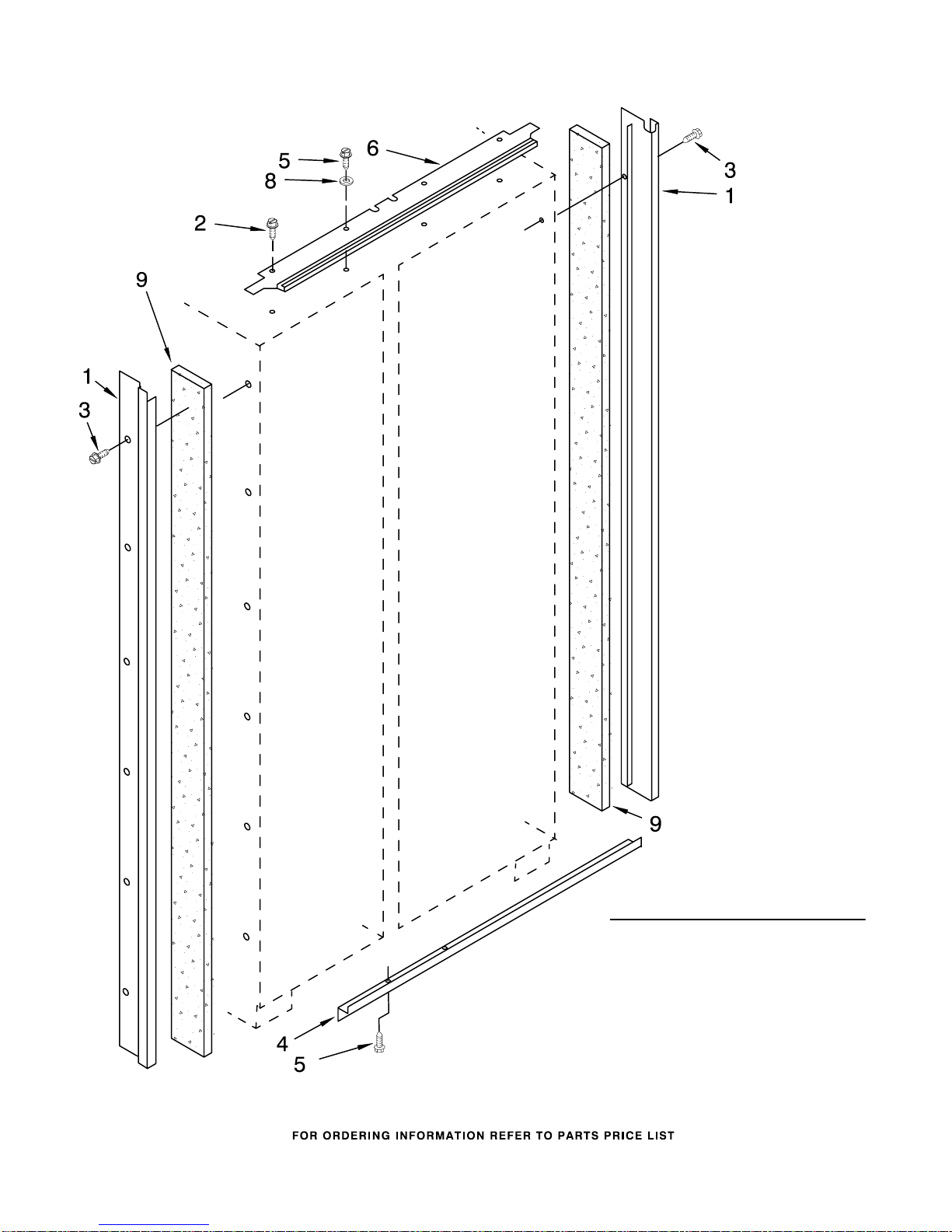

CABINET TRIM PARTS
For Model: KSSS36QHX00
(Stainless Steel)
4398458
Illus. Part
No. No. DESCRIPTION
1 2004553 Cabinet, Trim (2)
2 2003857 Screw
3 1163283 Screw
4 2004536 Cabinet, Trim
(Bottom)
5 489464 Screw
6 2003645 Cabinet, Trim Top
8 487944 Washer (2)
9 2005925 Seal−Trim, Side

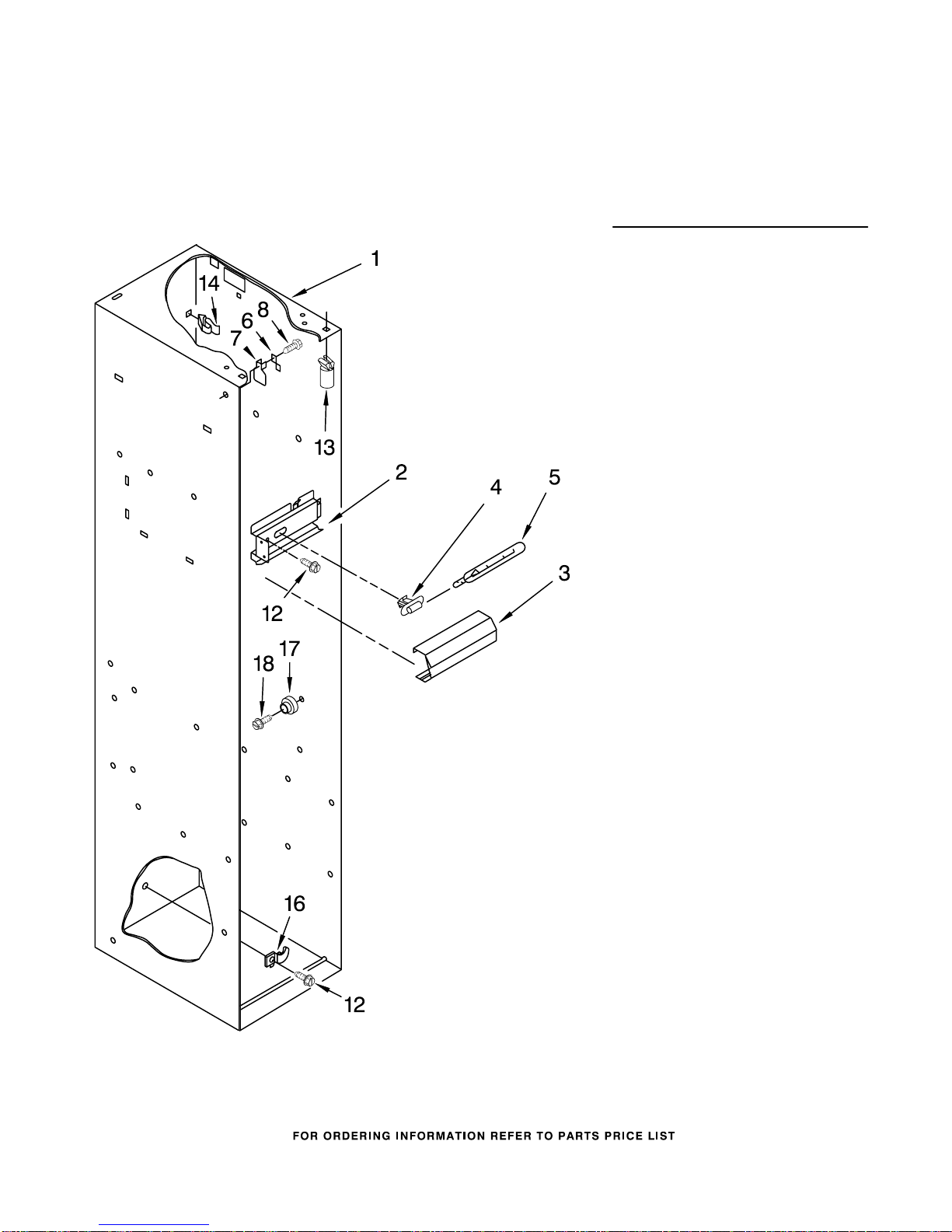

FREEZER LINER PARTS
4
For Model: KSSS36QHX00
(Stainless Steel)
4398458
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2005567 Bracket, Light
3 1113650 Lens
4 2005042 Light, Socket
5 548049 Light, Bulb
6 538533 Support Clip,
Icemaker (2)
7 2000193 Grommet, Screw (2)
8 488552 Screw
12 486194 Screw
13 1112591 Spacer, Control
Panel (3)
14 842534 Clip, Air Duct (4)
16 1112260 Support,
Evaporator
17 2004068 Stud, Shelf (20)
18 487559 Screw
5

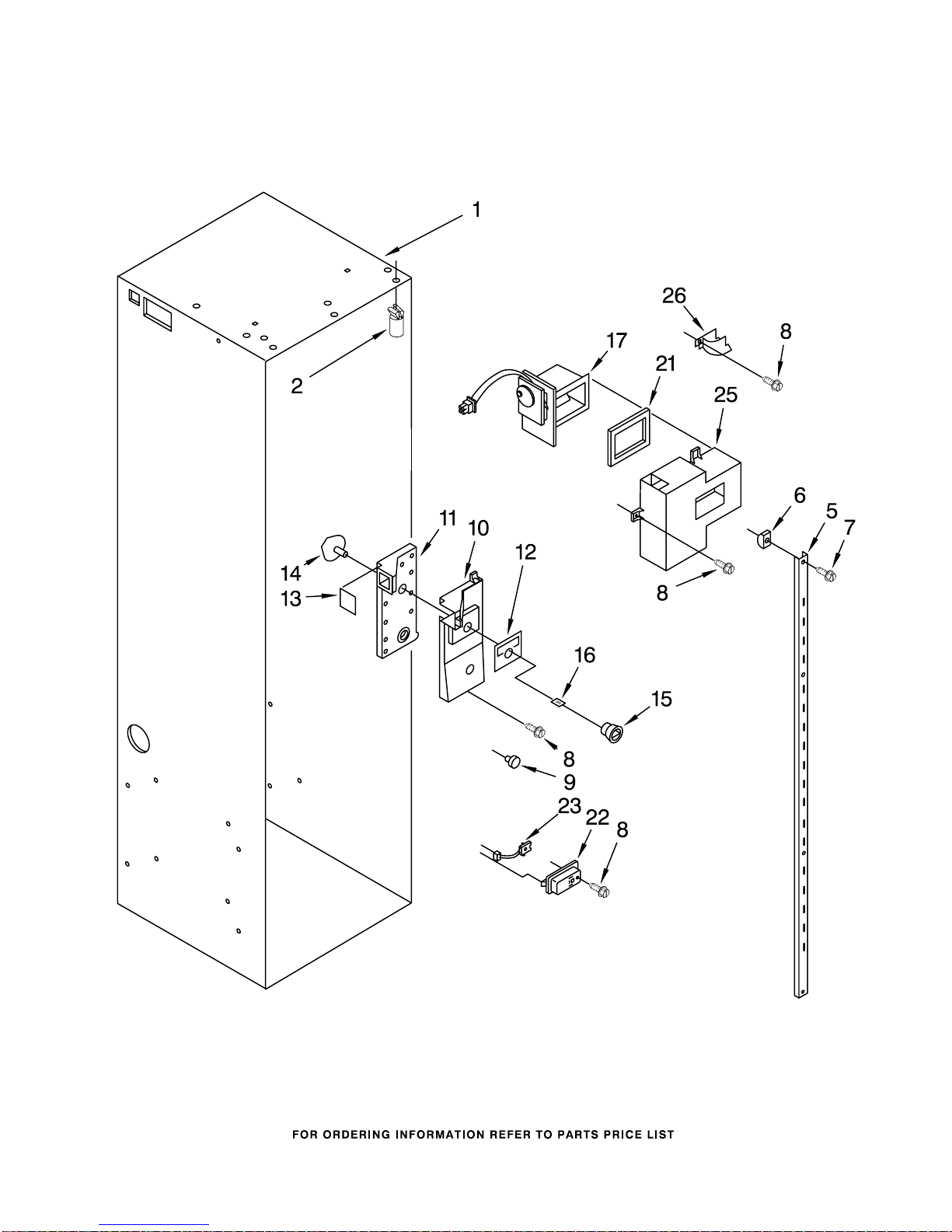

REFRIGERATOR LINER PARTS
For Model: KSSS36QHX00
(Stainless Steel)
4398458
6
REFRIGERATOR LINER PARTS
For Model: KSSS36QHX00
(Stainless Steel)
4398458
Illus. Part
No. No. DESCRIPTION
1 LINER (Not A
Serviceable Part)
2 1112591 Spacer, Control
Panel (3)
5 2001117 Ladder, Shelf (2)
6 520965 Screw Support,
Ladder (8)
7 488357 Screw
8 486194 Screw
9 1112257 Hole Plug
10 2003579 Meat Pan, Air
Duct Cover
11 2000337 Meat Pan, Air Duct
12 2003299 Inlay, Control
Meat Pan
13 2001326 Seal, Air Duct
14 1112218 Damper Control,
Meat Pan
15 2003811 Control Knob,
Meat Pan
16 2003841 Retainer, Knob
17 2004484 Air Baffle
Assembly
21 2001146 Seal
22 1116793 Cover, Thermistor
23 1116959 Thermistor
25 2003578 Air Baffle Cover
26 2003577 Guard, Air Return
REFRIGERATOR CONTROL PANEL PARTS
7
For Model: KSSS36QHX00
(Stainless Steel)
4398458
Illus. Part
No. No. DESCRIPTION
1 1112640 Control Panel
2 2003301 Inlay, Control
Panel
3 2004005 Circuit Board
4 2003842 Control Knob
5 2003841 Retainer, Knob
6 1118894 Switch, Rocker Arm
7 1113133 Seal, Control
Panel
8 489260 Screw (3)
9 2000153 Hole Plug (3)
10 2005564 Shield, Control
Panel
11 2005043 Socket, Light
12 548049 Light Bulb (2)
13 486194 Screw
14 2006223 Wire, Light
15 2001141 Channel, Wiring
16 1115375 Clip, Wiring (2)
8

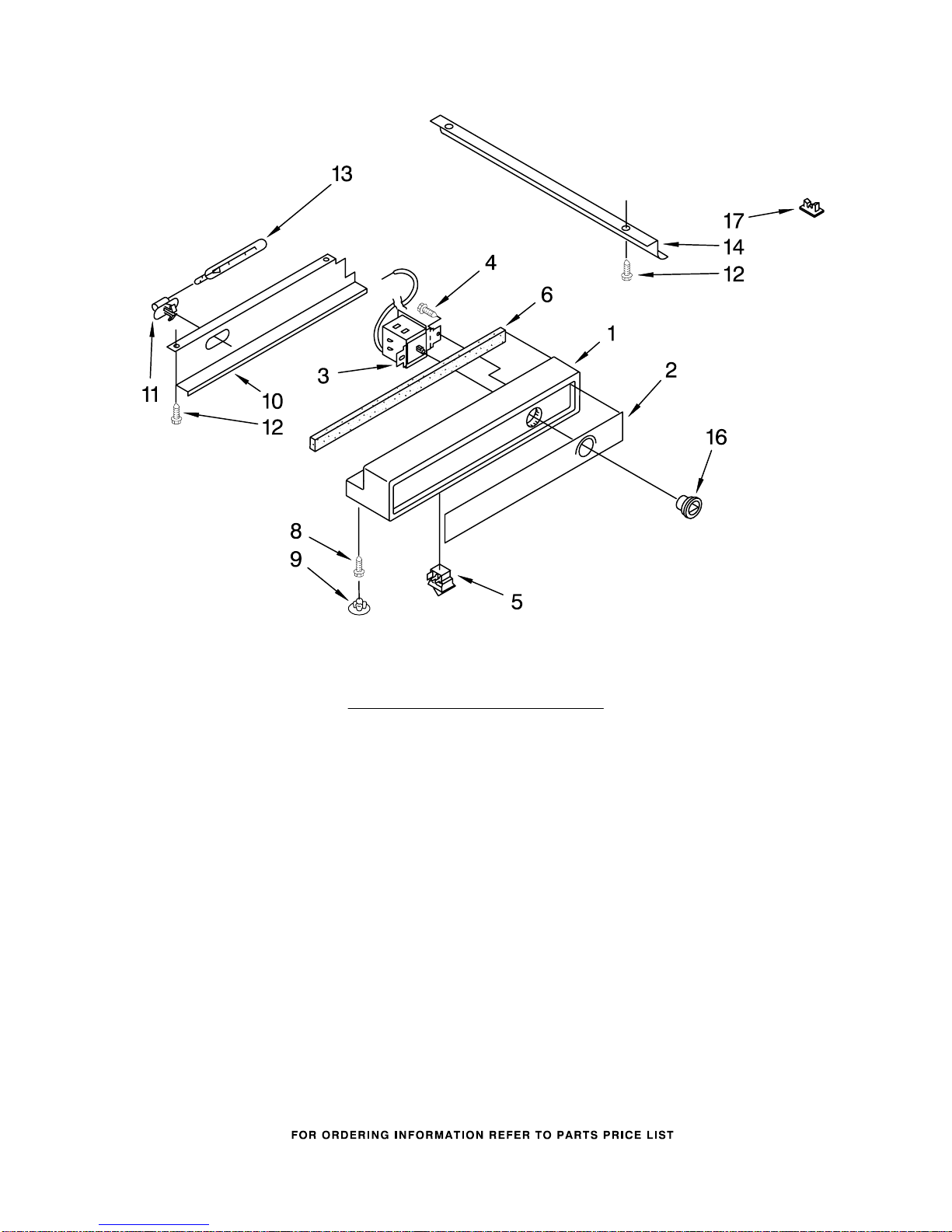

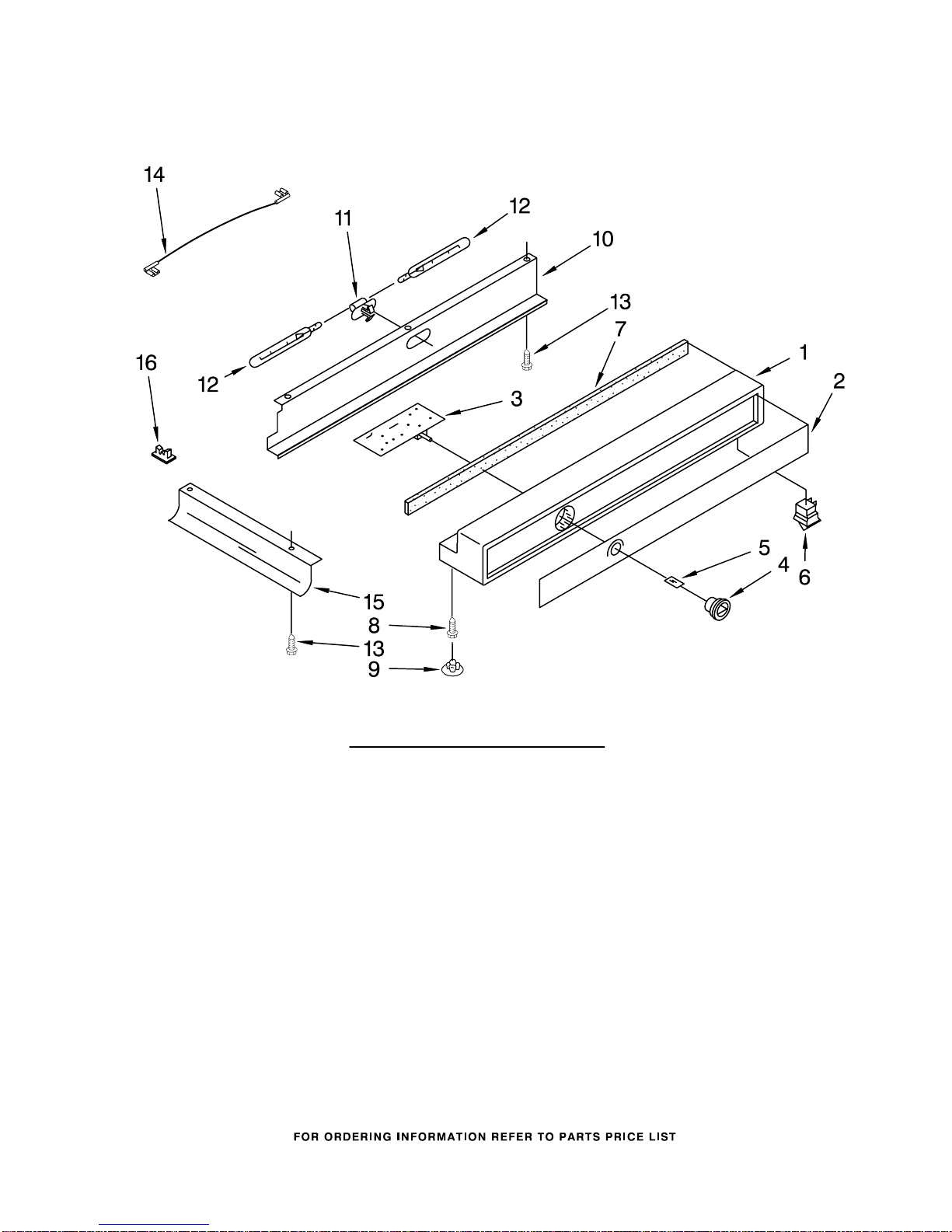

FREEZER CONTROL PANEL PARTS
For Model: KSSS36QHX00
(Stainless Steel)
4398458
Illus. Part
No. No. DESCRIPTION
1 1113625 Control Panel
2 2003307 Inlay, Control
Panel
3 1113466 Thermostat &
Barrier Assembly
4 488974 Screw (2)
5 1115373 Switch, Rocker Arm
6 1113132 Seal, Control
Panel
8 489260 Screw (3)
9 2000153 Hole Plug (3)
10 2005561 Shield, Control
Panel
11 2005042 Socket, Light
12 486194 Screw
13 548049 Light Bulb
14 2001142 Channel, Wiring
16 2182112 Knob, Thermostat
17 1115375 Clip, Wiring

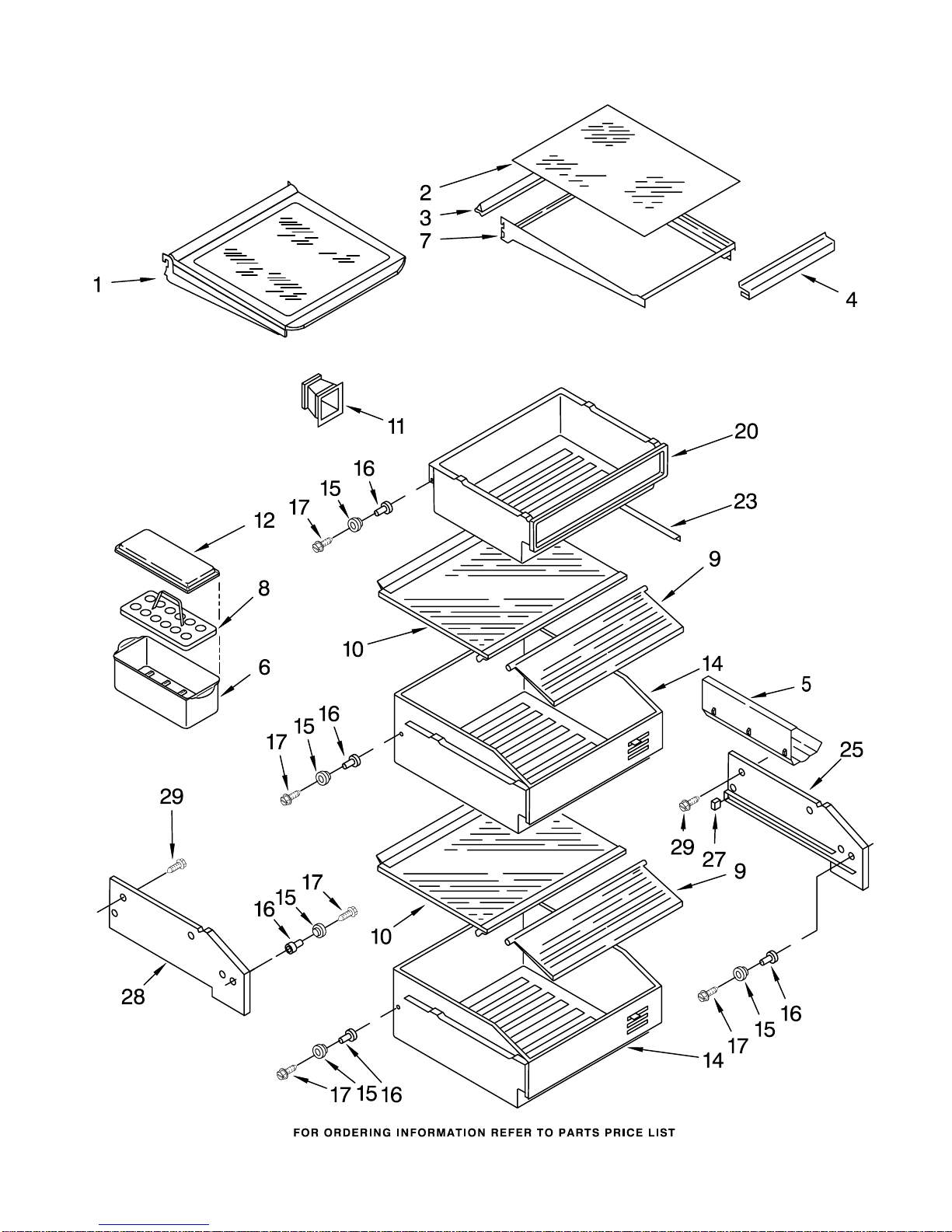

REFRIGERATOR SHELF PARTS
9
For Model: KSSS36QHX00
(Stainless Steel)
4398458
REFRIGERATOR SHELF PARTS
10
For Model: KSSS36QHX00
(Stainless Steel)
4398458
Illus. Part
No. No. DESCRIPTION
1 2174402 Frame, Shelf
2 2003375 Glass, Shelf
3 1113546 Reflector, Shelf
4 1113790 Gasket, Glass (2)
5 2179375 Rack, Wine
6 2169933 Egg Bin
7 2006523 Frame, Assembly
Meat Pan
8 2164373 Egg Carrier
9 1113893 Cover, Crisper
10 2003378 Glass, Crisper
11 2000742 Meat Pan,
Connector
12 2169935 Cover
14 2006544 Crisper Pan (2)
15 2188212 Roller
16 2174478 Eyelet, Roller
17 2003478 Screw
20 2006529 Meat Pan
23 2002181 Retainer, Glass
25 2003411 Crisper Spacer,
Right Side (2)
27 1113169 Stop, Roller
28 2003410 Crisper Spacer,
Left Side (2)
29 486194 Screw
