KitchenAid KSSC42QKS01 User manual
1

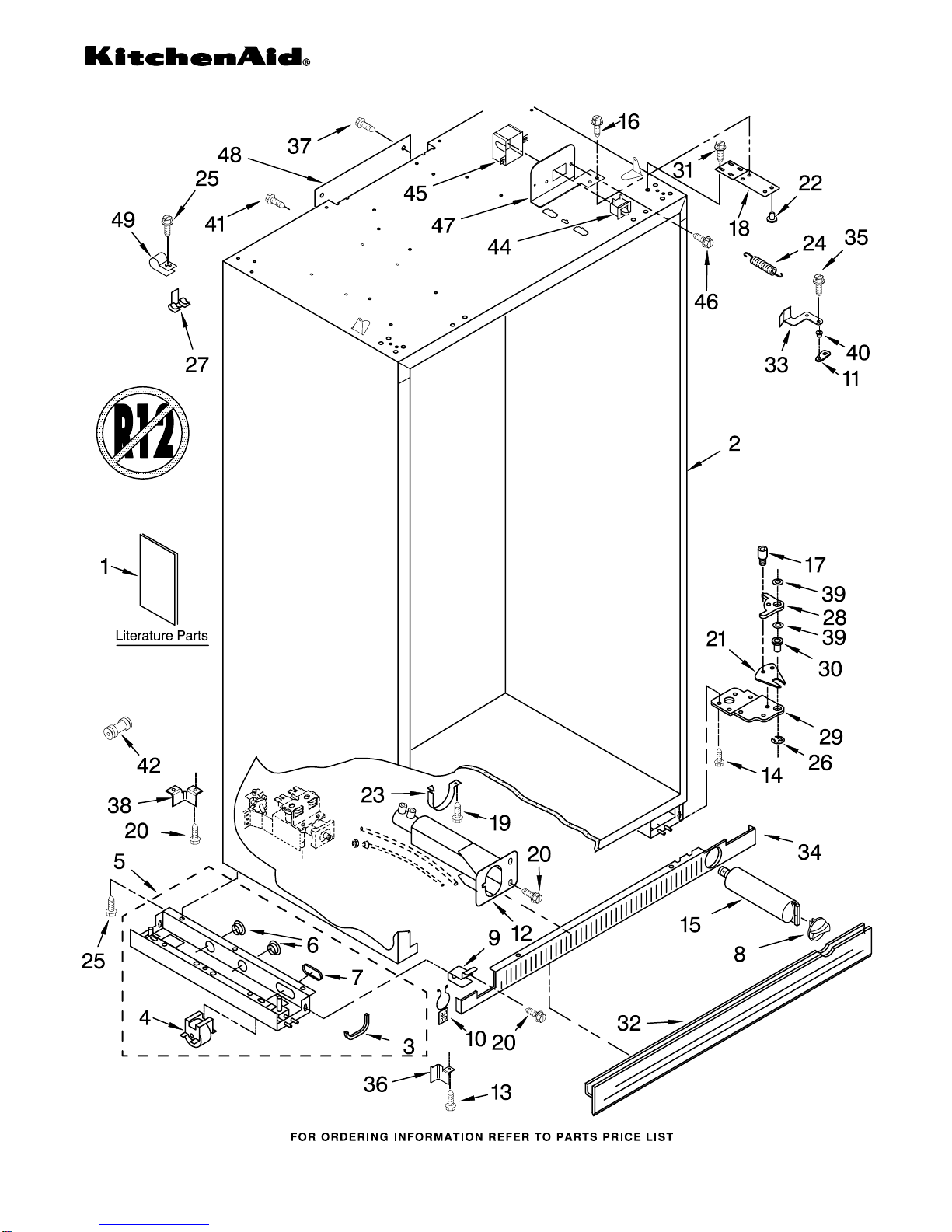

CABINET PARTS
For Model: KSSC42QKS01
(Stainless Steel)
5−03 Litho In U.S.A. (tpm) Part No. 8198067
42" BUILT IN
REFRIGERATOR
2
CABINET PARTS
For Model: KSSC42QKS01
(Stainless Steel)
8198067
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
LIT2254714
Use & Care Guide
LIT2221284
Energy Label
LIT2254722
Service & Wiring
Sheet
LIT628370
Modular Icemaker
Service Sheet
LIT2215852
Installation
Instructions
2 Cabinet (Not A
Serviceable Part)
3 2005004 Grommet, Tube
Crossover
4 1112023 Roller, Front &
Rear (4)
5 Support, Leveler
Assembly
2004506 Refrigerator Side
2004505 Freezer Side
6 2005006 Grommet, Wiring
7 2005007 Grommet,
Flexible
8 2186494B Cap, Water Filter
9 2006442 Mounting Stud,
Grill
10 2005237 Clip, Wire
11 2005783 Cam, Door Closer
12 2209022 Housing, Water
Filter
13 488500 Screw
14 3400525 Screw
15 2203221 Filter, Water
16 489399 Screw
17 2005378 Screw, Door Stop
18 2221134 Hinge (Top)
19 489478 Screw
20 489464 Screw
21 2004994 Lock, Adjustable
Bushing
22 2002903 Bushing
23 2209090 Clamp, Filter
Housing
24 2004517 Spring, Door
Closure (2)
25 486194 Screw
26 2005008 Retaining Ring,
Adjustable Bushing
27 1113227 Fastener (3)
28 2006342 Gap, Cover
Assembly (Bottom)
29 Hinge (Bottom)
2006780 Freezer Side
2006779 Refrigerator Side
30 2004992 Bushing,
Adjustable
31 2001415 Screw
32 2209025B Skirt−Grille,
Bottom
33 Extension Arm,
Door Closer
2221095 Right
2221094 Left
34 2209428B Grille Bottom,
Front
35 2005921 Screw
36 Bracket, Support
Base (Front)
2006616 Left
2006556 Right
37 1157158 Screw
38 2006617 Bracket, Support
Base (Rear) (2)
39 2006346 Washer
40 2006960 Bushing,
Extension Arm
41 1163283 Screw
42 2209709 Connector, Water
44 Switch, Rocker Arm
1118894 Refrigerator Door
Side
1115373 Freezer Door Side
45 2215938 Cover, Switch (2)
46 487415 Screw (4)
47 Bracket, Cover
2221097 Right
2221096 Left
48 2209449 Cover, Rear
49 488937 Clamp, Tube
3

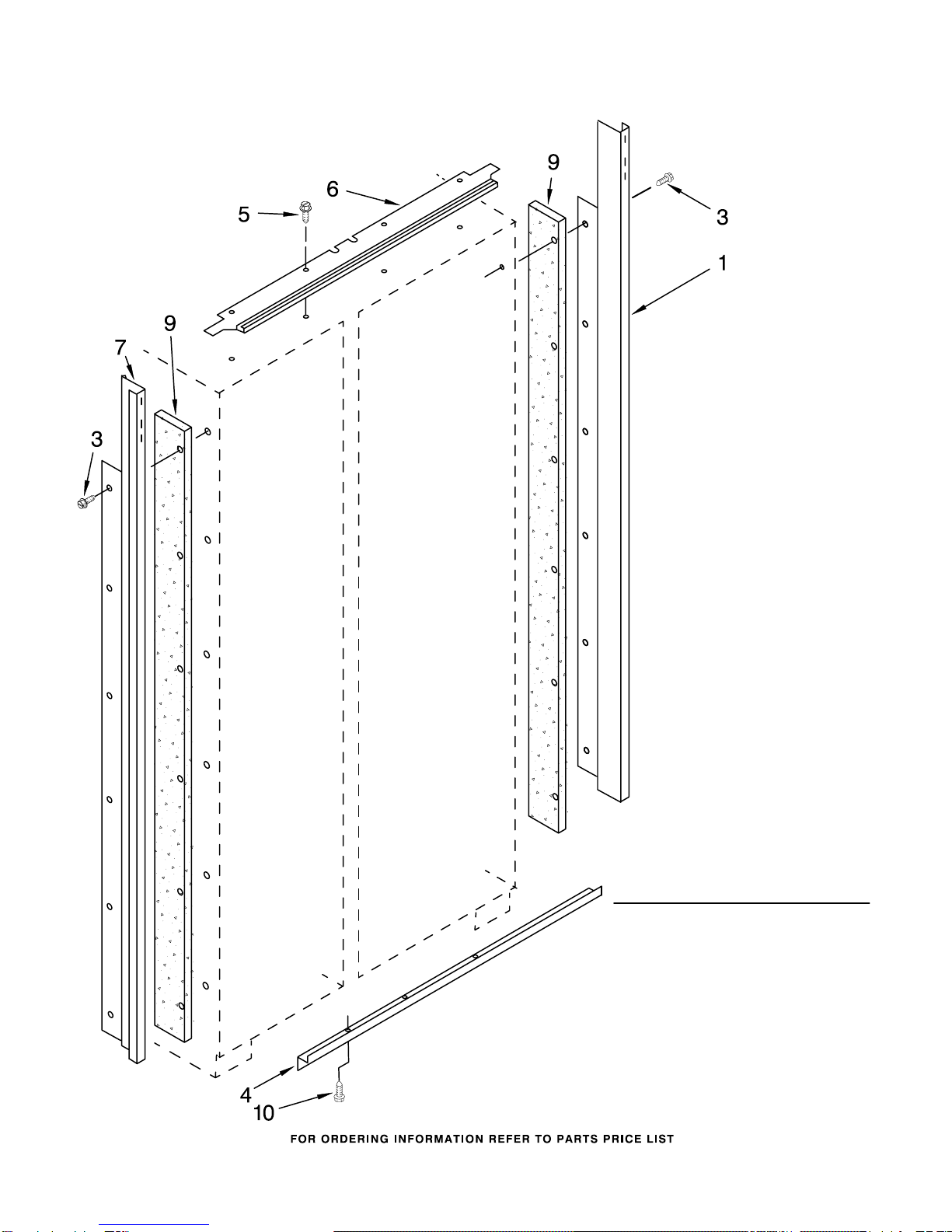

CABINET TRIM PARTS
For Model: KSSC42QKS01
(Stainless Steel)
8198067
Illus. Part
No. No. DESCRIPTION
1 2215919S Cabinet, Trim
(Right Side)
3 8281250 Screw
4 2254725 Cabinet, Trim
(Bottom)
5 486194 Screw
6 2003646 Cabinet, Trim Top
7 2215936S Cabinet Trim
(Left Side)
9 2005925 Seal−Trim, Side
10 489464 Screw
4

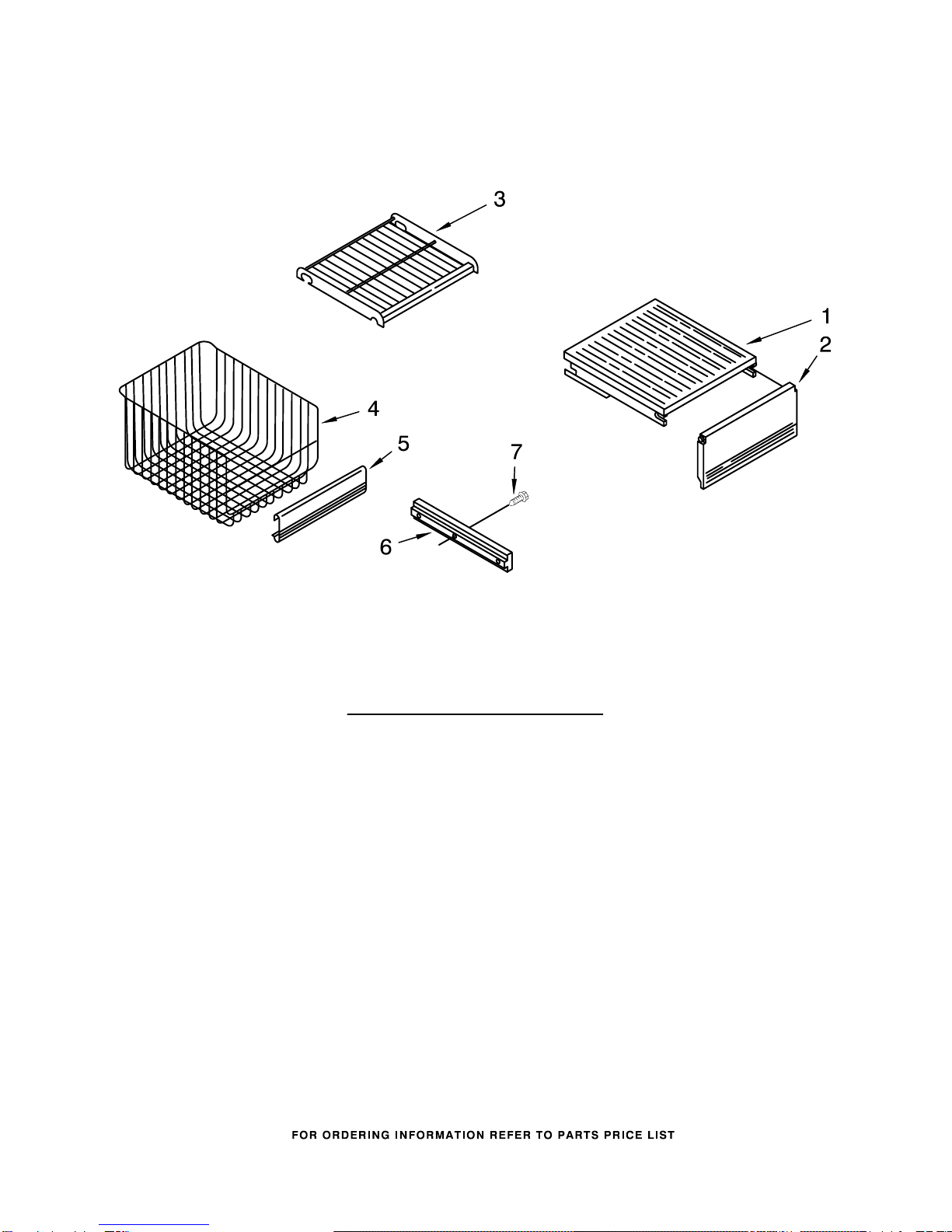

FREEZER SHELF PARTS
For Model: KSSC42QKS01
(Stainless Steel)
8198067
Illus. Part
No. No. DESCRIPTION
1 2220890 Solid Shelf
2 2220847 Front, Ice
Compartment
3 1113637 Shelf, Fixed (2)
1113565 Shelf, Deep
4 2208194 Basket
5 2220844 Trim, Basket
6 Slide, Basket
2208198 Right Side
2208197 Left Side
7 486194 Screw
5

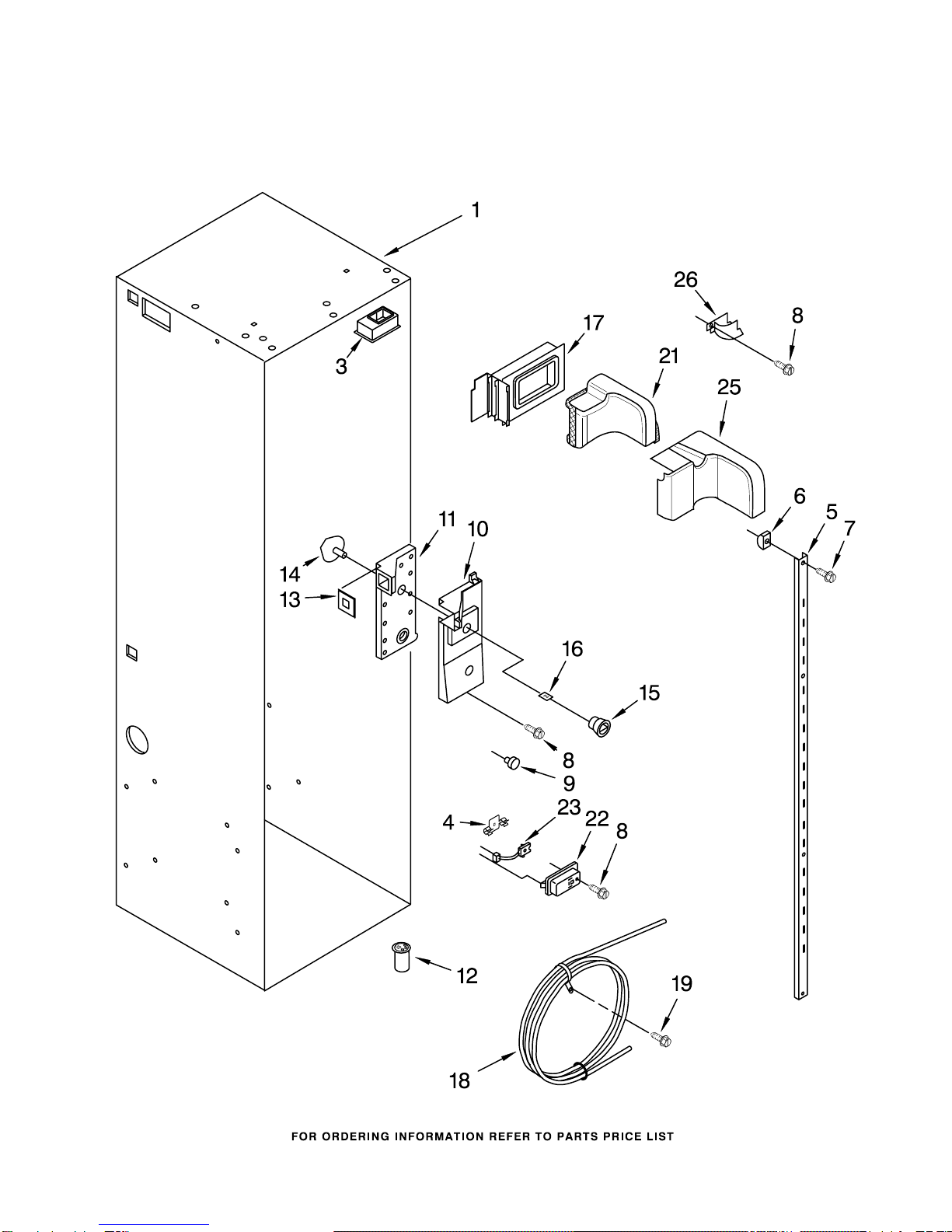

REFRIGERATOR LINER PARTS
For Model: KSSC42QKS01
(Stainless Steel)
8198067
6
REFRIGERATOR LINER PARTS
For Model: KSSC42QKS01
(Stainless Steel)
8198067
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
3 2208970 Air Duct
4 2209204 Clip, Thermistor
5 2221211 Ladder, Shelf (2)
6 520965 Screw Support,
Ladder (8)
7 2006475 Screw
8 486194 Screw
9 1112257 Hole Plug
10 2220888 Meat Pan, Air
Duct Cover
11 2000337 Meat Pan, Air Duct
12 2220993 Release Valve
13 2221175 Seal, Air Duct
14 1112218 Damper Control,
Meat Pan
15 2003811 Control Knob,
Meat Pan
16 2003841 Retainer, Knob
17 2221296 Air Baffle
Assembly
18 2209687 Reservoir
19 488280 Screw
21 2208997 Diffuser Assembly
22 1116793 Cover, Thermistor
23 2213442 Thermistor
25 2215728 Cover, Diffuser
26 2003577 Guard, Air Return
7

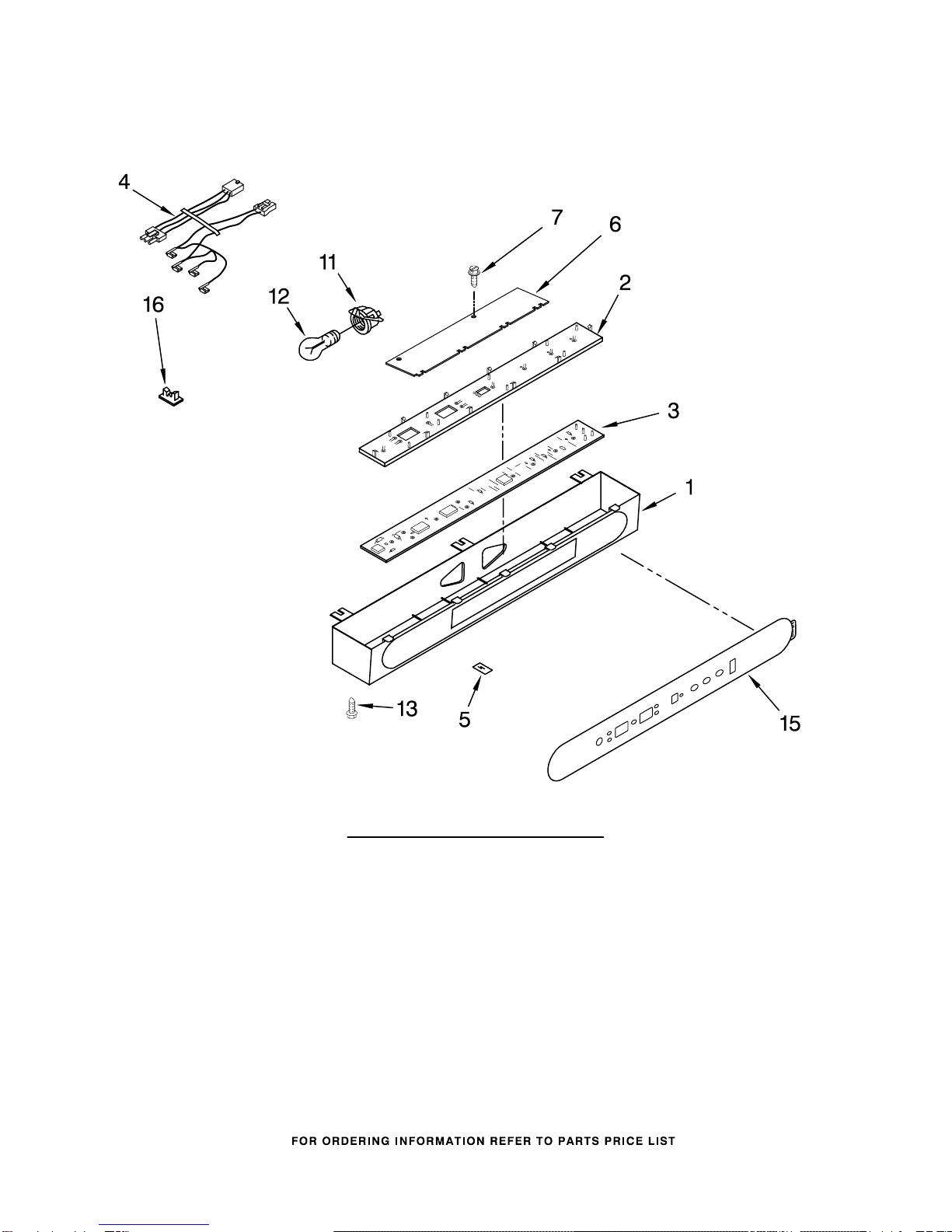

CONTROL PANEL PARTS
For Model: KSSC42QKS01
(Stainless Steel)
8198067
Illus. Part
No. No. DESCRIPTION
1 2215716 Control Box
2 2215670 Insert, Control
Box
3 2209159 Circuit Board,
Housing Control
4 2187424 Control Box
Wire Harness
5 2003841 Retainer, Knob
6 2221121 Support, Control
Box
7 489006 Screw
11 2162085 Socket, Light (2)
12 2160708 Light Bulb (2)
13 486194 Screw
15 2221066 Overlay
16 1115375 Clip, Wiring (3)

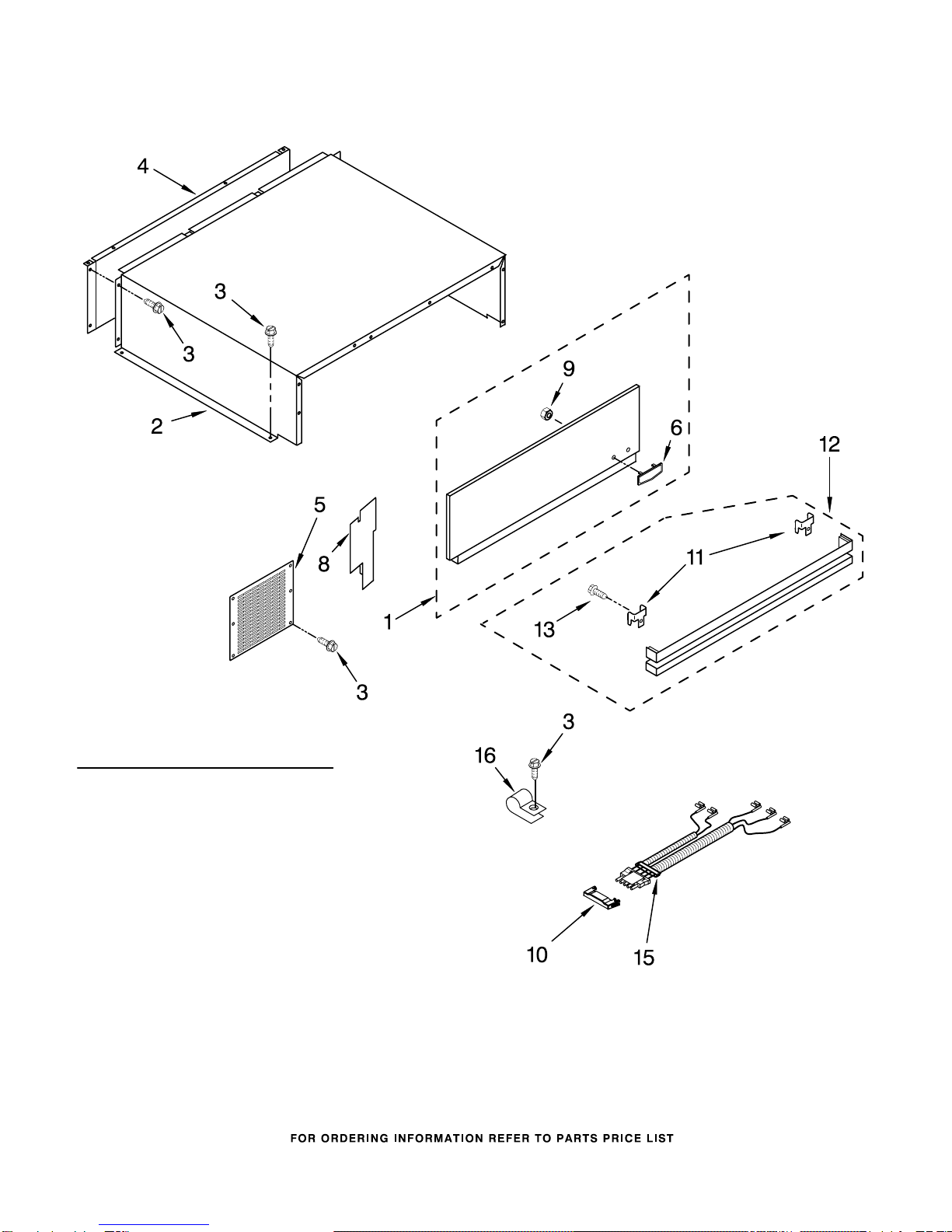

TOP GRILLE AND UNIT COVER PARTS
8
For Model: KSSC42QKS01
(Stainless Steel)
8198067
Illus. Part
No. No. DESCRIPTION
1 2215953S Panel, Decorator
2 2209490 Cover, Unit
3 486194 Screw
4 2215830 Back Panel
5 2209492 Guard, Wiring
6 2005292 Nameplate
8 8201530 Baffle−Air,
Condenser
9 2004333 Nut
10 2221297 Enclosure,
Terminal
11 2005483 Bracket, Louver
12 2215934S Grille, Louver
13 488879 Screw
15 2187429 Wire Assembly,
RC/FC Light Switch
16 489348 Clamp

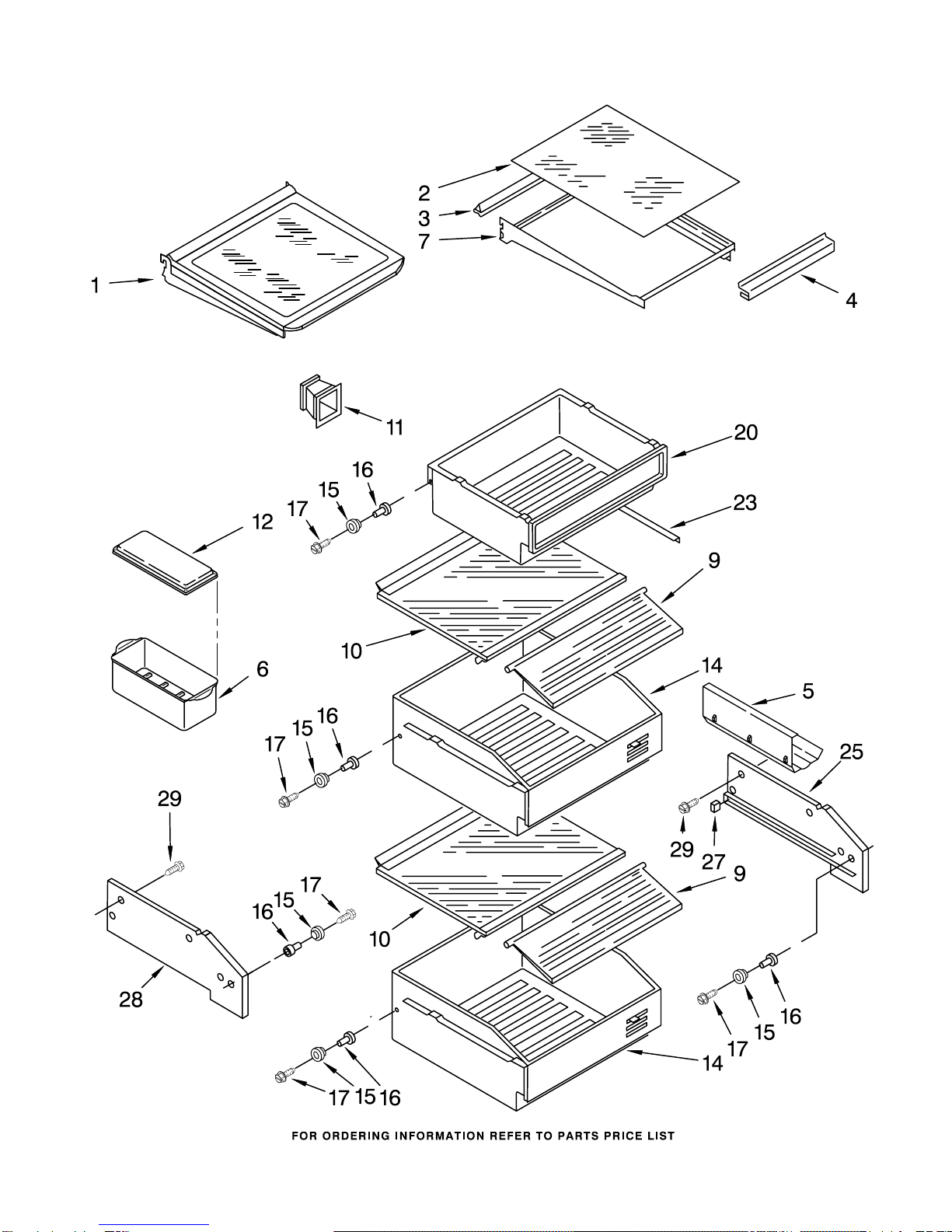

REFRIGERATOR SHELF PARTS
9
For Model: KSSC42QKS01
(Stainless Steel)
8198067
REFRIGERATOR SHELF PARTS
10
For Model: KSSC42QKS01
(Stainless Steel)
8198067
Illus. Part
No. No. DESCRIPTION
1 2174403 Frame, Shelf
2 2003376 Glass, Shelf
3 1113547 Reflector, Shelf
4 1113791 Gasket, Glass (2)
5 2179404 Rack, Wine
6 2216625 Egg Bin
7 2006524 Frame, Assembly
Meat Pan
9 1113894 Cover, Crisper
10 2003379 Glass, Crisper
(Includes #9)
11 2000742 Meat Pan,
Connector
12 2169935 Cover
14 2220896 Crisper Pan (2)
15 2188212 Roller
16 2174478 Eyelet, Roller
17 2003478 Screw
20 2220902 Meat Pan
23 2002181 Retainer, Glass
25 2006515 Crisper Spacer,
Right Side (2)
27 1113169 Stop, Roller
28 2006516 Crisper Spacer,
Left Side (2)
29 486194 Screw
