KitchenAid KFCS22EVBL1 User manual

CABINET PARTS

For Models: KFCS22EVWH1, KFCS22EVBL1, KFCS22EVMS1

(White) (Black) (Monochromatic Stainless)

5−09 Litho In U.S.A. (mat)(bay) Part No. W10268080 Rev.A

REFRIGERATOR

CABINET PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Models: KFCS22EVWH1, KFCS22EVBL1, KFCS22EVMS1

(White) (Black) (Monochromatic Stainless)

W10268080

1 Literature Parts

W10238853

Tech Sheet

12828187SP

Owners Manual

W10194233

Tag, Energy

10463203SP

Elbow, Fill Tube

W10120087

Block, Pivot

4 B5759655 Gasket

M0114003SP

Clip, Speed

7 A3076901 Plug, Button

8 12990504 Screw

9 12992603 Screw

W10210891

Hinge, Top Right

11 12992201 Screw (6)

12 Cover, Right Hinge

W10163247

White

W10153131

Black

W10120103

Apollo Grey

13 Cover, Left Hinge

W10163248

White

W10153130

Black

W10120102

Apollo Grey

14 12992403 Screw (6)

15 Hinge, Center (RT)

W10162695

White

W10210883

Black

W10135097

Stainless

16 12777701 Block, Fill Tube

17 Cover, Corner (2)

12587703W

White

12587703B

Black

12587703AP

Apollo Grey

W10210890

Hinge, Top Left

19 Roller Assy.

(Front)

W10212382

Right

W10212381

Left

20 12991302 Screw (8)

21 Shim, Hinge

12999501 Left

12999502 Right

22 Grille, Toe

W10244559

White

W10244561

Black

W10244558

Apollo Grey

23 M0104106 Clip (2)

24 Hinge, Center (LT)

W10162694

White

W10210882

Black

W10135096

Stainless

25 12990511 Screw (10)

26 12726003 Cover, Water Line

W10208593

Guard, Water Valve

(Dual)

28 12990302 Screw (2)

29 12831101 Sweep, Dual Tube

W10211855

Cover, Unit

32 M0108105 Clamp, Tube

33 12820505 Insulation, Sound

W10141622

Brake, Foot

W10210988

Tube, Drain

36 Cabinet (Not a

Servicable Part)

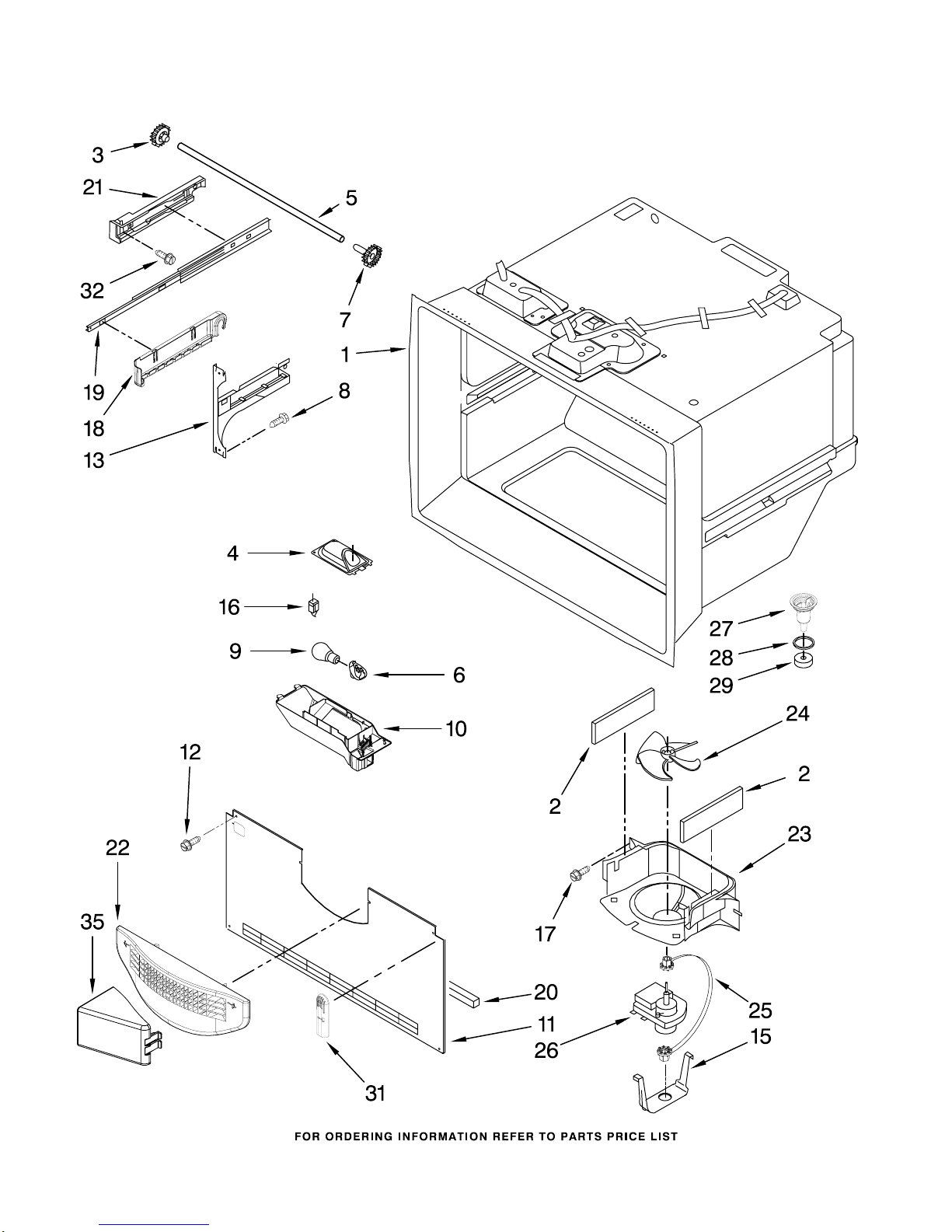

FREEZER LINER PARTS

For Models: KFCS22EVWH1, KFCS22EVBL1, KFCS22EVMS1

(White) (Black) (Monochromatic Stainless)

W10268080

FREEZER LINER PARTS

For Models: KFCS22EVWH1, KFCS22EVBL1, KFCS22EVMS1

(White) (Black) (Monochromatic Stainless)

W10268080

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 A3189392 Gasket, Foam

3 12002497 Gear (Left)

(Includes Item 7)

12476401SP

Housing, Light

12812903WD

Shaft

12570701SP

Socket, Light

7 12002497 Gear (Right)

(Includes Item 3)

8 12990521 Screw (8)

W10194422V

Bulb, Light

W10119832

Module, Light

11 12226119 Cover, Evaporator

12 12990511 Screw (4)

13 Bracket, Door

W10119064

Left

W10119295

Right

15 13058002 Clip, Evap Motor

12466105SP

Switch, Light

17 12990504 Screw (2)

18 Cradle, Basket

W10119848

Left

W10119849

Right

W10165841

Slide, Drawer (2)

20 A3189396 Gasket, Bottom

21 Adapter, Slide

13042303 Left

13042304 Right

22 13024803 Grille, Fz Air

23 13057901 Shroud, Evap Fan

24 2169142 Blade, Fan

(Evaporator)

W10121318

Grommet

W10128551

Motor, Evaporator

27 D7753903 Funnel, Drain

28 M0500703 Seal

29 B8381501 Gasket

31 12815301 Cover, Thermistor

32 12990501 Screw (6)

W10157765

Diverter, Air

Following Parts Not Illustrated

W10196195

Harness, Fz Module

(Includes

Thermistor)

REFRIGERATOR LINER PARTS

For Models: KFCS22EVWH1, KFCS22EVBL1, KFCS22EVMS1

(White) (Black) (Monochromatic Stainless)

W10268080

REFRIGERATOR LINER PARTS

For Models: KFCS22EVWH1, KFCS22EVBL1, KFCS22EVMS1

(White) (Black) (Monochromatic Stainless)

W10268080

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 12806303 Module, Light

W10118311

Overlay

4 12806405 Housing, Control

W10116216

Board, Control

7 12806501 Cover, Light

12806601V

Housing, Light

W10194422V

Bulb, Light (2)

12570701V

Socket, Light (2)

11 12806801 Insert,

Damper Cover

12 12990604 Screw

13 12806701 Cover, Damper

14 13012402 Insulation

W10207517

Control, Damper

18 12590621 Head, Water Filter

19 UKF8001 Filter, Water

20 12568001 Cover, Filter

21 12990504 Screw (2)

W10204292

Facade, Dispenser

W10204289

Plunger Switch

25 12575502 Switch, Limit

W10117324

Waterline,

Dispenser

29 12706112 Tank, Water

30 61006182 Union

12664501SP

Plug, Bypass

Following Parts Not Illustrated

W10119821

Harness, Control

(Refrigerator)

(Includes

Thermistor)

REFRIGERATOR DOOR PARTS

For Models: KFCS22EVWH1, KFCS22EVBL1, KFCS22EVMS1

(White) (Black) (Monochromatic Stainless)

W10268080

REFRIGERATOR DOOR PARTS

For Models: KFCS22EVWH1, KFCS22EVBL1, KFCS22EVMS1

(White) (Black) (Monochromatic Stainless)

W10268080

Illus. Part

No. No. DESCRIPTION

1 Door, Refrigerator

13094713WQ

White, LH

13094713BQ

Black, LH

13094715SQ

Stainless, LH

2 12991703 Screw

3 12744905 Door, Dairy

12369502SP

Tray, Dairy

W10184033

Bucket, Medium (3)

6 Gripper, Bucket

W10184031

Medium

W10184032

Gallon

8 Gasket, Door

W10183535

White

W10163998

Black

W10163997

Apollo Grey

9 Handle, Door

W10119642

White

W10119643

Black

W10119644

Stainless

10 13001201 Mount, Handle

11 Closure, Door

12028505W

White

12028505B

Black

12028505AP

Apollo Grey

12 Nameplate

W10046670

White

W10046640

Black

W10046610

Grey

15 12990504 Screw

17 Stop, Door

W10163249

White

W10153126

Black

W10120097

Apollo Grey

W10184034

Bucket, Gallon (2)

19 Mullion, Door

12732508W

White

12732508B

Black

12732508AP

Apollo Grey

20 12990204 Screw

21 Door, Right

13094714WQ

White

13094714BQ

Black

13094716SQ

Stainless

UNIT PARTS

For Models: KFCS22EVWH1, KFCS22EVBL1, KFCS22EVMS1

(White) (Black) (Monochromatic Stainless)

W10268080

UNIT PARTS

For Models: KFCS22EVWH1, KFCS22EVBL1, KFCS22EVMS1

(White) (Black) (Monochromatic Stainless)

W10268080

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 12992301 Screw

2 12825803 Blade, Fan

W10210985

Basepan

4 12990511 Screw

5 2264017 Capacitor

W10233569

Tube, Discharge

W10211456

Harness, Evap.

Heater

W10215085

Pan, Drain

W10216919

Screw, Shoulder

10 12729129 Heater, Defrost

W10174384

Strap, Bale

W10194431

Start Device

W10137529

Grommet, Cond (4)

15 12477102 Roller (2)

16 12992101 Screw

10835903SP

Grommet (4)

W10135026

Condenser

19 10547003 Clip, Drier

12225403WD

Tray, Drip

21 12990701 Screw

22 12726403 Evaporator

23 Dam

12225702 Right Side

12225602 Left Side

24 12825101 Motor, Fan

25 10428101 Clip, Heater

W10256742

Harness, Unit

with Power Cord

W10143759

Drier

W10164016

Compressor

(Includes items

11,12,17,27)

29 10623002 Clip, Evaporator

30 12477202 Axle, Roller (2)

W10189184

Shroud

W10119790

Box, HV Control

33 12957702 Lid, HV Box

34 12957801 Gasket, HV Box

W10120827

Board, Control

W10120821

Board, Power

Supply

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.25 Ozs.

(R−134A)
