KitchenAid KSRK25XLBL00 User manual

CABINET PARTS

For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00

(White) (Black) (Biscuit) (Stainless Steel)

9−03 Printed In U.S.A. (kdj) Part No. 8198758

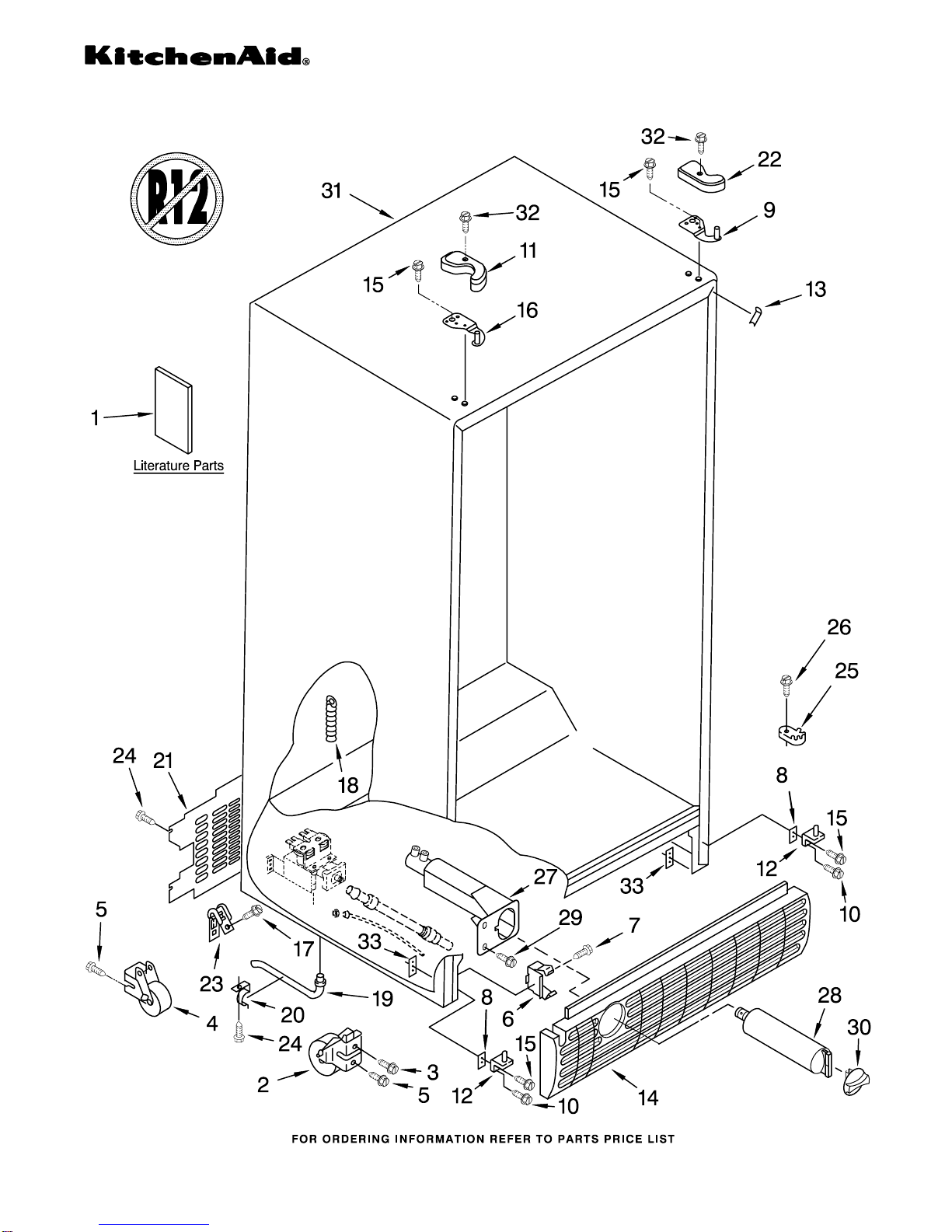

REFRIGERATOR

CABINET PARTS

For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00

(White) (Black) (Biscuit) (Stainless Steel)

8198758

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

LITERATURE PARTS

LIT2254906

Use & Care Guide

LIT2255383

Service & Wiring

Sheet

LIT2261343

Energy Label

LIT2220407

Modular Icemaker

Service Sheet

2 2174748 Front Roller (2)

3 3400517 Screw

4 2196236 Roller (Rear) (2)

5 489427 Screw

6 2155013 Clip, Grille

7 489478 Screw

8 2156056 Shim

9 2203771 Hinge Top, RC

10 3400103 Screw

11 Hinge Cover, FC

2203407W White

2203407B Black

2203407T Biscuit

12 2217075 Hinge Bottom (2)

13 Filler, Wrapper

2196094 White

2196097 Black

2196150 Biscuit

14 Grille

2186881W White

2186881B Black

2186881T Biscuit

15 489497 Screw

16 2203770 Hinge, Top FC

17 489464 Screw

18 940139 Drain Fitting

19 1108438 Tube, Extension

20 1108439 Clip, Drain Tube

21 2188739 Cover, Unit

22 Hinge Cover, RC

2203408W White

2203408B Black

2203408T Biscuit

23 549193 Clamp, Service

Cord

24 489084 Screw

25 2155311 Door Closer,

Lower Cam (2)

26 489483 Screw

27 2186443 Housing, Water

Filter

28 2203220 Water Filter

29 489500 Screw

30 Cap, Water

Filter

2186494W White

2186494B Black

2186494T Biscuit

31 Cabinet (Not A

Serviceable Part)

32 8281227 Screw

33 2203098 Plate, Screw

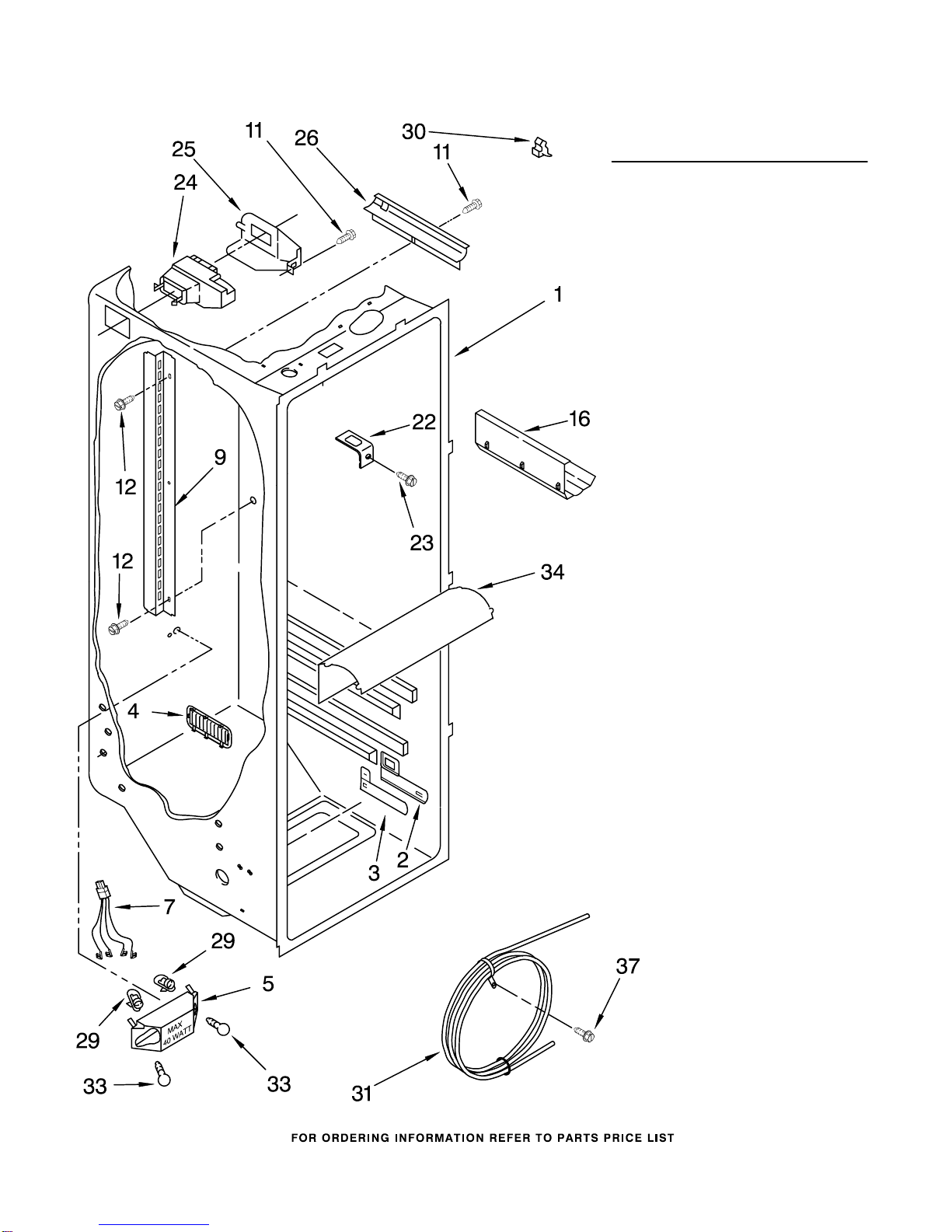

REFRIGERATOR LINER PARTS

For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00

(White) (Black) (Biscuit) (Stainless Steel)

8198758

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2194744 Escutcheon, Meat

Pan Control

3 2182757 Slide Meat

Pan Control

4 2182147 Louver

5 2256035 Bracket, Dual

Crisper Light

7 2256037 Wire Harness,

Dual Crisper

Light

9 2206273 Ladder, Shelf (2)

11 486298 Screw (2)

12 487539 Screw

16 2179404 Rack, Wine & Egg

22 1123919 Bracket Retainer

23 489290 Screw (2)

24 2209751 Air Diffuser

Assembly

25 2212240 Air Diffuser

Cover

26 2150331 Cover, Conduit

29 2162085 Socket

30 842534 Clip, Air Duct

31 2217199 Reservoir

33 527949 Light Bulb

34 2209769 Light Lens

37 488280 Screw

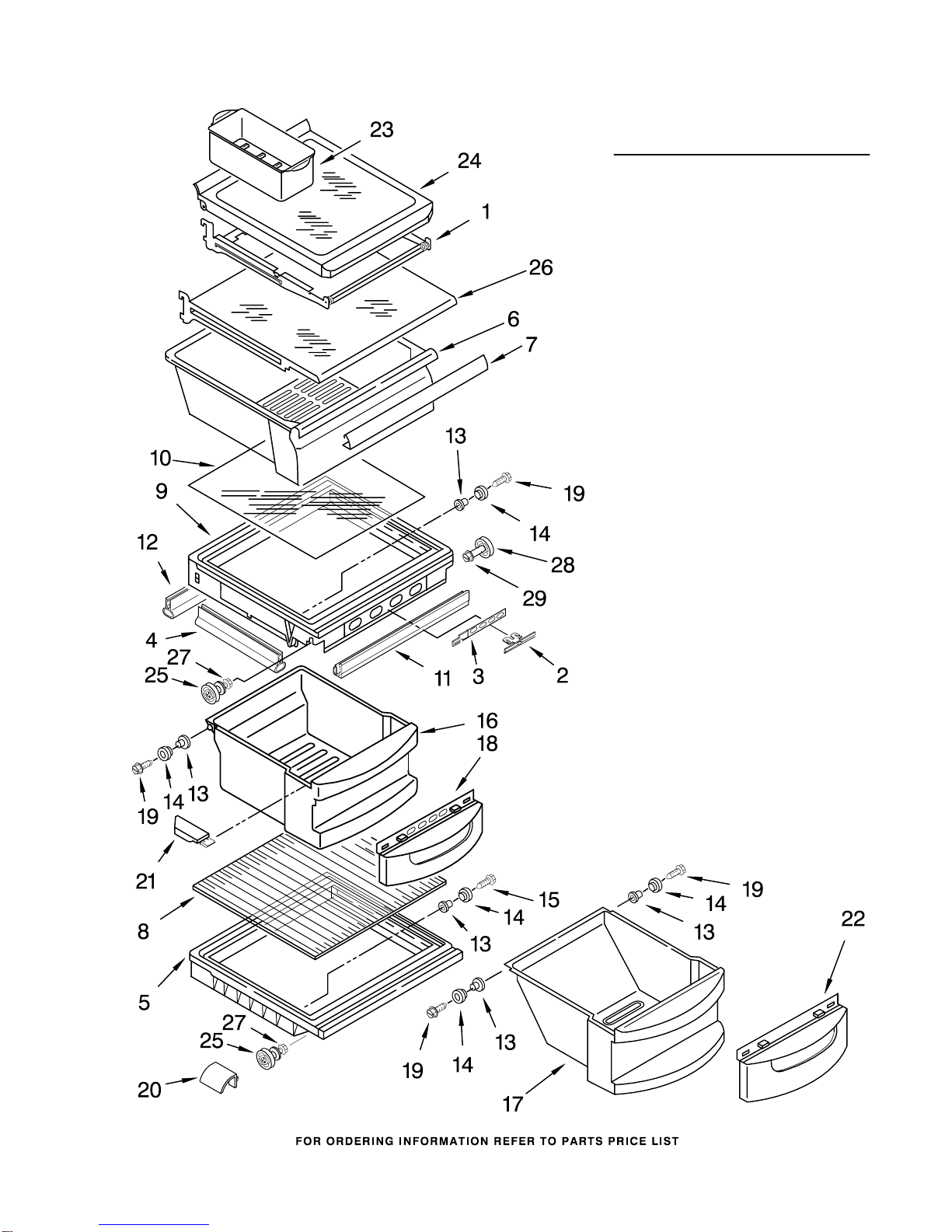

REFRIGERATOR SHELF PARTS

For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00

(White) (Black) (Biscuit) (Stainless Steel)

8198758

Illus. Part

No. No. DESCRIPTION

1 2195975 Shelf Assembly,

Cantilever (3)

2 2174253 Button, Humidity

3 2174252 Slide, Humidity

4 2174273 Gasket, Side (2)

5 2223357 Cover, Meat Pan

(Includes Items

13, 14 & 15)

6 2188669 Snack Pan

(Includes 7)

7 2179243 Trim, Handle

8 2255144 Glass, Cover

9 2256153 Cover, Crisper

(Includes 2,

3, 4, 11, 12,

13, 14 & 19)

10 2255143 Glass, Cover

11 2223361 Gasket (Front)

12 2223362 Gasket (Rear)

13 2174478 Eyelet, Roller

14 2188212 Roller

15 489211 Screw

16 2223358 Crisper Pan

(Includes 13,

14, 18, 19 & 21)

17 2223359 Meat Pan

(Includes 13,

14, 19 & 22)

18 2174076 Window, Crisper

19 489261 Screw

20 2176095 Deflector

21 Cap, Crisper Pan

2223286 Right Side

2223285 Left Side

22 2174362 Window, Meat Pan

23 2216624 Egg Bin

24 2216102 Shelf & Roller

Assembly

25 2196485 Stud Assembly

26 2206346 Shelf, Snack Pan

27 3400894 Screw

28 2196483 Stud Assembly

29 8281158 Screw

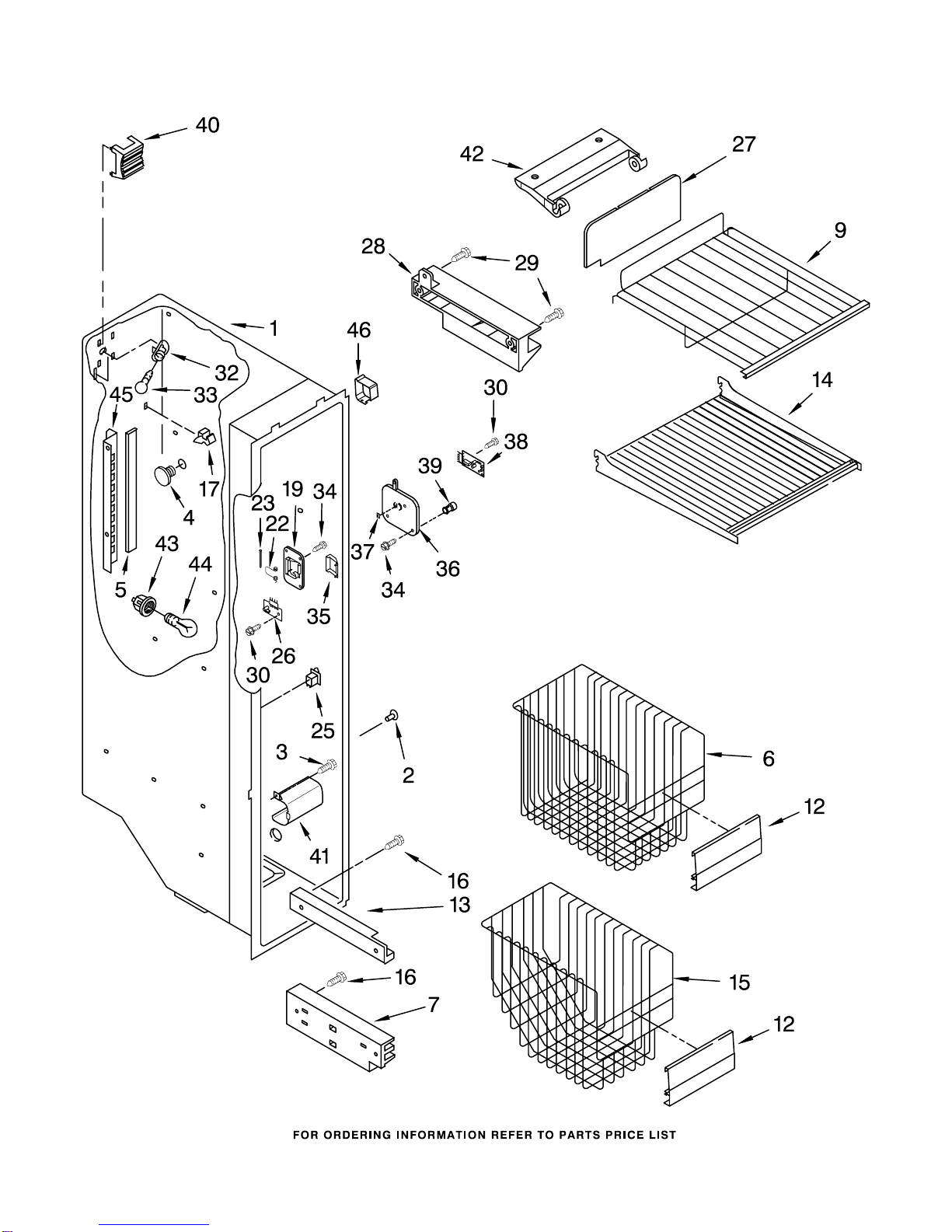

FREEZER LINER PARTS

For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00

(White) (Black) (Biscuit) (Stainless Steel)

8198758

FREEZER LINER PARTS

For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00

(White) (Black) (Biscuit) (Stainless Steel)

8198758

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 941839 Hole Plug

3 3400893 Screw

4 940014 Hole Plug

5 2198697 Gasket

6 2223539 Basket, Tall

7 Track, Basket−Dual

2223708 Right Side

2223709 Left Side

9 2211746 Shelf, Slide Out

Upper

12 2171766 Basket, Front

13 Shelf Track

2261449 Right Side

2261448 Left Side

14 2205837 Shelf

15 2223535 Basket, Sloped

16 486298 Screw

17 842534 Clip, Air Duct

19 2198587 Cover, Emitter

22 2198635 Spring

23 2198634 Pin

25 1115373 Switch, Rocker Arm

26 2220398 P.C. Board

Emitter

27 2198642 Cover, Ice Maker

28 2212321 Slide, Ice Maker

Mounting

29 489478 Screw

30 489214 Screw

32 2162085 Light Socket

33 527949 Light Bulb

34 8281185 Screw

35 2198633 Flipper

36 2198588 Cover, Receiver

37 2198637 Slide, Ice Maker

Shut Off

38 2255114 P.C. Board,

Receiver

39 2198643 Lens

40 2198589 Light Shield

41 2212340 Light Lens

42 2198641 Bracket, Ice Maker

Cover

43 2155597 Socket, Light

44 527949 Light Bulb

45 Ladder

2198609 Left Side

2198610 Right Side

46 2219878 Shield, Wiring

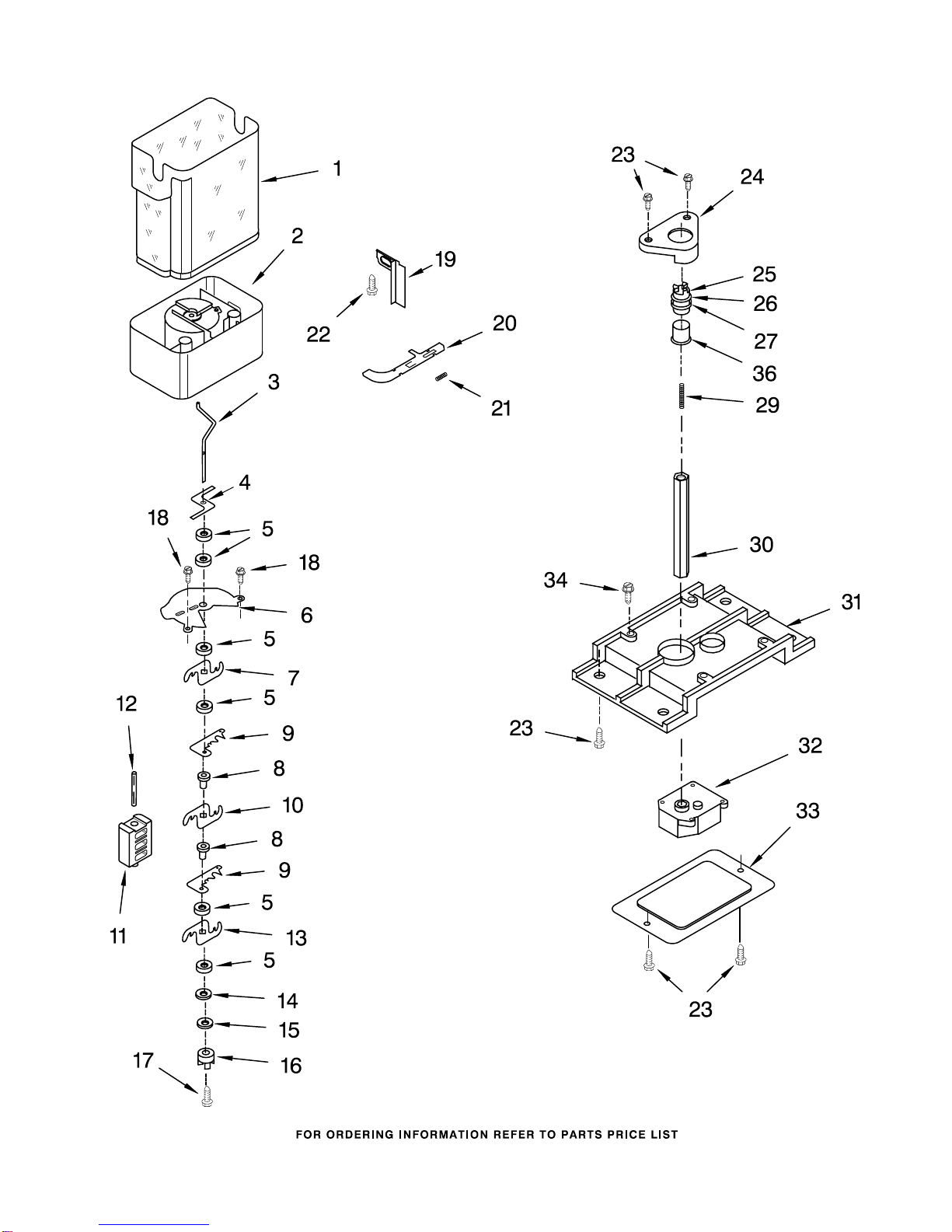

MOTOR AND ICE CONTAINER PARTS

For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00

(White) (Black) (Biscuit) (Stainless Steel)

8198758

MOTOR AND ICE CONTAINER PARTS

For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00

(White) (Black) (Biscuit) (Stainless Steel)

8198758

Illus. Part

No. No. DESCRIPTION

1 2198573 Ice Bin

2 2212367 Crusher Bin

3 2211590 Auger

4 2198603 Blade, Stirring

5 1119007 Spacer, Flat (6)

6 2255460 Cover, Crusher

7 1119013 Blade, Rotary

8 1119005 Spacer, Step (2)

9 2198601 Blade, Fixed

10 1119012 Blade, Rotary

11 2198602 Block, Blade

12 489229 Roll Pin

13 1119006 Blade, Rotary

14 489235 Washer, Plain

15 2198661 Washer, Coupling

16 2220457 Coupling

17 8281164 Screw

18 3400065 Screw

19 2198605 Button, Bin

20 2212371 Latch, Bin

21 2198608 Spring, Latch

22 2198671 Screw

23 8281163 Screw

24 2212369 Holder

25 2220458 Coupling, Bottom

26 2198628 Seal

27 2212370 Washer

29 2198607 Spring

30 999536 Drive Shaft

31 2198655 Bracket, Motor

32 2198594 Dispenser, Motor

33 2198626 Cover

34 8281162 Screw

36 2212365 Sleeve, Coupling

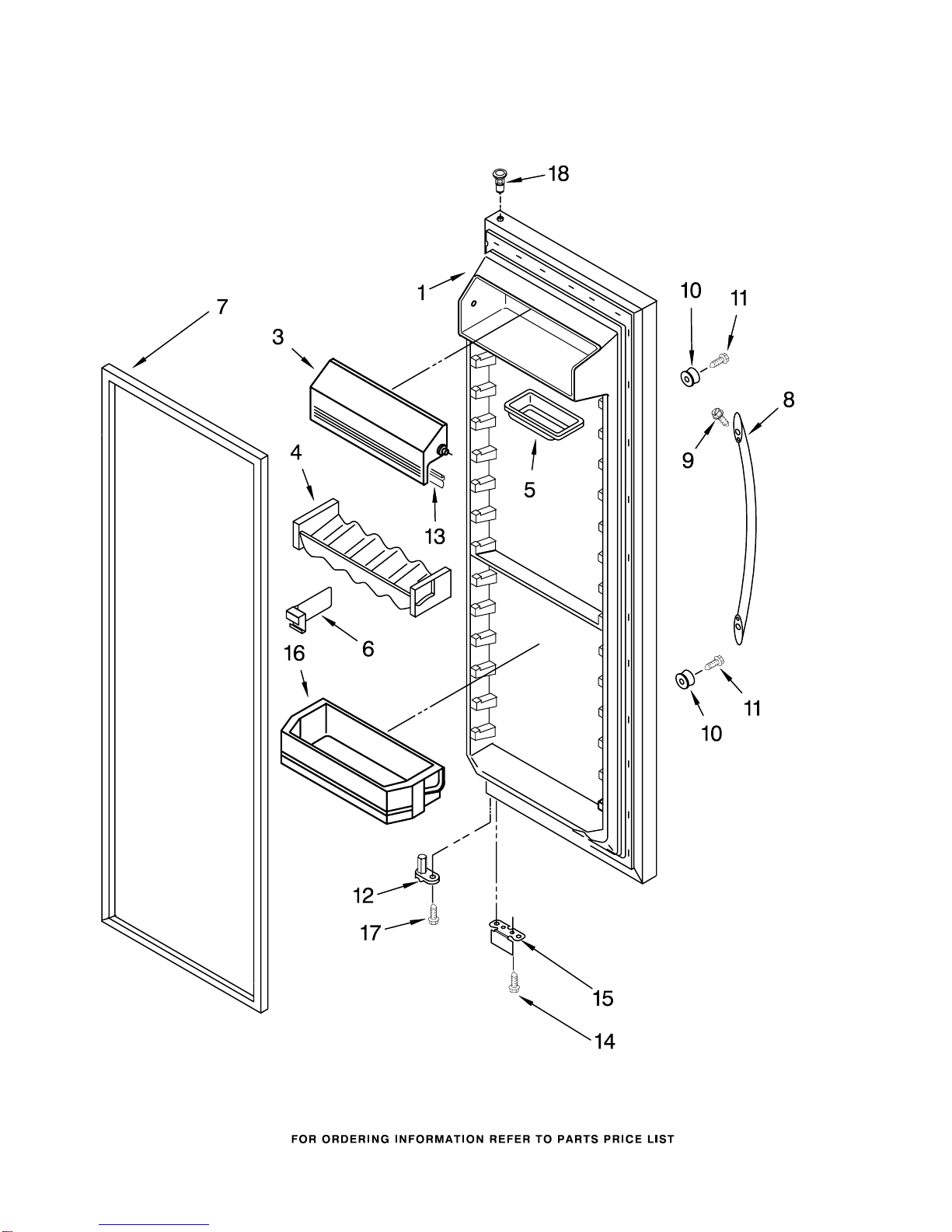

REFRIGERATOR DOOR PARTS

For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00

(White) (Black) (Biscuit) (Stainless Steel)

8198758

REFRIGERATOR DOOR PARTS

For Models: KSRK25XLWH00, KSRK25XLBL00, KSRK25XLBT00, KSRK25XLSS00

(White) (Black) (Biscuit) (Stainless Steel)

8198758

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes #7)

2219830W White

2219830B Black

2219830T Biscuit

2219830S Stainless Steel

3 2218122 Door, Compartment

4 2193409 Holder, Beverage

5 2165792 Butter Dish

6 2195497 Divider, Bin

7 Door Gasket,

Magnetic

2221302 Mist Beige

2221313 Black

8 Handle

(Includes #9)

2188635W White

2188635B Black

2188635T Biscuit

2188635S Stainless Steel

9 98654 Set Screw

10 2203690 Stud−Handle

11 488208 Screw

12 2182178 Door Closer,

Upper Cam

13 2159124 Gasket

14 489420 Screw

15 Bracket, Door Stop

2206629 Chrome

2206629B Black

16 2171063 Shelf Bin (4)

17 3400012 Screw

18 2182180 Thimble−Top
