CABINET PARTS

3−06 Litho in U.S. A. (rcg) Part No. 8214774

REFRIGERATOR

For Models: KURS24RSBS00, KURS24RSSS00

(Black Cabinet) (SS Cabinet)

CABINET PARTS

28214774

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

4344903 Energy Guide

2300274 Use & Care Guide

4344902 Wiring Diagram

2 Cabinet (Not A

Service Part)

3 4344739 Lens, Light

4 4344740 Bulb, Light

5 4344746 Heater, Defrost

6 4344747 Heat Shield

7 4344761 Grille

8 4344762 Plate, Bottom

9 4344763 Foot, Leveling

10 4344764 Brace, Support

11 4344765 Control Box

12 Frame, Side

4344769 Left Side

4344770 Right Side

13 4344771 Bracket, Grille

14 4344876 Evaporator Fan

Assembly

15 4344766 Thermostat

16 4344768 Knob, Thermostat

17 4344767 Switch, Plunger

18 4344826 Screw

19 4344797 Screw

20 4344819 Clip, Grille

21 4344825 Screw

22 4344823 Seal

23 Frame, Support

4344821 Right

4344820 Left

24 4344824 Clip, Harness

25 4344822 Harness, Wire

26 4344827 Screw

27 4344792 Thermal Fuse

28 4344793 Screw

29 4344791 Screw

30 4344783 Fan Blade

31 4344878 Screw

32 4344865 Evaporator Fan

Motor

33 4344877 Harness, Wire

34 4344832 Screw, Ground

35 4344778 Grommet, Fan Motor

36 4344899 Bracket, Motor

37 Evaporator

(Not Serviced)

For Models: KURS24RSBS00, KURS24RSSS00

(Black Cabinet) (SS Cabinet)

SHELF PARTS

8214774

Illus. Part

No. No. DESCRIPTION

1 4344741 Wire Shelf

2 Bracket, Shelf

4344742 Right Side

4344743 Left Side

3 4344744 Basket, Crisper

4 4344745 Shelf, Crisper

5 Ladder, Shelf

4344748 Left Side

4344749 Right Side

6 4344794 Screw

7 4344795 Washer

For Models: KURS24RSBS00, KURS24RSSS00

(Black Cabinet) (SS Cabinet)

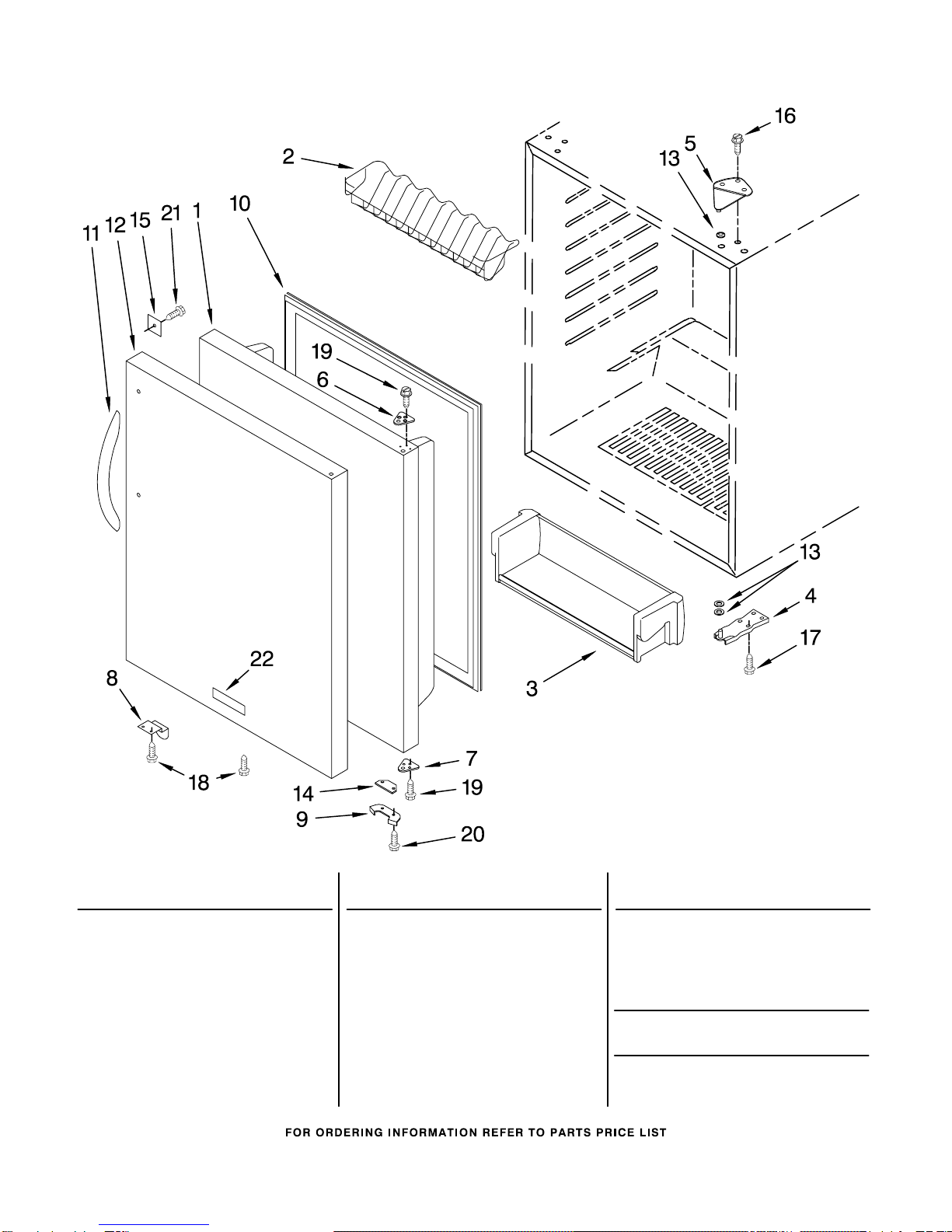

DOOR PARTS

48214774

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Models: KURS24RSBS00, KURS24RSSS00

(Black Cabinet) (SS Cabinet)

1 4344750 Door Assembly

(Includes Gasket)

2 4344751 Beverage Holder

3 4344752 Door Bin

4 4344753 Hinge, Bottom

5 4344754 Hinge, Top

6 4344755 Spacer, Top Hinge

7 4344756 Spacer,

Bottom Hinge

8 4344757 Actuator, Switch

9 4344758 Door Stop

10 4344759 Door Gasket

11 4344810 Handle, Door

12 4344811 Door Skin,

Stainless Steel

13 4344760 Washer

14 4344788 Spacer, Door

15 4344809 Plate

16 4344796 Screw

17 Screw, Lower Hinge

4344906 Quantity 1

4344797 Quantity 3

18 4344827 Screw

19 4344799 Screw

20 4344801 Screw

21 4344808 Screw

22 4344813 Nameplate

OPTIONAL PARTS

NOT ILLUSTRATED

8171420 Cleaner, Stainless

Steel (12 oz)

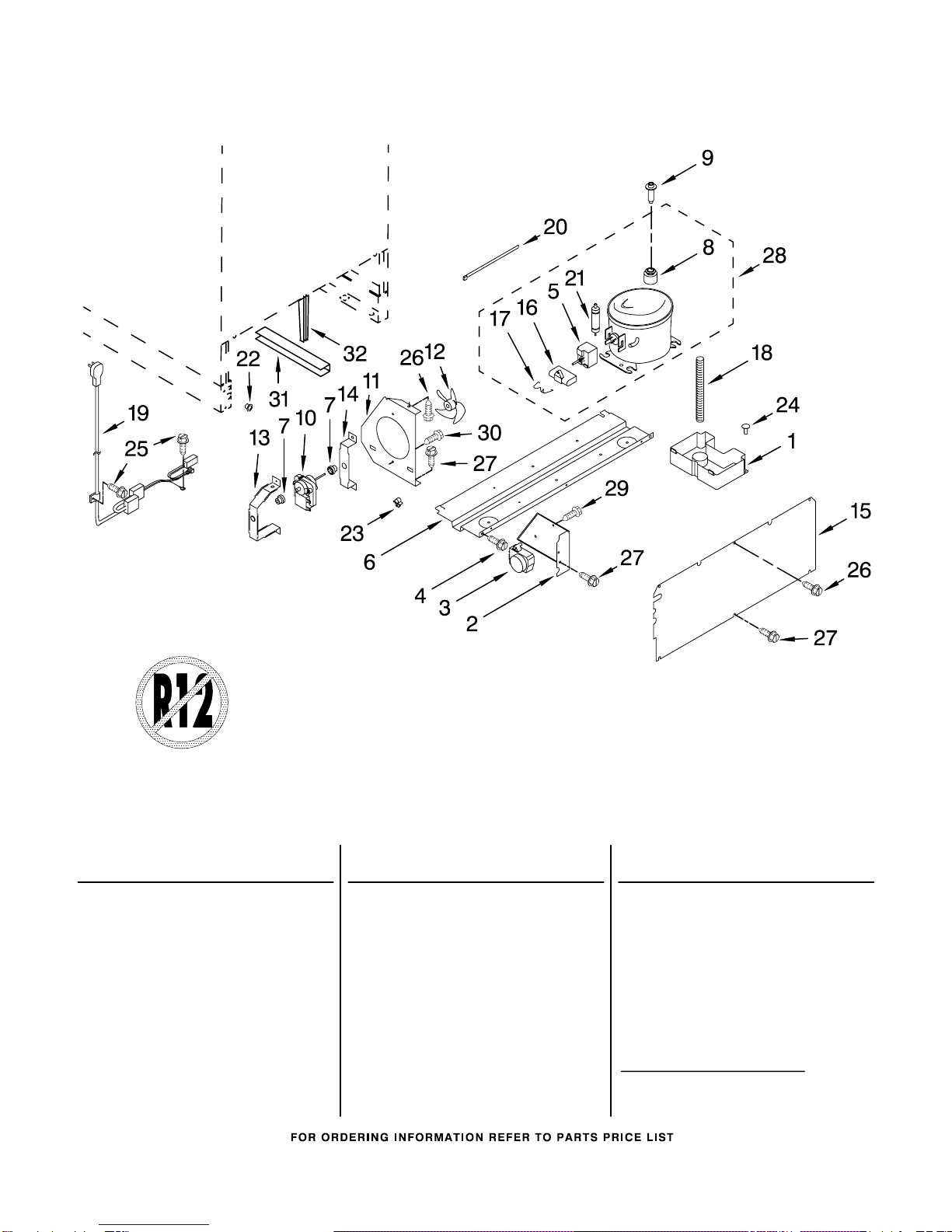

UNIT PARTS

8214774

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Models: KURS24RSBS00, KURS24RSSS00

(Black Cabinet) (SS Cabinet)

1 4344772 Drain Pan

2 4344773 Bracket,

Defrost Timer

3 4344774 Defrost Timer

4 4344797 Screw

5 4344776 Start Device

6 4344777 Mounting Plate,

Compressor

7 4344778 Grommet, Fan Motor

8 4344779 Grommet,

Compressor

9 4344780 Bolt, Compressor

10 4344781 Fan Motor,

Condenser

11 4344782 Baffle, Air

12 4344783 Fan Blade

13 4344784 Bracket, Motor

14 4344785 Bracket, Motor

15 4344786 Cover, Rear

16 4344837 Capacitor

17 4344836 Clip

18 4344839 Tube, Drain

19 4344830 Power Cord

20 4344829 Cable Tie

21 4344828 Drier

22 4344838 Bushing

23 4344831 Clip, Bushing

24 4344835 Bushing

25 4344826 Screw

26 4344825 Screw

27 4344832 Screw

28 4344775 Compressor

(Includes Items

5, 8, 16, 17 & 21)

29 4344834 Screw

30 4344833 Screw

31 4344907 Trim, Edge

32 4344908 Support, Drain

REFRIGERANT CHARGE

3.5 Ounces

(R−134A)
