KitchenAid KBFO42FSX00 User manual

CABINET PARTS

For Model: KBFO42FSX00

(Brushed Aluminum)

9−06 Litho In U.S.A. (dmm) Part No. 8214881 Rev. C

42" BOTTOM MOUNT

BUILT IN REFRIGERATOR

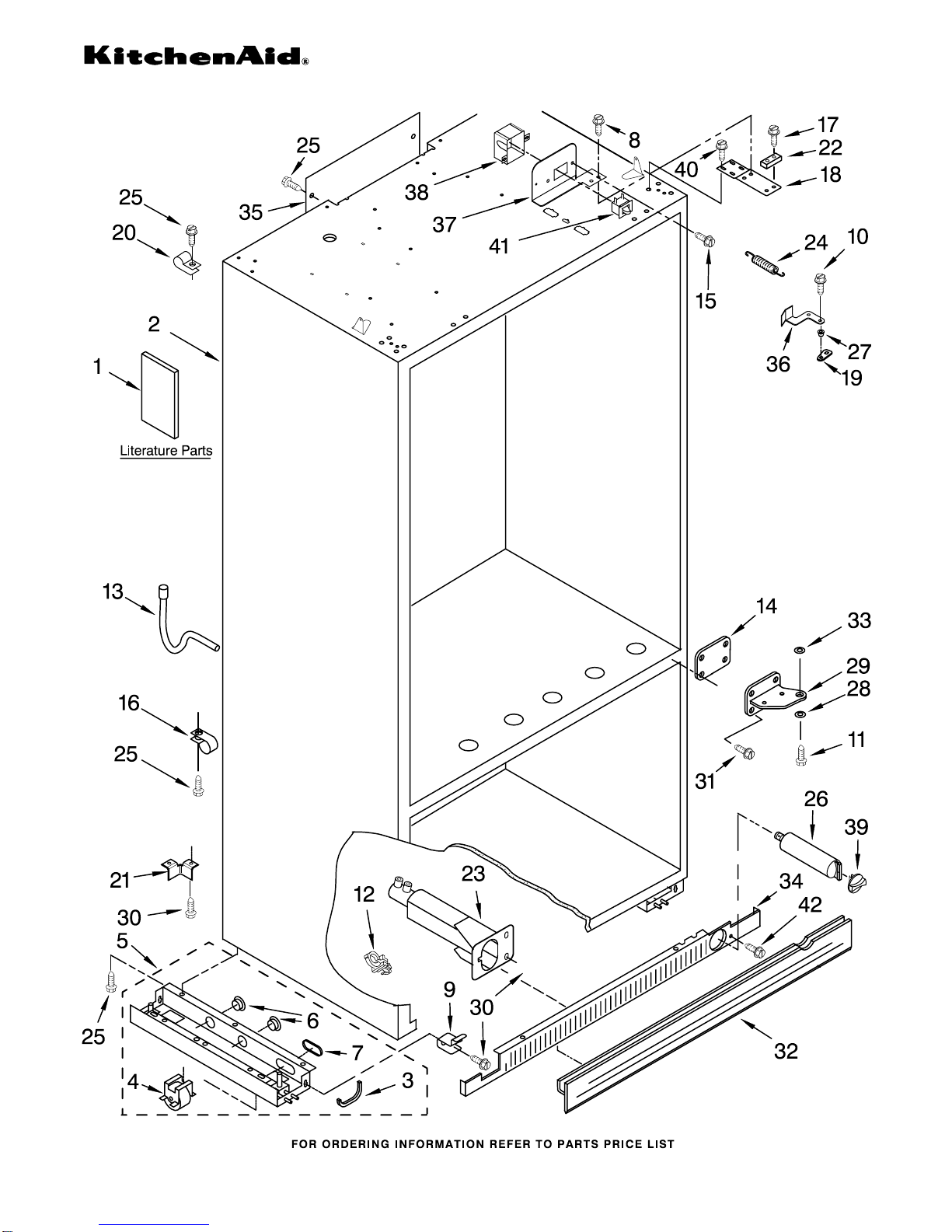

CABINET PARTS

28214881

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2317821 Use & Care Guide

2309317 Energy Label

2316852 Service & Wiring

Sheet

2317849 Main Control

Service Sheet

2317840 Modular Icemaker

Service Sheet

2309309 Installation

Instructions

2 Cabinet (Not A

Serviceable Part)

3 2005004 Grommet, Crossover

Tube

4 1112023 Roller,

Front & Rear (4)

5 Support, Leveler

Assembly

2004506 Refrigerator Side

2004505 Freezer Side

6 2005006 Grommet, Wiring

7 2005007 Grommet, Flexible

8 8281164 Screw

9 2006442 Mounting Bracket,

Grill

W10004850

Screw

W10004860

Screw

12 2004514 Clamp

13 2314064 Tube, Drain

14 2207470 Shim−Hinge, Door

15 487415 Screw, 8−18 x 3/8

16 2208136 Clamp, Tube

W10005070

Screw, Door Stop

18 2316759 Hinge, Door

Refrigerator Top

19 2316860 Cam−Closer,

Door

20 2221070 Clamp, Tube

21 2006617 Bracket,

Support Door

22 2316758 Stop, Door

23 2209022 Housing,

Water Filter

24 2004517 Spring,

Door Closure

25 486194 Screw

26 2255709 Filter, Water

27 2316859 Bushing−Arm,

Extension

28 2004994 Bushing, Hinge (2)

(Lock−Adjustable)

29 2302889 Hinge, Bottom

Refrigerator Door

30 489464 Screw, 8−18 x 1/2

31 489282 Screw

32 2209025B Skirt, Grille

(Bottom)

33 2314023 Bushing, Hinge (2)

34 2316607B Grille Base,

Front

35 2215612 Cover, Air Duct

36 Arm, Extension

2266882 Right

2266881 Left

37 Bracket, Switch

2221097 Right

2221096 Left

38 2215938 Cover, Switch

39 2186494B Cap, Water Filter

40 8533913 Screw

41 1118894 Switch,

Rocker Arm (2)

W10005050

Screw, 8−18 x 1/2

For Model: KBFO42FSX00

(Brushed Aluminum)

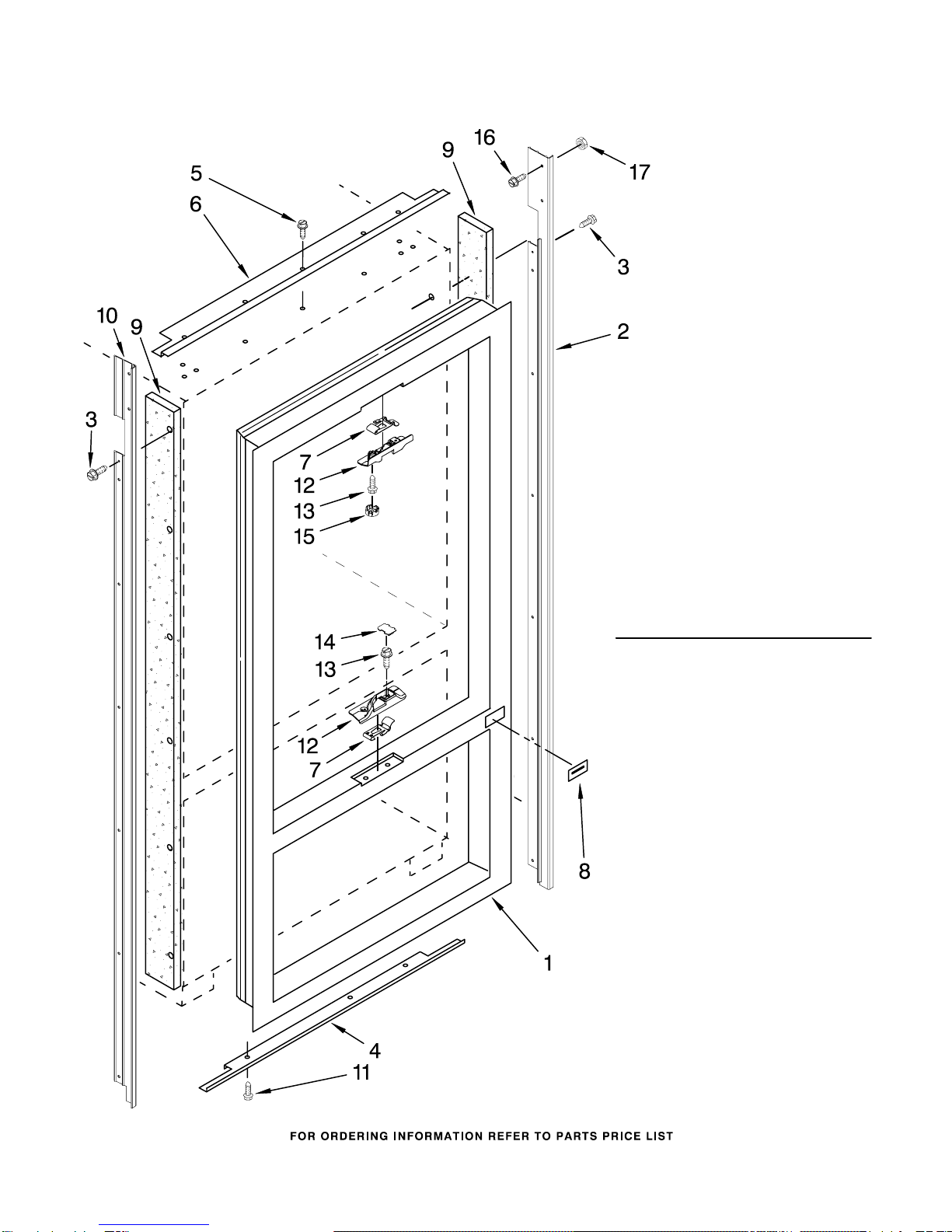

CABINET AND BREAKER TRIM PARTS

8214881

Illus. Part

No. No. DESCRIPTION

1 Breaker, Trim

(Not Serviced)

2 2317102S Cabinet Trim,

Right Side

3 1163283 Screw

4 2307783 Cabinet Trim,

Bottom

5 486194 Screw

6 2313961S Cabinet Trim, Top

7 Cam, Mullion

2316857 Top

2316858 Bottom

8 2005782 Cover, Hinge

9 2005925 Seal−Trim,Side

10 2317103S Cabinet Trim,

Left Side

11 489464 Screw, 8−18 x 1/2

12 Contact, Mullion

2309230 Top

2309231 Bottom

13 486194 Screw

14 2316899 Cover, Screw (2)

(Square)

15 2317078 Cover, Screw (2)

(Round)

16 3400235 Screw (4)

17 2207415 Nut, Hex (4)

For Model: KBFO42FSX00

(Brushed Aluminum)

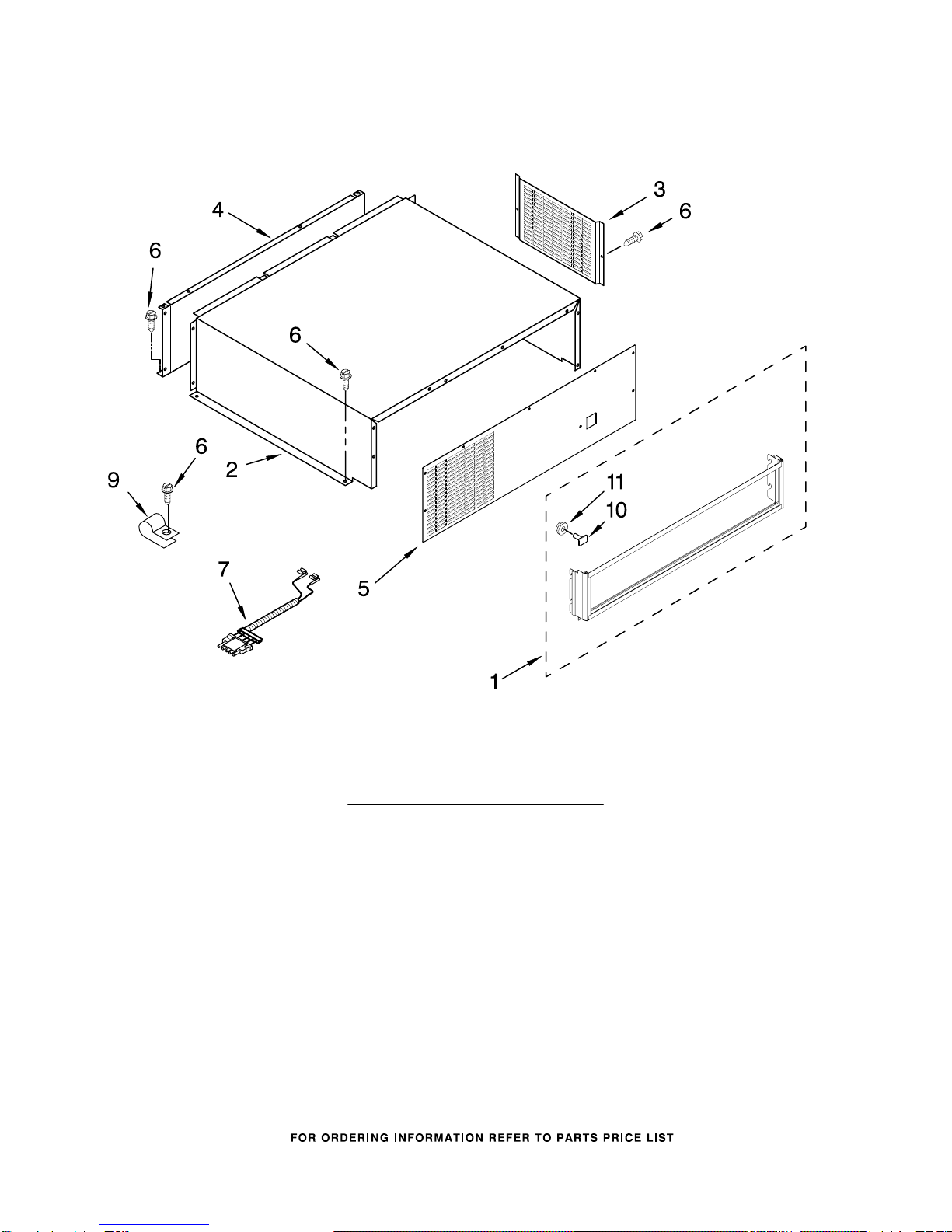

TOP GRILLE AND UNIT COVER PARTS

48214881

Illus. Part

No. No. DESCRIPTION

1 2317080S Top Grille

Assembly

2 2320502 Cover, Unit

3 2317881 Grille, Condenser

4 2256466 Back Panel

5 2307682 Front,

Unit Cover

6 487415 Screw

7 2187946 Wire Assembly,

Light Switch

9 489348 Clamp

10 2003347 Tee Bolt (4)

11 1161548 Nut (4)

For Model: KBFO42FSX00

(Brushed Aluminum)

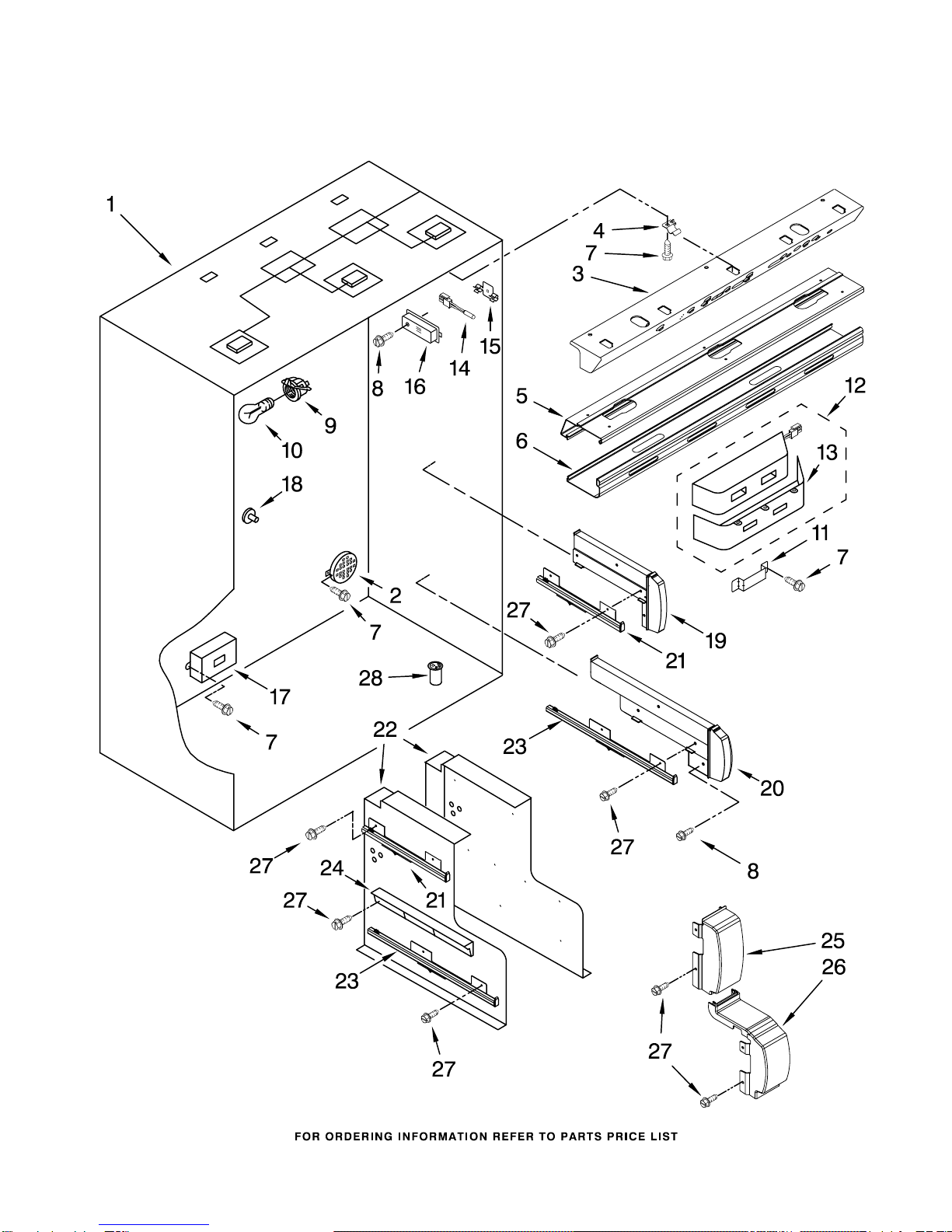

REFRIGERATOR LINER PARTS

8214881

For Model: KBFO42FSX00

(Brushed Aluminum)

REFRIGERATOR LINER PARTS

68214881

Illus. Part

No. No. DESCRIPTION

1 Liner,

Refrigerator

(Not Servicable)

2 2317004 Cover,

Air Return (2)

3 2309244 Control Box

(Complete)

4 2317000 Clip, Control Box

5 2317046 Bracket,

Light Shield

6 2309248 Shield, Light

7 487539 Screw, 8−15 x 1/2

8 488163 Screw

9 2223857 Socket, Light (3)

10 2309101 Bulb, Light (3)

11 2317917 Clip,

Diffuser Cover

12 2306499 Diffuser Assembly

13 2306480 Cover, Diffuser

14 2188820 Thermistor

15 2209204 Clip, Thermistor

16 1116793 Cover, Thermistor

17 2268249 Diffuser, Crisper

(Complete)(2)

18 2196483 Stud, Shelf

19 Spacer, Crisper

2268331 Left

2268332 Right

20 Spacer, Deli

2306475 Left

2306474 Right

21 Slide, Crisper Pan

2302952 Left (2)

2302953 Right (2)

22 Center Support

2313997 Left Half

2313996 Right Half

23 Slide, Deli Pan

2302956 Left (2)

2302957 Right (2)

24 2314054 Support,

Deli Cover (2)

25 2309083 Cover, Center

(Crisper Pans)

26 2318008 Cover, Center

(Deli Pans)

W10001160

Screw, 8−32 x 1/2

28 2171931 Valve, Tube−Body

For Model: KBFO42FSX00

(Brushed Aluminum)

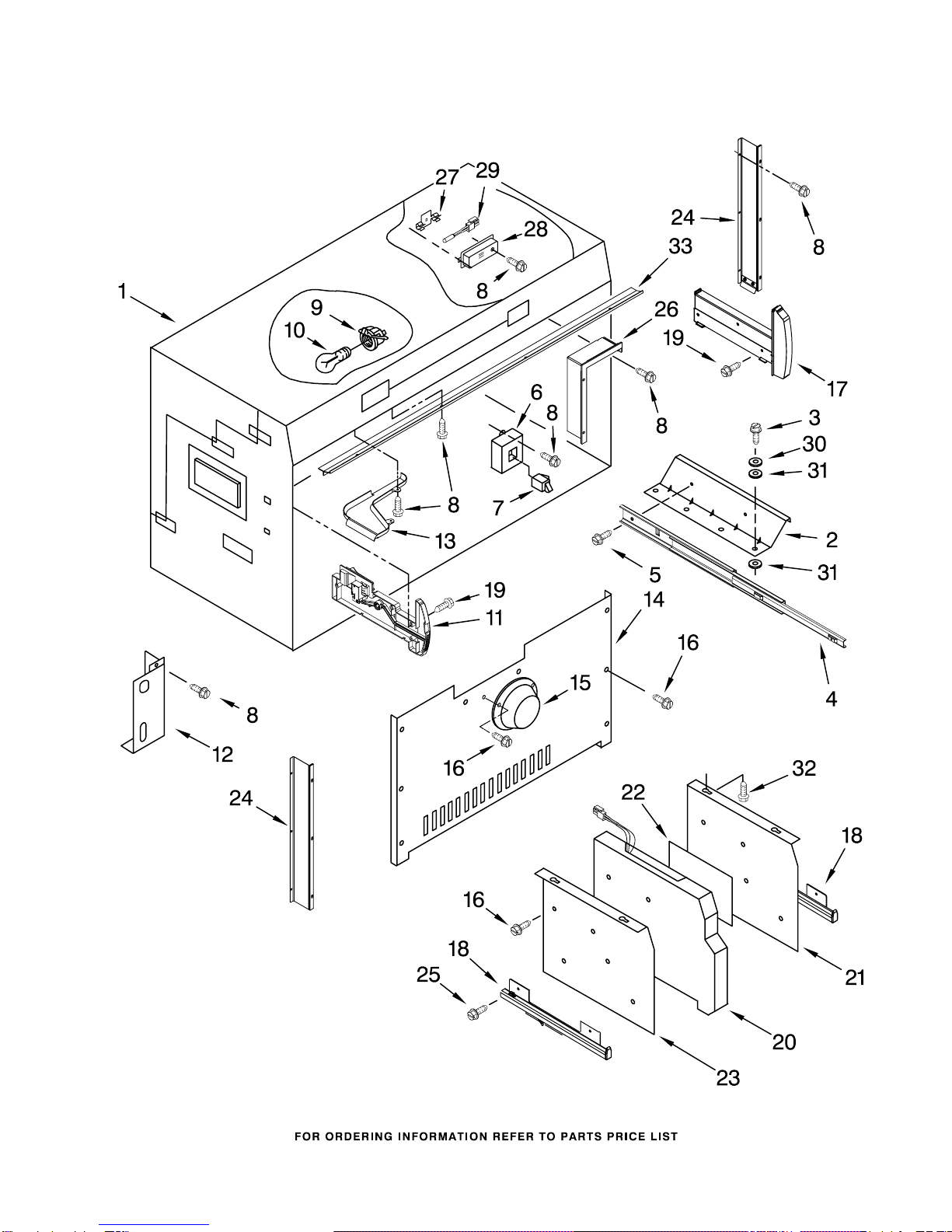

FREEZER LINER PARTS

8214881

For Model: KBFO42FSX00

(Brushed Aluminum)

FREEZER LINER PARTS

88214881

Illus. Part

No. No. DESCRIPTION

1 Liner, Freezer

(Not Servicable)

2 2306425 Mounting Bracket,

Drawer Slide (2)

W10071460

Screw

4 2309297 Drawer Slide,

Freezer Basket (2)

W10061370

Screw

6 2314022 Cover,

Light Switch

7 1118894 Switch, Rocker

8 486194 Screw

9 2223857 Socket, Light

10 2309101 Bulb, Light

11 2268299 Switch Assembly,

Icemaker (Includes

Emitter)

12 2306187 Cover, Wiring

(Icemaker)

13 2317005 Duct, Air Flow

(Icemaker)

14 2306100 Cover, Evaporator

15 2317829 Cover,

Evaporator Fan

16 487539 Screw

17 2306106 Spacer, Drawer

(Right Side)

18 Slide, Freezer Bin

2306117 Left (2)

2306116 Right (2)

19 488163 Screw

20 2317925 Divider,

Freezer Bins

(Includes

Receiver)

21 2306104 Support, Slide

(Right)

22 2317927 Shield

23 2306105 Support, Slide

(Left)

24 Bracket,

Evaporator Cover

2320512 Left Side

2317893 Right Side

W10071540

Screw

26 2320513 Bracket,

Air Return

27 2209204 Clip, Thermistor

28 1116793 Cover, Thermistor

29 2188820 Thermistor

W10075920

Washer

31 2320526 Washer (EPDM)

32 8533928 Screw

33 2317943 Gasket,

Air Deflector

For Model: KBFO42FSX00

(Brushed Aluminum)

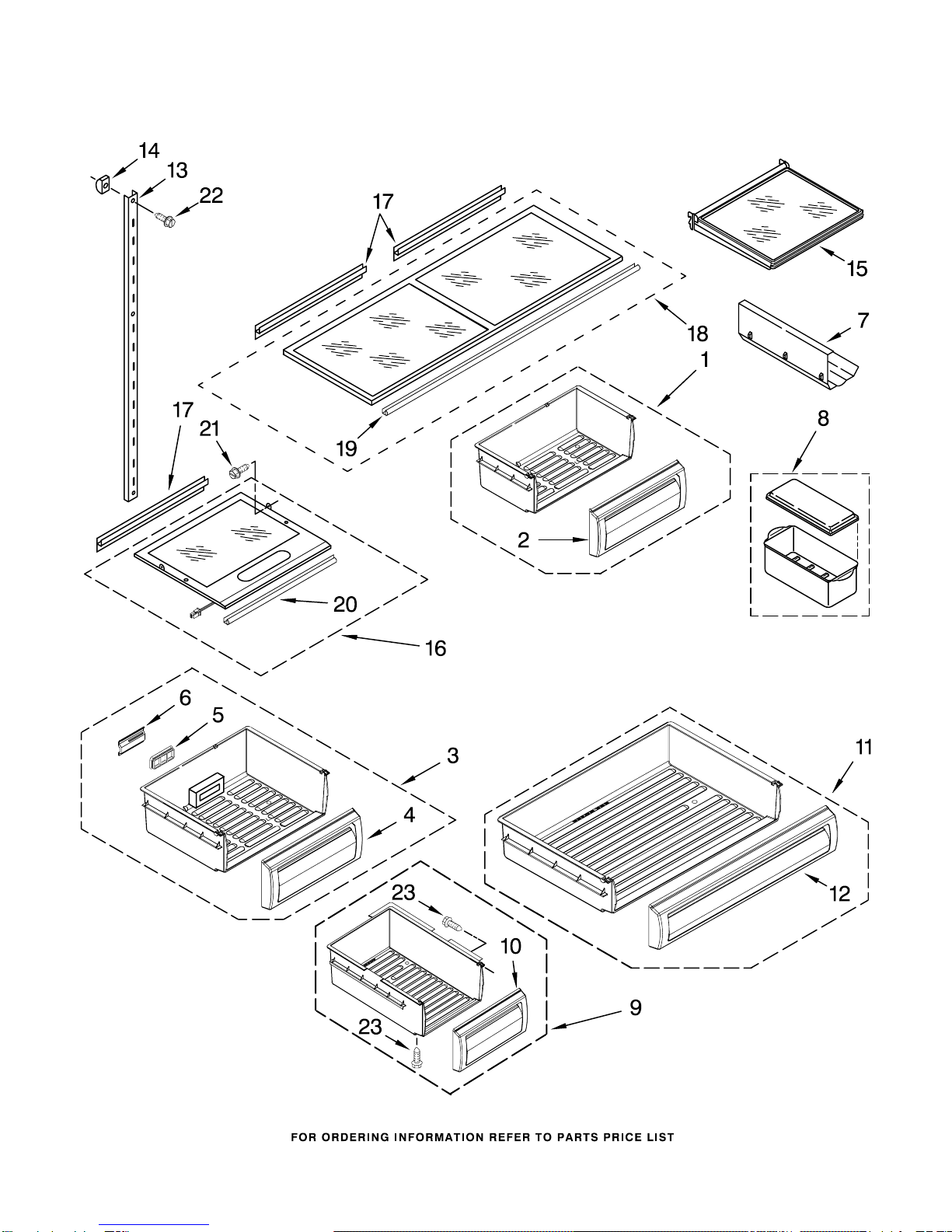

SHELF PARTS

8214881

For Model: KBFO42FSX00

(Brushed Aluminum)

SHELF PARTS

10 8214881

Illus. Part

No. No. DESCRIPTION

1 Crisper Pan

Assembly

(Includes # 2)

2268173 Left

2268171 Right

2 2256247 Front, Crisper Pan

3 Deli Pan Assembly

(Incl. #4, 5 & 6)

2317940 Left

2317941 Right

4 2256365 Front, Deli Pan

5 2307810 Duct, Deli Pan

6 2317939 Air Deflector

7 2179404 Rack, Wine

8 2221071 Egg Bin

9 2306174 Ice Pan Assembly

(Includes # 10)

10 2306175 Front, Ice Pan

11 2306154 Freezer Pan

Assembly

(Includes # 12)

12 2256367 Front, Freezer Pan

13 2306457 Ladder, Shelf (4)

14 520965 Support, Ladder

15 2268246 Shelf (4)

16 Cover, Deli Bin

2309008 Left

2309009 Right

17 2309400 Gasket, Rear

18 2309045 Cover, Crisper

19 2309396 Gasket, Front

(Crisper Cover)

20 2309395 Gasket, Front (2)

(Deli Cover)

21 8281251 Screw

22 2006475 Screw

23 488886 Screw, 8−18 x 1/2

For Model: KBFO42FSX00

(Brushed Aluminum)
