KitchenAid KBLC36FKB01 User manual

CABINET PARTS

For Models: KBLC36FKB01, KBLC36FKS01

(Black) (Stainless Steel)

6−03 Litho In U.S.A. (rcg) Part No. 8198079

36" BOTTOM MOUNT

BUILT IN REFRIGERATOR

CABINET PARTS

For Models: KBLC36FKB01, KBLC36FKS01

(Black) (Stainless Steel)

8198079

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT2254715

Use & Care Guide

LIT2221286

Energy Label

LIT2254723

Service & Wiring

Sheet

LIT628370

Modular Icemaker

Service Sheet

LIT2215852

Installation

Instructions

2 Cabinet (Not A

Serviceable Part)

3 2005004 Grommet, Tube

Crossover

4 1112023 Roller, Front &

Rear (4)

5 Support, Leveler

Assembly

2004506 Refrigerator Side

2004505 Freezer Side

6 2005006 Grommet, Wiring

7 2005007 Grommet,

Flexible

8 489399 Screw

9 2006442 Mounting Bracket,

Grill

10 2005921 Screw

11 1112849 Cap, Grommet

13 2204516 Tube, Drain

Condensate

14 2207470 Shim−Hinge, Door

15 2221070 Clip, Tube

16 488946 Tube, Clamp

17 2001295 Screw, Door Stop

18 2221134 Hinge, Door

Refrigerator Top

19 2005783 Cam−Closer,

Door

21 2006617 Bracket, Support

Door

22 2002903 Bushing

23 2209022 Housing, Water

Filter

24 2004517 Spring, Door

Closure

25 486194 Screw

26 2203221 Filter, Water

27 2006960 Bushing−Arm,

Extension

28 2006388 Gap, Cover

(Bottom)

29 2005101 Hinge, Bottom

Refrigerator

30 489464 Screw, 8−18 x 1/2

31 489282 Screw

32 2209024B Skirt, Grille−

Bottom

33 2006346 Washer

34 2215889B Grille Base,

Front

35 3400878 Screw

36 2209133 Cover, Rear

37 1113122 Grommet, Wiring

38 2221094 Arm, Extension

39 2221096 Bracket, Switch

40 2215938 Cover, Switch

41 1163283 Screw

42 2186494B Cap, Water Filter

43 2001415 Screw (4)

44 487415 Screw, 8−18 x 3/8

45 1118894 Switch, Rocker Arm

46 9791833 Clip

47 2207578 Clip, Snap−In (2)

CABINET AND BREAKER TRIM PARTS

For Models: KBLC36FKB01, KBLC36FKS01

(Black) (Stainless Steel)

8198079

Illus. Part

No. No. DESCRIPTION

1 Cabinet, Trim

Right Side

2215919B Black

2215919S Stainless Steel

3 1163283 Screw

4 2254724 Cabinet, Trim

(Bottom)

5 486194 Screw

6 2003645 Cabinet, Trim Top

7 Breaker Trim

(Not Serviced)

8 2005782 Cover, Hinge

9 2005925 Seal−Trim,Side

10 Cabinet Trim,

Left Side

2215936B Black

2215936S Stainless Steel

11 489464 Screw, 8−18 x 1/2

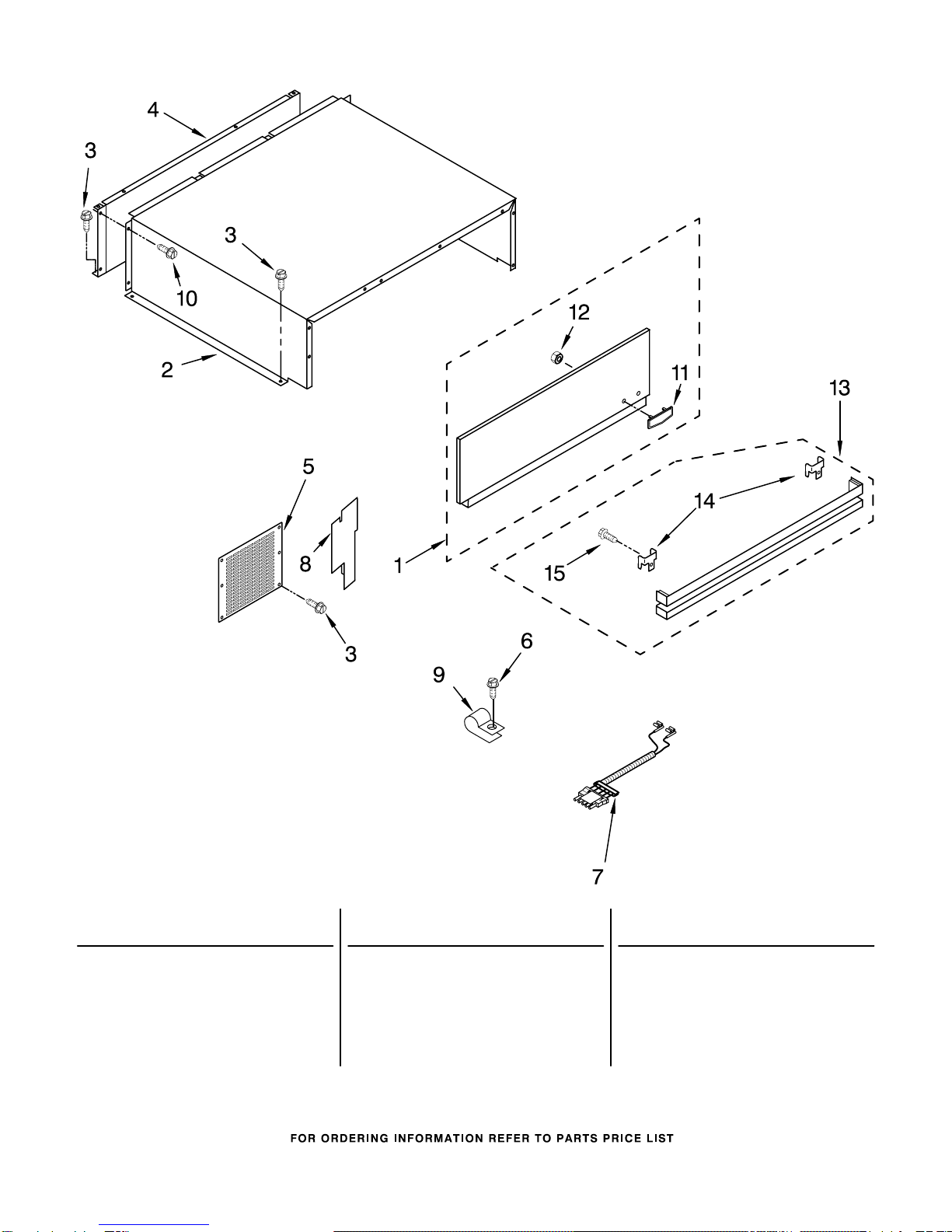

TOP GRILLE AND UNIT COVER PARTS

For Models: KBLC36FKB01, KBLC36FKS01

(Black) (Stainless Steel)

8198079

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Top Grille

Assembly

2220996B Black

2215952S Stainless Steel

2 2209490 Cover, Unit

3 1157158 Screw, 8−18 x 3/8

4 2215830 Back Panel

5 2209492 Guard, Wiring

6 487415 Screw

7 2187423 Wire Assembly

8 8201530 Baffle−Air,

Condenser

9 489348 Clamp

10 488908 Screw, 10−12 x 1/2

11 2005292 Nameplate

12 2004333 Nut

13 Louver, Vent

2215969B Black

2215969S Stainless Steel

14 2005483 Bracket, Louver

15 488879 Screw 8−32 x 5/16

LINER PARTS

For Models: KBLC36FKB01, KBLC36FKS01

(Black) (Stainless Steel)

8198079

LINER PARTS

For Models: KBLC36FKB01, KBLC36FKS01

(Black) (Stainless Steel)

8198079

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner,

Refrigerator

(Not Servicable)

2 Liner,Freezer

(Not Servicable)

3 2215610 Cover, Heat

Exchanger

4 2215827 Diffuser Cap,

Left Side

5 2005931 Diffuser Cap,

Right Side

6 2171846 Release Valve

7 487539 Screw, 8−15 x 1/2

8 486194 Screw

9 2208968 Motor, Grommet

10 2006148 Wiring Channel,

Freezer Rear

11 2215844 Foam, Fan Shroud

12 2215910 Grommet, Flexible

13 2215606 Shroud, Evaporator

Fan

14 2169142 Blade, Fan

15 2208939 Motor, Fan

16 2155590 Retainer,

Fan Motor

17 2221296 Air Baffle

Assembly

18 2215503 Bracket

19 8201595 Wiring Channel

20 2221261 Wiring Harness,

Freezer

21 2215833 Cover, Evaporator

Assembly

22 1116793 Cover, Thermistor

23 2213442 Thermistor

24 2209208 Drain Tube,

Condensate

25 2215530 Insulation, Baffle

26 2215531 Cover, Air

Diffuser

27 2204595 Heater−Tube,

Drain

28 2204538 Insulation, Tube

Drain

29 2204537 Cover, Tube

Drain

31 2215835 Housing, Switch

32 1157158 Screw, 8−18 x 3/8

33 2187377 Wire, Jumper

35 2209204 Clip, Thermistor

36 2215612 Cover, Air Duct

37 2215816 Control Panel

38 2221064 Overlay, Control

Panel

39 2209159 Circuit Board

(User Interface)

40 2215670 Slide, Control

Box

41 489464 Screw

42 2162085 Socket, Light

43 2160708 Light Bulb

44 2187424 Harness, Control

Box

45 8201534 Channel, Wiring

Freezer Light

46 1115375 Clip, Wiring

47 1115373 Switch, Rocker

48 2005792 Wiring Cover,

Icemaker

49 2187378 Defrost Bi−Metal

50 2215829 Diffuser Assembly

51 2221121 Support,

Control Box

52 489006 Screw

REFRIGERATOR SHELF PARTS

For Models: KBLC36FKB01, KBLC36FKS01

(Black) (Stainless Steel)

8198079

REFRIGERATOR SHELF PARTS

For Models: KBLC36FKB01, KBLC36FKS01

(Black) (Stainless Steel)

8198079

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Slide, Freezer

Basket

2221278 Right Side

2221279 Left Side

2 9751808 Screw, 8−15 x 1.00

3 8281158 Screw,

8−18 x 1.375

4 Spacer, Crisper

2005138 Right Side

2005139 Left Side

5 2179404 Rack, Wine

6 2216625 Egg Bin

7 2188212 Roller

8 Spacer, Bracket

2221280 Right

2221281 Left

9 2174478 Eyelet, Roller

10 489211 Screw,

10−16 x .750

11 489261 Screw

12 2169935 Cover

13 1113169 Roller Stop

14 486194 Screw

15 2005987 Support, Crisper

Shelf (2)

16 2006454 Rail, Deli

Center

17 2207549 Washer

18 2005571 Shelf (4)

19 2005429 Air Damper, Deli

20 2005151 Rail−Rear, Deli

21 2005152 Glass Shelf, Deli

22 2220883 Rail−Front, Deli

23 2005415 Control Knob, Deli

24 2006235 Screw,

10−16 x .375

25 2006252 Washer

26 2005165 Connector, Deli

Pan

27 2222655 Lid, Deli Pan

28 2005923 Hinge Rod, Deli

Pan

29 2005157 Cripser Pan

30 2005480 Handle, Crisper

Pan

31 2006253 Screw,

8−32 x .340

32 2005986 Overlay, Crisper

Pan

33 2220885 Rail−Front,

Crisper Shelf

34 2005425 Vent, Crisper

Shelf

35 2005413 Slide−Humidity,

Crisper Shelf

36 2006254 Screw,

6−19 x .250

37 2005477 Glass, Crisper

Shelf

38 2005478 Rail−Rear,

Crisper Shelf

39 2005479 Seal−Front,

Crisper Shelf

40 2005984 Insulation,

Crisper Rail

41 2005985 Baffle−Center,

Crisper Shelf

42 2005794 Center Support,

Left Half

43 2005795 Center Support,

Right Half

44 2005796 Bracket, Center

Support

45 2003478 Screw,

10−16 x .625

46 2006235 Screw,

10−16 x .375

47 2222741 Deli Pan

48 2005410 Ladder, Shelf (4)

49 2006475 Screw,

50 2005797 Ladder, Crisper

Support

51 2196483 Shelf Stud

(Includes Item 3)

52 2221260 Roller

53 2207522 Bumper

54 2207415 Nut

55 2207569 Shim

FREEZER DOOR AND BASKET PARTS

For Models: KBLC36FKB01, KBLC36FKS01

(Black) (Stainless Steel)

8198079

FREEZER DOOR AND BASKET PARTS

For Models: KBLC36FKB01, KBLC36FKS01

(Black) (Stainless Steel)

8198079

Illus. Part

No. No. DESCRIPTION

1 2188599 Freezer Door

Panel (Includes

Item 9)

2 2204525 Divider, Basket

3 2207429 Clamp, Divider

4 2207415 Nut, Crimp

5 488649 Screw

6 2005400 Filler, Foam

7 2221031 Spacer, Door

Edge − Side

8 2221033 Spacer, Door Edge

Top & Bottom

9 2188533 Door Gasket,

Magnetic

10 308544 Screw, 10−24 x 1/2

11 Handle, Door

2209095B Black

2005290 Stainless Steel

12 2204542 Roller

13 Skin, Door

2209106B Black

2005399 Stainless Steel

14 Screw, 8−15 x 1/2

8281252 Black

8281250 Stainless Steel

15 2207533 Bracket, Assembly

Freezer Basket

16 2209202 Plate, Handle

17 2005376 Basket, Upper

18 2174124 Pan, Ice Cube

19 2207454 Nut, Hex

20 2207471 Bushing

21 3400507 Screw

22 2006244 Basket, Freezer

Lower

24 2207576 Spacer

26 2207550 Roller
