KitchenAid KSSS36DWX00 User manual

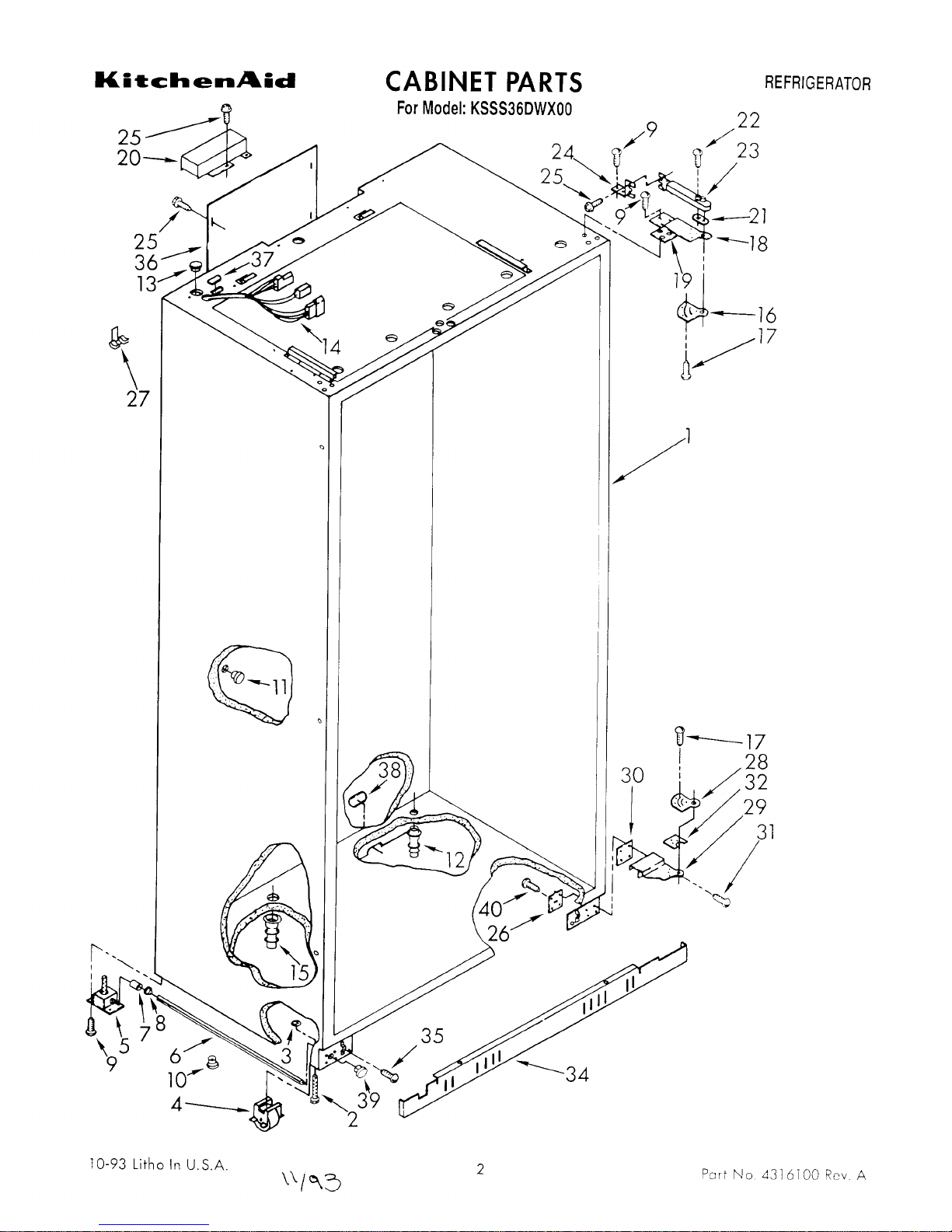

1 Cabinet (Not A Serviceable Part)

2 1112019 Leveler, Front (2)

3 1113249 Retainer (2)

4 1112023 Roller, Front & Rear (4)

5 1112695 Leveler, Adjustable (2)

6 1112936 Adjusting Rod (2)

7 1113250 Sleeve, Retainer (2)

8 1112937 Bushing, Rod (2)

9 488115 Screw, 10-32 x 5/8

10 1112939 Hole Plug, Leveler

11 1112849 Cap, Grommet

12 1112970 Grommet, Water Tube

13 1113122 Grommet, Wiring

14 1112769 Wiring Harness, Cabinet

15 1112848 Drain Fitting

16 Gap, Cover Assembly (Top)

1113217 Left Side

1113216 Right Side

17 1112906 Shoulder Screw

18 Hinge (Top)

1112901 Left Side

1112912 Right Side

19 1112988 Shim, Hinge Top (4)

20 1112805 Guard, Wiring

21 1112907 Door Closer, Fixed Cam

22 487818 Screw, 8-32 x 5/16

23 1112992 Door Closer Assembly (2)

24 Bracket, Door Closer

1112947 Left Side

1112948 Right Side

25 486194 Screw,8x1/2

26 1112973 Tap Plate, Hinge Butt (2)

27 1113227 Fastener (3)

28 Gap, Cover Assembly (Bottom)

1113217 Left Side

1113216 Right Side

29 Hinge (Bottom)

1112919 Left Side

1112923 Right Side

30 1112942 Shim, Hinge Bottom (4)

31 489237 Screw, 1/4-28 x 3/4

32 1113809 Spacer, Lower Door Hinge

34 1112137 Grille Base, Front

35 489238 Screw (6)

36 1112835 Cover, Rear

37 1113123 Grommet, Wiring

38 1113079 Grommet, Flexible

39 1112926 Grommet, Tube

40 488248 Screw,8x3/4

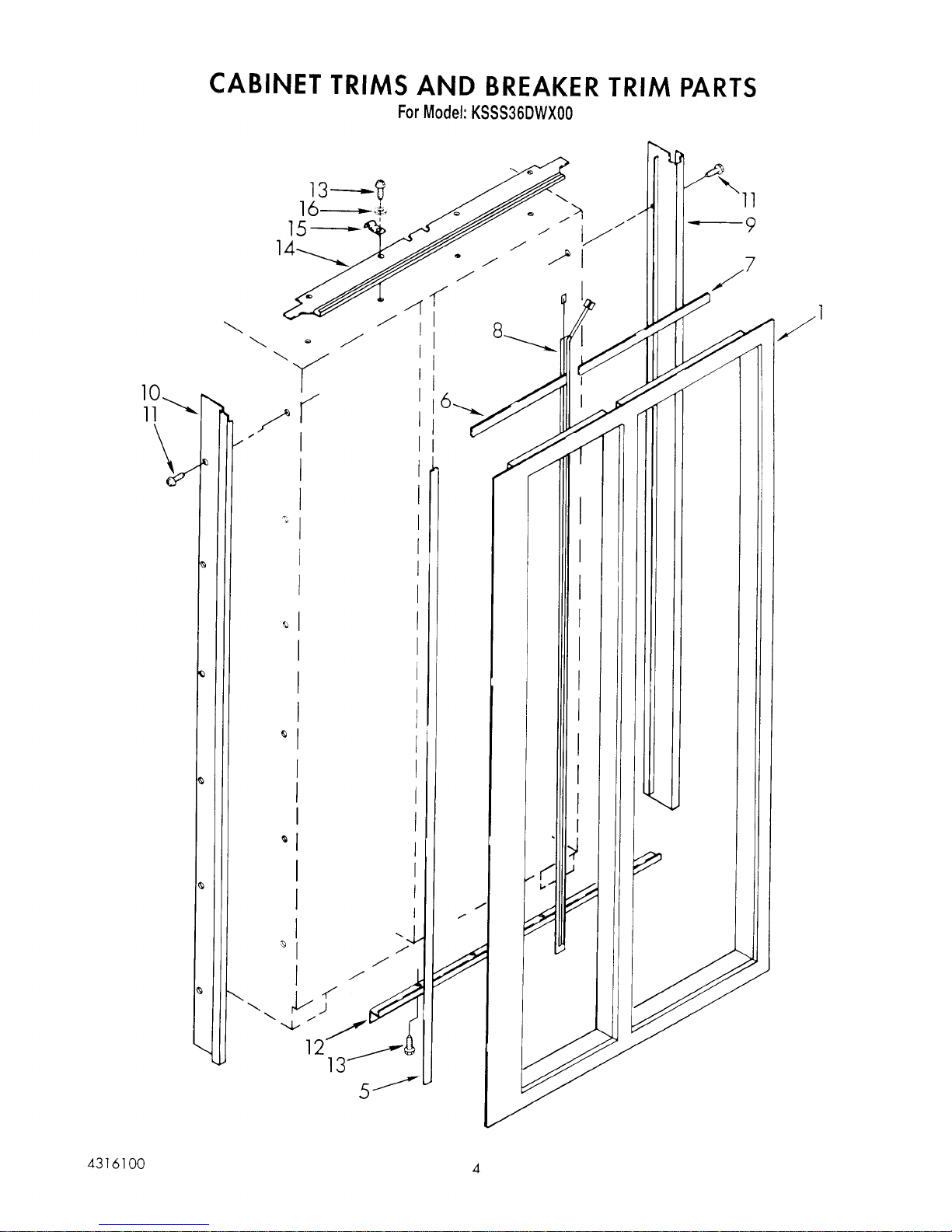

1 1112665 Breaker Trim & Retainer Assembly

5 1112682 Magnet, Side (4)

6 1112683 Magnet, Freezer (2)

7 1112679 Magnet, Refrigerator (2)

8 1112710 Heater, Mullion

9 1113836 Trim (R.S.)

10 1113835 Trim (L.S.)

11 489238 Screw (12)

487246 Screw (Repair)

12 1112800 Trim (Bottom)

13 488649 Screw, 8-32 x 1/2 (8)

14 1113842 Spacer Trim, Grille

15 1113604 Retainer, Unit Base (2)

16 487944 Washer (2)

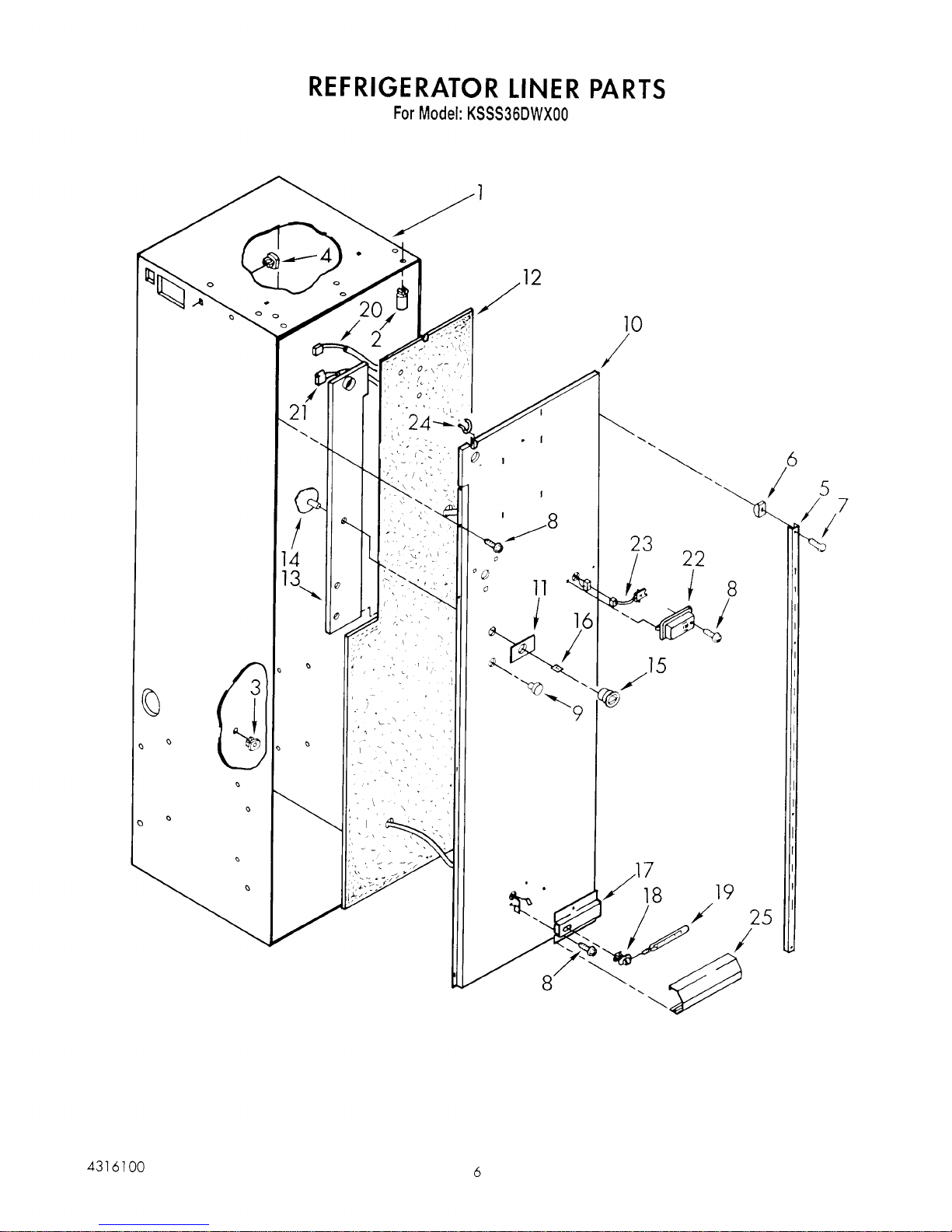

1 LINER (Not A Serviceable Part)

2 1112591 Spacer, Control Panel (3)

3 843436 Grommet, Screw (3)

4 842339 Grommet

5 1112115 Ladder, Shelf (2)

6 520965 Screw Support, Ladder (8)

7 488357 Screw, 8 x 1-1/4 (8)

8 486194 Screw,8x1/2

9 1112257 Hole Plug

10 1112126 Cover, Liner Back

11 1112219 Control Panel Assembly (Meat)

12 1112133 Insulation, Liner Back Cover

13 1112132 Duct, Meat Pan

14 1112218 Damper Control, Meat Pan

15 1112258 Control Knob, Meat Pan

16 837444 Retainer, Knob

17 1112789 Bracket, Light

18 1112613 Socket, Light

19 547225 Light Bulb

20 1112993 Wiring Harness, Air Baffle

21 1112709 Wiring Harness, Light Socket

22 1116793 Cover, Thermistor

23 1116959 Thermistor

24 1113078 Flexible Grommet

25 1112788 Shield, Light

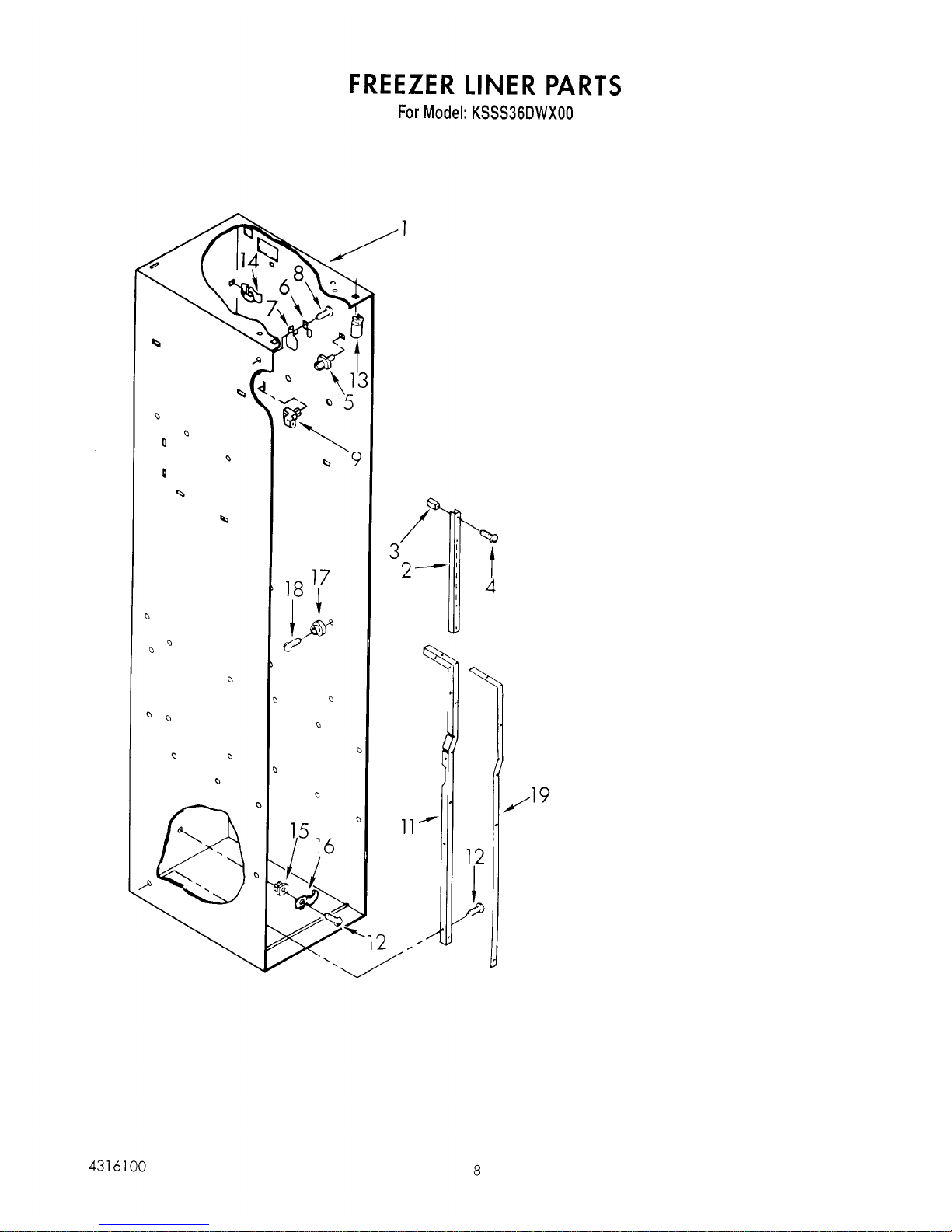

1 Liner (Not A Serviceable Part)

2 1112272 Ladder, Shelf (2)

3 1112271 Spacer, Ladder (4)

4 489193 Screw (4)

5 521516 Stud, Shelf (4)

6 538533 Support Clip, Icemaker (2)

7 538532 Grommet, Screw (2)

8 488552 Screw, 10-12 x 3/8 (2)

9 992720 Stud, Support (4)

11 Rail, Evaporator Cover

1112841 Left Side

1112842 Right Side

12 486194 Screw,8x1/2

13 1112591 Spacer, Control Panel (3)

14 842534 Clip, Air Duct (4)

15 842339 Grommet (15)

16 1112260 Support, Evaporator

17 658944 Stud, Shelf (8)

18 487559 Screw, 8-15 x 1-1/4 (8)

19 1112843 Gasket, Evaporator Cover (2)

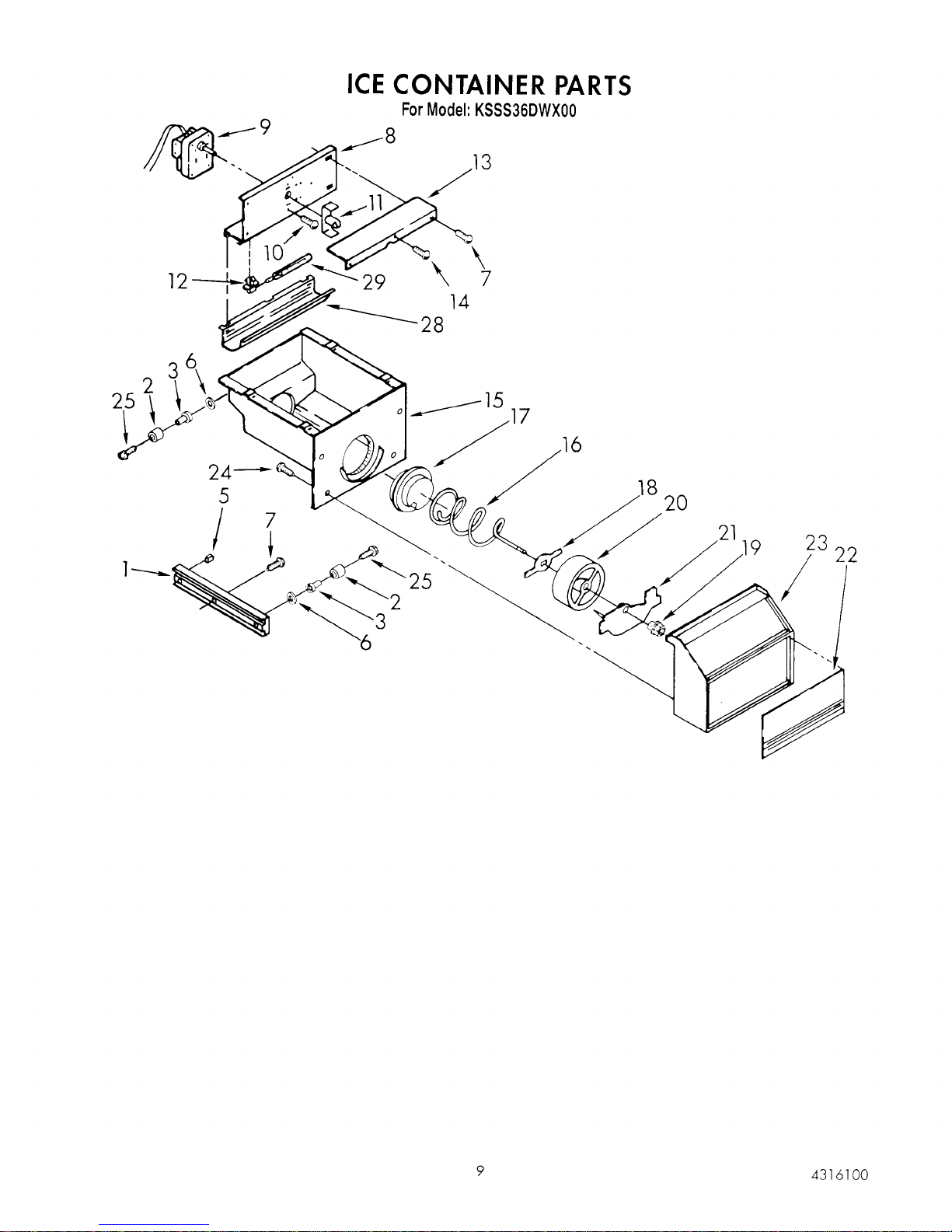

1 Spacer, Track

1112282 Left Side

1112281 Right Side

2 1113870 Roller

3 1113871 Eyelet, Roller

4 489211 Screw, 10-16 x 5/8

5 1113169 Stop, Roller

6 488307 Washer

7 486194 Screw,8x1/2

8 1112291 Bracket, Motor

9 1113960 Motor Assembly

10 488906 Screw, 8-32 x 5/16

11 983663 Coupling, Motor

12 1112613 Socket, Light

13 1113128 Cover, Motor

14 487294 Screw, 8-32 x 3/8

15 1112285 Ice Container

16 1112378 Conveyor

17 983668 Coupling, Conveyor

18 946192 Drive Bar, Drum

19 946195 Bearing Nut

20 946193 Drum

21 946194 Baffle

22 1112385 Overlay, Cover

23 1112380 Front Cover

24 488886 Screw, 8-18 x 1/2 (5)

25 489211 Screw, 10-16 x 3/4

28 1113140 Lens, Dispenser
