KitchenAid KSSS42QDX03 User manual
1

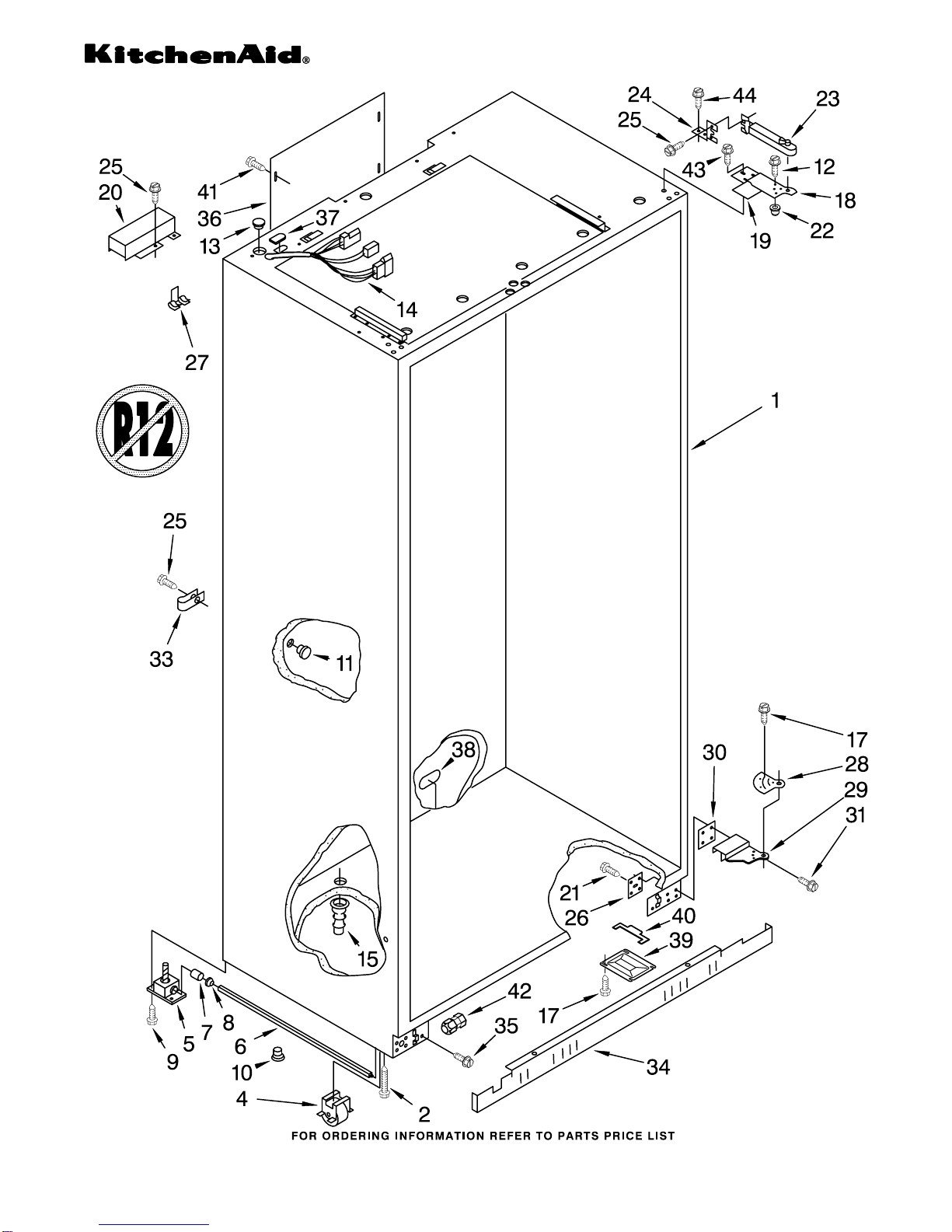

CABINET PARTS
For Model: KSSS42QDX03
6−96 Litho In U.S.A. (tlf) Part No. 4394438
42" BUILT IN
REFRIGERATOR
2
CABINET PARTS
For Model: KSSS42QDX03
4394438
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Cabinet (Not A
Serviceable Part)
2 1112019 Leveler, Front (2)
4 1112023 Roller, Front &
Rear (4)
5 1112695 Leveler,
Adjustable (2)
6 2000670 Adjusting Rod (2)
7 1113250 Sleeve,
Retainer (2)
8 1112937 Bushing, Rod (2)
9 489359 Screw
10 1112939 Hole Plug, Leveler
11 1112849 Cap, Grommet
12 2002902 Stop Screw
13 1113122 Grommet, Wiring
14 2002804 Wiring Harness,
Cabinet
15 1112848 Drain Fitting
17 2001295 Shoulder Screw
18 Hinge (Top)
2001976 Left Side
2001975 Right Side
19 2000770 Shim, Hinge
Top
20 1112805 Guard, Wiring
21 487534 Screw (2)
22 2002903 Bushing
23 1112992 Door Closer
Assembly (2)
24 2000333 Bracket, Door
Closer
25 486194 Screw
26 1112973 Tap Plate,
Hinge Butt (2)
27 1113227 Fastener (3)
28 Gap, Cover
Assembly (Bottom)
2003386 Left Side
2003387 Right Side
29 Hinge (Bottom)
2001978 Left Side
2001977 Right Side
30 1112942 Shim, Hinge (1)
1112943 Shim, Hinge (2)
31 2000490 Screw
33 2001266 Tube clamp
34 2001963 Grille Base,
Front
35 489238 Screw (6)
36 2000684 Cover, Rear
37 1113123 Grommet, Wiring
38 1113079 Grommet, Flexible
39 2003472 Cup, Wiring
40 2003474 Seal
41 2001377 Screw
42 2150347 Union
43 2001415 Screw (4)
44 489359 Screw
3

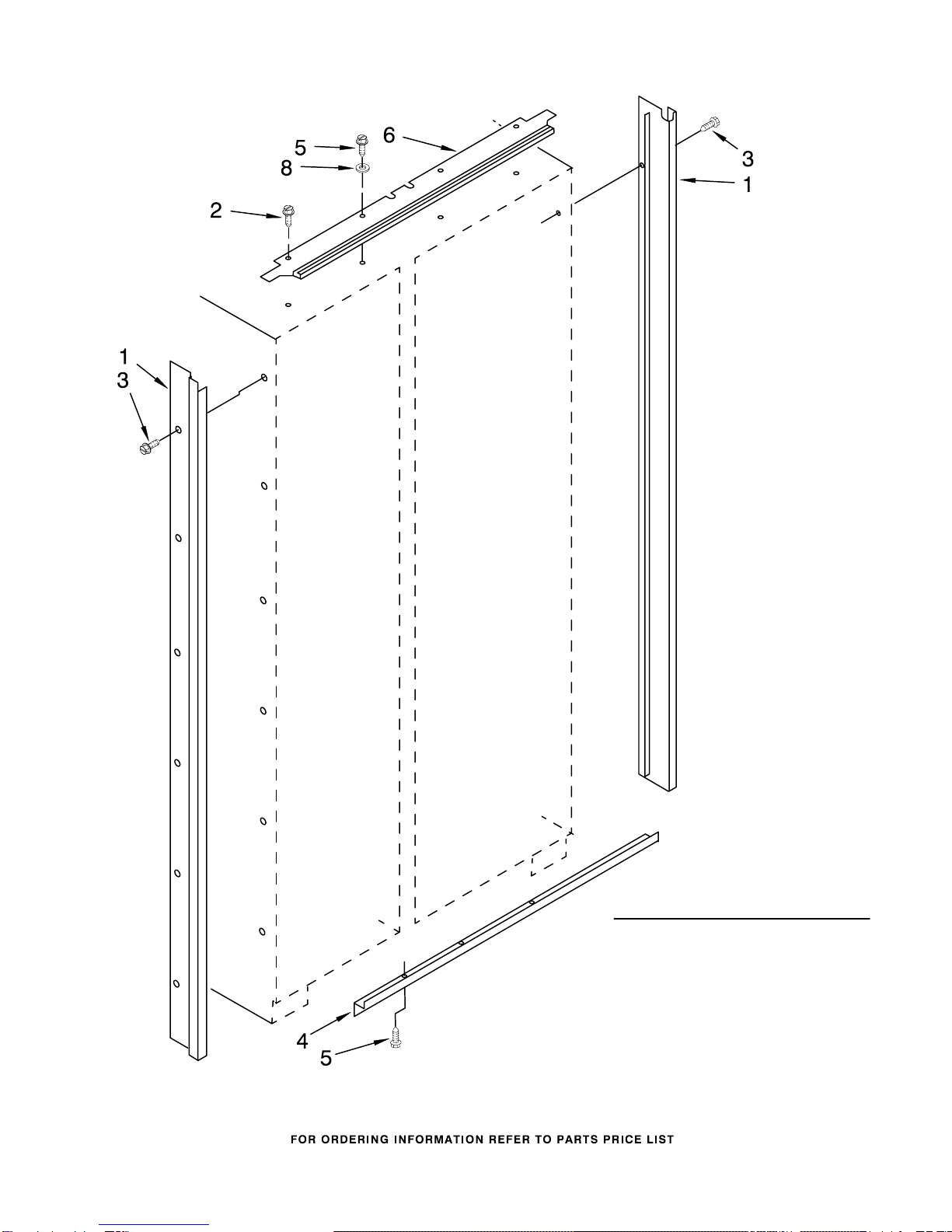

CABINET TRIM PARTS
For Model: KSSS42QDX03
4394438
Illus. Part
No. No. DESCRIPTION
1 2003643 Cabinet, Trim (2)
2 2003857 Screw
3 2001297 Screw
4 2003591 Cabinet, Trim
(Bottom)
5 488649 Screw
6 2003646 Cabinet, Trim Top
8 487944 Washer (2)

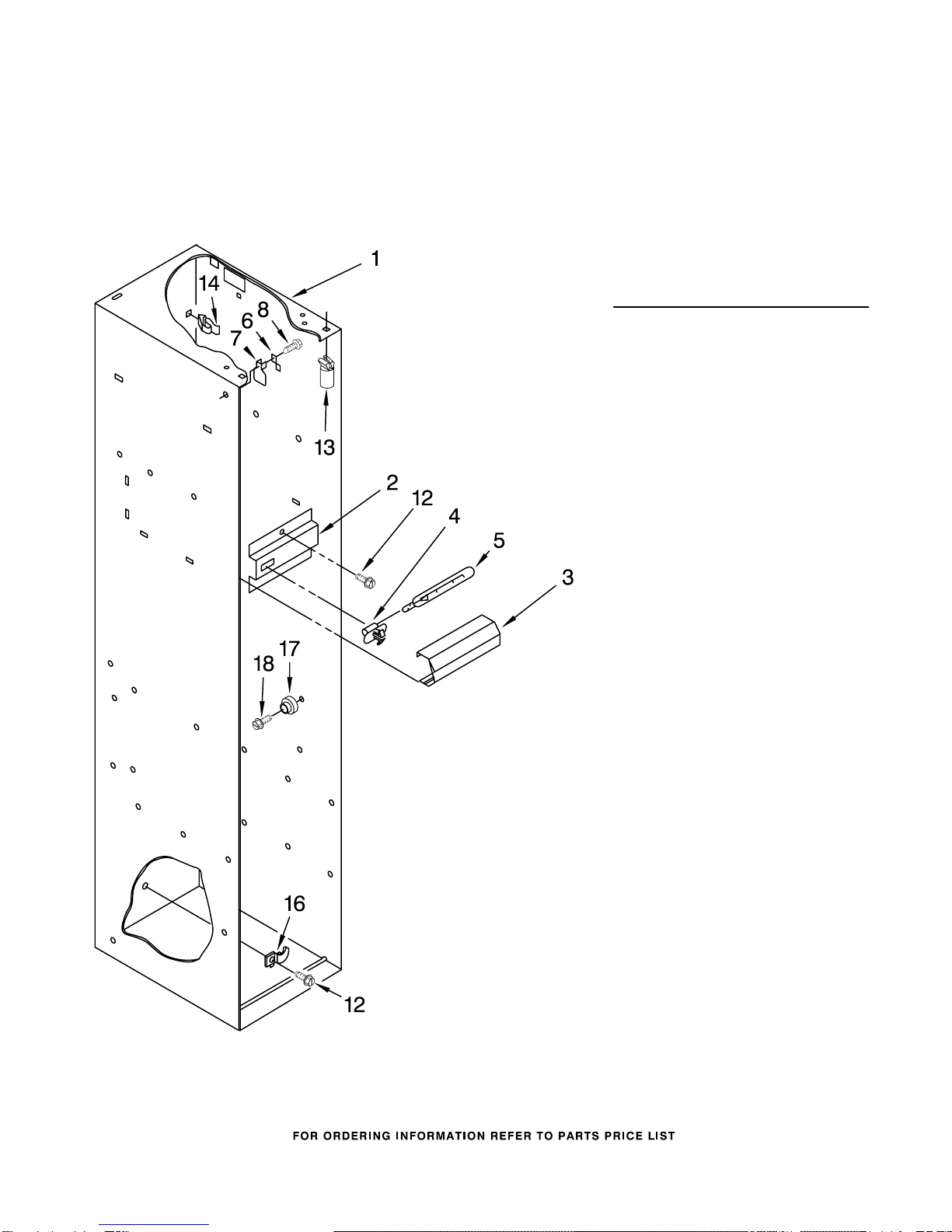

FREEZER LINER PARTS
4
For Model: KSSS42QDX03
4394438
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 1113649 Bracket, Light
3 1113650 Lens
4 1112613 Light, Socket
5 548049 Light, Bulb
6 538533 Support Clip,
Icemaker (2)
7 2000193 Grommet, Screw (2)
8 488552 Screw
12 486194 Screw
13 1112591 Spacer, Control
Panel (3)
14 842534 Clip, Air Duct (4)
16 1112260 Support,
Evaporator
17 2004068 Stud, Shelf (20)
18 487559 Screw
5

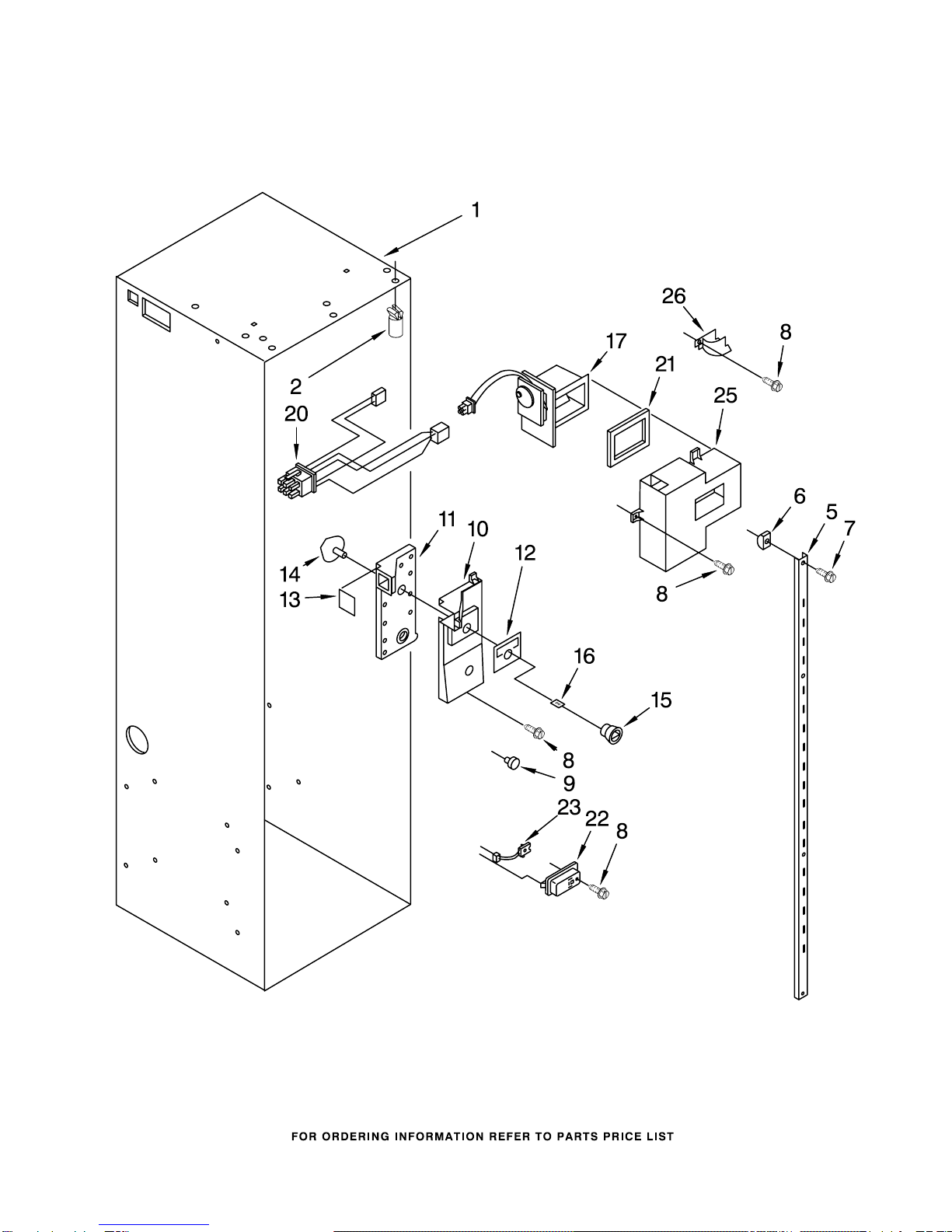

REFRIGERATOR LINER PARTS
For Model: KSSS42QDX03
4394438
6
REFRIGERATOR LINER PARTS
For Model: KSSS42QDX03
4394438
Illus. Part
No. No. DESCRIPTION
1 LINER (Not A
Serviceable Part)
2 1112591 Spacer, Control
Panel (3)
5 2001117 Ladder, Shelf (2)
6 520965 Screw Support,
Ladder (8)
7 488357 Screw
8 486194 Screw
9 1112257 Hole Plug
10 2003579 Meat Pan, Air
Duct Cover
11 2000337 Meat Pan, Air Duct
12 2003299 Inlay, Control
Meat Pan
13 2001326 Seal, Air Duct
14 1112218 Damper Control,
Meat Pan
15 2003811 Control Knob,
Meat Pan
16 837444 Retainer, Knob
17 2000343 Air Baffle
Assembly
20 2001073 Wiring Harness,
Air Baffle
21 2001146 Seal
22 1116793 Cover, Thermistor
23 1116959 Thermistor
25 2003578 Air Baffle Cover
26 2000527 Guard, Air Return

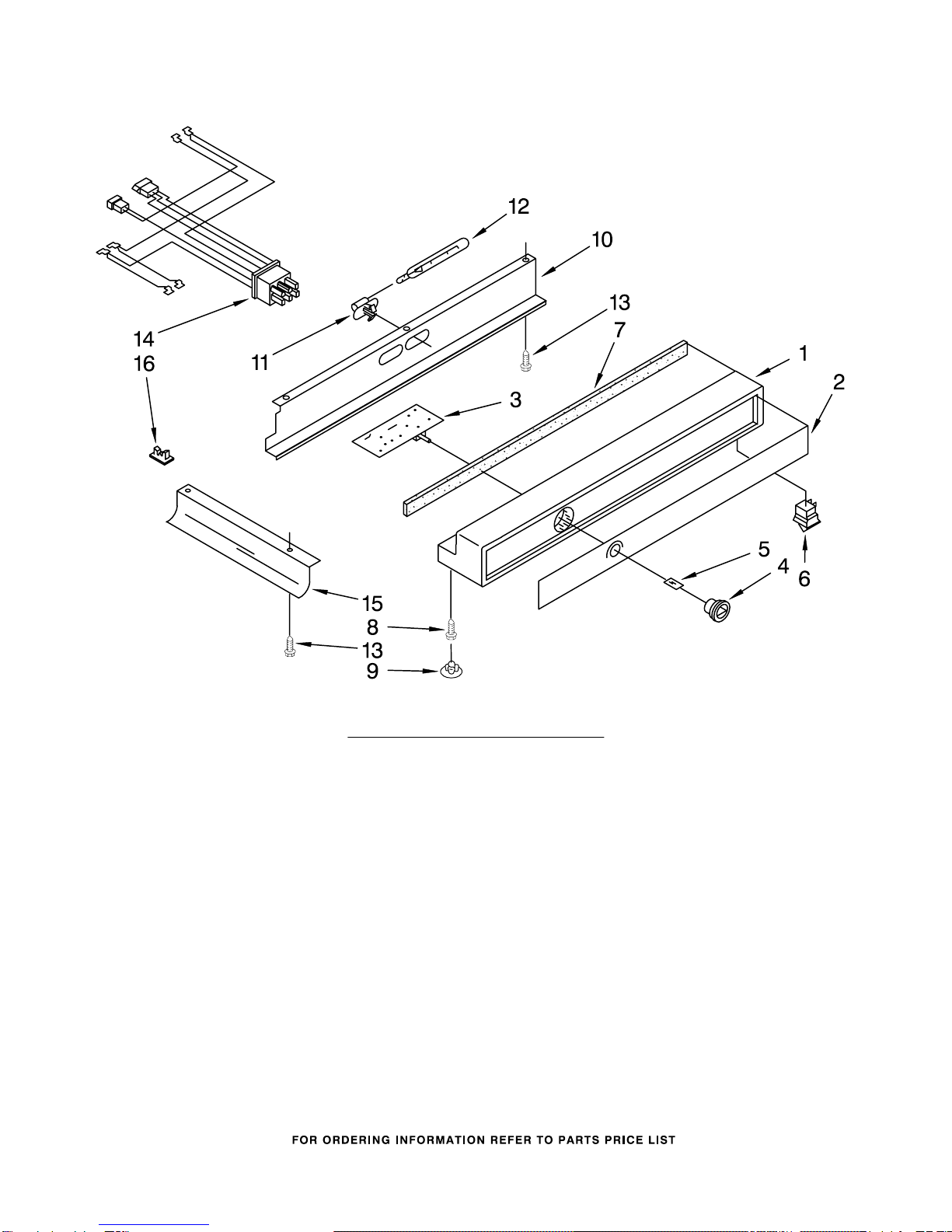

REFRIGERATOR CONTROL PANEL PARTS
7
For Model: KSSS42QDX03
4394438
Illus. Part
No. No. DESCRIPTION
1 1112641 Control Panel
2 2003302 Inlay, Control
Panel
3 2000789 Circuit Board
4 2182110 Control Knob
5 837444 Retainer, Knob
6 1118894 Switch, Rocker Arm
7 1113135 Seal, Control
Panel
8 489260 Screw (3)
9 2000153 Hole Plug (3)
10 1113774 Shield, Control
Panel
11 1112613 Socket, Light (2)
12 548049 Light Bulb (2)
13 486194 Screw
14 2001074 Control, Harness
15 2001141 Channel, Wiring
16 1115375 Clip, Wiring (2)
8

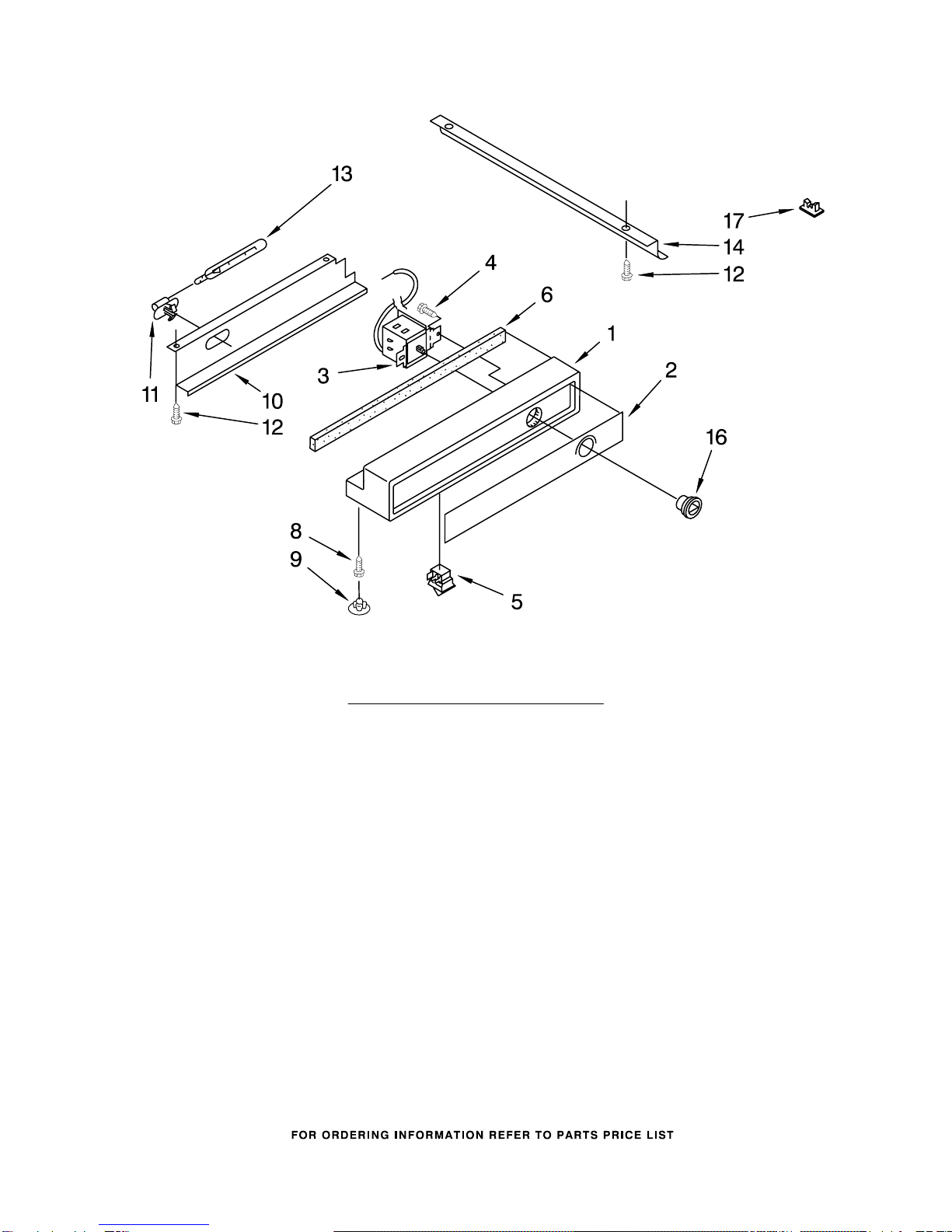

FREEZER CONTROL PANEL PARTS
For Model: KSSS42QDX03
4394438
Illus. Part
No. No. DESCRIPTION
1 1113626 Control Panel
2 2003308 Inlay, Control
Panel
3 1113466 Thermostat &
Barrier Assembly
4 488974 Screw (2)
5 1115373 Switch, Rocker Arm
6 1113134 Seal, Control
Panel
8 489260 Screw (3)
9 2000153 Hole Plug (3)
10 1113768 Shield, Control
Panel
11 1112613 Socket, Light
12 486194 Screw
13 548049 Light Bulb
14 2001973 Channel, Wiring
16 2182112 Knob, Thermostat
17 1115375 Clip, Wiring

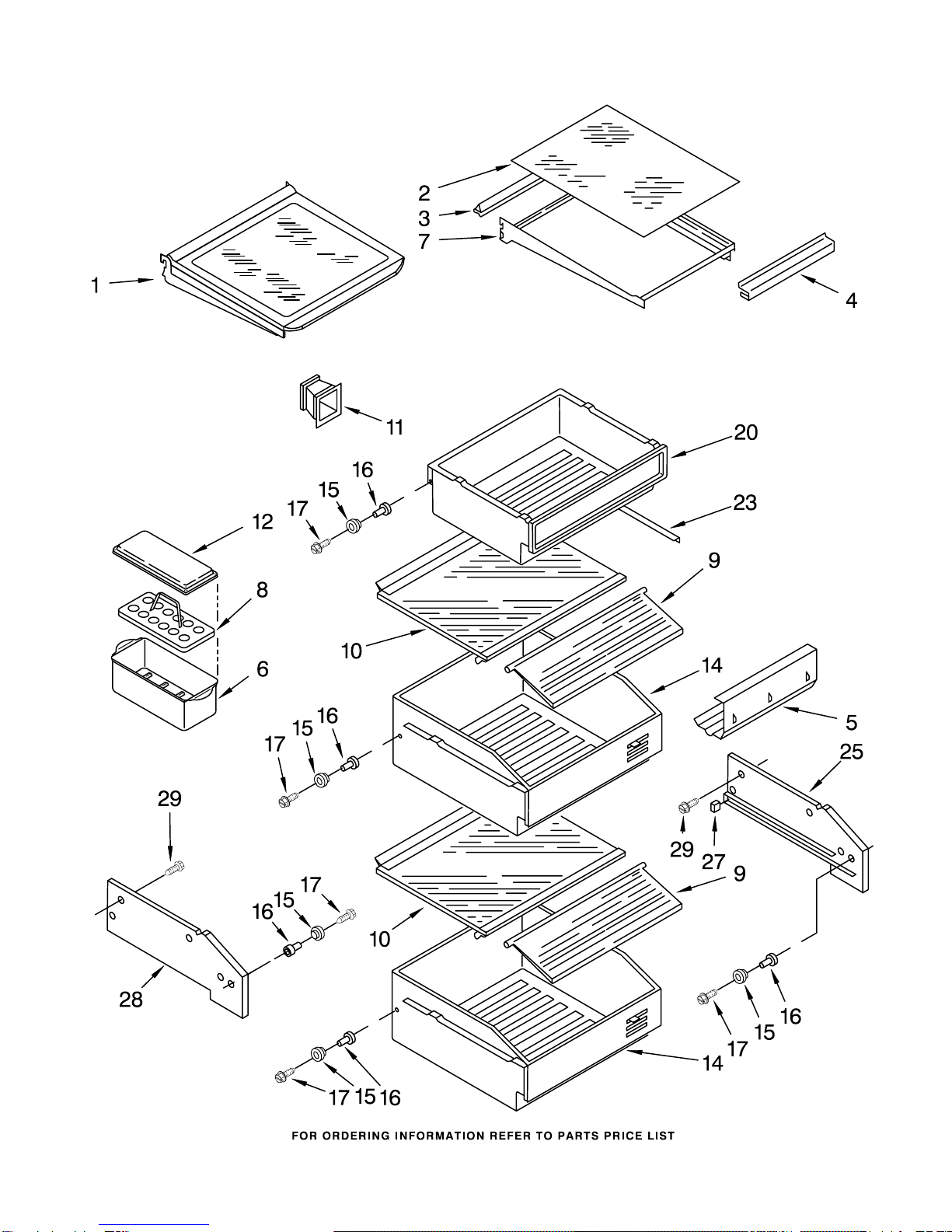

REFRIGERATOR SHELF PARTS
9
For Model: KSSS42QDX03
4394438
REFRIGERATOR SHELF PARTS
10
For Model: KSSS42QDX03
4394438
Illus. Part
No. No. DESCRIPTION
1 2174403 Frame, Shelf
2 2003376 Glass, Shelf
3 1113547 Reflector, Shelf
4 1113791 Gasket, Glass
5 2179375 Rack, Wine
6 2169933 Egg Bin
7 2003326 Frame, Assembly
Meat Pan
8 2164373 Egg Carrier
9 1113894 Cover, Crisper
10 2003379 Glass, Crisper
(Includes #9)
11 2000742 Meat Pan,
Connector
12 2169935 Cover
14 2003316 Crisper Pan (2)
15 2174388 Roller
16 2174478 Eyelet, Roller
17 489211 Screw
20 2003321 Meat Pan
23 2002181 Retainer, Glass
25 2003411 Crisper Spacer,
Right Side (2)
27 1113169 Stop, Roller
28 2003410 Crisper Spacer,
Left Side (2)
29 486194 Screw
