KitchenAid KEBS276WBL2 User manual

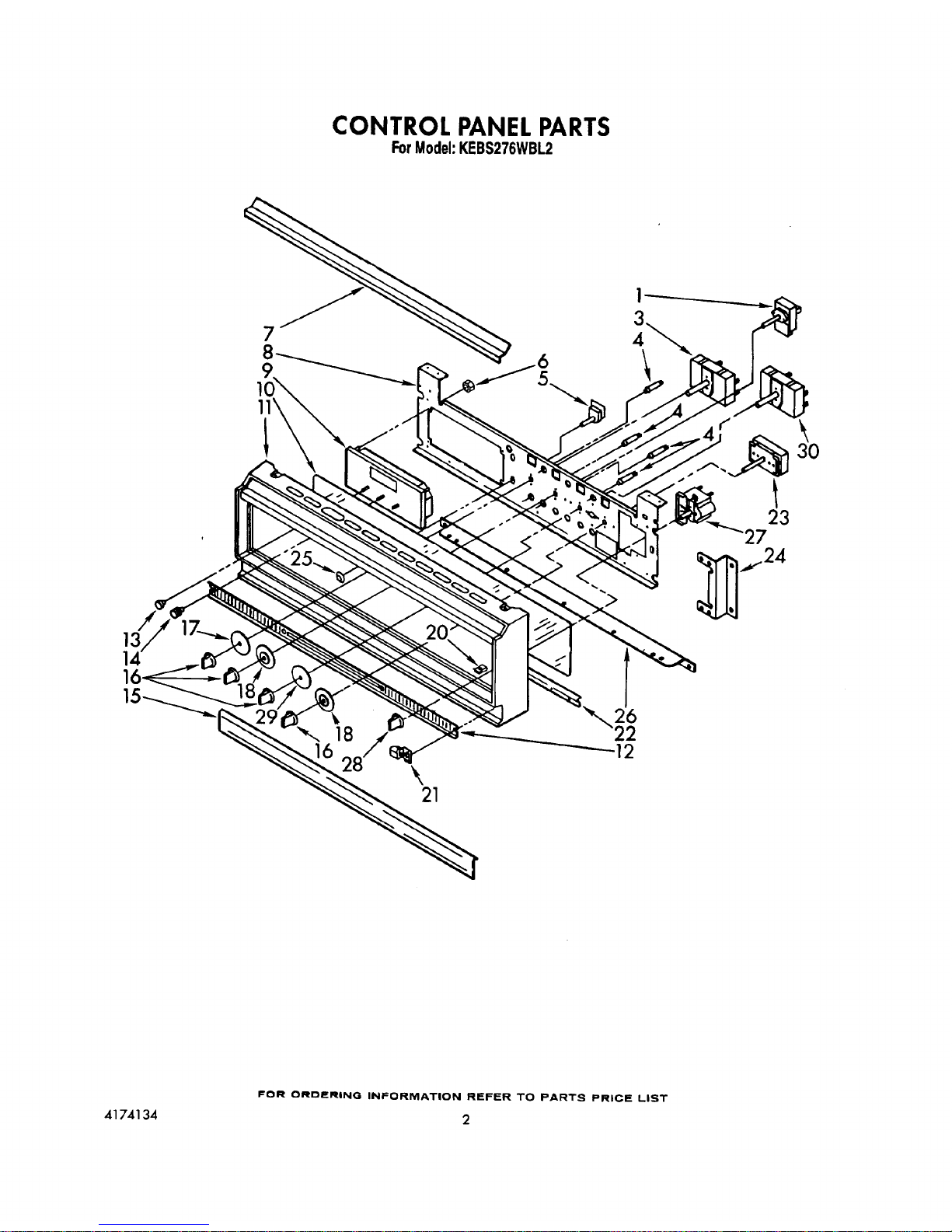

NOTE:The screws and nuts required to attach a part are listed immediately
following that part.
1 3178273 Thermostat Upper Oven
155023 Screw (2)
3 3178233 Switch, Selector Upper Oven
155023 Screw (2)
4 4168598 Light, Indicator
5 3179891 Switch, Oven Light
6 98788 Nut, Timer (4)
7 4173385 Insert, Top
8 3177804 Bracket, Control
9 3148111 Timer, Electronic
10 3177935 Glass, Control Panel
11 3177760 Frame, Control Panel
12 3179916 Insert, Vent
3179847 Screw (4)
13 3177122 Knob, Timer (2)
14 3177121 Knob, Timer
15 3177972 Door, Latch Handle
16 3178400 Knob, Control (4)
17 3178262 Disc, Selector Lower Oven
18 3178477 Disc, Thermostat Upper & Lower Oven
20 4168838 Nut (3)
21 3177971 Hinge, Door (2)
3179847 Screw (2)
22 4167590 Retainer, Glass
4159456 Screw (6)
23 3178274 Thermostat Lower Oven
155023 Screw (2)
24 3177747 Bracket, Control Panel
3177991 Screw(2)
25 4169372 Bezel, Switch
26 3177650 Support, Frame
3177991 Screw(2)
27 3180156 Indicator, Meat Probe
254225 Screw (2)
28 4163840 Knob, Meat Probe
29 3178264 Disc. Selector Upper Oven
30 3178234 Switch, Selector Lower Oven
155023 Screw (2)
LITERATURE PARTS
LIT4174134 Repair Parts List
LIT3178198 Tech Sheet
LIT3178195 Installation Instructions
LIT3177059 Guide, Use & Care
NOTE:The screws and nuts required to attach a part are listed immediately
following that part.
2 3177545 Bracket, Mounting
3 3177623 Cabinet, Back
300890 Screw (14)
4 3177446 Housing, Light
300890 Screw (2)
5 3177981 Socket, Light
300890 Screw(2)
6 3178136 Cabinet, Top
300890 Screw (5)
7 3177436 Top, Module
300890 Screw (8)
8 Side, Cabinet
3177440 Left Hand
3177438 Right Hand
300890 Screw (18)
9 4168126 Tube, Vent
3179117 Screw (3)
10 3177447 Retainer, Glass
4159445 Screw (3)
11 4166866 Glass, Oven Light
12 311255 Bulb, Oven Light
13 313382 Clip, Thermostat Bulb
14 3177682 Frame, Front
15 3179813 Seal, Door
16 3179848 Clip, Oven Seal
17 3177681 Bracket, Switch
18 3177923 Insulator, Switch
19 3177621 Bottom, Module
20 3179220 Rail, Support (2)
300890 Screw (4)
21 4168217 Support, Element (2)
3179117 Screw (4)
22 3177434 Support, Oven
300890 Screw (2)
23 3178612 Shield, Radiation
300890 Screw (2)
24 3177433 Bracket, Hinge
3179795 Screw (6)
300890 Screw (2)
25 3177572 Side, Module (R.H. & L.H.)
300890 Screw (4)
26 3177556 Back, Module
300890 Screw (8)
27 3177466 Liner, Oven
28 3178298 Hinge, Door (2)
3179795 Screw (4)
31 4173553 Switch, Door
4159117 Nut (2)
313489 Screw (2)
33 3179587 Retainer, Seal
4159450 Screw (2)
3179776 Screw (4)
34 3177755 Vent, Middle Trim
3180022 Screw (4)
4168863 Screw (2)
35 3179922 Vent, Tube (Upper, Female)
36 3180891 Vent, Tube (Upper, Male)
37 3180890 Shield, Vent
300890 Screw (2)
38 3178132 Extension, Shelf
3177991 Screw (8)
39 4168203 Cover, Cap Tube
4159445 Screw
40 4167518 Plate, Cover
4168874 Screw
41 4167469 Plate, Mounting Rotisserie
42 4163836 Motor, Rotisserie
4159334 Screw (3)
4159501 Washer, Lock Tooth
FOLLOWING PARTS NOT ILLUSTRATED
3177862 Insulation, Wrap
3177868 Insulation, Back
NOTE:The screws and nuts required to attach a part are listed immediately
following that part.
1 3177446 Housing, Light
300890 Screw (2)
2 3177981 Socket, Light
3 3177436 Top, Module
300890 Screw (8)
4 4168492 Tube, Vent
3179117 Screw (3)
5 3177466 Liner, Oven
6 3177572 Side, Module (R.H. & L.H.)
300890 Screw (4)
7 311255 Bulb, Oven Light
8 4166866 Glass, Oven Light
9 3177447 Retainer, Glass
4159445 Screw (3)
10 313382 Clip, Bulb (2)
11 4168217 Support, Element (2)
3179117 Screw (4)
12 3177684 Frame, Front
13 3179813 Seal, Door
14 3177681 Bracket, Switch
3177991 Screw (2)
15 3177923 Insulator, Switch
16 3177551 Bottom, Oven
17 3179220 Rail, Support (2)
300890 Screw (4)
18 3177433 Bracket Hinge (2)
3179795 Screw (6)
300890 Screw (2)
19 3177621 Bottom, Module
20 3178612 Shield, Radiation
300890 Screw (2)
21 3177434 Support, Oven
300890 Screw (2)
22 3177920 Back, Module
300890 Screw (8)
24 3179848 Clip, Seal (3)
25 3178298 Hinge, Door (2)
3179795 Screw (4)
26 3185108 Button, Plug
27 3185109 Button, Plug
28 3179945 Tube, Vent
300890 Screw (3)
29 3179944 Tube, Vent
30 4173553 Switch, Door
4159117 Nut (2)
313489 Screw (2)
32 3179587 Retainer, Seal
4159450 Screw (2)
3179776 Screw (4)
33 4168203 Cover, Cap Tube
4159445 Screw
34 3177787 Trim, Lower Vent
35 4167518 Plate, Cover
4168874 Screw
FOLLOWING PARTS NOT ILLUSTRATED
3177862 Insulation, Wrap
3177868 Insulation, Back
FOLLOWING PARTS NOT ILLUSTRATED
SPLICING WIRES--25FT. LENGTH
18 Ga. 80~c Rating
350806 Yellow 16 Ga. 80~c Rating
242829 Blue 14 Ga. 150~c Rating
242820 Black
242821 Blue
242822 Brown
242823 Green
242824 Orange
242825 Red
242826 White
242827 Yellow 14 Ga. 200~c Rating
242830 Brown
242831 Red
242832 Yellow 12 Ga. 150~c Rating
242828 Black
242829 Red
PAINT,TOUCH UP (1/2 oz.)
72017 White
72107 Almond
72110 Harvest Gold
72112 Toast
72113 Platinum
72032 Black
261869 Citrine White
PAINT PRESSURIZED SPRAY (13 oz.)
350930 White
350956 Almond
261890 Harvest Gold
285365 Toast
285366 Platinum
786020 Ebony (Microwave)
830864 Black
350942 Primer
350941 Leveler (Primer)
261900 Citrine White 5 Oz. (M/W Liner)
PAINT,BULK (1 qt.)
799344 White
978883 Almond
261891 Harvest Gold
285367 Toast
285368 Platinum
786032 Ebony (Microwave)
ADHESIVE
482338 Sealer, Silastic (3 Oz.)
591014 Adhesive, Loctite (1/3 Oz.)
ACCESSORY PARTS
799832 Kit, Porcelain Repair (White)
