NOTE: The screws and nuts required to attach a part are listed immediately

following that part.

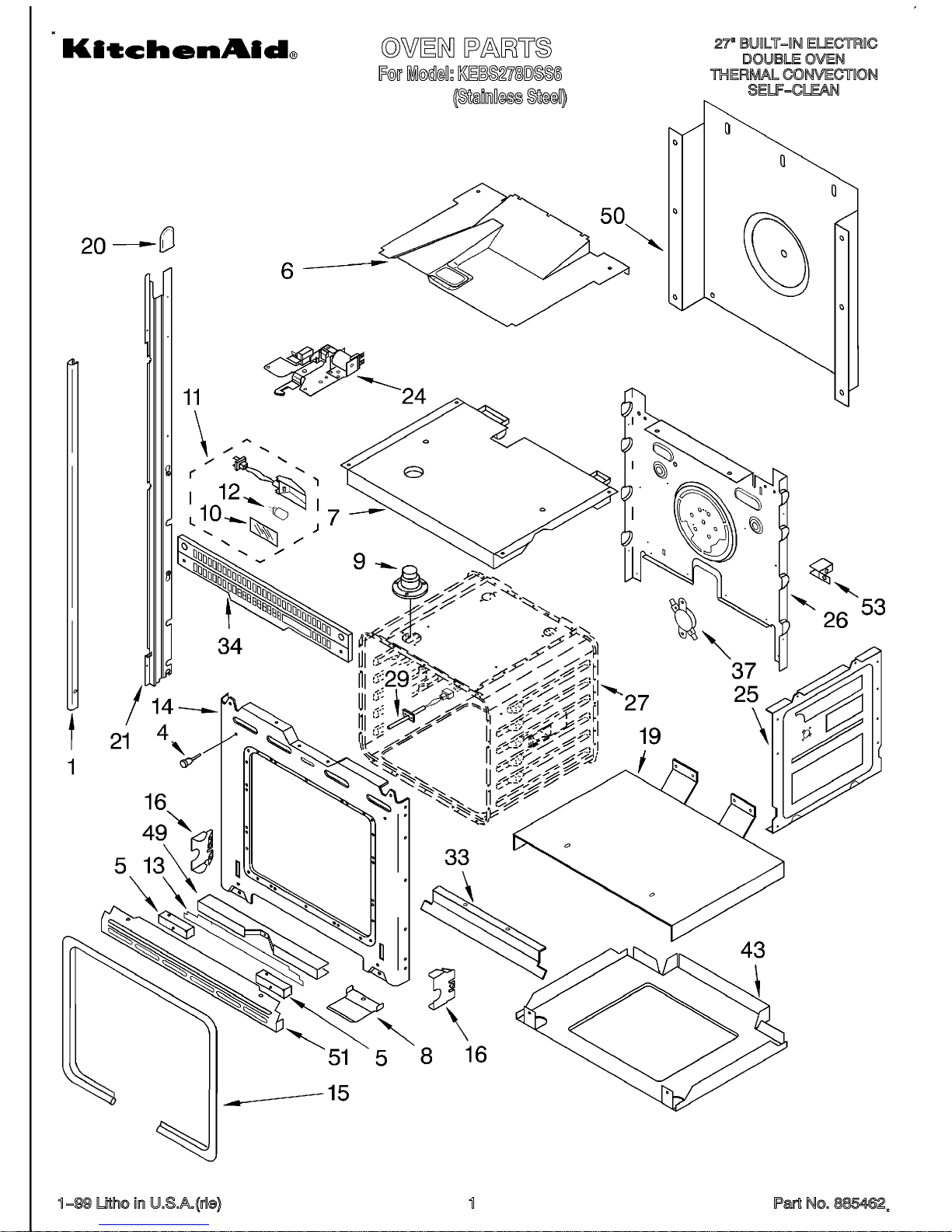

1 Trim, Side

4452081 Richt Hand

4452082 Left Hand

4449041 Screw

4 4448520 Bumper, Door

5 4452490 Spacer, Foam

6 4452200 Divider, Vent

4449809 Screw

7 4452236 Top Chassis

4449809 Screw

8 4452489 Deflector, Vent Box

9 4452158 Tube, Vent

4449154 Screw

10 4452163 Lens, Light

11 4448972 Oven Light Assy

12 4452164 Bulb, Light

4449748 Screw

13 4452336 Insulation, Bottom Vent

14 4451739 Frame, Front

4449040 Screw

4450118 Nut

15 4449371 Gasket, Door

16 4452152 Bracket, Mounting

19 4451477 Support, Insulation

4449809 Screw

20 4451605 Cap, Spacer

21 Rail, Side

4450581 Right Side

4450582 Left Side

4448444 Grommet

4449154 Screw

24 4451424 Latch Assy

4451663 Solenoid

4451422 Microswitch N.C.

4451426 Microswitch

4449154 Screw

25 4454691 Side, Chassis (R.H. & L.H.)

4449809 Screw

26 4452233 Back, Chassis

4449809 Screw

27 Liner, Oven (Not serviceable)

29 4451665 Sensor

4449154 Screw

33 4450280 Deflector, Vent

34 4452266 Vent, Center

37 4452223 Thermostat (TOD)

4449809 Screw

43 4451397 Base, Chassis

4449809 Screw

49 4448933 Retainer, Gasket

4449154 Screw

50 4451747 Cover, Back

4449809 Screw

51 4452480 Trim, Bottom

4450289 Screw

53 4449845 Support, Bracket

4449809 Screw

FOLLOWING PARTS NOT ILLUSTRATED

INSULATION

4449315 Insulation, Wrap

4450364 Insulation, Back

NOTE: The screws and nuts required to attach a part are listed immediately

following that part.

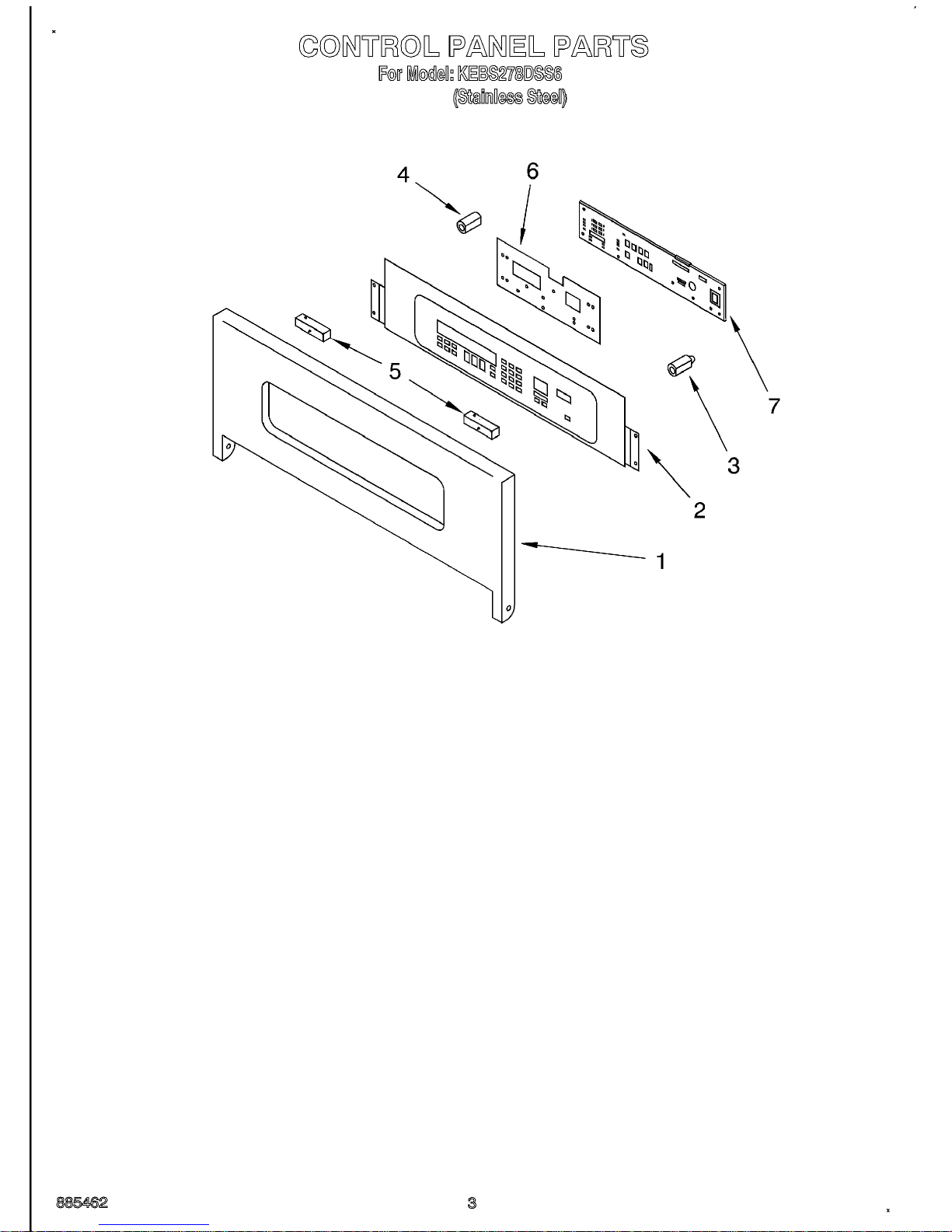

1 4451790 Control Panel Assy.

2 4452322 Membrane Switch

3 4452248 Insulator, Board

4 4452249 Insulator, Board Support

4159465 Screw

5 4452260 Spacer, Foam

6 4452345 Insulator, Dialectric

7 4448871 Microcomputer

3400406 Screw

LITERATURE PARTS

LIT4450410 Installation Instructions

LIT4450571 Use & Care Guide (Oven)

LIT4449066 Cookbook (T/C Oven)

LIT4452026 Tech Sheet (Oven)

LIT4449264 Easy Set Guide

LIT3191638 Safer Cooking Tips

NOTE: The screws and nuts required to attach a part are listed immediately

following that part.

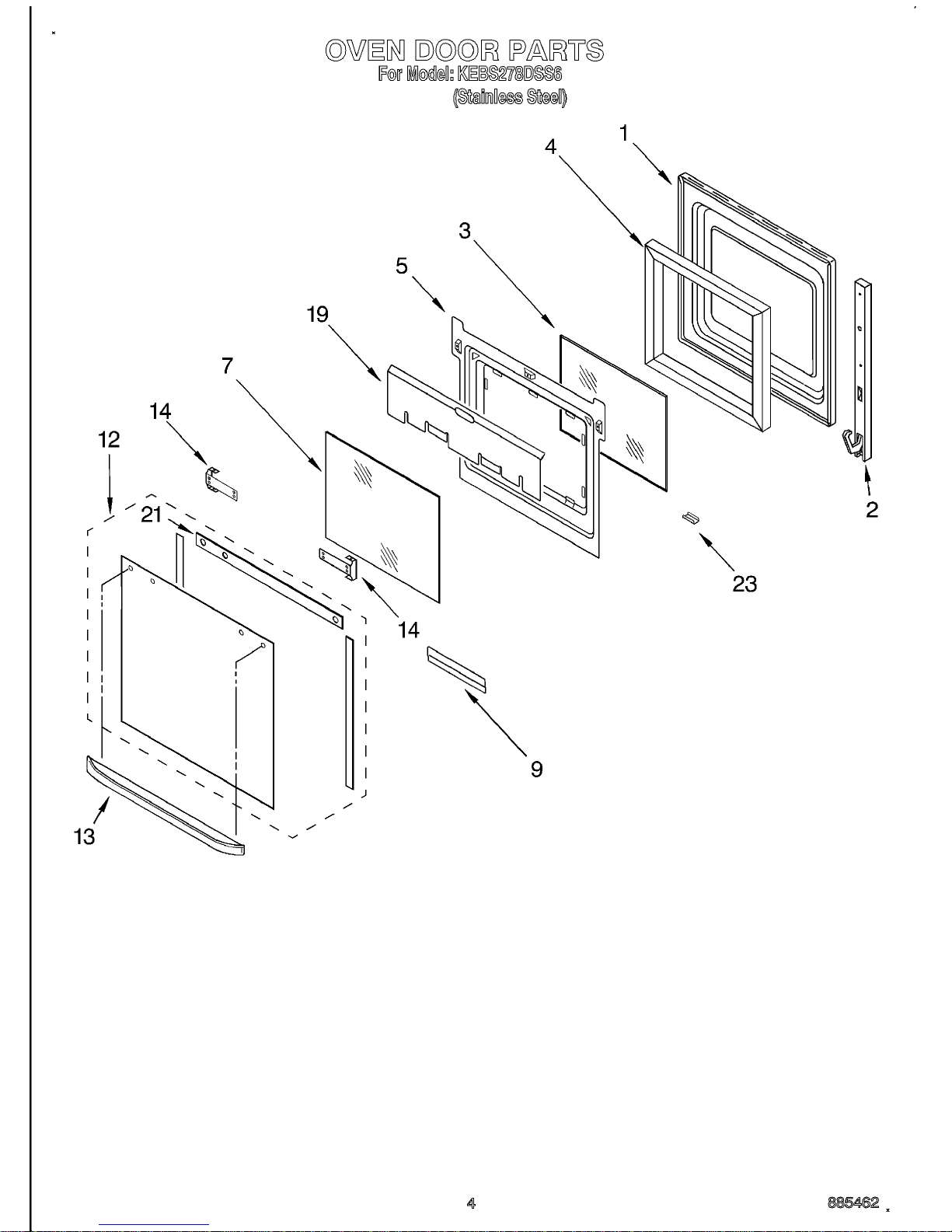

1 4451718 Door Liner

2 4454948 Hinge, Door

4449743 Screw

3 4449253 Glass, Inner

4 4451721 Insulation, Door

5 4451670 Retainer, Glass

4449809 Screw

7 4449257 Glass, Inner

9 4451668 Retainer, Glass

4449809 Screw

12 4452315 Door Glass, Assy

13 4452087 Door Handle

14 Bracket, Handle

4452487 Right Hand

4452488 Left Hand

3196184 Screw

19 4450361 Shield, Heat

4449809 Screw

21 4452325 Seal, Door Top

23 4451432 Retainer, Clip

1 4448982 Plug, Button

2 4452156 Element, Broil

4449154 Screw

3 3147563 Grill, Broiler

4 3147845 Pan, Broiler

5 3181534 Rack, Roasting

6 4448715 Rack, Oven

7 4452155 Element, Bake

8 4448881 Nut, Hex

9 4451583 Fan, Convection

4449154 Screw

10 4452226 Blade, Fan

11 4448882 Washer, Lock

12 4452227 Nut

13 4451355 Jack, Meat Probe

14 4448948 Probe, Meat

15 4448722 Tray, Bake

17 4450039 Cover, Bake Tray

4449809 Screw

20 4452157 Element, Convection

4449154 Screw

21 4448418 Cover, Fan

4449154 Screw
