KitchenAid KEBK276SBL00 User manual

OVEN PARTS

For Models:KEBK276SBL00, KEBK276SWH00, KEBK276SSS00

(Black) (White) (Stainless)

3−07 Litho in U.S.A. (amd) Part No. W10129034 Rev. A

27" BUILT−IN ELECTRIC

DOUBLE OVEN

OVEN PARTS

For Models:KEBK276SBL00, KEBK276SWH00, KEBK276SSS00

(Black) (White) (Stainless)

W10129034

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8304336 Installation

Instructions

8304323 Use & Care Guide

Tech Sheet

8303952 English

8304416 French

8304335 Easy Set Guide

Safer Cooking Tips

3191638 English

9759133 French

2 8304420 Bracket, Base

3 Hinge Receiver

4455606 Right

4455605 Left

W10105790

Bumper, Door (2)

5 8303829 Exhaust,Vent Slope

6 8303771 Divider, Vent

7 8303770 Top Chassis

8 4449809 Screw

9 4452158 Tube, Vent

10 4452163 Lens, Light

11 4448972 Oven Light

Assembly

12 4452164 Bulb, Light

13 3400832 Screw (2)

W10118751

Frame, Front

15 Gasket, Door

8304494 Lower

4455381 Upper

16 3196176 Screw

17 4449040 Screw

18 4449154 Screw

19 4451477 Support, Insulation

20 4450038 Screw (2)

21 Mounting Rail,Side

Right

8303677BL

Black

8303677WH

White

Left

8303678BL

Black

8303678WH

White

22 8303692 Latch, Mortorized

23 4449743 Screw

24 4449748 Screw

25 4455641 Side, Chassis

26 8304304 Back, Chassis

27 Liner, Oven

(Not serviceable)

28 8304452 Thermal Fuse 105C

29 4455636 Sensor

30 8303724 Vent, Center

31 8303772 Base, Chassis

32 8304478 Retainer, Gasket

33 8303517 Cover, Back

34 Trim, Bottom Vent

8303706BL

Black

8303706WH

White

8303706SS

Stainless

35 4448444 Grommet, Mounting

Rail

36 4451040 Screw (12)

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

8303966 Insulation, Wrap

8303968 Insulation, Back

CONTROL PANEL PARTS

For Models:KEBK276SBL00, KEBK276SWH00, KEBK276SSS00

(Black) (White) (Stainless)

W10129034

Illus. Part

No. No. DESCRIPTION

1 Panel, Control

8303717BL

Black

8303717WH

White

8303717SS

Stainless

2 8303687 Support, Appliance

Manager

3 8303797 Bracket, Control

Panel

4 8304333 Keyboard, Glass

Touch

W10118696

User Inferface

6 8303720 Backer, Control

7 8303887 Bracket,

Enclosure (2)

8 4449154 Screw

9 3400832 Screw

W10119142

Appliance Manager

11 8304441 Resistor, Drop

12 4449809 Screw

13 9760749 Bumper

OVEN DOOR PARTS

For Models:KEBK276SBL00, KEBK276SWH00, KEBK276SSS00

(Black) (White) (Stainless)

W10129034

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8304522 Bumper, Door

2 8303990 Hinge, Door (2)

3 3196183 Screw

8304580BL

Vent, Door Top

5 Bracket, Door

8304377 Right

8304378 Left

8303738BL

Door Liner

7 8303732 Glass, Inner

8 4449743 Screw

10 8304523 Seal

8304361BL

Bracket, Handle

12 Door Glass,

Assembly

Lower Includes #17

8304001 Black

8304003 White

8303999 Stainless

Door Glass,

Assembly

Upper No Badge

8304002 Black

8304004 White

8304000 Stainless

13 Door Handle

8303775BL

Black

8303775WH

White

8303775SS

Stainless

14 8304525 Seal

8303745BL

Frame,Door Side(2)

16 8303754 Door, Top Bracket

17 Badge

8304603BL

Black

8304603WH

White

8304603SS

Stainless

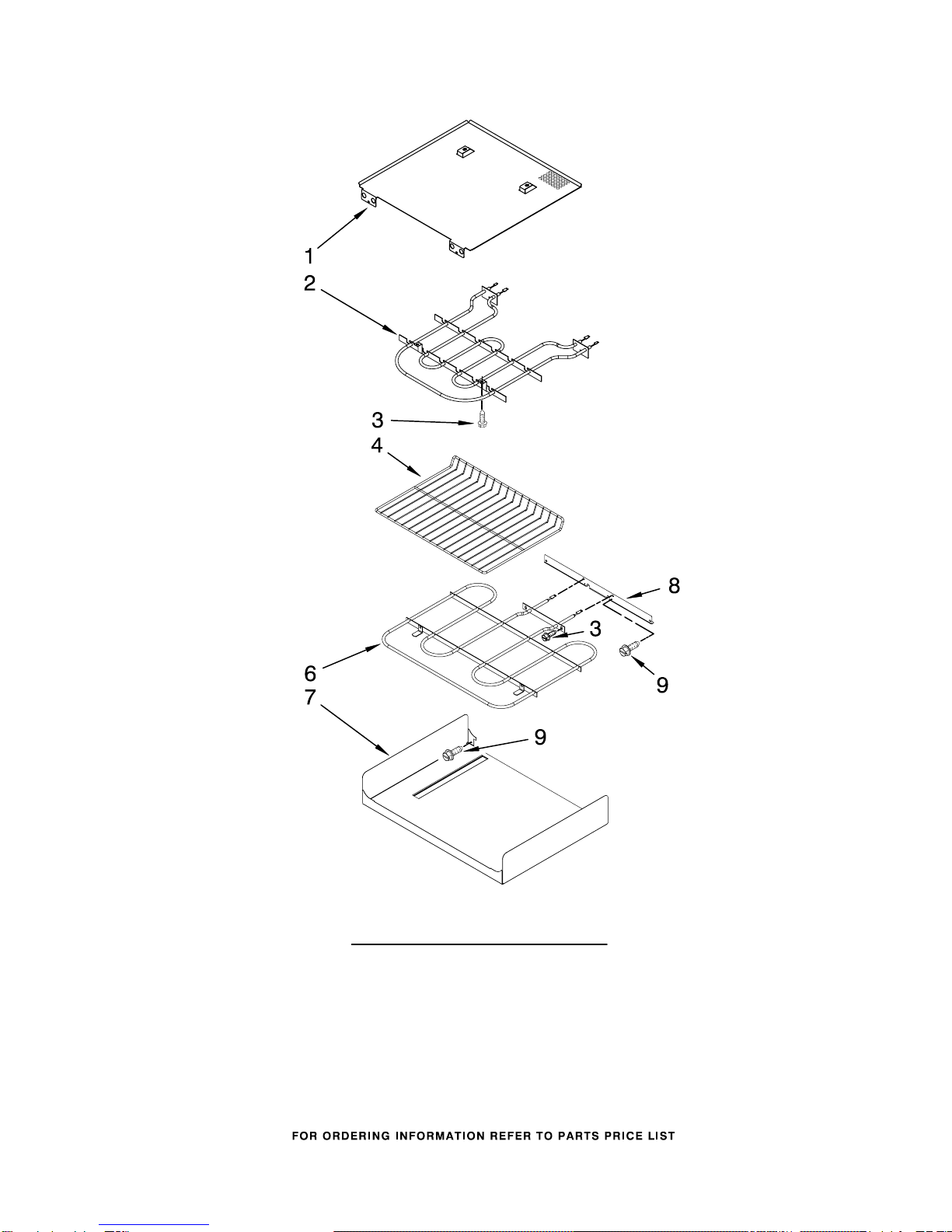

INTERNAL OVEN PARTS

For Models:KEBK276SBL00, KEBK276SWH00, KEBK276SSS00

(Black) (White) (Stainless)

W10129034

Illus. Part

No. No. DESCRIPTION

1 8304586 Element, Broil

Shield

2 9760774 Element, Broil

3 4449154 Screw

4 4448715 Rack, Oven

6 9760768 Element, Bake

7 4455036 Tray, Bake

8 4450039 Cover, Bake Tray

9 4449809 Screw

TOP VENTING PARTS

For Models:KEBK276SBL00, KEBK276SWH00, KEBK276SSS00

(Black) (White) (Stainless)

W10129034

Illus. Part

No. No. DESCRIPTION

1 9752759 Relay (2)

2 8303514 Duct, Air Outlet

3 4449809 Screw

4 8303972 Blower, 60mm

5 9762052 Transformer,

Lights

6 8285593 Connector, Cover

7 9760212 Transformr,Control

8 4450118 Nut

9 4449868 Block, Terminal

10 3400080 Screw

11 8303722 Vent, Control

Panel

12 Side, Control Top

8303518 Right

8304255 Left

13 8303520 Back, Control

14 8304220 Cover, Top

15 112432 Nut (3)

OPTIONAL PARTS (NOT INCLUDED)

For Models:KEBK276SBL00, KEBK276SWH00, KEBK276SSS00

(Black) (White) (Stainless)

W10129034

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire (12 Ga.

150 c Black)

242820 Wire (14 Ga.

150 c Black)

242821 Wire (14 Ga.

150 c Blue)

242822 Wire (14 Ga.

150 c Brown)

242830 Wire (14 Ga.

200 c Brown)

242823 Wire (14 Ga.

150 c Green)

242824 Wire (14 Ga.

150 c Orange)

242829 Wire (12 Ga.

150 c Red)

242825 Wire (14 Ga.

150 c Red)

242831 Wire (14 Ga.

200 c Red)

242826 Wire (14 Ga.

150 c White)

242827 Wire (14 Ga.

150 c Yellow)

242832 Wire (14 Ga.

200 c Yellow)

WIRING HARNESS PARTS

8304102 Harness, Wire

(Latch)

9762781 Harness,(Keyboard)

8304405 Harness, Main

8304051 Harness, Wire

Communication

8304439 Conduit, Double

4450800 Screw,Ground

4454842 Tie, Cable

Miscellaneous

4448950 Screw, Install (4)

98997 Clip
