Kichler Lighting 52" Canfield Pro User manual

 2*

Kichler®Lighting

7711 East Pleasant Valley Road

P.O. Box 318010

Cleveland, Ohio 44131-8010

Customer Service

866.558.5706

8:30 AM to 5:00 PM EST,

Monday - Friday

Instruction Manual

52” Canfield Pro

A Kichler®

Select™ceiling fan

Includes our Basic Function

CoolTouch

Control System

Looks permanent, but goes wherever you go!

U.S. Patent Pending

1. To reduce the risk of electric shock, insure

electricity has been turned off at the circuit

breaker or fuse box before beginning.

2. All wiring must be in accordance with the

National Electrical Code and local electrical

codes. Electrical installation should be

performed by a qualified licensed

electrician.

3. WARNING: Suitable for use with solid-

state speed controls.

4. WARNING: To reduce the risk of personal

injury, use only the two steel screws (and

lock washers) provided with the outlet box

for mounting to the outlet box. Most outlet

boxes commonly used for the support of

lighting fixtures are not acceptable for fan

support and may need to be replaced,

consult a qualified electrician if in doubt.

5. The outlet box and support structure must

be securely mounted and capable of

reliably supporting a minimum of 50

pounds. Use only CUL Listed outlet boxes

marked "FOR FAN SUPPORT".

6. The fan must be mounted with a minimum

of 7 feet clearance from the trailing edge of

the blades to the floor.

7. Do not operate reversing switch while fan

blades are in motion. Fan must be turned

off and blades stopped before reversing

blade direction.

8. Avoid placing objects in the path of the

blades.

9. To avoid personal injury or damage to the

fan and other items, be cautious when

working around or cleaning the fan.

10. Do not use water or detergents when

cleaning the fan or fan blades. A dry dust

cloth or lightly dampened cloth will be

suitable for most cleaning.

11. After marking electrical connections,

spliced conductors should be turned

upward and pushed carefully up into outlet

box. The wires should be spread apart with

the grounded conductor and the

equipment-grounding conductor on one

side of the outlet box.

12. Electrical diagrams are reference only.

Light kits that are not packed with the fan

must be CUL Listed and marked suitable

for use with the model fan you are

installing. Switches must be CUL General

Use Switches. Refer to the Instructions

packaged with the light kits and switches

for proper assembly.

WARNING

TO REDUCE THE RISK OF FIRE,

ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT FAN TO OUTLET BOX

MARKED "ACCEPTABLE FOR FAN

SUPPORT".

WARNING

TO REDUCE THE RISK OF PERSONAL

INJURY, DO NOT BEND THE BLADE

BRACKETS (ALSO REFERRED TO AS

FLANGES) DURING ASSEMBLY OR

AFTER INSTALLATION. DO NOT INSERT

OBJECTS IN THE PATH OF THE BLADES.

1. SAFETY RULES

3. PACKAGE CONTENTS

Unpack your fan and check the contents. You

should have the following items:

a. Fan blades (5)

b. Canopy & Ceiling mounting bracket

c. Ball/downrod assembly

d. Coupling cover

e. Fan motor assembly

f. Set of 5 blade brackets and Pre-Installed

mounting screws

g. Mounting plate

h. Switch housing

i. Light fixture

j. Glass shade

k. E27, 13 Watt Tospo compact fluorescent

lamps (2)

l. CoolTouch™ Receiver

m. Basic Function CoolTouch™ Control

System

n. Part bag contents

1) Mounting hardware:

wood screws (2), flat washers (2),

star washers (2), wire nuts (3),

screws (2)

2) Blade attachment hardware:

screws (17), fiber washers (17)

3) Blade bracket attachment hardware:

screws (2)

4) Safety cable hardware:

wood screw, spring washer, flat washer

5) Balance Kit

Philips screw driver

Blade screw driver

11 mm wrench

Step ladder

Wire cutters

2. TOOLS AND MATERIALS REQUIRED

TOSPO

52” CanfieldTM Pro

4. MOUNTING OPTIONS

If there isn't an existing UL (cUL for Canadian

Installation) listed mounting box, then read the

following instructions. Disconnect the power by

removing fuses or turning off circuit breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and

building materials. The outlet box and its

support must be able to fully support the

moving weight of the fan (at least 50 lbs). Do

not use plastic outlet boxes.

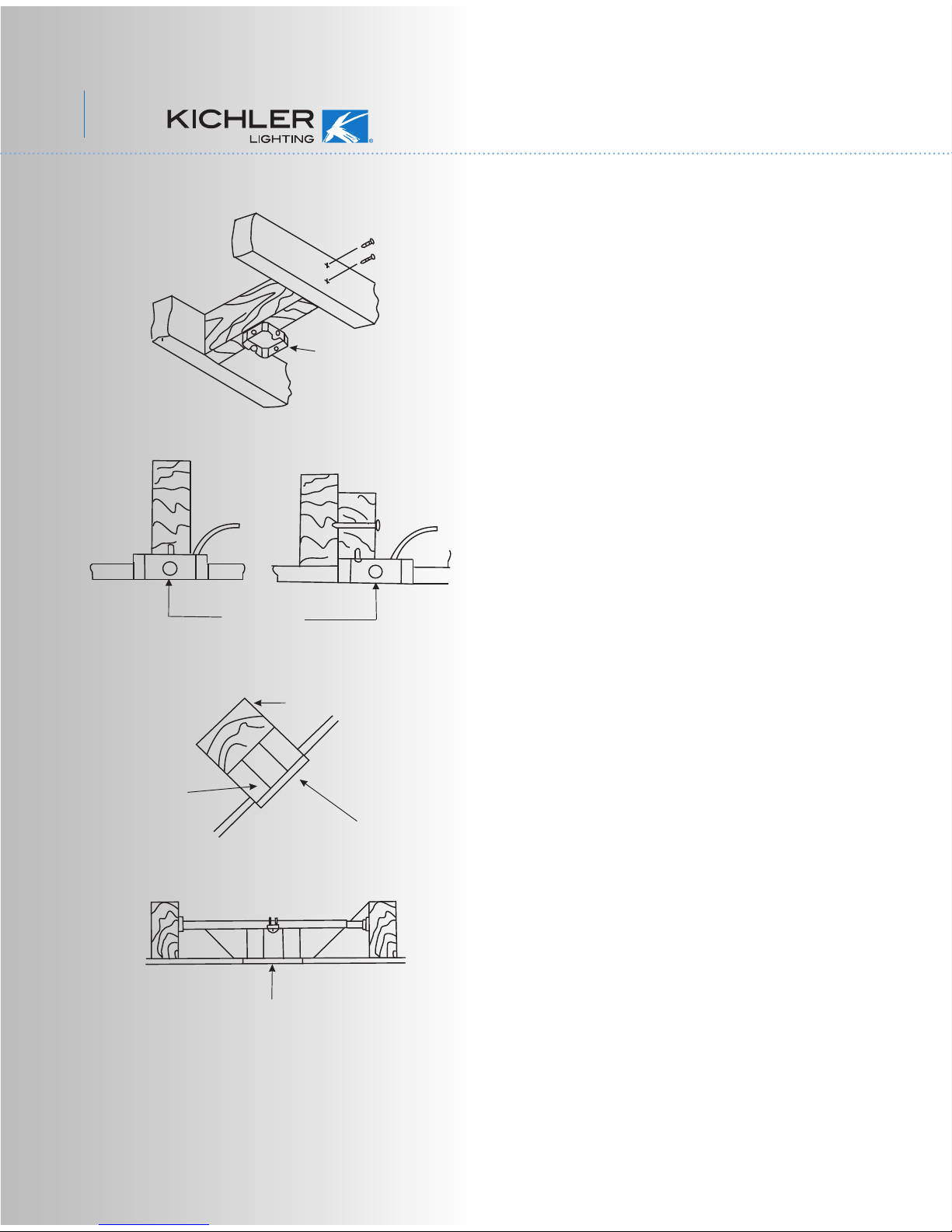

Figures 1, 2 and 3 are examples of different

ways to mount the outlet box.

NOTE: If you are installing the ceiling fan on a

sloped (vaulted) ceiling, you may need a

longer downrod to maintain proper clearance

between the tip of the blade and the ceiling. A

minimum clearance of 12" is suggested for

optimal operation.

NOTE: Depending on the location you have

selected for installation, you may need to

purchase and install a "Joist Hanger" for the

support of the outlet box. Make sure the joist

hanger you purchase has been designed for

use with ceiling fans. (Fig. 4)

Outlet box

Provide strong

support

Recessed

outlet box Ceiling

mounting

plate

Outlet box

Fig. 1

Fig. 3

Fig. 4

Outlet box

Fig. 2

ANGLED CEILING

MAXIMUM 20°ANGLE

Fig. 7

Fig. 8

Mounting screws

(supplied with

electrical box)

Hook

Ceiling

mounting

bracket

UL Listed

outlet box

120V Wires

Washers

Fig. 6

5. HANGING THE FAN

Supply wires

Downrod

Hitch pin Retaining

clip

Set screwSet screw

Coupling

REMEMBER to turn off the power before you

begin.

To properly install your ceiling fan, follow the

steps below.

Step 1. Remove the decorative canopy bottom

cover from the canopy by turning the cover

counterclockwise. (Fig. 5)

Step 2. Remove the ceiling mounting bracket

from the canopy by removing (and save) one

of the two screws. Loosen the remaining

screw by a half turn. (Fig. 5)

Step 3. Pass the 120 volt supply wires from

the ceiling outlet box through the center of the

ceiling mounting bracket. (Fig.6)

Step 4. Attach the ceiling mounting bracket to

the outlet box using the screws and washers

included with the outlet box. (Fig. 6)

Step 5. Remove the hanger ball from the

downrod assembly by loosening the set screw,

removing the cross pin and sliding the ball off

the rod. (Fig.7)

Step 6. Loosen the two set screws and

remove the hitch pin and retaining clip from

the coupling on top of the motor assembly.

(Fig. 8)

Step 7. Carefully feed the electrical lead wires

from the fan up through the downrod. Thread

the downrod into the coupling until the Hitch

pin holes are aligned.

Next, replace the hitch pin and retaining clip.

Tighten both set screws. (Fig. 8)

Fig. 5

Ceiling mounting

bracket

Canopy

cover

Cross pin

Hanger ball Set screw

Downrod

52” CanfieldTM Pro

Fig. 9

Fig. 10

Registration slot

Check tab

Step 8. Slip the coupling cover, canopy cover

and canopy onto the downrod.

Thread the hanger ball onto the downrod,

insert the cross pin through the downrod and

tighten. Now tighten the set screw. (Fig. 9)

Step 9. Lift the motor assembly into position

and place the hanger ball into the ceiling

mounting bracket.

Rotate the entire assembly until the "Check

Tab" has dropped into the "Registration Slot"

and seats firmly. (Fig. 10)

The entire motor assembly should not rotate

(left or right) when seated properly.

WARNING: Failure to reattach the cross pin

and seat the "Check Tab" can cause the fan to

fall from the ceiling during operation. Take

special care to make sure this pin is

reattached.

Canopy

Canopy cover

Coupling cover

Coupling

Downrod

Cross pin

Hanger ball

Fig. 11

Ceiling mounting

bracket Attach

safety cable

to ceiling joist

with screw and

washer

7. ELECTRICAL CONNECTIONS

Fig. 12

Fig. 13

Receiver

Ceiling Mounting

Bracket

WARNING: To avoid possible electrical shock,

be sure you have turned off the power at the

main circuit panel.

NOTE: In the Transmiter, Set Dip Switch #5 on

the X position. This disables the dimming

function because your ceiling utilizes CFL lamps

that can NOT be dimmed. (Fig.12)

NOTE: The CoolTouch™ Control System is

equipped with 16 possible frequency

combinations to prevent interference from or with

other remote control units. The frequency

switches on your receiver and transmitter have

been preset at the factory. Please recheck to

make sure the switches on transmitter and

receiver are set to the same position, any

combination of settings will operate the fan as

long as the transmitter and receiver are set to

the same position. (Fig. 12)

Step 1. Insert the receiver into the ceiling

mounting bracket with the flat side of the receiver

facing the ceiling. (Fig. 13) For best

performance, make sure the Black Antenna, on

the end of the receiver, remains extended and

not tangled with any of the electrical wires.

Step 2. Motor to Receiver Electrical

Connections: (Fig. 14) Connect the black wire

from the fan to the black wire marked "TO

MOTOR L" on the receiver.

6. INSTALLATION OF SAFETY SUPPORT

(required for Canadian installation ONLY)

A safety support cable is provided to help

prevent the ceiling fan from falling, please install

it as follows.

Step 1. Attach the provided wood screw and

washers to the ceiling joist next to the mounting

bracket but do not tighten. (Fig. 11)

Step 2. Adjust the length of the safety cable to

reach the screw and washers by pulling the

extra cable through the cable clamp until the

overall length is correct, put the end of the

cable back through the cable clamp, forming a

loop at the end of the cable. Tighten the cable

clamp securely. Now, put the loop in the end of

the safety cable over the wood screw and under

the washer. Tighten the wood screw securely.

NOTE: Although the safety support cable is

required for Canadian installations only. It's a

good idea to make the attachment with any

installation.

52” CanfieldTM Pro

Dip switch

1 2 3 4

Fig. 14

Fig. 15

Step 1. Tuck all the connections neatly into

the ceiling outlet box.

Step 2. Slide the canopy up to the mounting

bracket and place one of the key hole slots

over the mounting screw on the mounting

bracket. Rotate the canopy until the screw

head locks in place at the narrow section of

the key hole. See figure 15.

Step 3. Align the remaining circular hole on

the canopy with the remaining hole on the

Ceiling Mounting Bracket. Insert and tighten

the mounting screw you removed earlier and

the mounting screw from Step 2 above. Now,

attach the canopy cover to the mounting screw

heads by inserting the screw heads into the

bottom side of the canopy cover and rotating

the cover clockwise.

NOTE: Adjust the canopy screws as

necessary until the canopy and canopy cover

are snug. (Fig. 15)

Connect the white wire from the fan to the

white wire marked "TO MOTOR N" from the

receiver. Connect the blue wire from the fan to

the blue wire marked "FOR LIGHT" from the

receiver. Secure all the wire connections with

the plastic wire nuts provided.

Step 3. (Fig. 14) Receiver to House Supply

Wires Electrical Connections: Connect the

black (hot) wire from the ceiling to the black

wire marked "AC in L" from the receiver.

Connect the white(neutral) wire from the

ceiling to the white wire marked "AC in N" from

the Receiver. Secure the wire connections

with the plastic wire nuts provided.

Step 4. (Fig. 14) If your outlet box has a

ground wire (green or bare copper) connect it

to the fan ground wires; otherwise connect the

hanging bracket ground wire to the mounting

bracket. Secure the wire connection with a

plastic nut provided. After connecting the

wires, spread them apart so that the green

and white wires are on one side of the outlet

box and black and blue wires are on the other

side. Carefully tuck the wire connections up

into the outlet box.

Note: Fan must be installed at a maximum

distance of 30 feet from the CoolTouch™

Remote Transmitter for optimal signal

transmission between the transmitter and the

fan's receiving unit.

8. FINISHING THE INSTALLATION

Outlet box

Ceiling

mounting

bracket

Canopy

Canopy cover

Screws

White (neutral)

Green or bare

copper (ground)

White ("AC IN N")

White ("to motor N")

Ground

(green) (Connect to

ground wire on

hanger bracket

if no house

ground wire

exists.)

Outlet box

Black (hot)

Black ("AC IN L")

Black ("to motor L")

Receiver

Blue (for light)

Black (motor)

Fig. 16

10. INSTALLING THE MOUNTING PLATE

Step 1. Loosen the two screws on the

mounting ring attached to the motor shaft and

"remove" and save the third screw. (Fig. 17)

Step 2. Place the key hole slots on the

mounting plate over the two screws previously

loosened on the mounting ring.

Turn the mounting plate until is locks in place

at the narrow section of the key hole slots.

Tighten both key hole screws and replace the

third screw previously removed and tighten

securely.

Fig. 17

Mounting plate

Screws

Mounting ring

Blades

Screws

Blade brackets

Fiber

washers

Screws

9. ATTACHING THE FAN BLADES

CAUTION: Remove the five rubber shipping

blocks attached to the face of the motor. These

blocks keep the motor from shifting during

shipping and MUST be removed during

installation.

Step 1. Attach a blade to a blade bracket using

the screws and fiber washers provided.

(Fig.16)

Make sure the blade is straight when set on

the blade bracket. Tighten each mounting

screw and then repeat this procedure for each

blade.

Step 2. Attach each blade assembly to the

motor using the "Pre-Installed" mounting

screws in the blade bracket. (Fig 16)

52” CanfieldTM Pro

Fig. 18

Fig. 19

11. INSTALLING THE LIGHT FIXTURE

Light fixture

Wire connectors

Switch housing

Nut

Lock washer

Plug

Screws

Wire connector

light fixture/

switch housing

assembly

Mounting plate

Step 1. Remove the plastic plug from the

center of the switch housing. Attach the light

fixture to the switch housing by feeding the

light fixture wires (black & white) through the

hole in the center of the switch housing, then

screw the light fixture stem into the center

hole. On the inside of the switch housing,

place a lock washer and a nut on the light

fixture stem and tighten. (Fig. 18)

Step 2. Locate the white and blue wires inside

the switch housing labeled FOR LIGHT.

Attach the wires from the light fixture to the

wires inside the switch housing by pushing the

polarized connections together. (Fig. 18)

- White wire to White wire

- Black wire to Blue wire

Step 3. While holding the light fixture/switch

housing assembly under your ceiling fan, push

the square wire connectors together. One from

the fan and one from the switch housing. (Fig.

19)

NOTE: These connectors are color coded and

will ONLY engage when the colored strips are

matched (aligned).

Step 4. Carefully push all the wires into the

switch housing on the light fixture/switch

housing assembly.

Attach the light fixture/switch housing

assembly to the mounting plate with the three

screws provided. Make sure each screw is

tight. (Fig. 19)

TOSPO

This manual suits for next models

Table of contents

Other Kichler Lighting Fan manuals

Kichler Lighting

Kichler Lighting Canfield User manual

Kichler Lighting

Kichler Lighting KOSMUS User manual

Kichler Lighting

Kichler Lighting Select Canfield 300107 User manual

Kichler Lighting

Kichler Lighting XETY LED User manual

Kichler Lighting

Kichler Lighting Arkwet Patio User manual

Kichler Lighting

Kichler Lighting 42 STRATMOOR User manual

Kichler Lighting

Kichler Lighting Selectlight fixture User manual

Kichler Lighting

Kichler Lighting Hatteras Bay Patio User manual

Kichler Lighting

Kichler Lighting Eads 310135 User manual

Kichler Lighting

Kichler Lighting 35152 User manual

Kichler Lighting

Kichler Lighting Kyte 50 User manual

Kichler Lighting

Kichler Lighting Eris User manual

Kichler Lighting

Kichler Lighting Lija 330140NI User manual

Kichler Lighting

Kichler Lighting 52 inch Colerne LED User manual

Kichler Lighting

Kichler Lighting Rana 310155 User manual

Kichler Lighting

Kichler Lighting SPYRA User manual

Kichler Lighting

Kichler Lighting 300026 User manual

Kichler Lighting

Kichler Lighting Decor Link User manual

Kichler Lighting

Kichler Lighting 339211APP User manual

Kichler Lighting

Kichler Lighting Arkwet Weather+ User manual

Kichler Lighting

Kichler Lighting Seaside 310181WZC User manual

Kichler Lighting

Kichler Lighting 35153 Manual

Kichler Lighting

Kichler Lighting 300260/60-GENT Series User manual

Kichler Lighting

Kichler Lighting Hatteras Bay Patio User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
