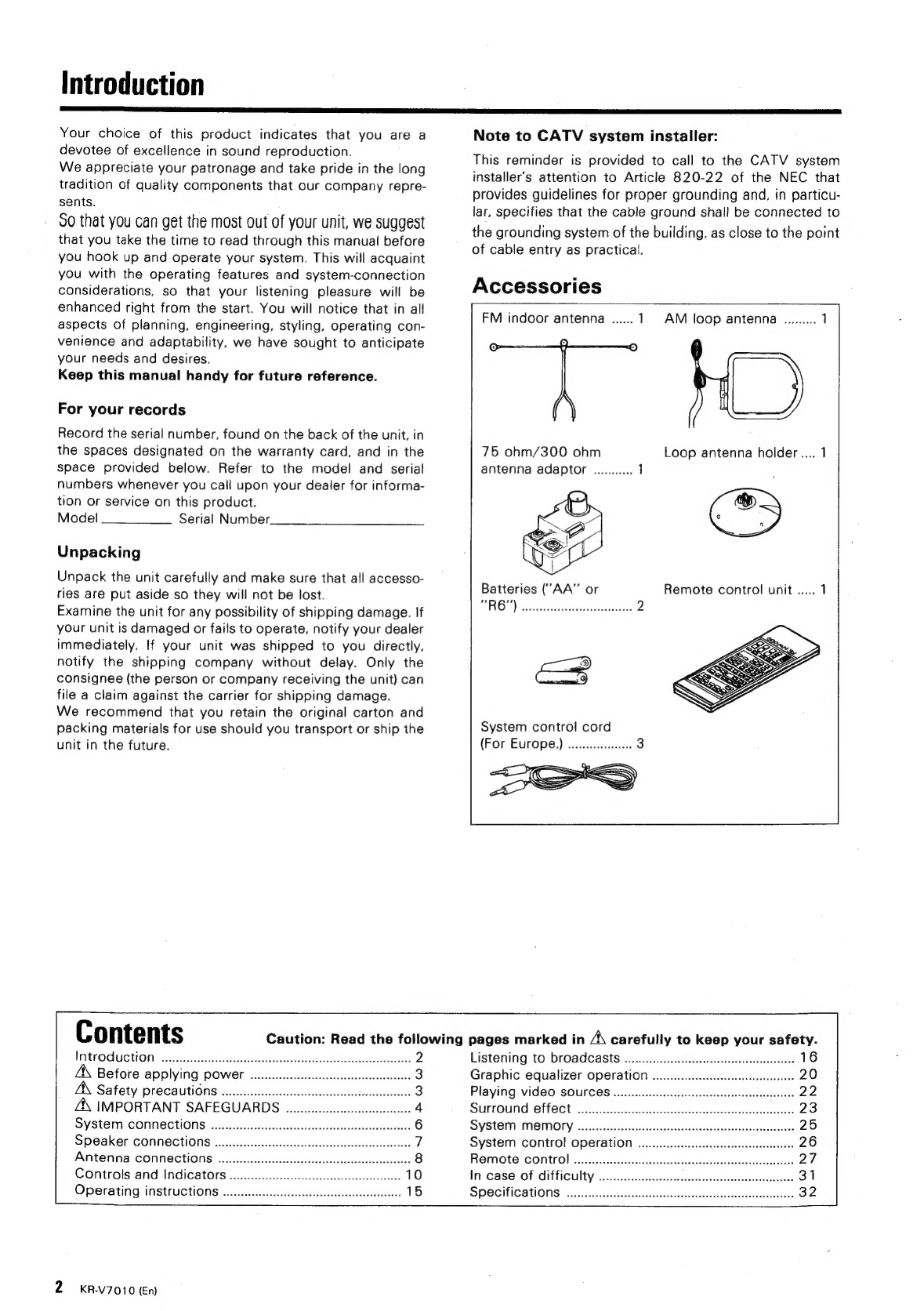

Introduction

mmm

a

ee

aah

Your

choice

of

this

product

indicates

that

you

are

a

devotee

of

excellence

in

sound

reproduction.

We

appreciate

your

patronage

and

take

pride

in

the

long

tradition

of

quality

components

that

our

company

repre-

sents.

SO

that

you

can

get

the

most

out

of

your

unit,

we

suggest

that

you

take

the

time

to

read

through

this

manual

before

you

hook

up

and

operate

your

system.

This

will

acquaint

you

with

the

operating

features

and

system-connection

considerations,

so

that

your

listening

pleasure

will

be

enhanced

right

from

the

start.

You

will

notice

that

in

all

aspects

of

planning,

engineering,

styling,

operating

con-

venience

and

adaptability,

we

have

sought

to

anticipate

your

needs

and

desires.

Keep

this

manual

handy

for

future

reference.

For

your

records

Record

the

serial

number,

found

on

the

back

of

the

unit,

in

the

spaces

designated

on

the

warranty

card,

and

in

the

space

provided

below.

Refer

to

the

model

and

serial

numbers

whenever

you

call

upon

your

dealer

for

informa-

tion

or

service

on

this

product.

Model

Serial

Number.

Unpacking

Unpack

the

unit

carefully

and

make

sure

that

all

accesso-

ries

are

put

aside

so

they

will

not

be

lost.

Examine

the

unit

for

any

possibility

of

shipping

damage.

If

your

unit

is

damaged

or

fails

to

operate,

notify

your

dealer

immediately.

If

your

unit

was

shipped

to

you

directly,

notify

the

shipping

company

without

delay.

Only

the

consignee

(the

person

or

company

receiving

the

unit)

can

file

a

claim

against

the

carrier

for

shipping

damage.

We

recommend

that

you

retain

the

original

carton

and

packing

materials

for

use

should

you

transport

or

ship

the

unit

in

the

future.

Contents

Introduction

Before

applying

power

Safety

precautions

Z\

IMPORTANT

SAFEGUARDS

System

connections

Speaker

connections

Antenna

connections

Controls

and

Indicators

Operating

instructions

2

KR-V7010

(En)

Note

to

CATV

system

installer:

This

reminder

is

provided

to

call

to

the

CATV

system

installer’s

attention

to

Article

820-22

of

the

NEC

that

provides

guidelines

for

proper

grounding

and,

in

particu-

lar,

specifies

that

the

cable

ground

shall

be

connected

to

the

grounding

system

of

the

building,

as

close

to

the

point

of

cable

entry

as

practical.

Accessories

75

ohm/300

ohm

antenna

adaptor

Loop

antenna

holder...

1

Batteries

(’“AA”

or

System

control

cord

(For

Europe.)

oo...

3

Caution:

Read

the

following

pages

marked

in

A

carefully

to

keep

your

safety.

Listening

to

broadcasts

Graphic

equalizer

operation

Playing

video

sources

Surround

effect

System

memory

System

control

operation

Remote

control

In

case

of

difficulty

Specifications

A\

Caution:

Read

this

page

carefully

to

keep

your

safety.

Before

applying

power

a

aE

A

I

I

ATE

SE

For

the

U.S.A.

and

Canada

Important!

Units

shipped

to

the

U.S.A.

and

Canada

are

designed

for

operation

on

120

volts

AC

only.

;

Safety

precaution

for

a

Polarized

AC

plug

CAUTION:

To

PREVENT

ELECTRIC

SHOCK

DO

NOT

USE

THIS

(POLARIZED)

PLUG

WITH

AN

EXTENSION

CORD,

RECEPTACLE

OR

OTHER

OUTLET

UNLESS

THE

BLADES

CAN

BE

FULLY

INSERTED

TO

PREVENT

BLADE

EXPOSURE.

For

the

United

Kingdom

Important!

Units

shipped

to

the

U.K.

are

designed

for

operation

on

240

volts

AC

only.

The

mains

plug

must

be

removed

from

the

wall

socket

prior

to

any

internal

examination.

The

wires

in

this

mains

lead

are

coloured

in

accordance

with

the

following

code:

Blue

Neutral

Live

The

wires

in

this

mains

lead

must

be

connected

to

the

terminals

in

the

plug

as

follows:

Wire

colour

Plug

terminal

marking

BBG

cds

casos

eesedsvevesnascesbecuosesstesetccccssorscst

N

or

Black

BOW

I

reeeceiicocceseass

peste chach

Seaesas

bie

deelasdeoes

L

or

Red

Brown

to

(5

Live

Blue

to

L

Neutral

w

)

Plug

Notes:

1.

If

a

13-amp

plug

is

used,

this

must

be

fitted

with

a

5-

amp

fuse.

2.

If

a

3-pin

plug

with

earthing

contact

is

used,

no

wire

must

be

connected

to

the

E

terminal.

Safety

precautions

For

Australia

and

Europe

Important!

Units

shipped

to

Australia

are

designed

for

operation

on

240

V

AC

only.

Units

shipped

to

Europe

are

designed

for

operation

on

220

V

AC

only.

For

other

countries

Important!

Units

shipped

to

countries

other

than

the

above

countries

are

equipped

with

an

AC

voltage

selector

switch

on

the

rear

panel.

Refer

to

the

following

paragraph

for

the

proper

setting

of

this

switch.

AC

voltage

selection

This

unit

operates

on

110-120

or

220-240

volts

AC.

The

AC

voltage

selector

switch

on

the

rear

panel

is

set

to

the

voltage

that

prevails

in

the

area

to

which

the

unit

is

shipped.

Before

connecting

the

power

cord

to

your

AC

outlet,

make

sure

that

the

setting

position

of

this

switch

matches

your

line

voltage.

If

not,

it

must

be

set

to

your

voltage

in

accordance

with

the

following

directions.

Note:

————________

Our

warranty

does

not

cover

damage

caused

by

excessive

line

voltage

due

to

improper

setting

of

the

AC

voltage

selector

switch.

AC110-120VV4RAC220-240V%

AC110-120VV4RAC220-240VV

This

shows

switch

lever

is

locked

in

the

220-240V

‘V

position.

This

shows

switch

lever

is

focked

in

the

110-120V

“V

position.

Move

switch

lever

to

match

your

line

voltage

with

a

small

screwdriver

or

other

pointed

tool.

AC

voltage

selector

switch

WARNING:

TO

PREVENT

FIRE

OR

SHOCK

HAZARD,

DO

NOT

EXPOSE

THIS

APPLIANCE

TO

RAIN

OR

MOISTURE.

CAUTION

RISK

OF

ELECTRIC

SHOCK

DO

NOT

OPEN

CAUTION:

TO

REDUCE

THE

RISK

OF

ELECTRIC

SHOCK,

DO

NOT

REMOVE

COVER

(OR

BACK).

NO

USER-SERVICEABLE

PARTS

INSIDE,

REFER

SER-

VICING

TO

QUALIFIED

SERVICE

PERSONNEL.

THE

LIGHTNING

FLASH

WITH

ARROWHEAD

SYMBOL,

WITHIN

AN

EQUILATERAL

TRIAN-

GLE,

IS

INTENDED

TO

ALERT

THE

USER

TO

THE

PRESENCE

OF

UNINSULATED

“DAN-

GEROUS

VOLTAGE”

WITHIN

THE

PRODUCT'S

ENCLOSURE

THAT

MAY

BE

OF

SUFFICIENT

MAGNITUDE

TO

CONSTITUTE

A

RISK

OF

ELECTRIC

SHOCK

TO

PERSONS.

THE

EXCLAMATION

POINT

WITHIN

AN

EQUILATERAL

TRIANGLE

IS

INTENDED

TO

ALERT

THE

USER

TO

THE

PRESENCE

OF

IMPORTANT

OPERATING

AND

MAINTENANCE

(SER-

VICING)

INSTRUCTIONS

IN

THE

LITERATURE

ACCOMPANYING

THE

APPLIANCE.

KR-V7010

(En)

3

A\

Caution:

Read

this

page

carefully

to

keep

your

safety.

IMPORTANT

SAFEGUARDS

Please

read

all

of

the

safety

and

operating

instructions

before

Operating

this

unit.

For

best

results,

follow

all

warnings

placed

on

the

unit

and

adhere

to

the

operating

and

use

instructions.

These

safety

and

operating

instruc-

tions

should

be

retained

for

future

reference.

1.

Power

sources

-

The

unit

should

be

connected

to

a

power

supply

only

of

the

type

described

in

the

operating

instructions

or

as

marked

on

the

appliance.

2.

Power-cord

protection

—

Power-supply

cords

should

be

routed

so

that

they

are

not

likely

to

be

walked

on

or

pinched

by

items

placed

upon

or

against

them,

pay

particular

attention

to

cords

at

plugs,

convenience

receptacles,

and

the

point

where

they

exit

from

the

unit.

Never

pull

or

stretch

the

cord.

3.

Grounding

or

polarization

—

The

precautions

should

be

taken

so

that

the

grounding

or

polarization

means

of

this

unit

is

not

defeated.

4.

Ventilation

—

The

unit

should

be

situated

so

that

its

location

or

position

does

not

interfere

with

its

proper

ventilation.

To

maintain

good

ventilation,

do

not

put

records

or

a

table-cloth

on

the

unit.

Place

the

unit

at

least

10

cm

away

from

the

walls.

Do

not

use

the

unit

on

a

bed,

sofa,

rug

or

similar

surface

that

may

block

the

ventilation

openings.

5.

Water

and

moisture

—

The

unit

should

not

be

used

near

water

-

for

example,

near

a

bathtub,

washbowl,

kitchen

sink,

laundry

tub,

in

a

wet

basement,

or

near

a

swimming

pool,

etc.

4

«KR-V7010

(En)

6.

Temperature

—

The

unit

may

not

function

properly

if

9.

10.

used

at

extremely

low,

or

freezing

temperatures.

The

ideal

ambient

temperature

is

above

+

5°C

(41°F).

.

Heat

—

The

unit

should

be

situated

away

from

heat

sources

such

as

radiators,

heat

registers,

stoves,

or

other

units

(including

amplifiers)

that

produce

heat.

.

Electric

shock

—

Care

should

be

taken

so

that

object

do

not

fall

and

liquid

is

not

spilled

into

the

enclosure

through

openings.

If

a

metal

object,

such

as

a

hair

pin

or

a

needle,

comes

into

contact

with

the

inside

of

this

unit,

a

dangerous

electric

shock

may

result.

For

families

with

children,

never

permit

children

to

put

anything,

especially

metal,

inside

this

unit.

Enclosure

removal

-

Never

remove

the

enclosure.

If

the

internal

parts

are

touched

accidentally,

a

serious

electric

shock

might

occur.

AC

outlets

—-

Do

not

connect

other

audio

equipment

with

a

power

consumption

larger

than

that

specified

to

the

AC

outlet

on

the

rear

panel.

Never

connect

other

electrical

units,

such

as

an

iron

or

toaster,

to

it

to

prevent

fire

or

electric

shock.

The

maximum

capacities

indicated

for

the

AC

outlets

on

the

rear

panel

of

this

unit

are

as

follows.

SWITCHED

outlet

:

100

W

(For

Europe).

:

200

W

(Others).

A\

Caution:

Read

this

page

carefully

to

keep

your

safety.

11.

12.

13.

14.

15.

16.

Magnetic

fields

—

Keep

the

units

away

from

sources

of

magnetic

fields

such

as

TV

sets,

speaker

systems,

radios,

motorized

toys

or

magnetized

objects.

Cleaning

—

Do

not

use

volatile

solvents

such

as

alco-

hol.

paint

thinner,

gasoline,

benzine,

etc.

to

clean

the

cabinet.

Use

a

clean

dry

cloth.

Carts

and

stands

-

An

appliance

and

cart

combina-

tion

should

be

moved

with

care.

Quick

stops,

exces-

sive

force,

and

uneven

surfaces

may

cause

the

appli-

ance

and

cart

combination

to

overturn.

Nonuse

periods

—

The

power

cord

of

the

unit

should

be

unplugged

from

the

outlet

when

left

unused

for

a

long

period

of

time.

Abnormal

smell

—|f

an

abnormal

smell

or

smoke

is

detected,

immediately

turn

the

power

OFF

and

pull

out

the

power

cord.

Contact

your

dealer

or

nearest

service

center.

POWER

OFF!

Damage

requiring

service—The

unit

should

be

serviced

by

qualified

service

personnel

when:

A.

The

power-supply

cord

or

the

plug

has

been

damaged;

or

B.

Objects

have

fallen,

or

liquid

has

been

spilled

into

the

unit;

or

C.

The

unit

has

been

exposed

to

rain;

or

D.

The

unit

does

not

appear

to

operate

normally

or

exhibits

a

marked

change

in

performance;

or

E.

The

unit

has

been

dropped,

or

the

enclosure

damaged.

17

18.

.

Servicing

—

The

user

should

not

attempt

to

service

the

unit

beyond

that

described

in

the

operating

instructions.

All

other

servicing

should

be

referred

to

qualified

service

personnel.

Outdoor

antenna

grounding

-—

If

an

outside

antenna

is

connected

to

the

receiver,

be

sure

the

antenna

system

is

grounded

so

as

to

provide

some

protection

against voltage

surges

and

built

up

static

charges.

Section

810

of

the

National

Electrical

Code,

ANSI/-

NFPA

No.

70-1984,

provides

information

with

re-

spect

to

proper

grounding

of

the

mast

and

supporting

structure,

grounding

of

the

lead-in

wire

to

an

antenna

discharge

unit,

size

of

grounding

conductors,

location

of

antenna-discharge

unit,

connection

to

grounding

electrodes,

and

requirements

for

the

grounding

elec-

trode.

See

Figure.

19.

Notes:

Ts

2.

STANDOFF

INSULATORS?

ANTENNA

LEAD-IN

WIRE

ANTENNA

DISCHARGE

UNITE

TO

EXTERNAL

ANTENNA

TERMINALS

OF

PRODUCT

POWER

SERVICE

GROUNDING

ELECTRODE

SYSTEM

jag.

inne

metal

water

er”)

ee

GROUND

CLAMPS

OPTIONAL

ANTENNA

GROUNDING

ELECTRODE.

DRIVEN

8

FEET

(2.44

m)

INTO

THE

EARTH

IF

REQUIRED

BY

LO-

CAL

CODES,

SEE

NEC

SECTION

810-21

(fh.

BONDING JUMPER®

FIGURE

EXAMPLE

OF

ANTENNA

GROUNDING

ACCORDING

TO

THE

NATIONAL

ELECTRICAL

CODE

INSTRUCTIONS

CONTAINED

IN

ARTICLE

810-“RADIO

AND

TELEVISION

EQUIPMENT”

®

Use

No.10

AWG

(5.3

mm?)

copper,

No.8

AWG

(8.4

mm?)

aluminum.

No.17

AWG

(1.0

mm?)

copper-clad

steel

or

bronze

wire,

or

larger,

as

a

ground

wire.

>

Secure

antenna

lead-in

and

ground

wires

to

house

with

stand-

off

insulators

spaced

from

4-6

feet

(1.22

-—

1.83

m)

apart.

©

Mount

antenna

discharge

unit

as

close

as

possible

to

where

lead-in

enters

house.

4

Use

jumper

wire

not

smaller

than

No.6

AWG

(13.3

mm?)

copper.

or

the

equivalent,

when

a

separate

antenna-grounding

electrode

is

used.

See

NEC

Section

810-2

1{j),

Power

lines

-

An

outdoor

antenna

should

be

located

away

from

power

lines.

Item

3

is

not

required

except

for

grounded

or

polarized

equipment.

Item

10

is

not

required

except

for

units

provided

with

AC

outlets.

.

Item

18

and

19

are

not

required

except

for

units

provided

with

antenna

terminals.

.

Item

18

complies

with

UL-1270

in

the

U.S.A.

KR-V7010

(En)

3

System

connections

Make

connections

as

shown

in

the

diagram

below.

When

connecting

the

related

system

components,

refer

also

to

the

instruction

manuals

of

the

related

components.

Speaker

system

A

Right

Left

Tape

deck

1

TV

monitor

VTR

(VCR)

2

shat

o)

=

9 0

CIT

Tr)

Cr

s

—

ee

ee

LINE

IN

LINE

AUDIO

VIDEO

OUT

OUT

OUT

Refer

to

the

a

“System

control

operation”

section.

AC

outlets

(SWITCHED)

Refer

to

the

“Antenna

connections”

section.

AC

voltage

selector

switch

(Except

for

some

areas.)

For

Europe

(Except

for

Europe.)

Cue

Sa)

fe

rt

Refer

to

the

“Setting

the

speaker

[IMPEDANCE

SELECTOR’

section.

Left

Surround

speakers

(Except

for

Europe.)

[pre

a

ee

|

VIDE

Turntable

ar

(Turntable

using

MM

cartridge)

f=

[2s

C6

VTR

(VCR)

1

LINE

IN

LINE

OUT

Right

Left

[=|

SS

Fe

6

ef]

Speaker

system

B

[Phe

fe

|

CP

ESSasae

Notes:

CD

player

Tape

deck

2

1.

To

prevent

possible

problems,

always

disconnect

the

power

plug

or

turn

off

the

POWER

switch

of

the

receiver

before

connecting

or

disconnecting

the

audio

cables.

2.

When

connecting

audio

cables,

always

insert

the

pin

plugs

securely

into

the

connecting

jacks.

®

Insufficient

insertion

may

result

in

no-sound

problems

or

generation

of

noise.

6

KR-V7010

(En)

Speaker

connections

10

mm

@ ®

Remove

insulation

Twist

wire

tightly

SE

from

lead

tip.

sf

and

solder.

The

wire

is

now

locked.

Insert

the

wire

and

return

the

lever.

Raise

the

lever.

Speaker

lead

connection

IMPEDANCE

SELECTOR

LESS

THAN

~<op

82

82

OR

MORE

WARNING

Particular

attention

must

be

given

to

making

good

electrical

contact

at

the

receiver

output

and

speaker

terminals.

Poor

or

loose

connections

can

cause

sparking

or

burning

at

the

terminals

because

of

the

very

high

power

that

the

receiver

can

deliver.

Follow

these

steps

carefully.

@

Connecting

the

front

speakers

Connect

speakers

rated

at

4

ohm

or

more

to

the

SPEAK-

ERS

terminals.

1.

Connect

the

left

speaker

to

the

L

speaker

terminals

on

the

rear

of

the

receiver

and

the

right

speaker

to

the

R

terminals.

2.

Connect

each

cable

as

shown

in

the

illustration,

taking

care

that

the

wires

do

not

make

contact

with

other

terminals.

Notes:

1.

Take

care

so

as

not

to

short-the

positive

(+)

and

negative

(—)

speaker

cords.

2.

If

the

left

and

right

speakers,

or

positive

and

negative

cables,

are

connected

the

wrong

way,

the

reproduced

sound

may

be

unclear,

with

ambiguous

location

of

the

musical

instruments

etc.

To

avoid

this,

pay

attention

to

the

left

and

right

and

positive

and

negative

indications

when

connecting

the

speak-

ers.

@

Setting

the

speaker

IMPEDANCE

SELEC-

TOR

When

connecting

one

pair

of

speakers

to

the

SPEAKERS

A

or

B

terminals,

set

the

IMPEDANCE

SELECTOR

accord-

ing

to

the

speaker

impedance.

When

two

pairs

of

speakers

are

connected

to

both

the

A

and

B

terminals,

match

the

speaker

impedance

selector

to

the

speakers

with

the

lowest

impedance.

Notes:

1.

During

speaker

system

connection

and

operation

of

the

speaker

IMPEDANCE

SELECTOR,

set

the

POWER

switch

to

OFF.

2.

Check

that

the

connected

lead

wires

of

the

speaker

systems

do

not

contact

with

other

jacks

or

terminals.

m@

SURROUND

SPEAKER

terminals

(Except

for

Europe.)

Connect

speakers

having

an

impedance

of

between

8

ohms

and

16

ohms,

and

place

them

to

the

left

and

right

behind

the

listening

position.

@

AC

outlets

The

AC

outlets

on

the

rear

panel

may

be

used

to

supply

power

to

other

components

in

the

system,

such

as

turntables,

tape

decks,

etc.

Never

connect

equipment

whose

power

consumption

exceeds

the

maximum

value

shown

at

each

outlet.

(in

Europe,

do

not

connect

a

main

amplifier

or

similar

component

to

any

of

the

AC

outlets.)

SWITCHED

outlets:

These

outlets

supply

power

only

when

the

unit

is

turned

on.

The

maximum

total

capacity

is

200

watts.

(100

W

in

Europe.)

@

Ground

For

maximum

safety

and

minimum

interference

connect

the

GND

terminal

to

a

good

earth

ground

if

practicable.

A

good

earth

ground

is

a

cold

water

pipe

or

a

metal

stake

driven

into

moist

earth.

However,

never

use

a

gas

pipe

for

this

purpose.

KR-V7010

(En)

7

System

connections

Antenna

connections

AM

outdoor

antenna

Venu

Vary

the

direction

of

the

loop

antenna.

AM

loop

antenna

AM

loop

antenna

Keep

the

speaker

leads

and

AC

cord

away

from

the

AM

loop

antenna.

AM

loop

antenna

holder

@

AM

antennas

AM

loop

antenna

Attach

the

AM

loop

antenna

to

the

supplied

loop

antenna

stand

and

place

it

on

a

shelf,

etc.,

or

install

it

on

the

rack

or

wall

with

screws.

Rotate

the

AM

loop

antenna

to

the

right

or

left

for

best

reception.

Note:

——————_____

Do

not

place

the

AM

loop

antenna

directly

on

the

unit.

As

this

unit

employs

computing

devices,

placing

the

AM

loop

antenna

on

the

unit

may

result

in

noise

generation.

Place

the

AM

loop

antenna

away

from

the

unit.

:

AM

outdoor

antenna

In

steel

buildings

or

at a

great

distance

form

the

transmit-

ter.

it

may

be

necessary

to

install

an

outside

long

wire

antenna.

The

end

of

this

wire

should

be

stripped

of

insulation

and

connected

to

the

AM

terminal.

At

this

time,

keep

the

loop

antenna

connected.

-FM

indoor

antenna

FM

outdoor

antenna

75

ohm

Coaxial

Cable

@

FM

antennas

FM

indoor

antenna

Connect

the

T-shaped

indoor

antenna

(supplied)

to

the

75

ohm

FM

ANTENNA

terminal

with

the

75

ohm/300

ohm

antenna

adaptor

as

shown

in

the

Antenna

connections

diagram.

Spread

the

two

arms

that

form

the

top

of

the

“T””

horizontally

and

hold

them

against

convenient

wall

sur-

faces.

Try

several

locations

for

best

results

with

your

favorite

stations.

Tape

the

antenna

in

place

where

the

best

compromise

is

found

between

listening

results

and

ap-

pearance.

Connection

of

the

75

ohm/300

ohm

antenna

adaptor

Indoor

antenna

feeder.

Loosen

the

screws

with

a

screwdriver.

Insert

the

antenna

terminals

under

the

screw

heads

and

tighten

the

screws

firmly.

®

To

minimize

auto-ignition

noise,

locate

the

antenna

as

far

from

heavy

traffic

as

possible.

®

Keep

the

feeder

or

coaxial

calbe

as

short

as

possible.

Do

not

bundle

or

roll

up

excess

cable.

®@

The

antenna

should

be

at

least

two

meters

(6.6

feet)

from

reinforced

concrete

walls

or

metal

structures.

FM

outdoor

antenna

setting

8

KR-V7010

(En)

en

a

FM

outdoor

antenna

Be

sure

to

use

an

Outdoor

FM

antenna

to

receive

good

sound

quality

FM

broadcasts

with

a

minimum

of

noise.

When

connecting

an

outdoor

antenna

to

the

antenna

terminals

of

this

unit,

use

a

75

ohm/300

ohm

antenna

adaptor

connected

to

the

coaxial

cable

as

illustrated.

The

75

ohm/300

ohm

antenna

adaptor

is

supplied

with

this

unit.

Be

sure

to

connect

the

coaxial

cable

to

the

adaptor

as

instructed

below.

Note:

———_____—_——_—_

An

FM

outdoor

antenna

can

be

connected

to

the

tuner

with

either

a

75

ohm

coaxial

cable

or

a

300

ohm

ribbon

feeder.

For

proper

connection,

carefully

read

the

instruction

manual

pro-

vided

with

outdoor

antenna.

@

75

ohm

coaxial

cable

connection

(Follow

the

order

of

numbers.)

Arrange

the

coaxial

cable

as

illus-

trated.

Outer

shield

(Braid)

SSS

Inner

conductor

RG-6

(5C-2V)

or

RG-59

(3C-2V)

Open

the

75

ohm/300

ohm

an-

tenna

adaptor

Press

the

claws

in

the

direction

of

the

arrows

with

the

fingers

to

re-

lease

the

lock

and

pull

out

the

cover.

Cut

off

the

red

wire

and

remove

it

from

the

clip.

R

h

\W//

redwire

(4)

Connect

the

processed

coaxial

ca-

ble

to

75

ohm/300

ohm

antenna

adaptor

as

shown

below.

Insert

into

the

siot

on

the

clip.

Wire

mesh

MFM

DE-EMPHASIS/CHANNEL

SPACE

switch

(Except

for

some

areas.)

The

FM

DE-EMPHASIS/CHANNEL

SPACE

switch

on

the

rear

panel

is

set

to

the

correct

setting

that

prevails

in

the

area

to

which

the

unit

is

shipped.

However,

if

the

FM

DE-EMPHASIS/CHANNEL

SPACE

setting

is

not

matched

to

the

area

where

the

unit

is

to

be

used

(for

instance,

if

you

move

from

area

1

to

area

2

or

vice

versa),

desired

reception

of

AM/FM

broadcasts

cannot

be

expected.

In

this

case.

change

the

FM

DE-EMPHASIS/CHANNEL

SPACE

setting

in

accordance

with

the

area

corresponding

to

the

table

on

the

right.

The

FM

DE-EMPHASIS

setting

is

switched

over

at

the

same

time.

Note:

When

changing

the

setting

of

the

FM

DE-EMPHASIS/CHANNEL

SPACE

switch,

first

disconnect

the

power

cord,

then

reset

the

channel

space

switch,

connect

the

power

cord

again,

and

turn

the

power

on.

Si

eh

a

ee

Channel

Space

Frq.

DE-EMPHASIS

U.S.A.

FM:

Canada,

Hawaii

and

AM:

10

kHz

Guam

100

kHz

European

countries

and

Far

East

countries

FM

DE-EMPHASIS/CHANNEL

SPACE

table

50

ys

FM

DE-EMPHASIS

75

ys

FMSOKHz

CHANNEL

SPACE

FMIOOKHz

AM

9KHz

a

AM

IOKHz

>

|

KR-V7010

(En)

9

Controls

and

indicators

a

POWER

key

Switches

the

power

ON/OFF.

SPEAKERS

A

and

B

switches

Selects

the

speaker

system

to

be

used

for

listening.

Note:

When

the

SPEAKERS

A

and

B

switches

are

both

used

at

the

same

time,

the

speakers

connected

to

the

SPEAKERS

A

and

B

terminals

are

connected

in

series.

Therefore,

whenever

using

the

SPEAK-

ERS

A

and

B

switches

at

the

same

time,

be

sure

that

two

Pairs

of

speakers

are

connected

to

the

A

and

B

terminals,

otherwise

no

sound

is

output.

EQ.

(Equalizer)

PRESET

(M-A

~

M-E)

keys

Use

these

keys

to

store

equalizer

patterns

in

memory

or

to

recall

them.

PHONES

jack

This

jack

accepts

the

standard

stereo

headphone

plug.

When

you

wish

to

listen

through

headphones

alone,

set

the

SPEAKERS

switches

(A

and

B)

both

to

the

OFF

(1)

position.

Equalizer

level

control

keys

Adjust

these

keys

up

and

down

to

equalize

the

sound

level

of

the

indicated

frequencies

with

in

a

range

of

+12

dB.

10

kR-v7010

(En)

!

Display

section

|

LS

et

oe

eel

EQ/SPI

key

Pressing

this

key

alternates

the

display

mode

between

EQ

(graphic

equalizer)

and

SPI

(spectrum

peak

indicator).

Equalizer

(EQ,

ON)

key

Press

this

switch

to

ON

and

the

frequency

characteristics

of

the

sound

will

be

modified

by

the

graphic

equalizer,

In

the

DEFEAT

position,

the

frequency

characteristics

remain

unchanged.

EQ

REC

key

Used

when

recording

a

source

to

a

tape

deck

through

the

graphic

equalizer.
