Johnson Controls F4-DLK0350 User manual
F4-DLK0350 Product Bulletin
F4-DLK0350 Local Controller Display
The F4-DLK0350 Local Controller Display is a stand-alone
local display that provides enhanced local monitoring of
controlled field equipment. The F4-DLK0350 features a 3.5
in. (8.9 cm), 320 x 240 pixel resolution color display, and
navigation keypad. The display provides an intuitive local
interface for users to monitor point values and status,
view alarms, view trends, override outputs, and adjust
setpoints and parameters. The F4-DLK0350 can be panel
or surface mounted. You can also use it as a portable
device by plugging it into a compatible controller while on-
site. You can connect the F4-DLK0350 to the SA Bus of a
controller that does not have an on-board display.
The F4-DLK0350 local display can be connected to the
following compatible controller devices:
• F4-CG series General Purpose Application Equipment
Controllers
• F4-CV series VAV Box Controllers
• PCA series Advanced Application Field Equipment
Controllers
• PCG series Field Equipment Controllers
• PCV16, PCV18, and PCV19 series VAV box controllers
• VAV17 series VAV box controllers
• F4-SNC series Network Control Engines

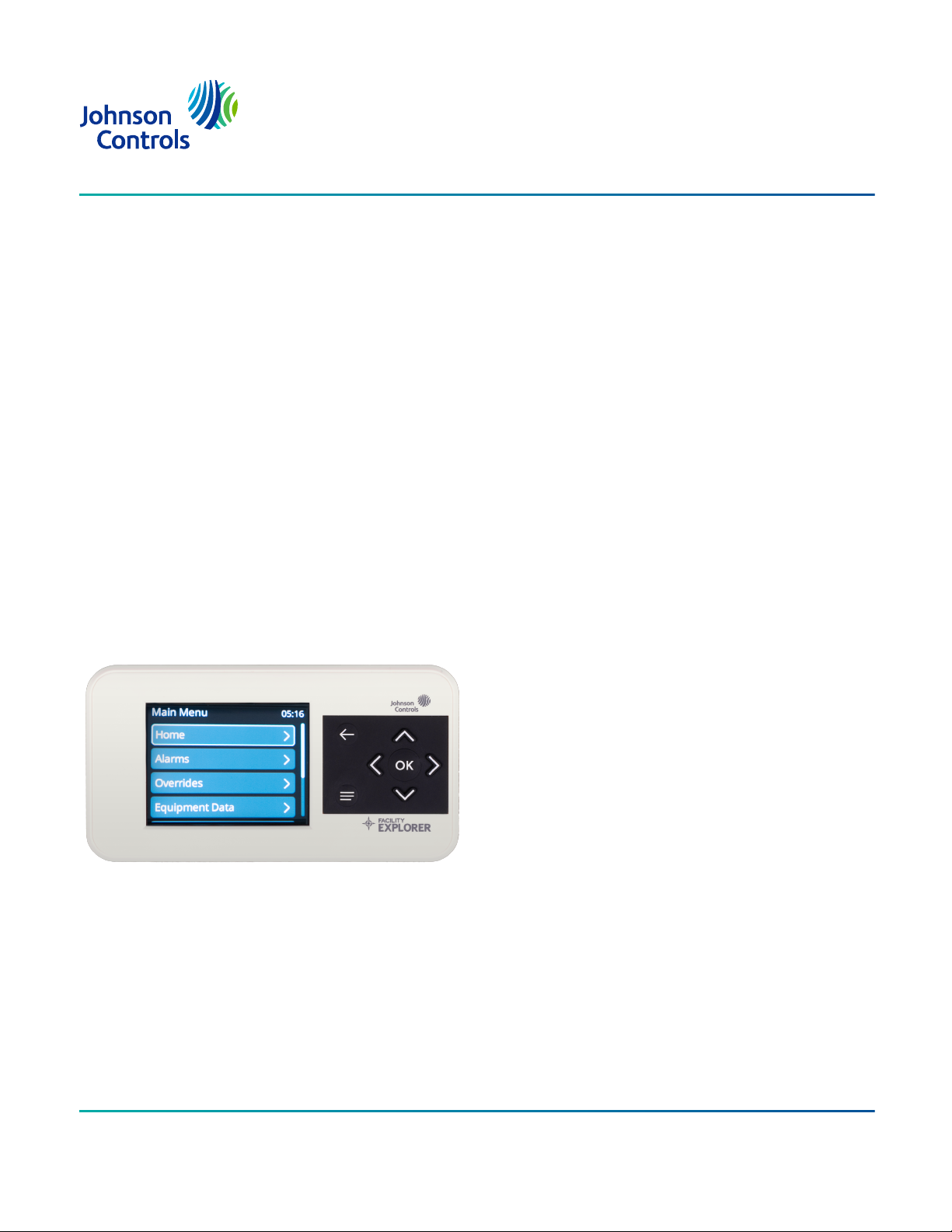

Figure 1: F4-DLK0350 Local Controller Display
Features and benefits
At-a-glance system status
Provides quick access to view the current status of
monitored points without logging in.
Sleek and modern packaging and styling
Provides a modern, aesthetically pleasing industrial
design.
Local access to operating parameters, setpoints,
alarms, and trends
Provides end users and field technicians the ability to
quickly troubleshoot issues and restore control while
being in close proximity to the associated mechanical
equipment.
Menu-based screen design
Provides an intuitive user interface through the use of a
simple keypad.
Tactile keypad
Provides haptic feedback to the user upon interaction.
Back-lit LCD
Provides constant backlight that activates during user
interaction to ensure excellent readability in low-light
environments.
Customized user preferences
Use to specify settings such as password timeout,
backlight intensity, time and date format, and many more.
Password protection (Optional)
Secures the display from unauthorized users.
LIT-12014010
2022-07-19
F4-DLK0350-0
Network diagram

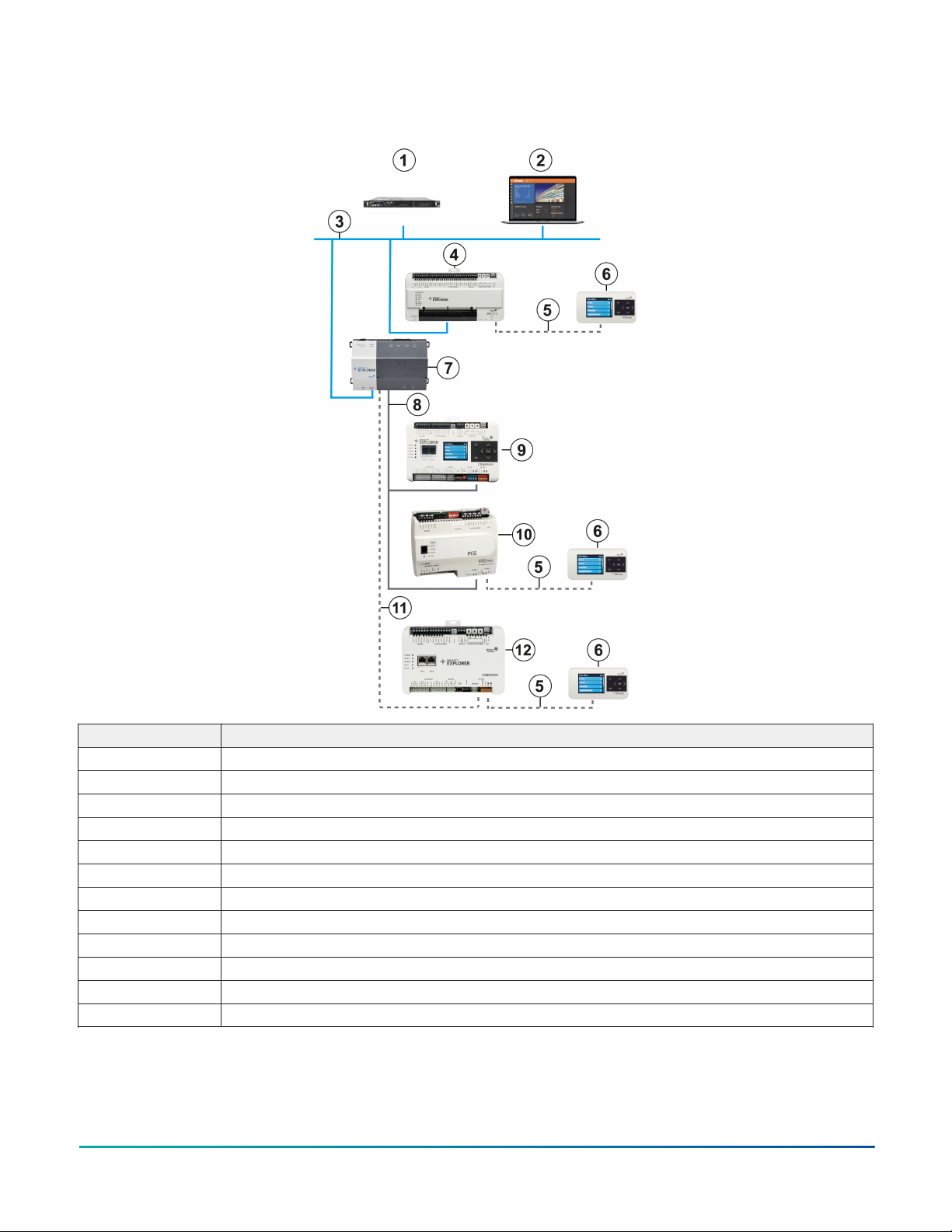

Figure 2: Network diagram example
Callout Description
1 FX Server
2 System User Interface
3 Ethernet/IP network
4 F4-SNC with an F4-DLK0350 Local Controller Display connected
5 SA Bus connection
6 F4-DLK0350 Local Controller Display
7 FX80 Supervisory Controller
8 FC Bus connection
9 F4-CGM with integral display
10 PCG with an F4-DLK0350 Local Controller Display connected
11 BACnet/IP
12 F4-CGE with an F4-DLK0350 Local Controller Display connected
Mounting dimensions
F4-DLK0350 Product Bulletin2

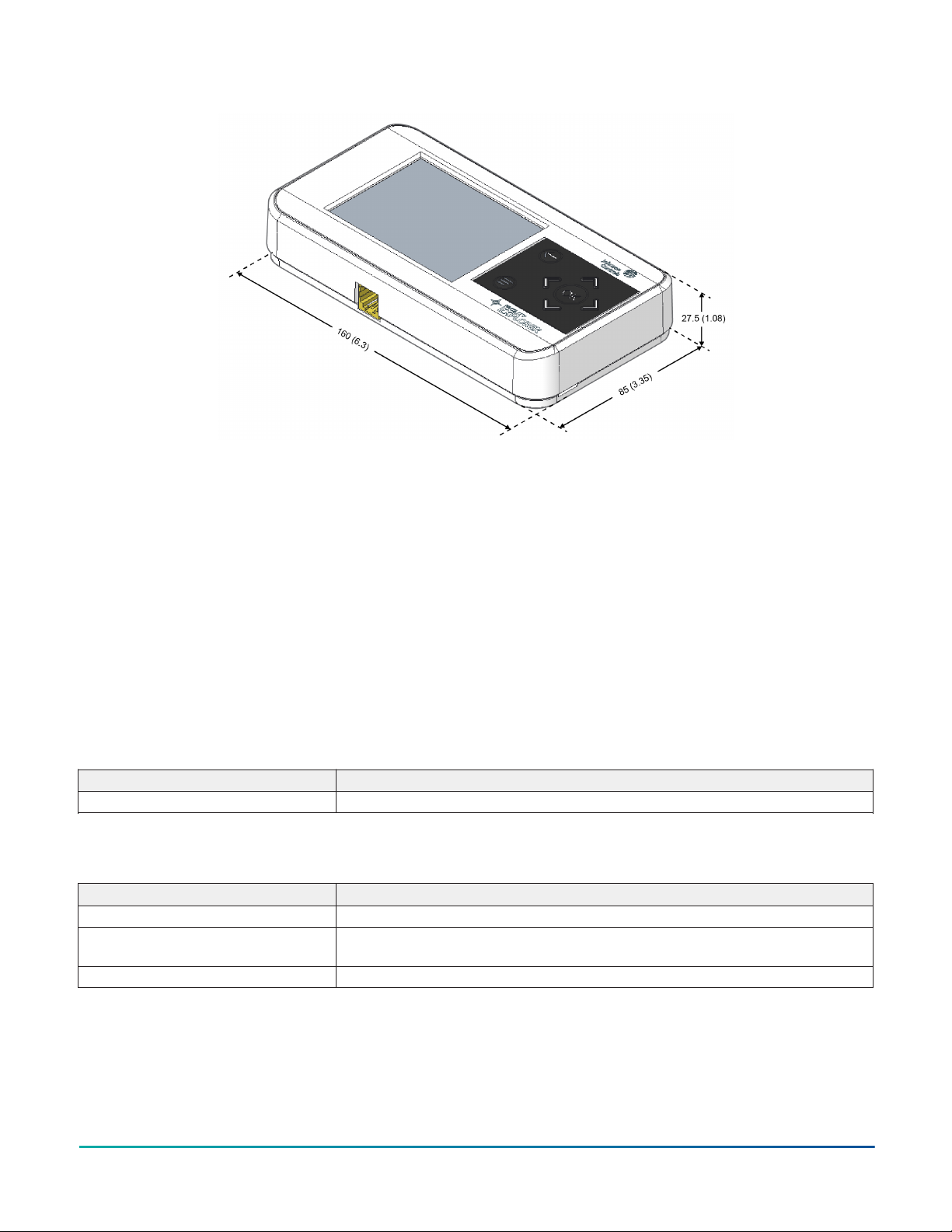

Figure 3: DLK0350 dimensions, mm (in.)
Applications
The DLK0350 Local Controller Display is designed for
use with controllers that do not have an integral display.
You can install the display on the front panel of the
enclosure that houses the controller or you can use the
DLK0350 display as a portable device by plugging it into a
compatible controller while on-site. You can commission
the controller conveniently from the Sensor Actuator (SA)
Bus port on the bottom of the display without having to
open the enclosure.
The display features a back-lit color LCD and tactile
navigation keypad. You can conveniently adjust heating
and cooling setpoints, view the room or outside air
temperatures, select mode of operation (Day/Night), view
trends and alarms, and much more. For more information
about how to operate the DLK0350 Local Controller
Display, refer to the Local Controller Display User Guide
(LIT-12013984).
Customized display content and
settings
You can customize the information that is shown in the
display using the Controller Configuration Tool (CCT). With
CCT, you can also define the order and groupings of the
information, define which points are read-only and cannot
be commanded using the display, set the authorization
for the display, and set the display preferences, such as
timeout settings. For more information about how to
configure the display, refer to CCT Help (LIT-12011147).
Ordering information
Table 1: DLK0350 ordering information
Product code number Description
F4-DLK0350-0 F4-DLK0350-0 Local Controller Display
Accessories
Table 2: DLK0350 accessories
Product code number Description
TL-PWRKIT-0A Optional power supply; for North American power outlets only.
TL-PWRKIT-0D Optional power supply; includes interchangeable blades for North America, Europe, UK,
Australia, and China power outlets.
ACC-TBKPWFCSA-0 Replacement terminal block kit.
Technical specifications
F4-DLK0350 Product Bulletin 3
Table 3: Technical Specifications
Power Requirement 5.2 W
Power Consumption Typically 75 mA, maximum 100 mA.
1.2 W (nominal power without any loading on the SA Bus)
Power supply 11.3 VDC to 16.5 VDC
Ambient Conditions Operating: 0°C to 50°C (32°F to 122°F), 10% to 95% RH, Noncondensing
Storage: -40°C to 80°C (-40°F to 176°F), 5% to 95% RH, Noncondensing
Communications Protocol BACnet MS/TP
Communications Bus BACnet, RJ12 6-pin modular jack, 4-wire pluggable screw terminal block
Processor Renesas® RX651 32-bit Microcontroller
Memory 64 MB Flash memory and 32 MB SDRAM
Operating system Unison RTOS
Network and serial interfaces Communication to controller over SA Bus
Terminations • SA Bus Port: RJ-12 6-pin modular jack
• SA Bus Terminal: 4-wire pluggable screw terminal block
Mounting Mount to the outside of the enclosure, 85 mm x 160 mm (3.34 in. x 6.3 in.)
Housing Plastic housing material: ABS and polycarbonate
Protection IP20 (IEC60529)
Graphic Display Resolution 320 x 240 pixels with white LED backlighting (adjustable)
Dimensions (Height x Width x Depth) 85 mm x 160 mm x 27.5 mm (3.34 in. x 6.3 in. x 1.08 in.)
Weight 0.405 lb / 0.184 kg
Compliance United States: UL Listed, File E107041, CCN PAZX, UL 916, Energy Management
Equipment
FCC Compliant to CFR47, Part 15, Subpart B, Class A
Canada: UL Listed, File E107041, CCN PAZX7 CAN/CSA C22.2 No. 205, Signal Equipment
Industry Canada Compliant, ICES-003
Europe: Johnson Controls declares that this product is in compliance with the essential
requirements and other relevant provisions of the EMC Directive and RoHS Directive.
Australia and New Zealand: RCM Mark, Australia/NZ Emissions Compliant
United Kingdom: Johnson Controls declares that this product is in compliance with
Electromagnetic Compatibility Regulations, The Electrical Equipment (Safety) Regulations,
and Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic
Equipment Regulations.
North American emissions
compliance
United States
This equipment has been tested and found to comply with
the limits for a Class A digital device pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
this equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications. Operation
of this equipment in a residential area may cause harmful
interference, in which case the users will be required to
correct the interference at their own expense.
Warning (Part 15.21)
Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s
authority to operate the equipment.
Canada
This Class (A) digital apparatus meets all the requirements
of the Canadian Interference-Causing Equipment
Regulations.
Cet appareil numérique de la Classe (A) respecte toutes
les exigences du Règlement sur le matériel brouilleur du
Canada.
Industry CanadaStatement(s)
F4-DLK0350 Product Bulletin4
This device complies with Industry Canada licence-exempt
RSS standard(s). Operation is subject to the following two
conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including
interference that may cause undesired operation of
the device.
Le présent appareil est conforme aux CNR d'Industrie
Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions
suivantes :
1. L'appareil ne doit pas produire de brouillage, et
2. L'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le
fonctionnement.
Repair information
If the display fails to operate within its specifications,
replace the unit. For a replacement unit, contact the
nearest Johnson Controls representative.
Product warranty
This product is covered by a limited warranty, details
of which can be found at www.johnsoncontrols.com/
buildingswarranty.
Software terms
Use of the software that is in (or constitutes) this product,
or access to the cloud, or hosted services applicable to
this product, if any, is subject to applicable end-user
license, open-source software information, and other
terms set forth at www.johnsoncontrols.com/techterms.
Your use of this product constitutes an agreement to such
terms.
Patents
Patents: https://jcipat.com
Single point of contact
APAC EU UK NA/SA
JOHNSON CONTROLS
C/O CONTROLS
PRODUCT MANAGEMENT
NO. 32 CHANGJIANG RD
NEW DISTRICT
WUXI JIANGSU PROVINCE
214028
CHINA
JOHNSON
CONTROLS
VOLTAWEG 20
6101 XK ECHT
THE NETHERLANDS
JOHNSON
CONTROLS
TYCO PARK
GRIMSHAW LANE
MANCHESTER
M40 2WL
UNITED KINGDOM
JOHNSON
CONTROLS
5757 N GREEN BAY
AVE.
GLENDALE, WI
53209
USA
Contact information
Contact your local branch office:
www.johnsoncontrols.com/locations
Contact Johnson Controls: www.johnsoncontrols.com/
contact-us
F4-DLK0350 Product Bulletin 5
© 2022 Johnson Controls. All rights reserved. All specifications and other information shown were current as of document revision and
are subject to change without notice.
www.johnsoncontrols.com
Table of contents
Other Johnson Controls Controllers manuals
Johnson Controls
Johnson Controls FEC26 Series User manual
Johnson Controls
Johnson Controls LN Series User manual
Johnson Controls
Johnson Controls VMA1615 User manual
Johnson Controls
Johnson Controls FEC26 Series User manual
Johnson Controls
Johnson Controls ZFR1810 User manual
Johnson Controls
Johnson Controls VMA 1400 Series User manual
Johnson Controls
Johnson Controls Tyco KT-1 User manual
Johnson Controls
Johnson Controls PENN P28 User manual
Johnson Controls
Johnson Controls T-5800 Series Use and care manual
Johnson Controls
Johnson Controls Metasys VMA1610 User manual
Johnson Controls
Johnson Controls VA7820-HG*-2 Series User manual
Johnson Controls
Johnson Controls A28 Series User manual
Johnson Controls
Johnson Controls tyco Kantech IP LINK User manual
Johnson Controls
Johnson Controls FAC3611 User manual
Johnson Controls
Johnson Controls EasyIO FW-28 User manual
Johnson Controls
Johnson Controls Metasys FEC Series User manual
Johnson Controls
Johnson Controls FX80 User manual
Johnson Controls
Johnson Controls EDA-8000 Assembly instructions
Johnson Controls
Johnson Controls tyco PowerSeries Neo User manual
Johnson Controls
Johnson Controls FX-PCA4911 User manual
Popular Controllers manuals by other brands
Digiplex
Digiplex DGP-848 Programming guide
YASKAWA
YASKAWA SGM series user manual
Sinope
Sinope Calypso RM3500ZB installation guide
Isimet
Isimet DLA Series Style 2 Installation, Operations, Start-up and Maintenance Instructions
LSIS
LSIS sv-ip5a user manual
Rockwell Automation
Rockwell Automation 1769-L31 installation instructions
