EasyCoder 401 – Installation Instructions

PRINTHEAD REPLACEMENT

1-960390-02

EasyCoder 401

Printhead Replacement Instructions

Edition 3, September 1998

The quick-mount thermal printhead is designed to be

easy to replace:

• Turn off the printer.

• Open the front hatch and right-hand door.

• Lift the printhead.

• Remove the transfer ribbon.

• Turnthelockhandlecounter-clockwisetoopenposi-

tion, see illustration.

• The printhead assembly will now be free. Remove it

carefully as far as the cables allow.

• Removethe twoprinthead cables.Pull atthe connec-

tors rather than the cables!

• If you want to change the position of the printhead,

movethe#T20 Torx screwtoits alternative position.

• Connect the two cables to the printhead.

• Fitthereplacementprintheadassembly back into the

bracketsotheguidescrewfitsintoitsslotandtherear

end of the adapter is held by the two lugs.

• Turnthelockinghandleclockwisetolockedposition.

• Putbackthetransferribbon.Checkthattheprinthead

cables do not interfere with the ribbon.

• Lower the printhead.

• Turn on the power. At power-up, the printer will

automatically reset itself to the characteristics of the

printhead in regard of head resistance and density.

• Close the front hatch and right-hand door and the

printer is ready for operation.

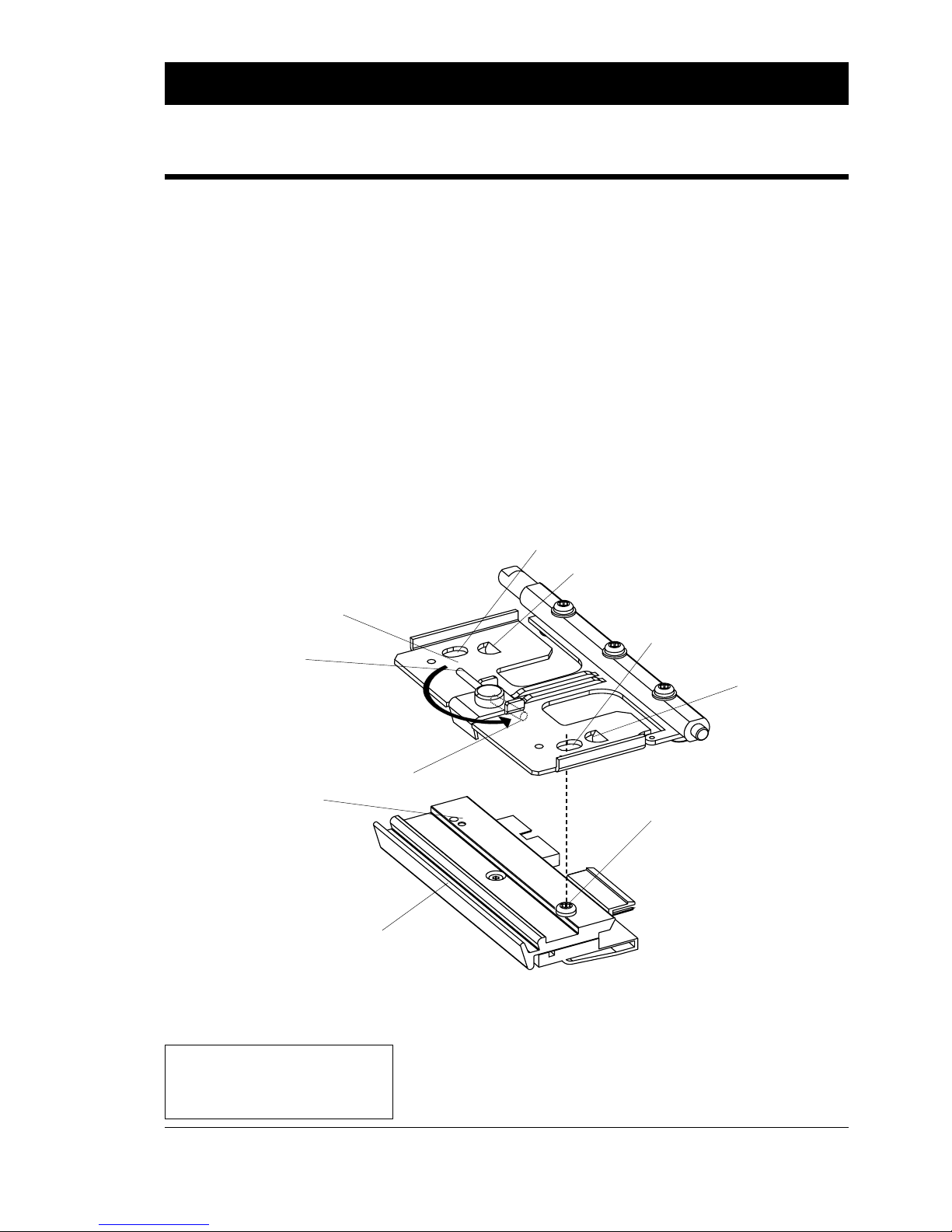

Guide Screw

Printhead

assembly

Alternative position

for guide screw

Lug

Slot

Slot (for alternative position of guide screw)

Lug

Locked Position

Lock Handle

Open Position
