IMOU CCTV-KIT-LITE User manual
1.2.51.32.18870-000
Smart Outdoor
Wi-Fi Security Kit
Quick Start Guide
Recorder × 1
(1TB built-in HDD)
Packing List
KIT QSG × 1Camera × 4
Power Adapter
Network Cable
Mouse
SATA Power Cable
SATA Cable
Rubber Feet Package
Screw Package
NVR QSG
1TB HDD (built-in)
Power Adapter
Waterproof Connector
Screw Package
Positioning Map
IPC QSG
Recorder
HDD Status Indicator
Network Status Indicator
Power Status Indicator
USB Port
LED Indicator Status
Network status indicator o
Network status indicator on
Power status indicator on
HDD malfunction
Network connection is normal
Network connection failed
Power connection is normal
HDD status indicator o
HDD status indicator on
Recorder Status
HDD is working properly
Power Input Port
Ethernet Port HDMI Port
Audio Outpot Port
VGA Port USB PortAudio Input Port

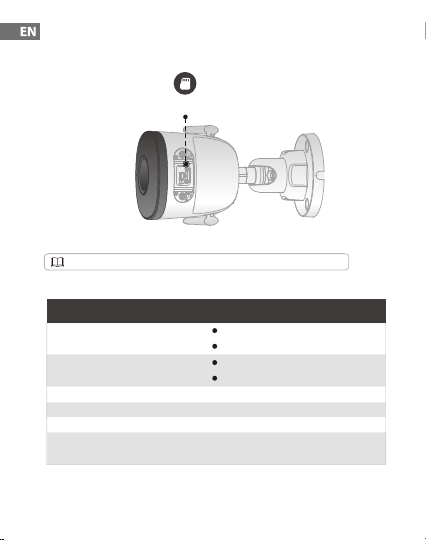

Camera
LED Indicator
Lens
Reset Button
Built-in Mic
Wi-Fi Antenna
Press and hold the
reset
button for 10 s to reset the camera.
Micro SD Card Slot
The pattern of the LED indicator is included in the following table.
LED Indicator Status
Green light ashing
Green light on
Red light ashing
Green and red lights
ashing alternately
Powered o/LED turned o
Rebooting after reset
Booting
Device malfunction
Waiting for network
Operating properly
Network connection failed
Red light on
Firmware updating
Camera Status
O

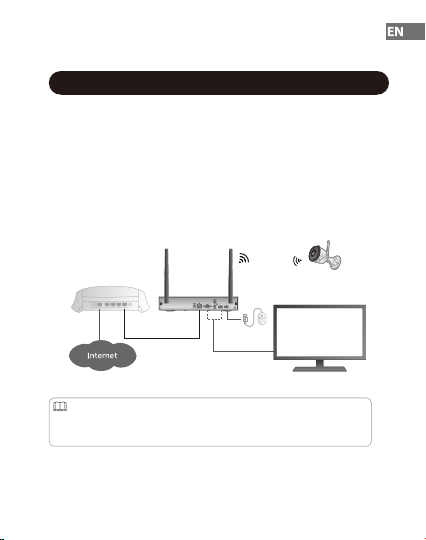

Connection
The recorder supports wireless connection.
Step 1 Put cameras next to the Recorder and turn them on, and then
turn on the Recorder.
The cameras will pair to the Recorder automatically in 120 s.
Step 2 Initialize the recorder. For details, see "Local Basic Operation".
Step 3 Unplug the power cables of the cameras.
Step 4 Install cameras somewhere as needed.
The dotted line in the gure means that you can connect the
recorder to a monitor through a VGA cable or HDMI cable.
Choose one as needed.
Wireless IPC
Recorder
Network Cable
HDMI or VGA Cable
Router
Monitor
Make sure that the mounting surface is strong enough to hold
at least three times of the device weight.
Step 1Drill screw holes on the mounting surface as the positioning map
shows, and then put in the expansion bolts.
Step 2Attach the camera pedestal to the mounting surface with the
self-tapping screws.
Step 3Power up the camera, and then adjust the lens to the ideal angle.
Camera Installation
Camera
Self-tapping Screw
Positioning Map
Expansion Bolt
Mounting Surface
