IEI Technology WS-843A User manual

WS-843A

User Manual

Version 1.2

12.1” TFT Display

Workstation

February 3, 2004

The information in this document is subject to change without prior notice in

order to improve reliability, design and function and does not represent a

commitment on the part of the manufacturer.

In no event will the manufacturer be liable for direct, indirect, special, incidental,

or consequential damages arising out of the use or inability to use the product or

documentation, even if advised of the possibility of such damages.

This document contains proprietary information protected by copyright. All rights

are reserved. No part of this manual may be reproduced by any mechanical,

electronic, or other means in any form without prior written permission of the

manufacturer.

Trademarks

WS-843A is a registered trademark of ICP Electronics Inc. IBM PC is a registered

trademark of International Business Machines Corporation. Intel is a registered

trademark of Intel Corporation. Other product names mentioned herein are used

for identification purposes only and may be trademarks and/or registered

trademarks of their respective companies. If you have any questions or need

other information, please visit to our web site.

http://www.ieiworld.com

Table of Contents

CHAPTER 1 PRODUCT INFORMATION ..................................................3

1.1 GENERAL INFORMATION ......................................................................3

1.2 PRODUCT SPECIFICATIONS ...................................................................4

1.3 DIMENSIONS...................................................................................5

1.4 FRONT ACCESSIBLE CD-ROM AND 3.5" FDD............................................6

1.5 SEALED-MEMBRANE ACCESSIBLE KEYPAD..................................................8

CHAPTER 2 SYSTEM SETUP ................................................................9

2.1 CARDS AND CARD CLAMPS INSTALLATION..................................................9

2.2 DISK DRIVES INSTALLATION ............................................................... 10

2.3 POWER SUPPLY INSTALLATION ............................................................. 11

2.4 COOLING FAN INSTALLATION AND FILTER REPLACING................................... 12

2.5 RACK MOUNTING ............................................................................ 13

2.6 PANEL MOUNTING ........................................................................... 14

CHAPTER 3 MAINTENANCE............................................................... 15

3.1 POWER SUPPLY .............................................................................. 15

3.2 COOLING FAN................................................................................ 15

3.3 DISK DRIVES ................................................................................ 15

APPENDIX A EXPLODED DIAGRAM ......................................................16

APPENDIX B KEYPAD...........................................................................17

A. BLOCK DIAGRAM .................................................................................. 17

B. JUMPER SETTING .................................................................................. 17

APPENDIX C TOUCH PANEL CONTROLLER............................................19

APPENDIX D TOUCH PAD .....................................................................20

APPENDIX E USER MODE OSD ITEM DESCRIPTION .............................21

Chapter 1 Product Information

1.1 General Information

The WS-843A series workstations take advantage of modern flat-panel display

technology. This system unit consists of a CPU board, a power supply, a passive

backplane and a touch-pad for minimum size.

 LCD Display

The WS-843A series workstations are equipped with a color 800 x 600

resolution 12.1” TFT LCD display.

 Versatile Passive Backplane

WS-843A workstation is compatible with BP-10S, BP-10SD, IP-10S, PX-10S

or PCI-10S, PCI-10S2 and IP-10S2 backplane.

 Optional Power Supply

The standard industrial power supply for WS-843A is ACE-832A; and other

optional compatible power supplies are listed below:

ACE-916V, ACE-925C, ACE-925T/932T or ACE-920A/932A/935A series.

 Sealed-membrane Accessible Keypad

The sealed-membrane keypad has 59 data keys, including 10 function keys

to allow users enter data directly.

 Power Switch and USB Port

The lockable drive door protects the power switch and USB port.

1.2 Product Specifications

 7U height workstation for rack-mounting and panel-mounting

 Disk Drive Bay: Supports one 5.25" CD-ROM, one 3.5" FDD and one 3.5" HDD

 Fan Module: 12-cm cooling fan and removable fan filter

 Touch Pad Module: TP-101 (including 2 buttons)

 59 data entry keys, including 10 function keys

 Front LCD on/off switch and OSD button

 Lockable drive door design

 Anti-vibration card clamp

 Optional Backplanes: BP-10S, BP-10SD, IP-10S, IP-10S2,PX-10S or PCI-10S

PCI-10S2

 Power Supply: standard equipped with ACE-832A industrial power supply

 Optional Power Supplies: ACE-916V (12VDC input), ACE-925C (24VDC input),

or ACE-925T/ 932T (-48VDC input), or ACE-920A/

932A/ 935A (AC input)

 Optional Touch Screen: Dynapro® resistive type with RS-232 controller.

 Operating Temperature: 0 ~ 50℃

 Relative Humidity: 10 -95%, @40°C non-condensing

 Dimensions: 483 x 310 x 271.7 mm

 Color: white (Pantone 413C) and black

 LCD Display

Model WS-843A

Display Type 12.1" TFT color

Resolution 800 X 600

LCD Display Colors 262k,18bits

Brightness 250cd/m2

Temperature 0-500C

LCD MTBF 50,000 hrs

Backlight MTBF 30,000 hrs

1.3 Dimensions

The following diagram indicates the dimensions of WS-843A:

Front Panel: 483 mm (W) x 310mm (H) x 12mm (D)

Cabinet: 433 mm (W) x 291mm (H) x 259.7mm (D)

F7 F8

)

(

271.70

3.00

310.00

4.00

303.00

433.00

259.70

42.70

417.80

234.85

57.15

O465.00

483.00

D6.5x8.5

1.4 Front Accessible CD-ROM and 3.5" FDD

WS-843A workstation is equipped with one 5.25” CD-ROM, one 3.5" FDD and one

3.5” HDD. The CD-ROM and FDD are accessible by loosening the two captive

fasteners of lockable door as shown in the following diagram. A power switch and

a USB port are also reachable through opening this front lockable door.

F7 F8

)

(

Display Module:

1.5 Sealed-Membrane Accessible Keypad

The sealed-membrane keypad has 59 data keys, including 10 function keys to

allow users to enter data directly. A built-in controller will merge the signals from

the membrane keypad into one signal that acts as a standard IBM PC/AT

keyboard.

Chapter 2 System Setup

The following sections of this chapter show how to install the components and do

the maintenance.

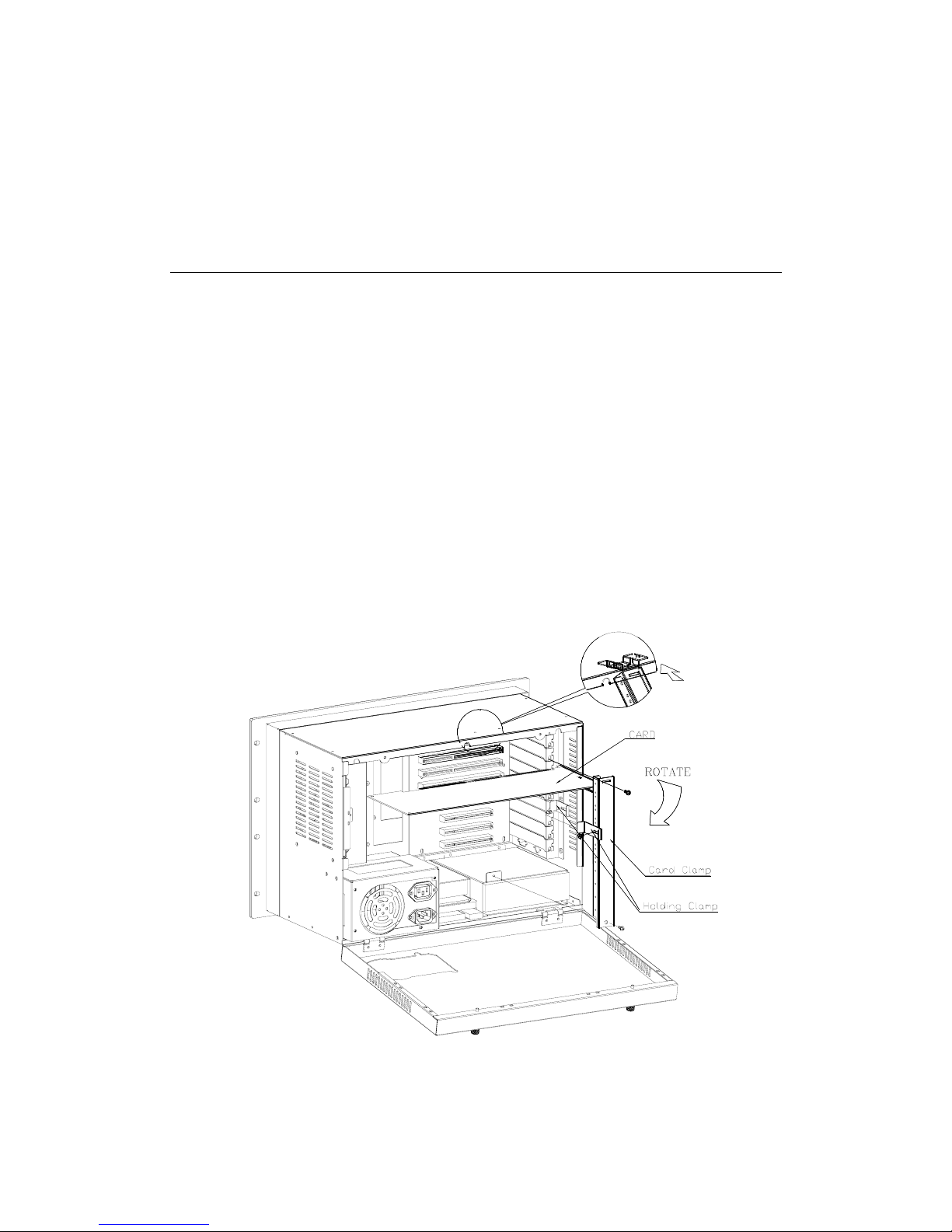

2.1 Cards and Card Clamps Installation

Before installing the cards, the back cover should be removed first by releasing

screws as shown in the diagram below. Then, users can slowly slide the card in

and carefully press it into the appropriate slot of backplane. The card clamp is

designed to hold the add-on cards so as to let it be affixed securely into the slots

moreover to prevent them from vibrating. You may install the Card Clamp after

inserting all the add-on cards by following the steps below:

STEP 1: Place the Card Clamp into the chassis. Insert one side of the Card Clamp

to the fixed hole of the chassis.

STEP 2: If the add-on card is too short, use the holding clamp to hold the card

and fix the holding clamp using screws.

STEP 3: Put one screw on the other side of the Card Clamp then fasten it.

STEP 3

STEP 2

STEP 1
