ICP DAS USA TPD-433-H User manual

TPD-433-H 4.3" Touch Screen Controller - QuickStart (Apr/2020)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 1

TPD-433-H

4.3" Touch Screen Controller

Quick Start

What’s in the box?

Thanks for buying ICPDAS TPD-433-H/433-H-EU device.

This shipping package contains the following items:

TPD-433-H x 1 Quick Start x 1 (This Document)

PET Film Screen Protector

Back Piece x 1

57 mm x 98 mm x 1

Related Information

Documents, such as the User Manuals, the API References,

etc.: https://www.icpdas-usa.com/tpd_433_h.html

Free Development Software, HMIWorks:

https://www.icpdas-usa.com/hmiworks.php

If you have any questions, please feel free to contact us via email.

TPD-433-H 4.3" Touch Screen Controller - QuickStart (Apr/2020)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 2

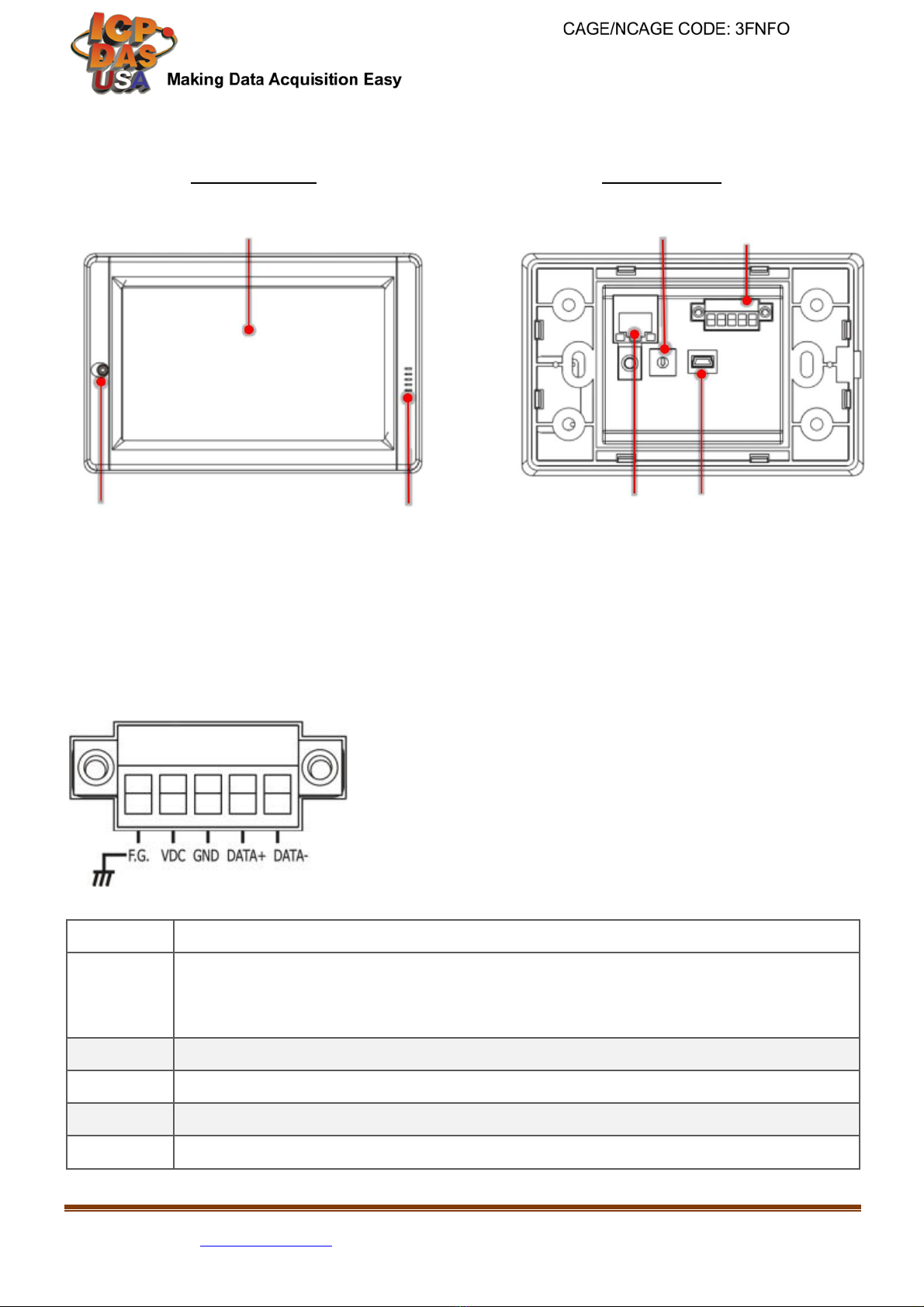

1Appearance

Front View

Rear View

4.3” TFT LCD with Touch Panel

Rotary Switch

Serial Port

LED Indicator

Buzzer

Ethernet USB

2Pin Assignments

Description

F.G.

Frame Ground. F.G. is connected to the inside EMI or ESD

suppression circuits. Make sure that F.G. is connected to the

Earth

VDC

DC input Voltage (range: +12 V ~ +48 V)

GND

Connected to the power supply’s ground pin

DATA+

The positive data line of the RS-485 network

DATA-

The negative data line of the RS-485 network

TPD-433-H 4.3" Touch Screen Controller - QuickStart (Apr/2020)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 3

3Rotary Switch & Default Settings

The definition of the rotary switch:

Mode

Description

Run &

This is a special run mode which is used in

the development stage. The TouchPAD

Update

device can be updated by a PC from the

(Ethernet)

remote side through Ethernet. (Default)

Ethernet

While the application run on the TouchPAD

Force

device seriously crashes, use this mode to

Update

update a new application to the TouchPAD

device through Ethernet.

Run Only

Run the program.

USB Force

Update a new application to the TouchPAD

Update

device through USB.

Network Default Settings

IP Address

192.168.255.1

Subnet Mask

255.255.0.0

Gateway

192.168.0.1

4First Use of the TPD-433-H(-EU)

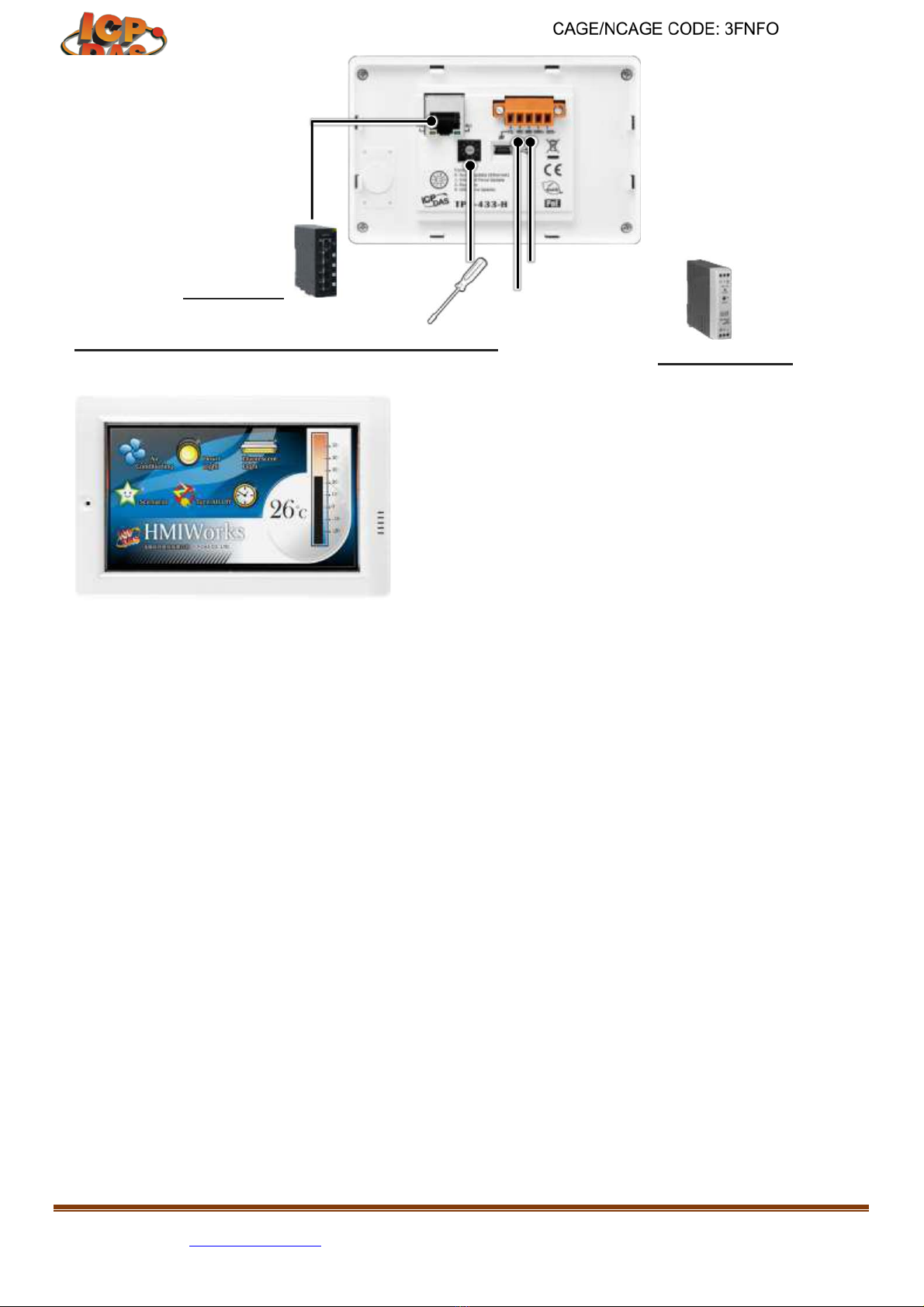

1. Connect wires as the below figure or prepare an Ethernet cable

which will be used to supply power through PoE if there’s a RJ-45

Ethernet port on it. And set the rotary switch to 0 (At this point, the

power is not yet supplied).

TPD-433-H 4.3" Touch Screen Controller - QuickStart (Apr/2020)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 4

PoE Switch

GND

VDC (+12-+48 V)

Use a flat-head screwdriver to set rotary switch

External Power

2. Supply power to the TPD-433-H(-EU),

wait for several seconds and then you

can see the default program run on it.

3. Try to touch on the icons on the bottom-right corner of the screen of

the TPD-433-H(-EU) and you can find that TPD-433-H(-EU) switches

to the setting pages.

TPD-433-H 4.3" Touch Screen Controller - QuickStart (Apr/2020)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717 5

5 Hardware Installation

TPD-433-H-EU with

TPD-433-H with Outlet Box,

TPD-433-H with External

European

OB120 (optional)

Wall Box EWB-T43

86 mm x 86 mm Outlet Box

(optional)
